Started Riveting Right Lower Inboard Wing Skin

August 12, 2012

Well, we had a great day today. Taylor was coming over for our usual family dinner on Sunday night, and I conned him into coming over at 4pm instead of 6pm.

A few small things on the list before starting to close up the right wing.

First, I had Taylor start on the deburring and dimpling of all the ribs and rear spar.

It’s tedious work, and someone has to do it.

In the meantime, I got the hammer out and continued using the c-frame to finish dimpling the inboard skin.

Nicely dimpled skin.

Taylor and I traded (to help with the boredom of deburring), and I sent him outside to prime.

He got SOME of the primer on the skin. (Just kidding, it looks great!)

Then, I clecoed the flap hinge on the flap brace and countersunk the flap brace. There is absolutely NO guidance here on how to finish the three layers (flap brace, hinge, and lower skin). I followed the same process as I did on the actual flap. Dimple the skin, countersink the flap spar, and don’t touch the hinge. Worked well, here, too.

Also, I marked the hinge for trimming.

Last up, I needed to run some string down my snap bushings for future wiring.

I used a long piece of hinge pin, and taped some string through it.

This worked great for me.

After all three were done.

Finally, with nothing else to do (after thoroughly cleaning and inspecting each bay), we started clecoing on the skin.

We carefully reread the directions to make sure we were going to rivet in the right order.

1) Rivet along the rear spar toward the tip (for one “bay”) and halfway forward along the rib.

2) Start on the second bay in the same manner, then come back and finish the first rib to the front spar.

We only had 5 minutes left until dinnertime, so we got the first 6 rivets of the first (inboard) rib squeezed.

I need to do a lot of blog reading to really feel comforatble proceeding in the right order.

Still, 6 rivets is better than zero.

4.0 hours. 6 rivets.

Oh, and then for dinner, these are tomato, spinach, and feta stuffed burgers.

Mmm.

With homemade pasta salad and some grilled asparagus.

So delicious.

Prev | Next

Leave a Comment » | Wings | Tagged: Deburr, dimple, Riveting, Squeeze, String, vacuum | Permalink
Posted by Andrew

Started Preparing the Right Wing Lower Skins

August 5, 2012

Prev | Next

Well, after a busy morning at the SCBC, I did get an hour in on the lower right inboard skin. I’ve decided to go ahead and close up the right wing before proceeding. A lot of people wait until much later in the project (which the instructions say you CAN do if you want), but everyone who waits says there is no real benefit to waiting, so I’m going to go ahead and get them closed up now.

First, I pulled the skin off the wing, and then got to work. I spent about 30 minutes edge finishing, then another 30 dimpling about half the skin with the c-frame. (No, I didn’t forget to drill or deburr, I had done those previously.

This picture is from after edge finishing, but before dimpling.

After I finish dimpling, I’ll prime the inside surface. Then, I’ll deburr and dimple the wing ribs, and rear spar, but I’ll need to remember to countersink the flap brace.

1.0 hour.

Prev | Next

Leave a Comment » | Wings | Tagged: C-frame, Deburr, dimple, drill, edge finish, flap, SCBC, Wing | Permalink
Posted by Andrew

Almost Done with the Right Flap

July 29, 2012

Prev | Next

Taylor and I came SO close to finishing the flap today, but my amazing fiance had some chicken parm in the oven, and by the time the clock struck 6pm, we had to head in to get cleaned up.

Sorry, I’m getting ahead of myself. (The chicken parm was SO good.)

Anyway, I started the day off by finishing up some dimpling, cleaning, and priming of the two very small shims that go on the aft two holes of each end rib.

Not very exciting, but here they are.

Then, I clecoed on the top skin.

I”m so excited it’s going together for the final time.

While Taylor worked the cleco pliers to get the flap assembled to “every other hole,” I grabbed the flap side of the hinge from the wing and prepped it.

Deburred, and filed down the stump where there used to be an extra “eye.” Yes, that’s Dentyne in the background.

Gotta have fresh breath while building.

Here’s Taylor putting some rivets with tape in every other hole.

Nice action shot. I don’t get many of those when I’m building solo.

After blazing through the lower skin and ribs (goes really fast when one person is doing the clecoing and rivet-placing).

I love this part of building.

I did run into a small problem though. On the left flap, I waited to rivet the nutplate on the backside of the inboard rib. On this flap, I did it early, but then got stuck with one of the rivets. not enough room for a bucking bar, so I reverted to a blind rivet.

That one right in the middle. No big deal.

After flipping over the flap and getting all the top side rivets done (including getting the spar blind riveted into the ribs and the top skin rivets to the spar…

Oh man, we’re so close!

We don’t have that many more rivets to do. (Most of the outboard rib rivets, then the hinge-spar-lower skin rivets. That’s it.

1.5 hours today, but Taylor was so productive, I’m counting all his hours, too.

3.0 hours on the clock, 179 rivets.

PROGRESS!!!!!

Prev | Next

Leave a Comment » | Wings | Tagged: dimple, mistake, Right Flap, Rivet, shoot and buck., tape | Permalink
Posted by Andrew

Dimpled Right Flap Top Skin

July 28, 2012

Prev | Next

After mowing the yard today, I was all hot and sweaty, so I decided to put in a half our on the right flap. (If I had gone inside to shower, then come back out, I would have gotten hot again, and ultimately decided not to work on the airplane at all, so I’m calling this a win.)

Anyway, the upper right flap skin was already deburred, so all I had to do was get the c-frame out and get some dimples hammered out.

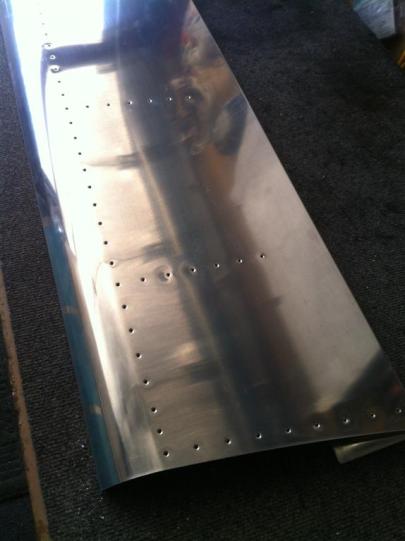

After a few minutes…a freshly dimpled skin.

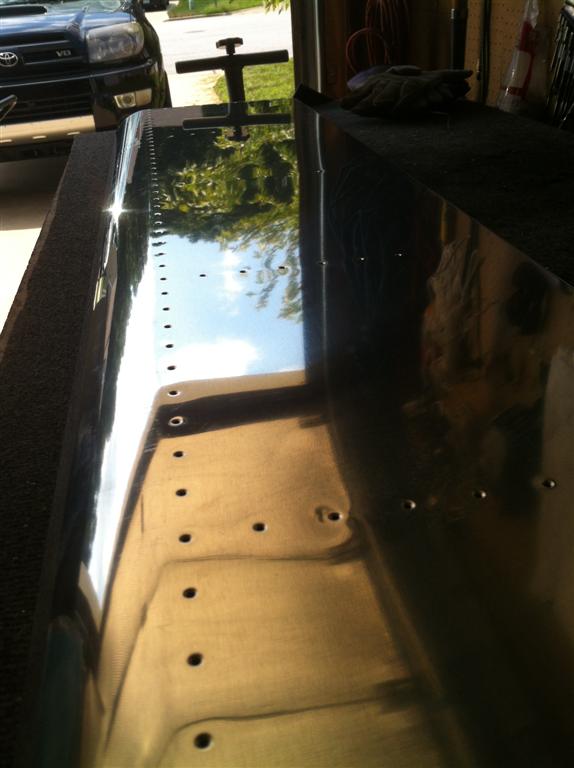

A more normal picture.

Half hour. But very close to starting to finish the final assembly.

Prev | Next

Leave a Comment » | Wings | Tagged: Deburr, dimple, Right Flap | Permalink
Posted by Andrew

More Right Flap Work

July 25, 2012

Prev | Next

Alright, another night in the workshop. And, tonight was a super-night. Not because I’m super-rv7-builder (I am), but because my cousin Taylor came over to learn about the airplane.

After a little talking, I put him to work.

First task, empty out the LP4-3s that just arrived from Van’s (my first airplane package in awhile) into one of my empty yellow bins.

Not off to a great start, Taylor.

He quickly started exceeding my expectations though. To get going on this flap, the next few steps are tedious, but the two of us working helped to lessen the pain.

We focused our attention on prepping the right flap lower skin deburring, dimpling, priming, etc.

Here’s the right flap lower skin. Not a really helpful picture. Oh well.

After showing him each of those “d” activities, We stuck the skin outside and proceeded with my new non-psycho masking prime job.

(If you remember from a few posts (months) back, I’m only going to do the straight-line vinyl trick with areas where someone can see. Parts that are closed off will get this treatment.)

Priming along the rivet lines.

Next up, the same trick on the interior ribs.

Deburr, dimple, scuff, clean, and prime.

It started to get dark out, and I needed the flash. Sorry.

Then, so we could end on a high note, we studied the plans a little, read the instructions (a novelty!) and started clecoing everything together to get a sense of how we should assemble this flap.

Here, the ribs and spar are clecoed to the lower skin to lock everything together.

It’s starting to look like an airplane!

Flipped over for some more clecoing.

We decided we could start by grabbing the four AN470AD4-4 rivets at the aft end of each interior rib.

Beautiful! (Stefan, look! another shop head!)

One of Taylor’s (damn, looks better than mine!)

Just to prove he was there, I took a picture of his toes. (And an airplane part.)

Since he was so productive and really saved me some time, I’m going to count his hours as straight hours.

2.0 hours (but logged as 4.0). 4 rivets.

I know 4 hours per week won’t be super speedy, but it’s a hell of a lot better than I did between January and July of this year.

Prev | Next

1 Comment | Wings | Tagged: Cleveland main squeeze, Cousin, Deburr, dimple, flap, prime, Rivet, scuff, Taylor | Permalink
Posted by Andrew

Primed Some Left Flap Parts

November 6, 2011

Prev | Next

Well, another week later, and I managed to get out in the garage just once. I guess it’s better than nothing.

I decided to get some of the parts finished up and primed. I always like priming parts, because that’s usually what happens just before final assembly.

I started with the spar, spending quite a bit of time deburring, edge finishing, dimpling the upper flange (remember, the lower flange was countersunk to accomodate the skin, but not intrude into the hinge), and finally, some scuffing.

You only get a picture of the scuffing. Sorry.

Then, I started in on the prep for the ribs, and I noticed that the aft flange of the interior ribs are only drilled to #40. As part of my normal prep work, I reread the plans to make sure I know which type and size of rivet goes in each hole. Apparantly, this one is supposed to be drilled to #30 for an AN470AD4- rivet.

WRONG SIZE HOLE!

So, to make some extra work for myself, I clecoed the ribs and spar back onto the lower skin (which has the “rear spar” built into it), and…

Clecoed back together.

Drilled the holes to final, #30, size.

I haven't deburred yet, so don't mind the burrs.

Finally, I spent another chunk of time prepping the rest of the ribs, and getting them cleaned up to take outside for priming.

It was a beautiful day for airplane building today.

Too bad I couldn’t put in more time….just 1.5 hours today. Blah.

Prev | Next

Leave a Comment » | Wings | Tagged: Blah, countersink, Deburr, dimple, flap, prime, scuff | Permalink
Posted by Andrew

Prepped Left Aileron Parts

September 29, 2011

Prev | Next

Well, the guilt of not working on the airplane very much recently finally got to me and I had to do something.

As it turns out, I got the rest of the left aileron completely deburred, dimpled, edge finished, and scuffed, which means next session will be prep for priming and final assembly after that.

Here’s a shot of the aileron main skin, after deburring, scuffing, and dimpling.

Nice dimples, right?

Not sure why I took this shot, but I had to break into my next pack of maroon scotchbrite. I cut them up into ~3 inch squares to work with.

This is good stuff. I wonder how much I've bought so far.

Then, I repeated the process on the spar, and finally the leading edge skin. In addition to the fingerprints, I also used my edge-forming tool to make a slight bend in the edge.

This helps the skin lay (lie?) flat against the other skin. You’ll see.

Sorry for the bad picture, but it's hard to get a good angle where you can actually see the bend.

Here’s the edge forming tool.

It might be time for new wheels. I think these are worn out.

After the edge was formed, I put the leading edge skin up on my bending brace because it is a good place to hold it, and went down the row with the hand squeezer with some dimple dies.

Action shot!

Halfway through, I noticed my blue-tape-on-the-die was wearing out, so I removed it.

Of course, I tried a few dimples again without replacing the tape, and I got circles.

Duh.

So, I replaced the tape, and got nice dimples again.

Circles on the left, no circles on the right.

Here's a new piece of tape. No more circles.

1.5 hours. Next up: cleaning, priming, and final assembly!

Prev | Next

Leave a Comment » | Wings | Tagged: Deburr, dimple, edge finish, prep, scuff | Permalink
Posted by Andrew

Some Left Aileron Deburring

September 25, 2011

Prev | Next

Well, I’ve definitely learned something about myself this weekend. After I pass the initial excitement of a completed assembly, I have a hard time repeating all of those little boring steps to get the second one done.

I’m pretty sure I experienced this on the second elevator, I’ve definitely experienced this on the left/right wings, and right now, I’m having trouble motivating enough to get finished up on this left aileron.

BUT.

The other half of this airplane isn’t going to finish itself, so let’s get to it.

A few weeks ago, I left off on the left aileron after having matchdrilled everything, so today, I got it all disassembled, and started in on the tedious crap.

Here are most of the parts (except the skin) after disassembly. Let's start prepping.

The nice thing on this second aileron is that I’ve already done everything once.

No sweat here countersinking the counterbalance pipe.

A little deeper than flush, as usual, to make plenty of room for the skin.

Oh yeah, I had forgotten to flute the nose rib between the two x’s, so I marked them with…well…x’s, so I wouldn’t forget to flute, then drill them as I was taking everything apart.

I clearly went a little overboard on the flute there. I "unfluted" a little before matchdrilling.

Then ( I guess I was bad at taking pictures today), I clecoed the skin back onto the counterbalance pipe, balanced the assembly on a 2×4 (which was part of my bending brake I had attached to my workbench), and dimpled using the die from my borrowed c-frame.

They all turned out great, like the ones on the right aileron.

Then, I got to deburring and dimpling. I worked on the ribs and reinforcement plates, leaving the spar and skins until another boring day.

asdf

One kind-of-boring hour tonight. Maybe the next few sessions will pick up.

Prev | Next

Leave a Comment » | Wings | Tagged: aileron, boring, Deburr, dimple, scuff | Permalink
Posted by Andrew

Finished the Right Aileron

September 17, 2011

Prev | Next

Wuhoo! As you can tell by the title, I got a TON of airplane work done today. I actually did everything in three 1-hour sessions. Worked out well for everyone.

In the first session, I unclecoed the work I had done last night, and built a little stand (like every other builder) to screw the spar to for riveting help.

I copied this from many builders.

Whoa, I guess the next picture I took was of some shop heads. Moving right along…

My old bucking bar (non tungsten) has an angled edge to it, so I could wedge it in here to buck. It worked perfectly.

In terms of shooting the rivets from the outside, I copied Mike Bullock (about 3/4 the way down this page), but instead of building a little wood stand, I just stacked 3 2×4 blocks. It worked for me with my gun size/flush set, etc.

I'm about halfway through the top skin-to-spar rivets here, demonstrating the technique.

To buck, you reach up, around, and under the lower skin to hold the bucking bar in place.

After you buck, you slide both hands down a few holes and do it again.

I’m glad I’m pretty strict about edge-finishing skins.

This is NOT a cry for help. Well, maybe it is, but it would only be for some sort of arm-hair control product. (I could braid that if I wanted to...)

Alright, moving on, here’s an eerily blue (LED flashlight) picture of the top spar rivets done.

Left side of the picture for the interesting bits.

I didn’t shoot and buck the inboard- and outboard-most rivets. I could easily squeeze those, except for the very edge ones, which tended to sit up from the underlying skin. I devised a little trick to hold the skin down while leaving enough space for a rivet set (of the squeezer) to do it’s magic.

If my side clamp would have been a little longer, I wouldn't have needed the washer, but this worked out okay. (Okay = perfect.)

42 rivets done with no mistakes!

Next up is to get the nose ribs and main ribs riveted on the top side of the aileron.

And thus starts the second session of the night.

CRAP, I forgot to prep the main ribs.

Deburr, dimpl- CRAP, I can’t use a regular die on the aft-most holes. Out comes my steel bar with a countersink in the edge. You remember this from my empennage posts however many years ago…

You stick a rivet in the hole to be dimpled, then put the underside in the countersink, and give it a few pulls from a rivet gun with a flush set.

Not very pretty, but it works great.

I love it when I already have solutions to problems.

This are going mighty smoothly.

So smoothly, in fact, that I HAD to mess something up. Can you see what’s wrong with this picture?

Yup, the two flush rivets on the right side of the picture shouldn't have gone in yet, they should wait for the rib. Dumb Andrew.

While I’m waiting on the ribs, let me set the nose rib rivets on the top side.

5 here, and 5 on the other side. (The two bad rivets are still in this picture, I can't remember when I ended up drilling those out.)

After those nose rivets, they want you to set the top rivets in the other ribs, then cleco everything together and flip it over.

I’m not quite ready for the main rivets yet, but I think I’m okay to cleco everything together.

HA! I TOTALLY REMEMBERED TO USE RTV AT THE AFT END OF THE STIFFENERS!

I remembered this for my first elevator, but then forgot it on the second one. I’ve been reminding myself for A YEAR AND A HALF to not forget it on the ailerons.

I bet I forget it on the left aileron.

Just a dab, behind the...stiffeners.

These pictures might be out of order. After the RTV, I clecoed the bottom part of the skin to the spar and then went outside to fetch the ribs, which were dry (although not primed in this picture below. Weird.)

Right Inboard and Right Outboard. Pretty complicated, right?

Okay, I think we’re back on track now. The ribs are dry, and they are now riveted to the top part of the skin.

16 more flush rivets. 8 on each side.

Then, the third session of the night, and the last few steps of the aileron!

First, flip that bad boy over and make sure it’s flat. I used the MDF workbench, an extra piece of MDF, and some stones.

Things were flatter than Kansas.

They first want you to set all the counterbalance pipe ribs.

This went great, and I didn't feel like I had to round off the rivet heads with a hammer after setting them like other builders...

After those 14 rivets, you’re supposed to set the 6 nose rib rivets, 3 on each side.

6x check.

This is a really long post. Are you guys still with me?

I hope so, this is the fun part.

After those, you set the main rib-to-skin- rivets (16 there, too), which are partially hidden by the top piece of MDF here, then move on to the skins-to-spar blind rivets.

Halfway done here.

A closeup after pulling those. Looks pretty good, right?

That was 42 more rivets.

Then, you step back and cheer!

Or don't cheer, and just take another closeup picture.

Okay, have you guys been counting rivets with me? I couldn’t keep track very well, so I started just writing them on the skins.

My final number for the evening?

150.

With about 10 minutes left before the next half-hour tick (cause I only log time in 30 minute increments), I decided to get the aileron brackets attached. All went well (with the usual AN3-4A bolts, some AN960-10(regular and/or L) washers, and AN365-1032 nuts, except there was one hole that wasn’t quite perfect. It was fine, but just stubborn enough that my pinky (the only finger I could use to slide the bolts in) couldn’t push hard enough.

My solution? Take my economy squeezer with no die in the yoke (the black part), and squeeze the bolt in. Since there is no die back there, the bolt just slides into the hole in the yoke as it’s squeezed.

Worked great!

After some fiddling, I got all of the nuts on, just past finger-tight. I need an in-lb torque wrench and some inspection lacquer.

This is the outboard end. The inboard end is similar, but a little different.

Then, I had to take a step back and look at my completed aileron.

(Triumphant music playing...)

Good day today, and I got to take an airplane part up to the airplane storage room, I mean, the exercise room…

3 hours. 150 rivets, 4 of them drilled out because I’m dumb and didn’t pay attention.

Time for bed.

Prev | Next

Leave a Comment » | Wings | Tagged: aileron, dimple, prime, Pull, Rivet, Squeeze, Trick | Permalink
Posted by Andrew

Clecoed Together the Right Aileron

September 16, 2011

Prev | Next

Tonight, my main goal was to get the right aileron to a place where tomorrow I could start riveting on it. The last two paragraphs of the aileron section in the manual are pretty confusing, and you have to read them over and over to make sure you stick to the very specific order of riveting. I don’t want to get started on any of the confusing tonight, so I’m going to concentrate on prep work.

First up, get the right aileron skin deburred, dimpled, cleaned, and primed.

I wasn’t too good at taking pictures of the boring stuff up front, but here are the leading edge and aft aileron skins back inside (from the driveway) to dry after priming.

I had previously pulled the internal blue vinyl off the skins, so my priming lines weren't as neat as they usually are. That drove me nuts, but I resisted the urge to tape them off. Build on, Andrew!

While I waiting, I clecoed the right wing bottom skins. Now the right wing can be removed from the stand and moved to the cradle (once I decide how to build it/use it while I’m building the left wing).

I like how it looks like a wing.

After some drying time, I started following the instructions for assembly. First up, lay the counterbalance pipe and nose ribs inside the leading edge skin.

check!

Then, rivet the nose ribs to the spar. (6x check, although no pictures, sorry.)

Then, cleco the nose skin to the aft skin to the spar.

I was very careful to remember to use my edge roller to put a little bend in the edge of the overlapping skins. See where the cleco is missing? I used this (and the clecoed section to the right) to illustrate how well everything will pull together once rivets are set.

No gap there between skins to the right. Sweet. You can barely make out how I rolled the edge of the nose skin a little.

Once I got clecos in the top half of the aileron…

Whoa, clecos!

I flipped the aileron over and started clecoing the bottom. I know the first step when riveting tomorrow is to take all of these out so I can reach under and around for the top rivets, but I wanted to mock it up to confirm the bottom skin was going to lay together as nicely as the top skin.
