#10 Dimple Die from Avery…and More

July 21, 2010

Prev | Next

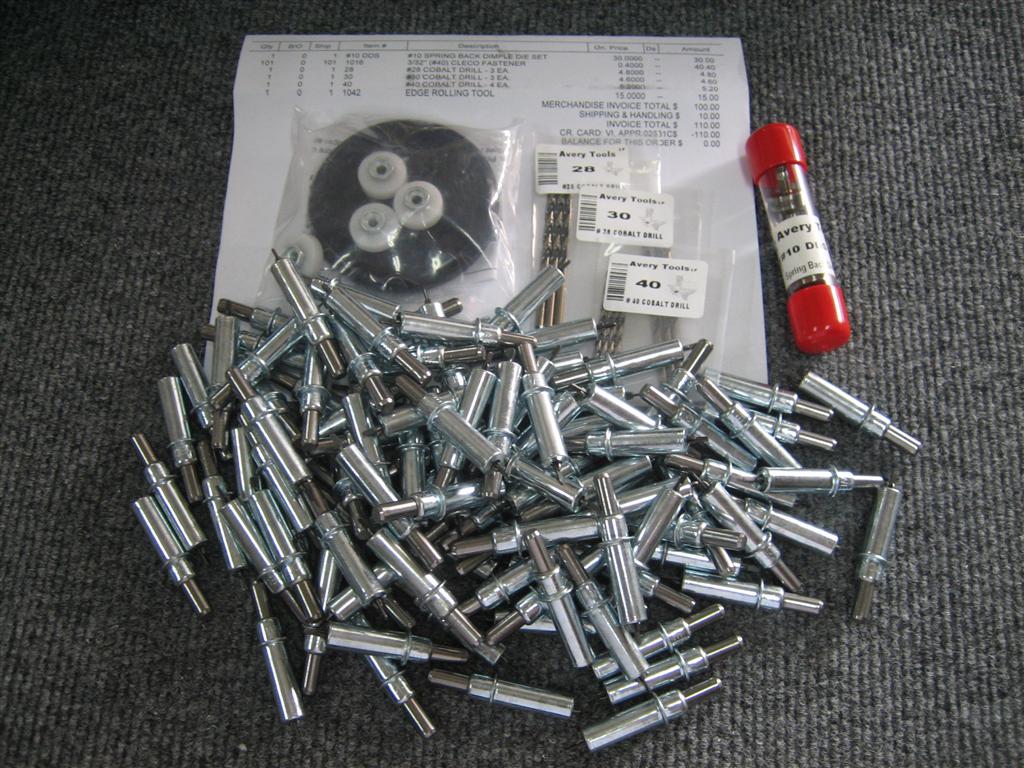

My latest tool order from Avery showed up.

Edge Roller tool, #28, #30, and #40 cobalt drill bits, #10 spring back dimple dies, and 101 clecoes. Why 101 clecoes? Because my total with 100 was $99.60, and they cost $0.40. I wanted to get to $100. Why? BECAUSE AVERY HAS FREE SHIPPING OVER $100.

Oh wait. No they don’t. That’s the Yard Store.

So I go to set the bag of clecos (and the one separate extra cleco that they had to throw in to get to 101) next to the other stuff, and it didn’t look good for the picture. So I grab the bag to flip it over, and guess what? The top wasn’t sealed, so 100 (+1) clecoes fall out onto the table (and my foot, and the floor) and scatter everywhere (roll under the workbenches, etc.)

[sigh]

It was like 52 card pickup, except with clecoes, and there were 101 of them.

But, I got over it, because these are nice new shiny clecoes. If you zoom in, you may be able to see what I paid, for reference.

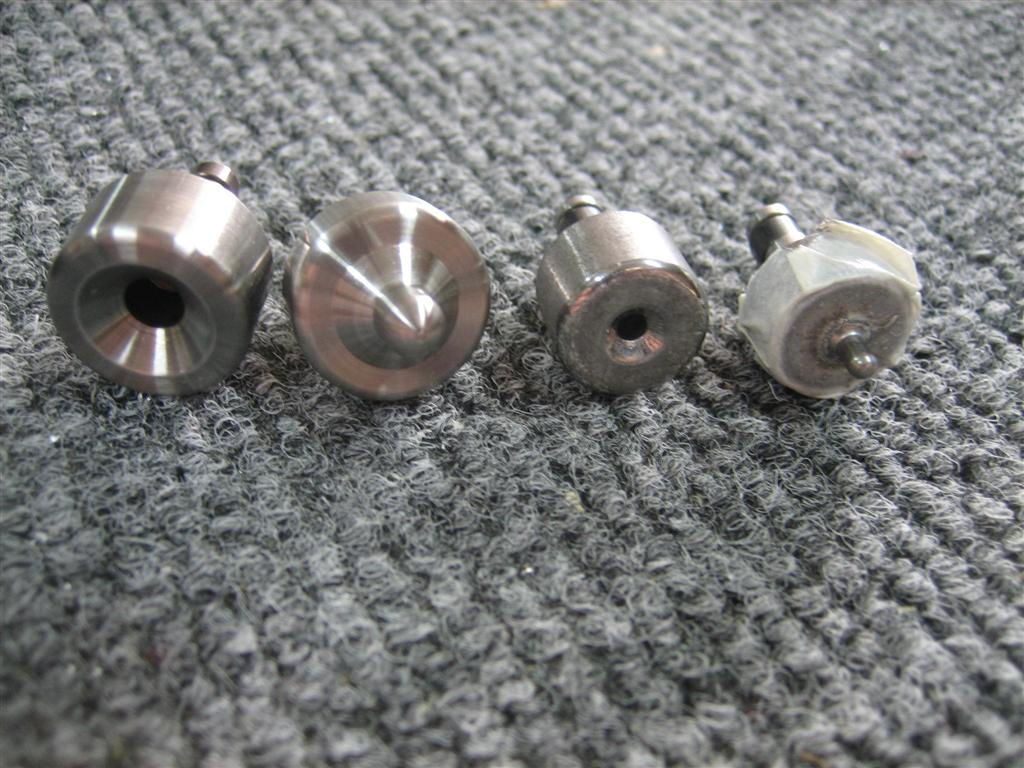

After closer inspection, I pulled out the #10 dimple dies and set them next to the #40 dies, for scale.

#10 dies require a #12 drill bit (it's for a #10 screw). #40 dimple dies require a #40 drill bit.

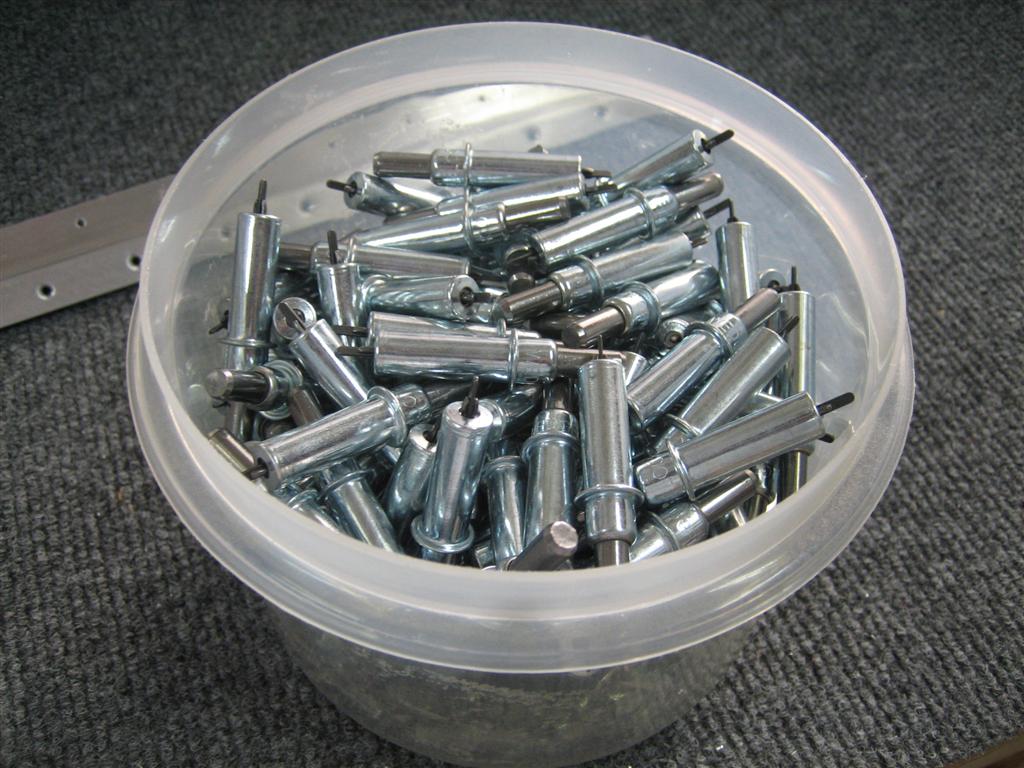

The new clecoes almost fill my patent pending (not) cleco bin.

Shiny!

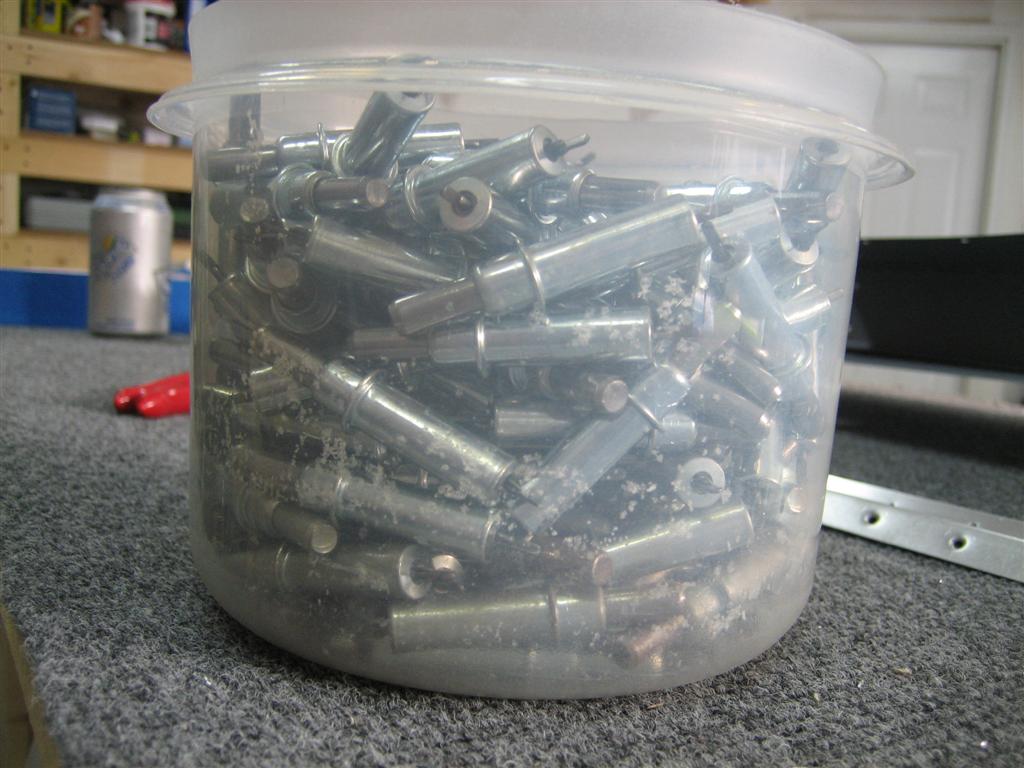

You can see the stratification of old (bottom) and new (top) clecoes.

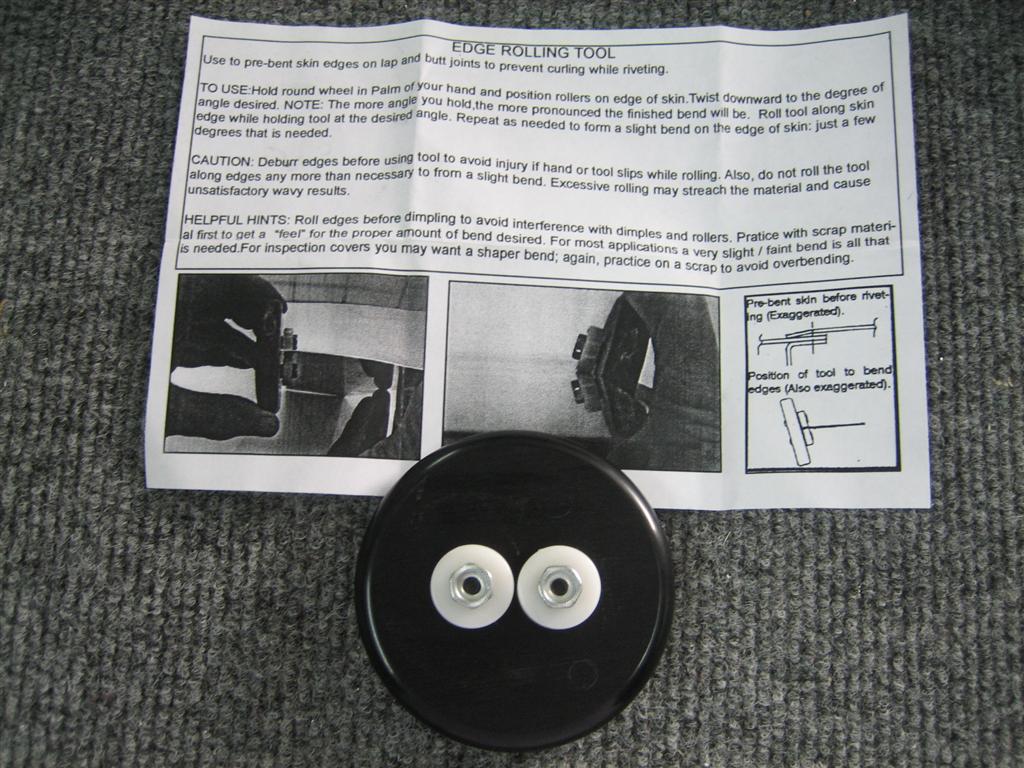

Finally, the edge roller tool.

Nothing really special here, this should make some of my lap joints look a little cleaner.

Prev | Next

Leave a Comment » | Tools | Tagged: , , , , , , , | Permalink
Posted by Andrew

More work on the Counterbalance Skin

July 20, 2010

Prev | Next

Things have been slow with the airplane recently, right? Well, after a few weeks of letting the garage slowly spiral into a mess of hall closet items (while I’m redoing the floors), saw dust (while I’m redoing the floors), and aluminum dust/shavings (I am working on the plane a little), I decided it was time to get things cleaned up. After an hour of cleaning and organization, I snapped this picture of a nice clean workbench and floor area. Doesn’t really do it justice, but something about a clean workbench makes me happy (notice how I am not showing you a picture of my second workbench!)

(Don't tell the girlfriend I had the vacuum cleaner up on the table going back and forth. It works pretty well, but I accept no blame if you try this at home.)

Okay, finally on to the project. My replacement E-713 came the other day. instead of trying to cleco it on to the already-dimpled skeleton and matchdrill, I am going to trust Vans’ pre-punches and just run a #40 bit through the appropriate holes before deburring and dimpling.

After that was complete, I taped the outside of the skin that I want to protect from primer and scuffed everything up.

Ready to prime...almost. I'm still waiting on a #10 dimple die from Avery. Should be here any day.

Because this part of the exterior side is under the main left elevator skin, I'm going to prime it. Those two smaller holes need to be drilled to #28 before dimpled for #6 screws.

After that, I grabbed my two trim tab horns, and deburred, scuffed, and dimpled the flange holes.

I still need to trim these down per the plans for the electric elevator trim, but I also haven't ordered my electric elevator trim kit yet.

Finally, I disassembled the trim tab to get a little start on that. Here’s the spar, deburred, scuffed, and dimpled on the bottom flange.

The top flange (on the left side of the picture) needs to be countersunk for the upper trim tab skin, because the hinge sits just below the flange, and can't accept a dimpled flange.

2 hours in the shop today, but only 1 hour counts as build time. Hooray clean shop!

Prev | Next

Leave a Comment » | Empennage | Tagged: , , , , , , , , , , , , , , , , | Permalink
Posted by Andrew

Riveted E-703 and E-704 to E-702

July 18, 2010

Prev | Next

Even though I haven’t been feeling all that well in the last few days, I did sneak out in the garage for 30 minutes. I was mostly motivated by the arrival of my replacement E-713. Here she is, in all her beauty. (Let’s not mess this one up, too, Andrew.)

Ah, a non-mangled part for a change.

After admiring E-713 for awhile, I moved on to riveting E-704 and E-703 together. Here are 8 lovely shop heads.

Looks good on this side.

And then I riveted my extra credit one leg nutplate in the tooling hole for further control surface balancing. Because I’ll want to balance the control surfaces pretty well while they are polished, if I ever decide to paint, I’ll have to add weight back in. This will be the best way to do this.

Thinking even further ahead, if I put a screw in here, I'll make it short enough that it falls out before binding. Or, I'll safety wire it. I'll have to think more about that.

And the other side. This was fun to rivet because I had to do both rivets at once.

That was it for today. 14 rivets, one of them had to be drilled out and replaced. Now, I’m just waiting for my latest Avery order so I can finish up the replaced counterbalance skin.

Prev | Next

Leave a Comment » | Empennage | Tagged: , , , , , , , , | Permalink
Posted by Andrew

Riveted R-912 Counterbalance Rib

March 23, 2010

Prev | Next

After priming the R-912 counterbalance rib and R-913 counterbalance skin last night, I thought I would get those installed on the skeleton. First thing to do is check the plans for a rivet callout.

What!? No rivet callout? That means I have to think!

No rivet callout for the R-912 to R-902 spar attachment.

I grabbed the shortest AN470AD rivet I could find…AD4-4. That seemed to be good.

This one will work.

And an after picture. Wuhoo!

Successfully set rivets.

I squeezed these. I’m still not totally happy with my squeezers ability to squeeze AD4 rivets.

Not too shabby.

Then, I grabbed the counterbalance skin and clecoed it on. My squeezer is only a 3″ yoke, so I can’t reach any of these holes.

My squeezer isn't long enough to reach these holes, and the girlfriend is outside helping me with some deck chair refinishing, so no rivet gun tonight.

Another picture of those two clecoed on the skeleton.

It's nice outside, so I had the garage door open. Lot's of sunlight in the afternoons.

Finally, I got the left skin clecoed on to check for fit and complete any remaining edge-finishing required before riveting.

Left rudder skin to counterbalance skin holes.

To be determined: whether I should edge-roll the forward edge of the rudder skin where it overlaps the counterbalance skin.

It looks good now, but might pull up when I rivet. I think I'll edge roll this. "Avery? Please send me your edge roller tool. Thank you."

Two rivets set today. Half hour total.

Prev | Next

Leave a Comment » | Empennage | Tagged: , , , , , , , , | Permalink
Posted by Andrew

Primed R-918s and R-608PP

March 14, 2010

Prev | Next

After a whole 10 days on vacation, a few flight delays, cancelled flights, rebooking to a city 6 hours away from home, lost bags, malfunctioning 737s, and a broken down rental car, I finally made it into the shop.

I know I wasn’t going to be able to put in hours and hours of work, but in the words of Bob, “baby steps.”

First of all, while I was gone, I got an order in from Avery. It contained the NAS 1097 “Oops” rivet kit, and two sets, both 1/8″, one straight, and one double offset. These were relatively cheap ($8 and $20, respectively) and I believe they will come in very handy. Here’s the merchandise.

I love buying tools. It's like crack, but more legal.

After unpacking the new tools, I finished deburring and edge finishing the R-918s.

A deburred and edge-finished R-918. I'm not sure which side this due to the glare in the picture. But you don't really care, though, do you? They are identical parts (although, make sure to keep them separate, because they've been matchdrilled to the rudder skins).

I shot a little primer on one side of those two pieces and started deburring and edge finishing R-608PP, which is the uppermost spar reinforcement plate. I shot a coat on one side of that, and the other side of the R-918s.

Ready to prime R-918s.

R-918s and R-608PP primed. They are still wet, which is why you can see the reflection of the garage insulation on the R-918s.

While waiting for those coats to dry, I unpacked my Oops rivet kit.

Which one of these labels isn't like the other?

All done and labeled.

I didn't have any more room in my rivet "briefcase" so I'll leave them in the included case.

Then, in a similar manner to Brad Oliver’s explanation page (another shot here), here’s my shot of some NAS 1097 rivets next to their AN426 counterparts.

AD3-3, 3.5, and 4 (AN426 and NAS 1097 of each to compare smaller heads for the same size rivet) and on the far right, an AN426AD3-3.5 and a NAS1097 AD4-3.5. Same size head.

From my understanding the AD3 (smaller) sizes are used when a smaller rivet head allows you to countersink thinner material (instead of having to dimple) in non-structural areas (dimples aid in the strength of the riveted pieces). Mostly, they are used where flush rivets are required to attach nutplates (so you don’t have to dimple the nutplates, which is apparently difficult).

The larger size (AD4) rivets are used primarily when you have messed up an exterior hole during riveting or drilling out a badly set rivet that you have to enlarge the hole. The smaller heads on the larger rivets match the regular sized rivet heads.

Once I got primer on those three parts, I put them back on the “table o’ small rudder parts”, to give you a good understanding of how much more tedious prep work I have to do before I can start riveting parts together. I can’t really complain. I love this stuff.

3 of 11 parts primed (and these are just the small parts).

A short half an hour today. Felt good.

NEXT DAY UPDATE:

CRAP!

Because the R-918 (rudder bottom fairing attach strips) go under the rudder skin and bottom rib, they need to be dimpled, and I forgot to do that last night.

Let’s see, rudder skin = regular #40 dimple dies, bottom rib = #40 tank dies, which means I’ll have to use the #40 tank dies on the R-918s, too. I wonder what the dies will do to a part that is already primed. I’ll give it a shot, take some pictures of the results, and re-prime if necessary. Boo.

Prev | Next

2 Comments | Empennage | Tagged: , , , , , , , , , , , | Permalink
Posted by Andrew

LH skin dimpling, some HS riveting

January 9, 2010

Prev | Next

This morning, I snuck out into the garage and starting dimpling the left hand HS skin with my new (borrowed) c-frame.

After thinking about the setup and trying a few things, I quickly realized I wanted the female dimple die underneath and the male dimple die on top.

I set up the skin on 3 2x4s (I haven’t built a dimpling table yet because I wanted to see how I liked doing it) which was less than a 1/4″ above the female dimple die. Then I basically moved the c-frame around until the male dimple die was lined up (this way I don’t scratch the skin with a male dimple die while trying to locate the hole from underneath, like some builders do). Then I held the male dimple die down into the hole and…WHACK! Perfect dimple. I am far happier with these dimples than the pop-rivet dies. Keep in mind here, I am dimpling with the standard spring-back dies here, not the tank (deeper) dies.

Here's my setup for now. I like this because you move the c-frame, not the skin.

After finishing each row, I put a line of blue painters tape on the outside of the skin. I learned on the practice kit to protect whatever I didn’t want to scratch. The tape will come off just before riveting.

Blue tape on the outside of the skins. Hooray protection!

After I finished both sides, I scuffed up the internal lines, cleaned, then primed the inside of the left HS skin.

Here's the inside of the left skin, all suffed up, ready to prime.

While I waited for skins to dry, I riveted together HS-705, HS-702, and HS-704, but only the middle two holes. The rivets didn’t bend over, per se, but set a little crooked. (My fault for not keeping the squeezer steady.) I drilled them out perfectly, and then decided shooting them might be a better idea. After practicing with a piece of scrap for a minute, I actually ended up shooting these rivets. They look really good.

Shop head picture. Rivets 7 and 8.

Machined head picture. This just looks good.

This is not the order the directions has you rivet, but I was getting antsy to get some primed pieces together. Notice I didn’t slide in the HS-710 and HS-714 yet (still need to finish those), as you can set HS-404 to HS-702 to HS-405 without them. Then, it is off to run some errands.

When we got home from running some errands, my latest Avery tool order had arrived. Finally, a scotchbrite wheel! 6″x1″x1/2″ CP-7AM “Cut and Polish” Medium wheel. Also, I’ve heard some good things about the Permagrit line of products, so I picked myself up one of the 12″(?) ones. Fine on one side, coarse on the other, flat (I heard not to get the curved (convex) one.. Much better for making a straight edge than my regular file.

More tools!

First thing after mounting the scotchbrite wheel, I finished the edges of HS-710 and HS-714 with the wheel. So easy. I should have ordered the wheel at the beginning. (Serves me right for trying to piece together a toolkit instead of buy one all at once. I thought the scotchbrite wheel was a luxury. It is not.) Then I countersunk the holes in HS-710 and HS-714. I had done this before, but sized the countersinks perfectly for a AN426AD4- rivet. When you cleco the dimpled HS-702 front spar to either piece, the spar doesn’t sit flush, so you have to enlarge the countersinks.)

Enlarge countersinks. Check.

Then I finished surface prep, cleaned, and primed those two.

While waiting for the primer to dry, I clecoed HS-707 (leading edge “middle” rib) and HS-706 (tip rib) to the left skin to get in the mood for riveting. The girlfriend and puppies are taking a nap, so I’ll have to come back to this later, but I’m getting excited to start skin riveting.

HS-707 and HS-706 all clecoed to the left skin and such.

Anyway, I put in a few minutes of right HS skin deburring, scuffing, and dimpling before coming in for the day. (Notice I decided to scuff the interior of the right skin before dimpling? It’s easier to scuff the skin without all of the dimples getting in the way. It’s these little things that will save me time the second time around.)

Let’s see. 9am to 11am, 2pm to 4pm. 4 hours today.

Prev | Next

Leave a Comment » | Empennage | Tagged: , , , , , , , , , , , , , , | Permalink
Posted by Andrew

Primed Front LH Spar, Devinyled RH Skin

January 6, 2010

Prev | Next

After getting home late from work and running back out for some takeout, I got in about an hour before heading to bed.

First, I finished cleaning up (scotchbrite, dawn detergent, and lacquer thinner) the left HS front spar in preparation for priming. I don’t love doing these one piece at a time, but the spray can makes it easy, and I can complete a few parts in an evening. I did the front spar so I can maybe start riveting stuff together this weekend. I still have some work to do on cleaning up the rear spars and rear spar reinforcement bars, but I could start with the skins and ribs, then finish the rear spar stuff once I have to plug it into the back of the completed HS.

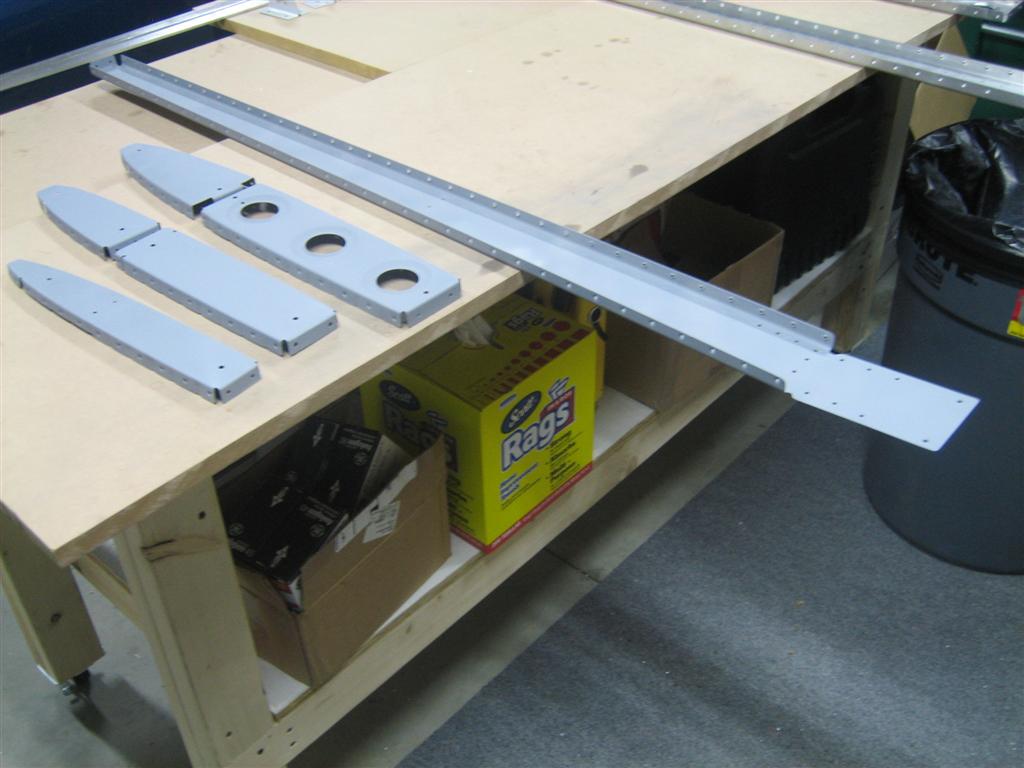

Left front spar (HS-702) sitting next to the left ribs I finished the other day.

Then I devinyled the right HS skin, which went much faster than the left skin.

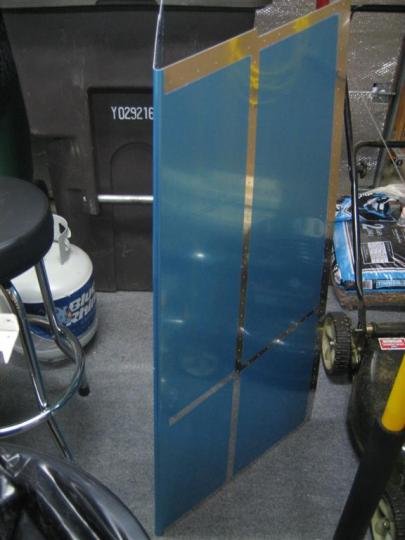

Right HS skin. Doesn't that look nice?

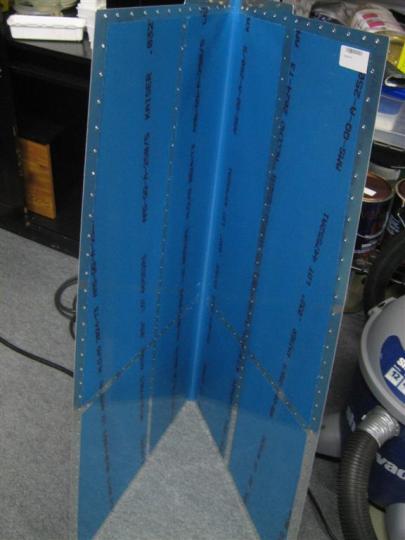

Here's the inside...

Also, a fellow RV (-8A) builder at work was kind enough to lend me his Avery C-frame. Maybe I’ll get a chance to do a little skin dimpling this weekend.

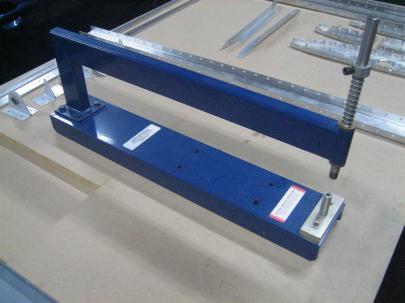

Borrowed c-frame. Wuhoo saving money!

Next up:

1) Finish dimpling left HS skin
2) Deburr right HS skin
3) Dimple right HS skin
4) Prep and prime inside of both skins
5) Finish prep for right HS ribs and front spar
6) Prime right HS Ribs and front spar
7) Prep and Prime rear spar components
8) Rivet HS together

Prev | Next

Leave a Comment » | Empennage | Tagged: , , , , , , , | Permalink
Posted by Andrew

Another Avery tool order

January 5, 2010

Prev | Next

I ordered the following from Avery today:

Part # 3753 – 6″ Scotchbrite cutting and polishing wheel

Part # SB280 – Perma-grit Sanding Block – Flat – 280mm x 51mm course/fine

I only make a special entry for these because they come so highly recommended. An F1 Rocket builder said he wouldn’t build again without his Permagrit block, and another RV-8 builder really convinced me yesterday that I am not going to get the edge finishing final product that I want with a scotchbrite wheel. I’ll add pics when they show up.

Prev | Next

Leave a Comment » | Tools | Tagged: , , , | Permalink
Posted by Andrew

Deburr and Dimple HS skeleton

January 3, 2010

Prev | Next

Today was another short day.
I spent about 3.5 hours (here and there) deburring all of the holes in the HS skeleton and then dimpling any holes that needed it (skin to rib holes). I’m using Avery’s tank dimple dies for any dimples recieving other dimples (ribs only, which recieve the skin dimples) at the reccommendation of some other builders (namely Brad Oliver’s post). The resulting dimples look great so far. Sorry about the lack of pictures; edge finishing is not exciting.

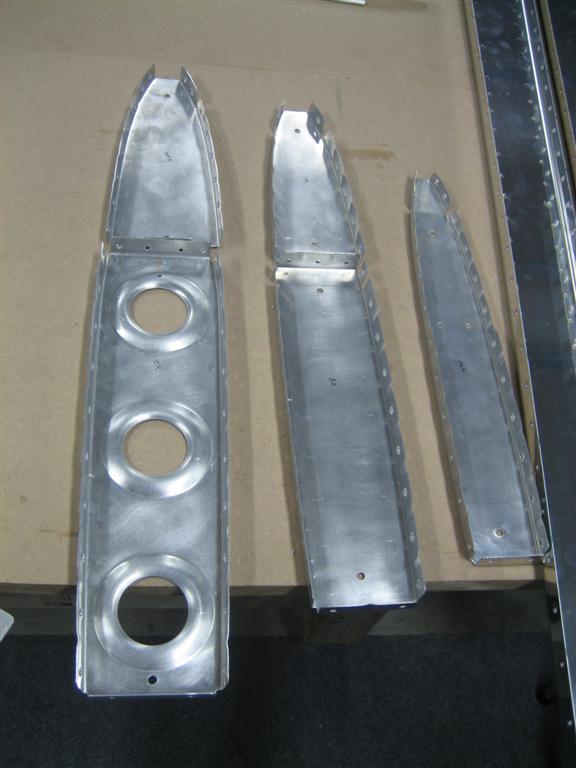

These are just the right side HS ribs, but I did the left side, too. And all of the spars.

I also managed to edge and surface prep the left hand skeleton and one of the HS-609PPs.

Coming up next: more edge finishing and prep for priming, plus skin deburring and dimpling. I might finish up the left side stuff (since I can prime pretty quickly) and do a little riveting tonight. Or, wait and do the whole HS together. I haven’t decided yet. In the least, I need to clean up a little. There is aluminum everywhere.

Prev | Next

Leave a Comment » | Empennage | Tagged: , , , , , | Permalink
Posted by Andrew

First Avery tool order

December 25, 2009

Prev | Next

Dec 25, 2009

I made another tool order last night. This time from Avery. I’ve heard really good things about them, but they tend to be more expensive for some things. Merry Christmas to me (and all of you…).

POP RIVET DIMPLERS – 3/32″ – These dimple dies are for hard to reach places in the aft end of ribs. You can also use them on the skins, if you don’t really want to buy a c-frame, (or are planning on borrowing one, and haven’t gotten around to it.) I know a few people on the forums who have done all of their skins with pop-rivet dies. I definitely need them for the ribs, so if they work out, I’ll try them on the skins. Otherwise, I’ll get the c-frame.

3/32″ TANK DIES – This is for dimpling the understructure (ribs, etc.) with a slightly larger dimple (dies were made for dimpling the fuel tanks, where the pro-seal required to seal the tanks prevents the rivet head from sitting flush). I’ve decided, after reading Brad Oliver’s post on the tank dies here, and then confirming that many builders have gone this route, that this will be a good idea.

EXTRA LONG DOUBLE OFFSET BACK RIVET SET – I need a backrivet set anyway, so instead of ordering the cheap (pronounced “great value”) one from the Yard, I decided to just get one…one that will work when I need to backrivet something (in the wings?) with a double offset. People rave about backriveting the wing skins, and while I am a long way from those steps, at least now I’ll only need one backrivet set instead of two.

DRILL STOPS – #40 Drill Stop – I tried to make my own drill stops out of tubing, but it didn’t work. I hope these are nice.

DRILL STOPS – #30 Drill Stop – Needed the #30 size, too.

MONOGRAM AIRCRAFT SHEET METAL FASTENERS (CLECOS) – 1/8″ CLECO – Ha. I bought 18 of these to bring my subtotal to $100.02. Free shipping over $100! I’m so clever.

Avery tool order that came in. Wuhoo! Apparently I had already put away the pop rivet dimplers. Sorry. They come in a little plastic baggy about the size of the drill stop bags with about 6 extra nails in it.
