Wing Stand 2.0, Drilled Out Some of Left Rudder Skin

February 9, 2018

Prev | Next

Well, here I go.

First thing, you are seeing some work from the last few weeks. When I got home from the long XC road trip with the RV, I had to immediately reassemble the wing cradle.

No biggie, just a few 8-foot 2x4s, and a quick redesign of the spar side support.

Not exactly per the plan, but I had 2×4 laying around, but no 3/4″ plywood.

And yes, I splurged for four 4″ locking casters. So nice.

I can’t tell you how nice it is to have 4 nice big casters on this thing. Don’t scrimp here.

Anyway, given that the left wing hasn’t been started, but the skeleton and skins are clecoed together for transport, I knew I needed somewhere to store some skins once they come back off the skeleton.

So, I ripped some 12″ pieces of 8-foot long oak paneling I had laying around, and screwed them to the long support on the bottom of the cradle.

Bad angle. Sorry.

I ripped a 2×4 in half (because I’m cheap) and screwed it into the top support.

I’ll call this the “upper” skin support.

asdf

A better angle?

Now that I have some skin storage, let’s find something to store!

The interim owner of the kit (Jim) had purchased some replacement rudder skins (remember this?) but never opened them. After opening the package, I foudn two brand-spanking-new skins.

Far less damaged than the current rudder skins.

So, here they are now, in my new skin-storage area.

Tada!

Okay, now. Let’s get some actual building going on.

(Well, not building, but un-building.)

Remember this post?

The partically drilled out rudder from 4 years ago.

So, I dug out some #40 drill bits, and started drilling.

Here’s a gratuitous shot of some aluminum shavings.

After drilling out some left-skin-to-spar rivets and the bottom rib rivets, I attacked the upper left stiffener.

11 for this stiffener.

It was 25 rivets for the spar, 20 for the bottom rib, and 11 for the upper stiffener.

56 rivets drilled out, and a whole lot more to go.

(for the record, it took my overall average from 4.28% to 5.19% of rivets drilled out. That’s going to get a lot worse before it gets better. (I’ll need to set about 1000 more rivets before the average returns back to below 4.28%. Sigh.)

Prev | Next


Finished Riveting Right Wing Top Skins

September 3, 2011

Prev | Next

Well, today was an excellent day.

Joe was planning to come over to finish up the right top skins, so while I waited, I started in on dimpling the aileron skins (just the stiffener holes) with the c-frame.

All went pretty well, except for a place where I dropped the c-frame die on the skin (top surface, of course). It made a little dot impression, so I flipped the skin over on the MDF and gently tapped with a hammer until it came out.

(NOTE: do not put a bucking bar behind it thinking that will be better. The wood has a little give to it, so you don’t deform the skin. If you use the bucking bar, you’ll squish the skin. Ask me how I know.) I think I have to paint the ailerons now (instead of polishing).

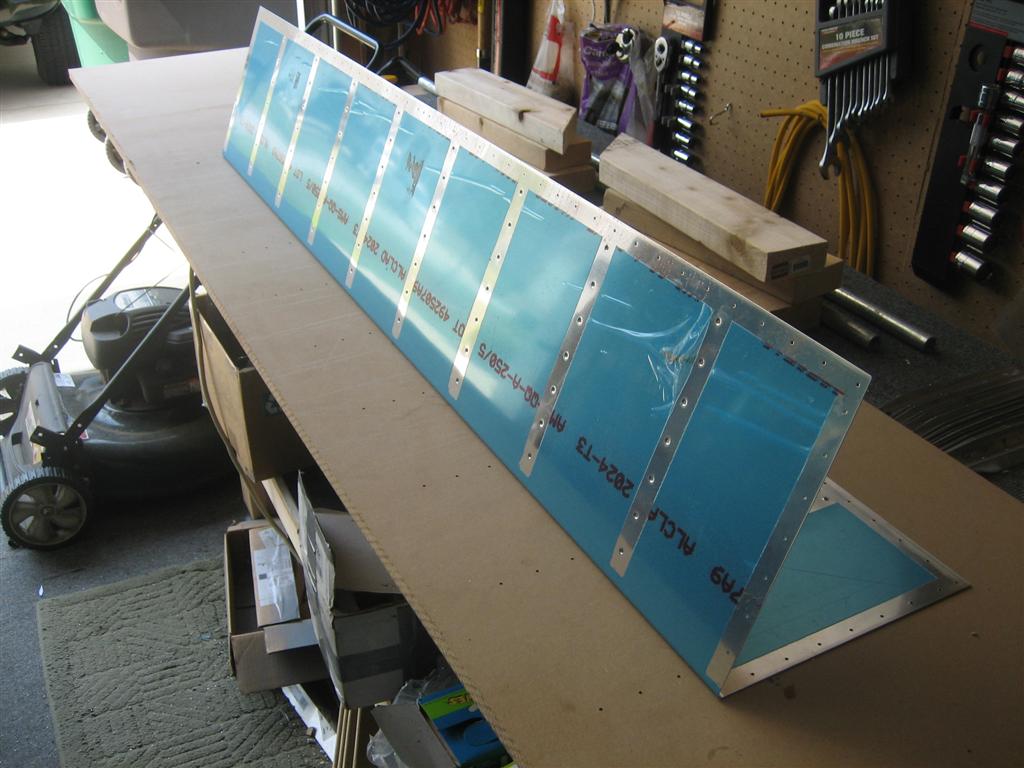

Anyway, nice dimples.

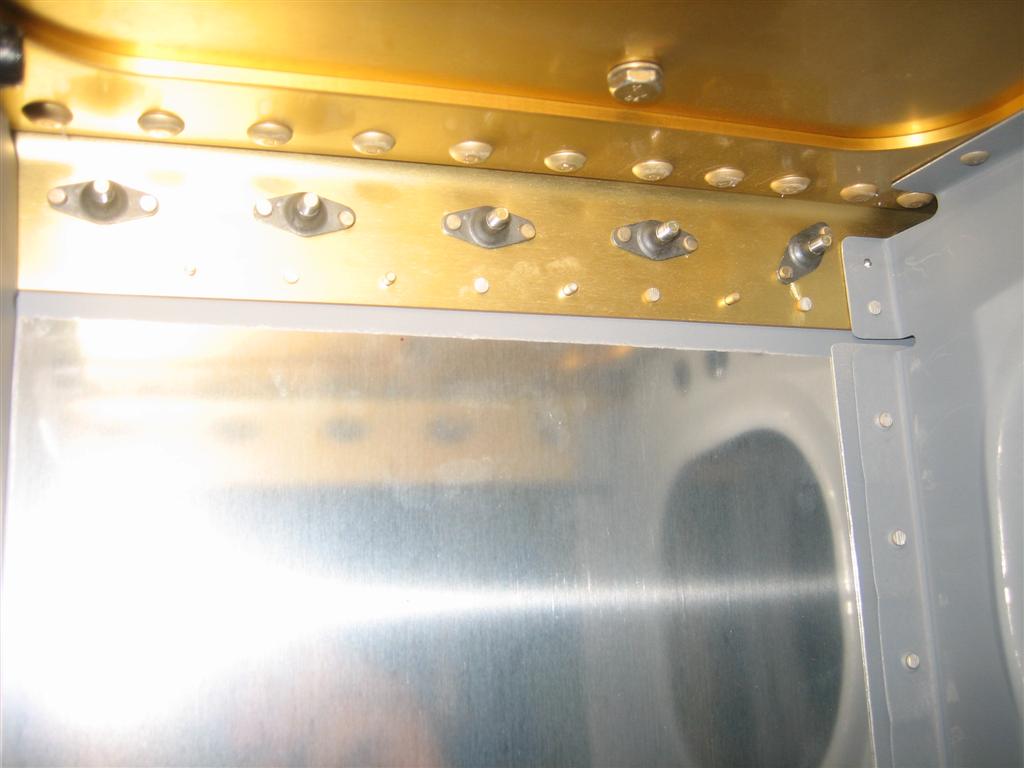

Before Joe and I got started, I snapped this picture of the “every other” method I’m using.

The rivet row we're working on here is at the bottom of the gold spar flange.

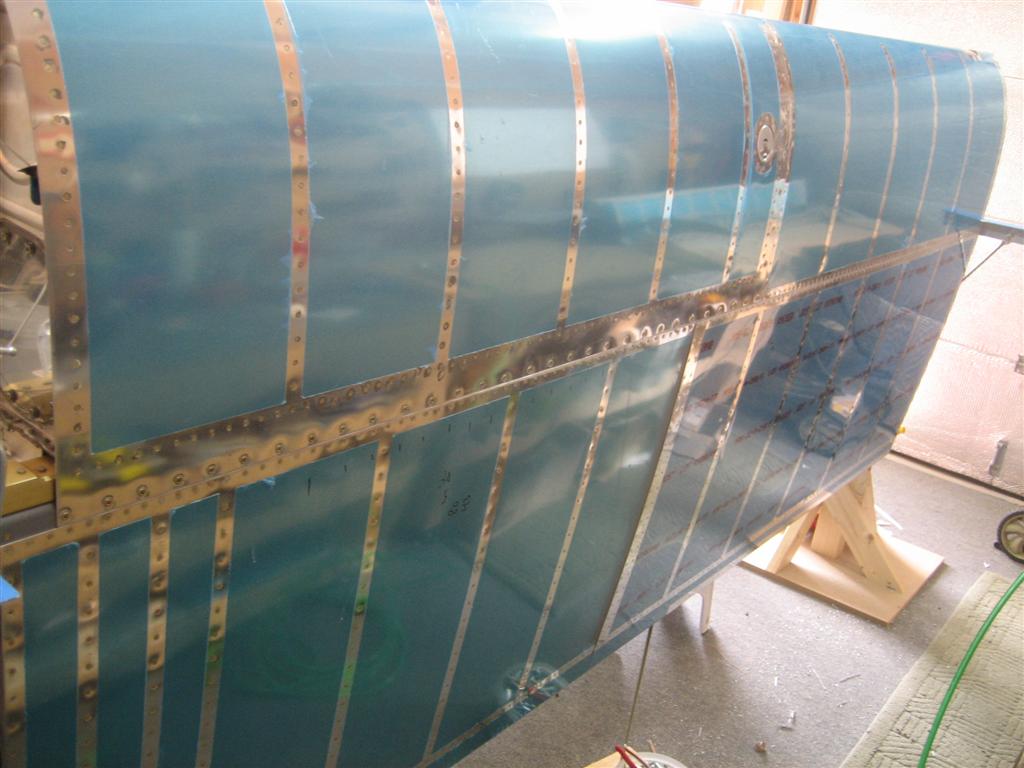

After a whole bunch of bucking and shooting, we came up with this.

Tada!!!!!!

For the last three rivets, we switched places so Joe could get some experience bucking and I could say I shot a few of the rivets on the skins. Turns out, I like bucking better and Joe likes shooting better.

If you look really closely, towards the foreground on the inboard top skin, I wrote 38, 5, 80, 43. That’s how many rivets we bucked. 166.

0.5 hours on the aileron skin, then 45 minutes (or 1.5 man-hours) on the skins. 2.0 total.

Prev | Next


More Right Top Skin Riveting Prep

August 11, 2011

Prev | Next

Not much tonight. I put rivets in the remaining top skin holes and did some better inspection of the rivets we set a few days ago. All the rivets look great, but I’m less than perfectly content with some of my edges. The tank-top-skin seam has a really tiny step to it. I rolled the edge a little, but I probably could have gone a little more with it. Also, my very nice scarf joint turned out to not be perfectly flush either. It’s not anything I’m going to change, I’m just going to have to accept that I’m not going to win any awards.

Anyway, I put the rivets in and put a piece of tape over each one.

Rivets and tape.

Rivets and tape and rivets and tape and rivets and tape.

After 45 minutes of that, I grabbed my right outboard aileron bracket and decided to tackle the bad rivet and small gap.

Here’s the bad rivet. The shop head just barely started to split.

Yikes.

It also cause the part to separate a little.

This is not acceptable.

After drilling out the two closest rivets…

Whoa. That's weird.

Anyway, I got a small clamp out….

Better.

And re-set those two rivets.

Shop heads look much better, and now there is no gap

Since I had scuffed up the parts a little while riveting, I shot a little more primer on everything.

The blue tape is there to protect the bearing. Didn't want any paint on them.

1.0 hour today…pretty boring. Drilled two rivets out, but now I’m ready for Joe to come over and knock this wing out.

Prev | Next


Riveted Some of Right Wing Top Skins

August 10, 2011

Prev | Next

Well. I managed to get Joe over to the house again, this time over a long lunch break.

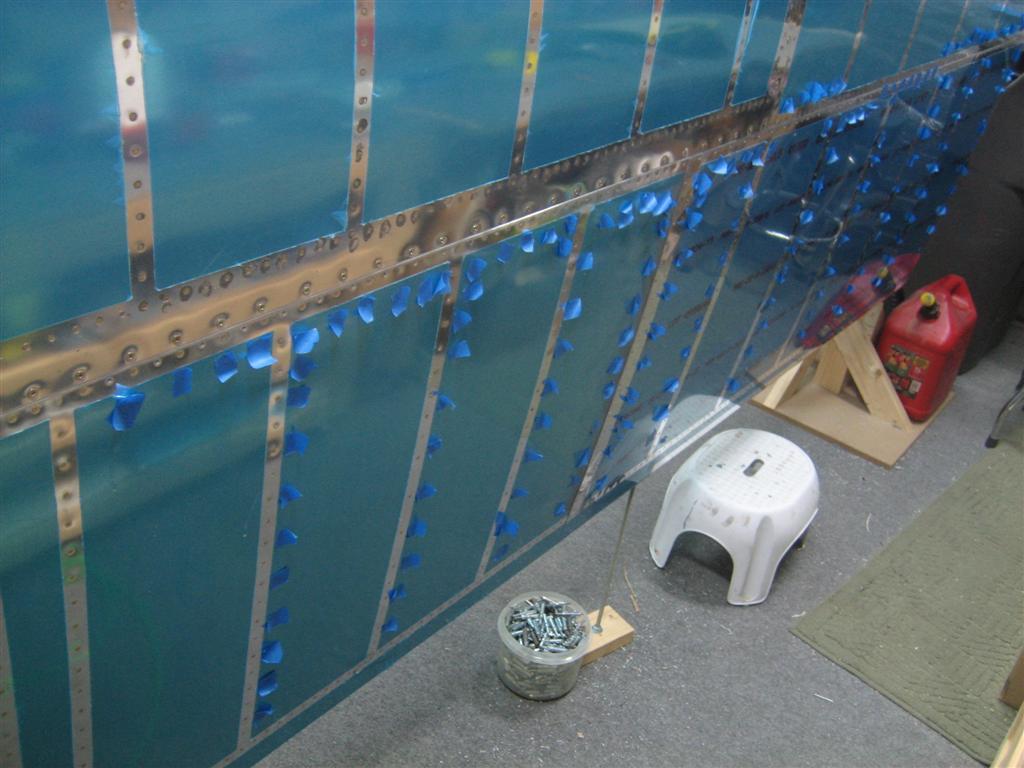

This is a horrible picture, but you can sort of see that we got about half of the right wing’s top skins riveted.

We moved the tape off the rivet heads to air in inspection, but I'm going to reuse them later when I put the rest of the rivets in.

We’ve got my rivet gun (4x) set to about 32 psi (really hard to tell) and Joe’s getting good at pulling the trigger to get about 8 hits. Sometimes 7, sometimes 9. About once every 20 rivets, we’ll need to add a few hits, and once in another 20 rivets, it’ll be about 2 hits too much. Slightly flat, but within milspec, and not worth drilling out and making it worse.

It was an hour’s worth of work, but there were two of us, so I’m going to start counting it as man-hours instead of just my hours.

In the next few days, I need to put rivets in all the remaining holes and get tape over them. Hopefully just one more hour until I have the right top skins completely on!

2.0 man hours. 173 rivets (I counted three times), and none needed to be drilled out (Nice job, Joe!).

(I’m going to go back and change the other post to include Joe’s hours.)

Prev | Next


A Few Things Before More Top Skin Riveting

August 6, 2011

Prev | Next

Well, I think Joe might be coming over tomorrow or early next week, so I figured I’d do a few things while I wait for his rivet-shooting expertise.

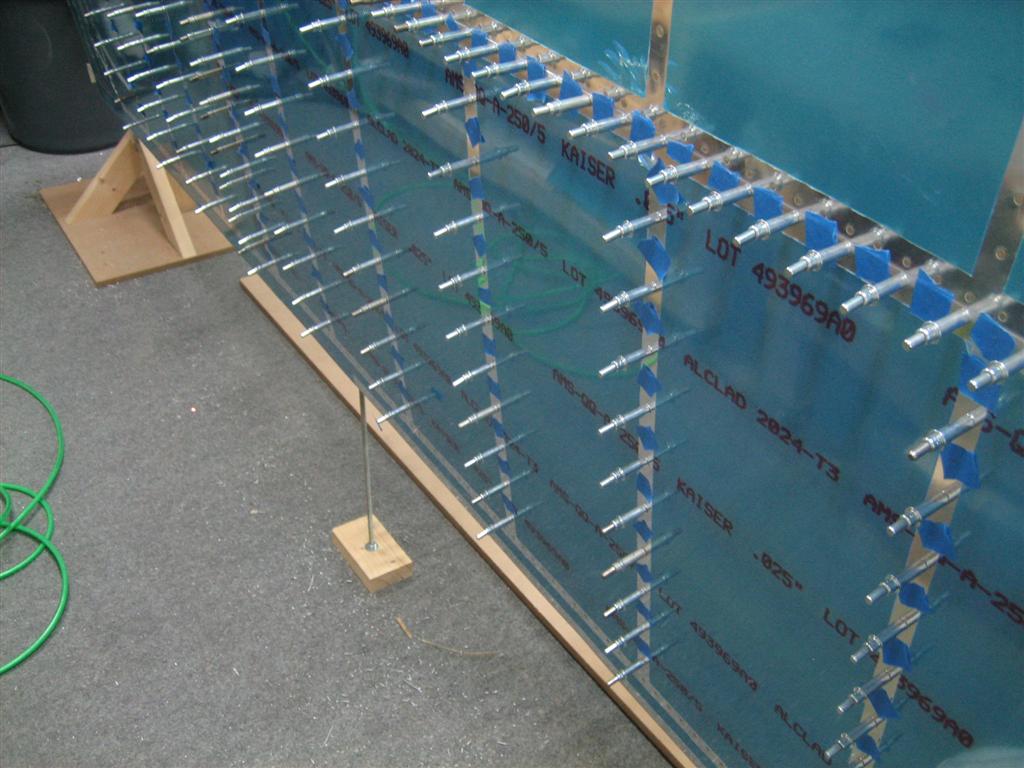

One of the things that slowed us down a little bit last time was putting the rivets in the holes and putting a piece of tape over each rivet head.

I know I’m not following the standard pattern, so don’t do what I do when you get to this step.

It took about 45 minutes, but now I have all the plans-reading, rivet-legend confusion out of the way.

I'm going to be so excited when these top skins are done.

Looking for something else I could do, I grabbed some snap bushings and started putting them in all of the holes I’d drilled earlier. (Dear girlfriend, I know it is about 200°F outside right now, but MY beautiful picture of YOUR beautiful chili from that post is making me miss football season.)

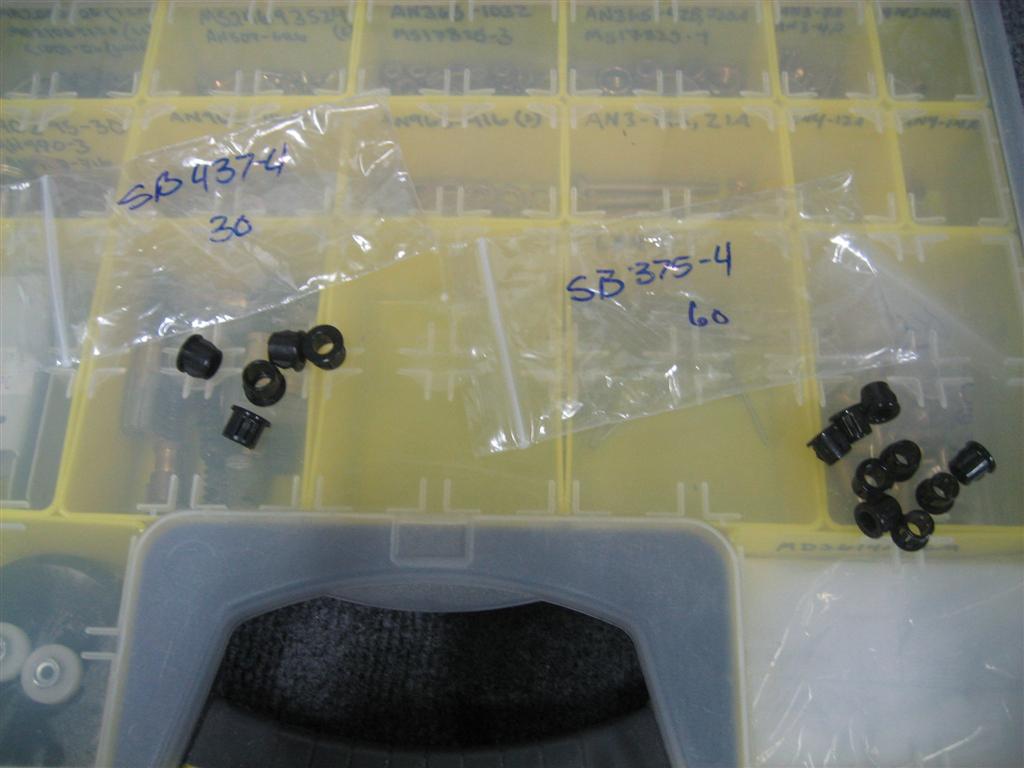

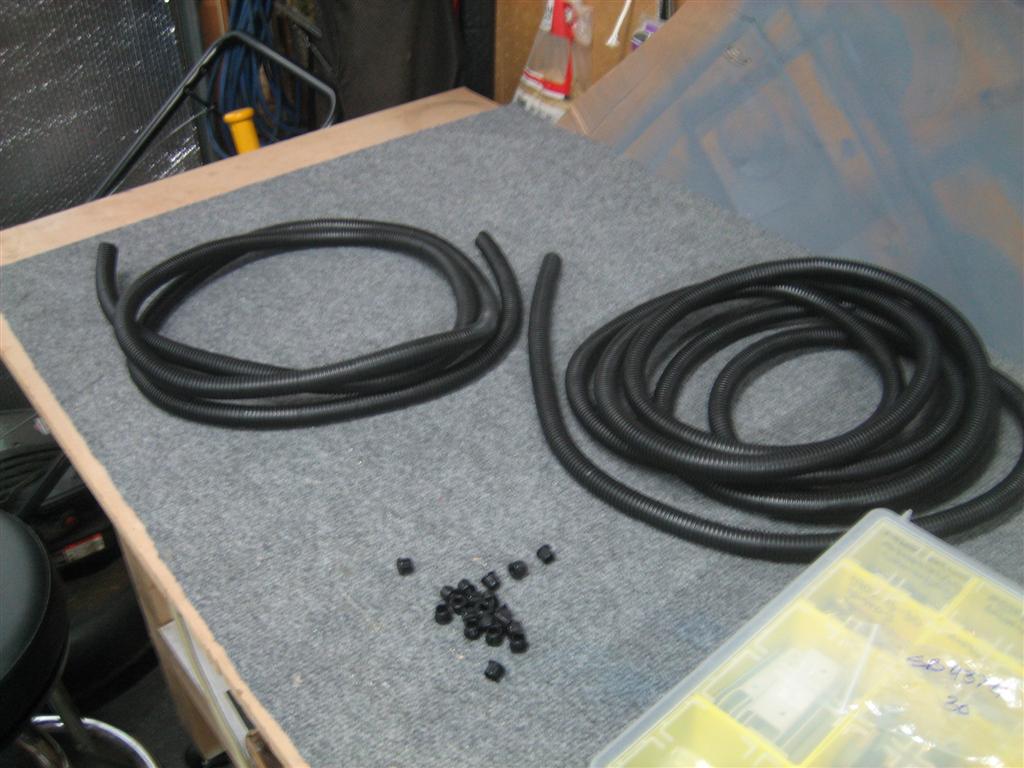

A few snap bushings and the bags they came in.

While I’m doing that, I might as well feed this conduit in the 3/4″ hole in the ribs.

A piece of Van's conduit cut to length.

I probably could have gotten some from Lowe’s or something, but this stuff fit these 3/4″ holes perfectly.

I was smart enough to start in the middle and work toward the inboard and outboard ribs.

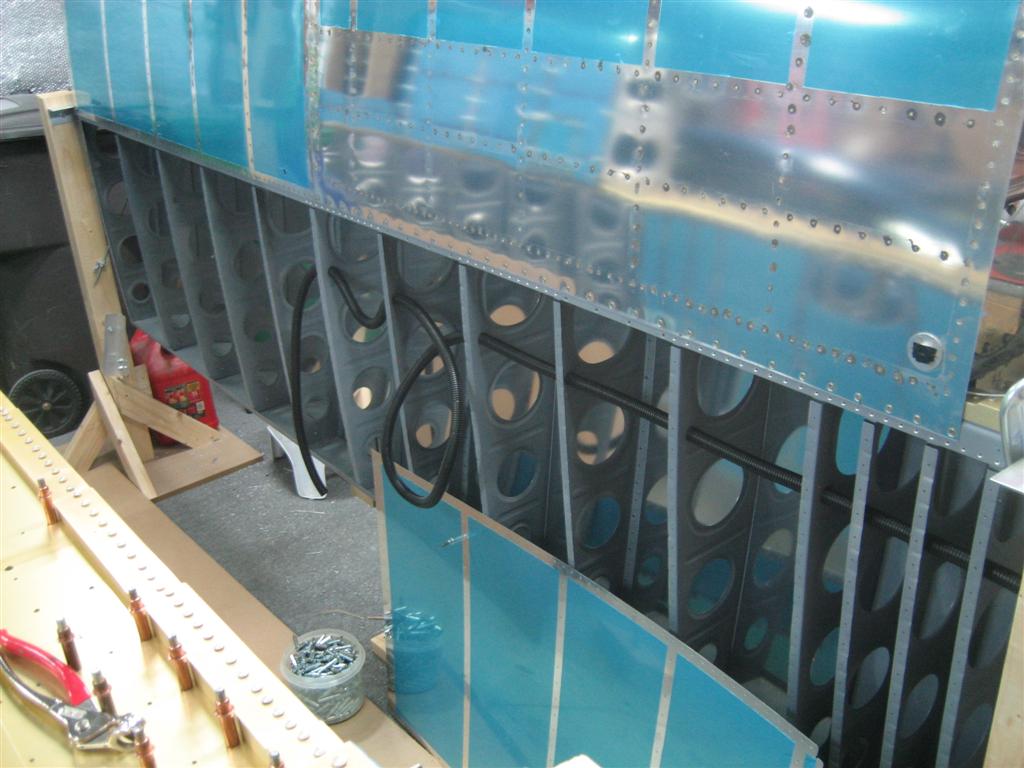

Tada!

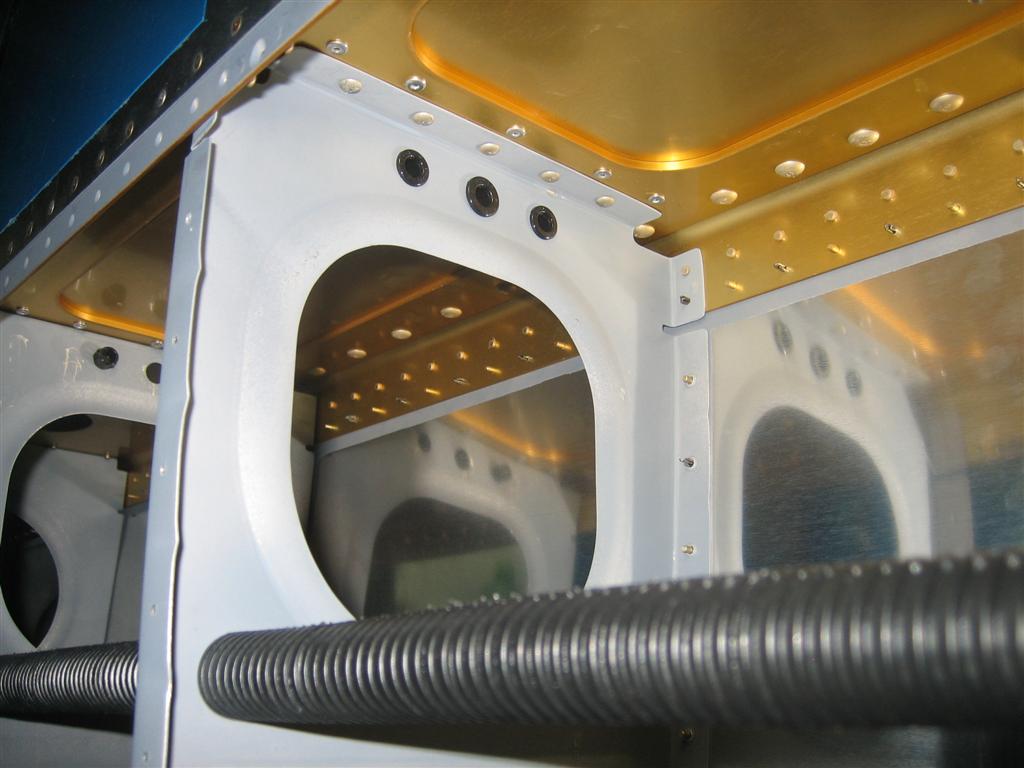

Here’s a closeup of both the snap bushings and the conduit. had to use the flash so you could see under there.

Ready for wiring anyone?

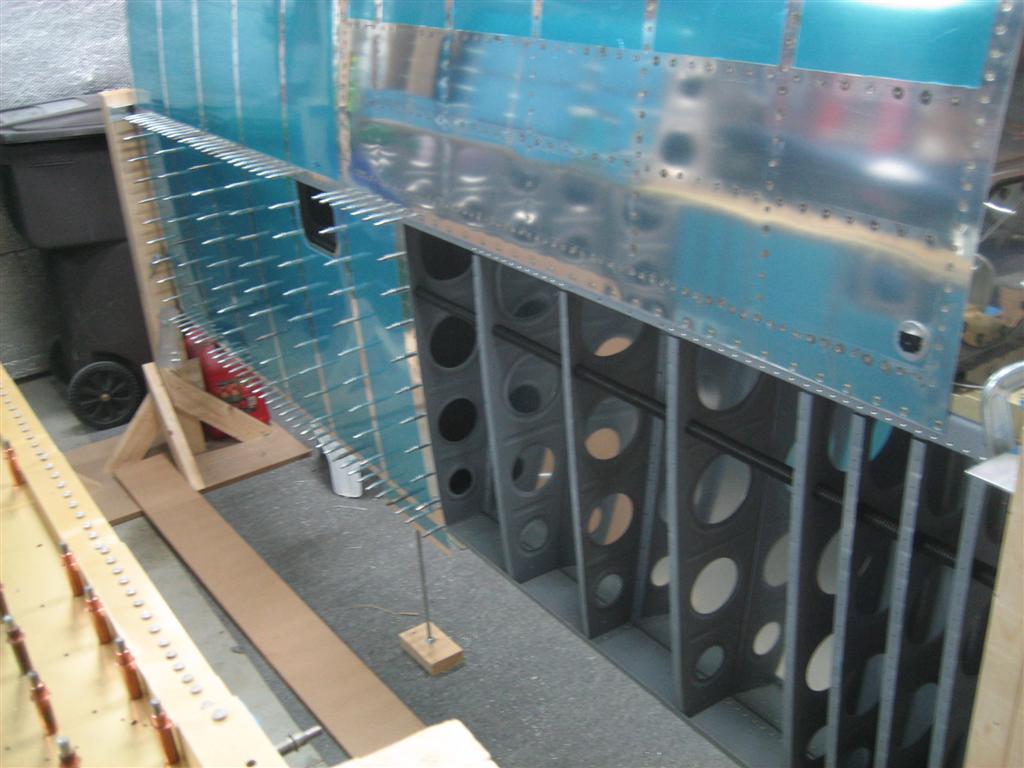

Of course, I didn’t tell you that I had to uncleco the lower outboard skin, so my last trick for the evening was to re-cleco it. I could have waiting until during our riveting session tomorrow so I didn’t have to go off and on again with the skin, but I’d rather waste my time than Joe’s.

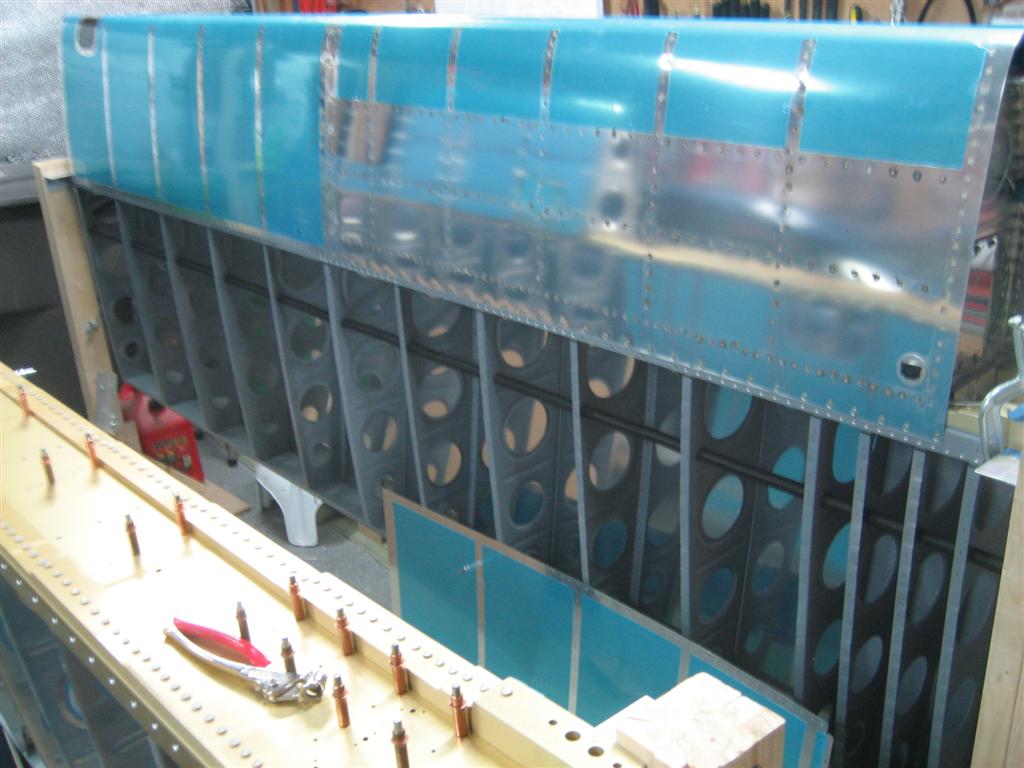

Ready for riveting.

1.5 fairly boring hours.

Prev | Next


Right Float Sender, Riveted Leading Edge to Spar

July 23, 2011

Prev | Next

Guess what? I worked on the airplane today, so the observant of you should realize that I am NOT on my way to OSH. Boo.

No use worrying about the spilled milk, though. More time for me to work on the airplane.

I need to leak test the right tank, but first, I have to finish sealing it up completely. Last post, I got everything sealed except for the float sender. Here’s the plans shot showing the sender, but it’s showing it mounted to the access plate. Mine will be the same dimensions, but entering from the rear of the tank in the second bay.

A couple 90° bends, and I'll be cooking with gas.

That was easy.

To install in the sender, you line up the plastic piece with the slot in the metal housing, and slide the float wire in.

Can't get any easier than that.

Now, let’s clean up and get this thing sealed in there.

Five #8 screws after swishing in some MEK.

After cleaning up a whole bunch, I put the rubber gasket in place with some sealant (couldn’t decide if I needed some or not), then put the float in, then more sealant around the edges, and some sealant for the screws.

Looks good to me.

I retested the sender and noticed 240 Ohms to 80 Ohms (I think I saw something lower before). That’s okay, my EFIS (Electronic Flight Information System) will calibrate the range of fuel levels based on resistance later.

Okay, that was about a half hour, and there are plenty of hours left in the day, so let’s move on. I think the next thing on the docket is to get the leading edge on the spar permanently. I have the leading edge landing light installed, and the tiendown bracket is good to go.

A changing of the plans picture…to the wing rivets and skins page.

Always fun to change plans.

After a few long minutes of getting the spar holes countersunk, I rubbed the scotchbrite pad over the length of the flange, cleaned up with MEK, then taped off to get some primer on there.

Ready for primer.

Sorry the light kind of precludes the primer from showing.

Okay, before I just start riveting the leading edge to the spar, I want to make sure everything lines up again. So, I want to put the tank on the spar, and the opposite skin from where I’m working.

Before I can get the tank on, I need to grab some nutplate for the inboard tank z-brackets.

Looks like AD3-4 and K1000-3 nutplates.

Here they are.

Done. I couldn't countersink very well along the spar bars, so I went a little light and used oops rivets on the very top and bottom (right and left here) holes.

Then I grabbed the outboard lower skin, and got it clecoed on.

Here's just the leading edge clecoed.

Then, I grabbed the tank and put screws in every 5th hole.

And a screw in every hole along the tank/leading edge joint. Everything lines up great and looks awesome.

I told you it looks awesome.

With the leading edge 50% clecoed, I decided it was finally time to show the FAA I’m really building this airplane. Sorry this awesome picture of a pre-squeezed rivet blocked the shot.

My visor says "Foxy's" on it. Anyone? Oh, and that rivet size looks appropriate, let's get to squeezing.

After 65 rivet squeezings, I had the upper leading edge skin riveted to the spar.

The leading edge looks so cool with no clecos in it.

After 65 more rivet squeezings, I had the lower leading edge skin riveted to the spar.

Oh man, I'm so excited.

GOOD DAY IN THE SHOP, high fives all around.

So….0.5 hours toward the tank. 2.5 hours toward the wings.

6 rivets for the spar nutplates, and 65 rivets each on the top and bottom of the leading edge. That makes 136.

Wuhoo!

Prev | Next


Right Tank Outboard Rib Reinforcement Rivets

June 22, 2011

Prev | Next

Nothing special tonight. Just set these three rivets.

Uno. Dos. Tres.

Oh, then I started making sure I had a nice fillet of proseal on the interior side of the rib, and it just kept getting messier and messier, so I finally just buttered up the whole surface of the reinforcement plate.

The reinforcement plate is under all of that proseal.

Yikes. I came back to the exterior side and put dollaps on each of the rivet heads.

Messy. I need to stick with the syringe for rivet encapsulation.

0.5 hour. 3 Rivets.

Prev | Next


Riveted Right Inboard Leading Edge Rib

June 20, 2011

Prev | Next

Now much to report tonight. I riveted the right leading edge inboard rib to the skin, along with the W-423 (?) joint plate.

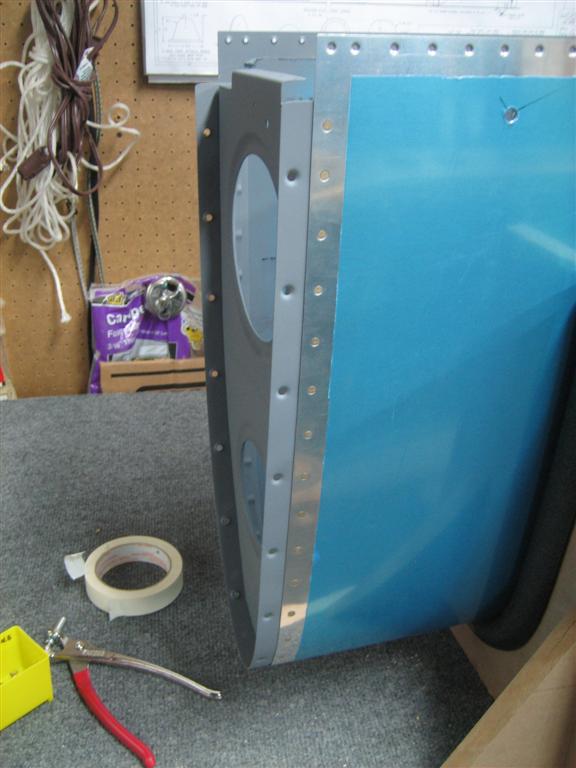

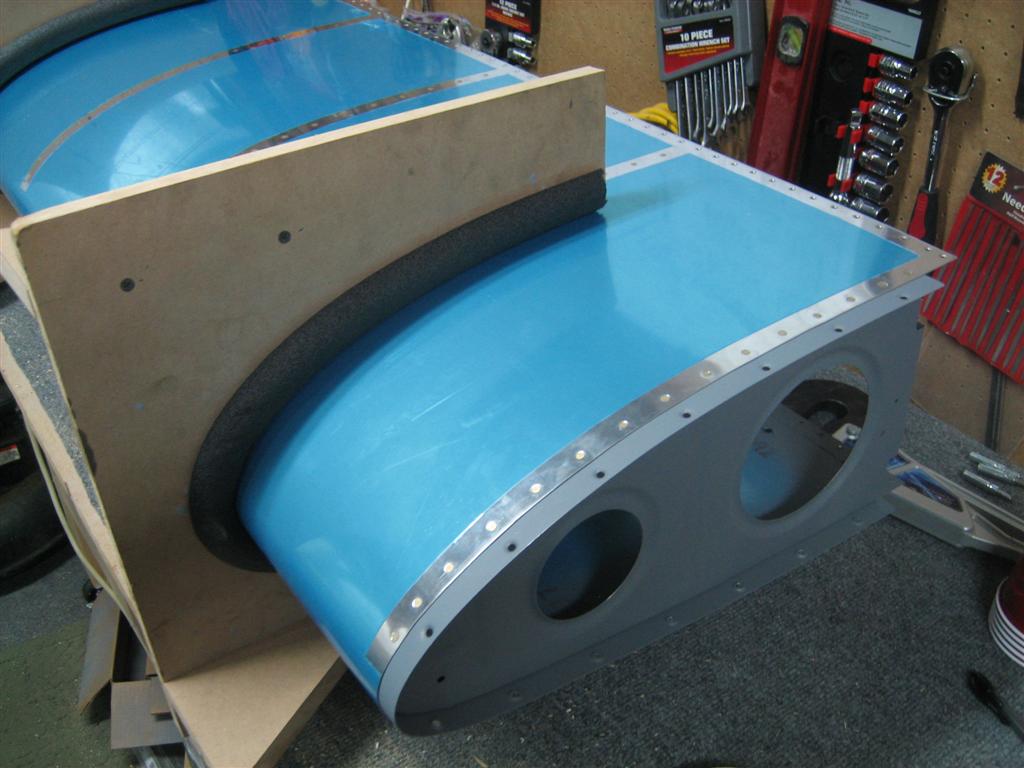

15 perfectly set rivets here (on the bottom side of the skin)...

and 14 perfectly set rivets on the top.

29 rivets, 0.5 hours. It don’t get no better than this.

Prev | Next


Right Tank Inboard Rib Work

June 5, 2011

Prev | Next

After another full weekend of housework, errands, etc., I managed to fit in some work on the right tank’s inboard rib.

First thing, I fished out some parts. Here, Vans has punched out three parts, T-407 and T-410.

Hmm...where are my snips?

I decided to pull both assemblies(?) out and get them all deburred at the same time.

Here are the two access hole doubler rings and four rib reinforcement plates after deburring.

I put two of the reinforcements and one of the rings away until needing them on the other tank.

Then, I took one of the rings, centered it over the stiffener bump on the inboard rib, and used a straightedge to find the center of the circle.

"x" marks the spot.

I know I’m not really working on the left tank right now, but  I decided that since I KNOW the circle cutter is going to be a PITA, I’ll just go ahead and do the left rib, too.

I fished out the two end ribs for the left tank and marked them so I knew which is which.

L1 and L7.

Before mounting the ribs up on the drill press, I needed to find some wood backing. How’s this tank-rib-shaped piece right here?

Pepsi should pay me for the product placement.

Whoa. That sucked. It sucked so bad, I didn’t even take any pictures. Among other things, the circle cutter 1) wouldn’t stay in one diameter, 2) shook so badly I thought my workbench was going to fall over, 3) almost killed me twice.

But, I finally managed to get a decent looking hole.

Phew, I'm glad that's over.

See? Nice hole.

Oops, looks like the hole was a little big. No worries, edge distance for the rivets is just fine.

The hole in the rib is a little big...

After some more cursing, cheating death, and general unhappiness, I managed to get a better (appropriately sized) hole on the left inboard rib.

I think I'm going to throw away the fly cutter now. Stupid piece of crap.

Okay, I’m straying from the instructions a little here. Normally, they want you to take this access cover, hold it against the rib, and use the prepunched #19 holes to drill holes in the rib. Then, hold the stiffener right aligned with those holes, and drill the nutplate attach rivet holes. Clear?

Instead, I’m going to eyeball the clocking of the access cover (so the flat part doesn’t interfere with the indentation in the rib), then just use the stiffener ring for all the drilling. (I need to order a new access cover with no holes in it because I’m using flop tubes (don’t need the small hole), which means I need to move the float sender to the second bay (don’t need the large hole).)

You can see in this picture, the stiffener ring is laid in place, and it looks like the access cover is clocked correctly.

Access cover in the foreground, stiffener ring in the background.

Clamped.

Drilled.

Dimpled the rib, and countersunk the ring.

clecoed some K1000-8 nutplates in place.

Here’s where things got frustrating. Because I wasn’t paying attention, I just started riveting the nutplates in place.

Clearly I didn't countersink enough.

Another view. Yikes.

I drilled out six nutplates (didn’t enlarge any holes in the rib or stiffener), but couldn’t get the rivets out of the nutplates. They got THROWED AWAY!

Sorry, nutplates. You are going in the trash. It's not worth my time to fix you.

Okay, more countersinking, then try again. Still not deep enough? Ugh, more countersinking again, and finally, they were deep enough.

I got frustrated, so I stopped taking pictures. Sorry.

After much cursing and angry mumbling, I got all 24 rivets in for the 12 nutplates.

I had to drill out two more rivets because they were sitting a little proud. In the end though, I’m happy with the results.

These didn't need sealant because the access cover will be sealed over them.

A shop head shot.

24 rivets, 8 drilled out. (one third!? Ugh.)

2.0 glorious hours today.

Prev | Next


Started Leading Edge Landing Lights

January 16, 2011

Prev | Next

Well, after receiving my “install only” leading edge landing light kits from Duckworks, I was kind of eager to start fiddling with something other than rib preparation.

Today, I opened up the kits and started in on adding the leading edge landing lights.

This is from my design page, where I’ve been collecting ideas for stuff (I was originally planning 2 small MR16 (2″ sized) lights in each wingtip, one taxi, and one landing):

After reading a little more, I’ve found that people who do the two lights in each wingtip dance aren’t happy with the amount of light they are getting from their landing/taxi lights. Then, I figure out they are talking about the regular halogen bulbs provided with Van’s wingtip light kit.
The people who are using the HID wingtip lights are generally very happy with the light output.

November 2010 update: After even more reading, I’ve decide that the leading edge light is really the way to go.

Now, I think I am going to put a single HID (PAR 36 style) in each leading edge for landing lights. These won’t wig-wag.

Then, I’ll use the wingtip lights for taxi/recognition, with wig-wag. I can use the smaller MR16s in the wing, and point one set wide, and one set toward the centerline. If I use regular halogen bulbs in these, I won’t have to use a warm up circuit, which is good, considering that when up at cruise and ATC calls with a traffic alert, I’ll be able to immediately start wig-wagging them for recognition. That gets rid of my need for an automatic warm up circuit (won’t be using HIDs for wig-wagging).

I’ll figure out the mechanics of the wingtips taxi lights later (single light in each wing? 2 MR16 halogens in each wing?)

Anyway, I made the decision to go with the dual landing lights in the leading edges. I plan on flying at night, and I want the most light possible.

From Duckworks, I ordered two of the round install kits, and two H3 enclosures (spot, instead of flood). I could have ordered one spot (for landing) and one flood (for taxi), but since I’m going to do something in the tips for taxi, I want both of my leading edge lights for landing.

Anyway, here are the two kits. Very obvious are the two mounting plates, the bulb retainer, the lens retainers, a bag of hardware, and the leading edge lenses.

Duckworks was kind enough to send me a spare lens. Much appreciated.

Here are the two PAR 36 style, spot enclosures for an H3 bulb. My soon-to-arrive HID kit should have H3 bulbs that will fit nicely in here. I’ll do a separate write-up for those.

I left the bag on them to prevent getting any skin oils on them.

A closeup of the H3 part of the enclosure. I had never seen one before, so this was a learning experience for me.

Also included in the kit are the instructions, an exploded view, and the templates for the cutting and drilling.

Good documentation. Well done.

Anyway, I decided to just bite the bullet and cut into the leading edges. Here is the template with the middle cut out.

Template, ready to go.

First, I cut out the rib template and used a sharpie to mark the hole locations.

Exact positioning here isn't too important because the holes in the mounting plate are huge, and you can adjust these a fair amount.

Back to the cutout, I measured the 2.5″ from the edge of the cutout to the row of rivet lines.

Special note here, I cut the paper off on the left edge of the following picture so I could leave the ribs clecoed in. This just meant I had to measure from the cutout instead of using arrows on the side.

I also measured per the plans (18.75″ from the aft edge of the top of the leading edge skin to the top part of the opening here) and taped everything in place.

Tracing with a sharpie.

Same trace, no paper.

Other wing.

Before jumping into the actual cutting, I moved on to some of the metal preparation for the other stuff. I wanted to be able to cut the leading edge openings while the primer was drying for some of these smaller parts.

Here, I’ve run a #40 bit through all of the nutplate attach holes and enlarged the middle holes to 5/32″ per the instructions.

Then, I clecoed all 4 pieces together to countersink the nutplate attach holes for regular AN426 rivets. I could have used “oops” rivets here, but the lens retainers are thick enough that it wasn’t necessary.

4 lens retainers, clecoed together to give the countersink guide a good path.

I forgot to take any pictures of the rest of the prep for the lens retainers, lamp retainers, and the mounting plates. Anyway, they got prepped, cleaned, dried, and taken outside to prime.

I headed back in and got out a variety of dremel tools to cut out these openings.

There’s no turning back now.

I started near the bottom (least visible) and very far away from my line. As I gained confidence, I moved closer to my line (less finishing later).

Yikes, that's not a pretty cut.

After a little cleanup, they look a little better. Still need to do some final cleaning.

I didn’t take a picture of the other cutout, but it turned out equally as well. A lot of people really stress out about cutting these holes.

I can see where they are coming from, but I think the leading edges are great with these light openings in them. (I’m going to look like a 747 coming down final, which is exactly what I want (visibility and recognition).)

Pretty leading edges. (Oh, and this was the first time in a long time I've been able to work with the garage open. It was almost 40°F today!)

Okay, back to the primed parts. I had the urge to set some rivets today, and I nailed all of them. I finally feel like I’m starting to get into a groove (although squeezing really isn’t that hard.)

Here, I’ve clecoed the provided nutplates to the lens retainers.

Ready to start some riveting.

A closeup of some AN426AD3-3.5 rivets.

24 rivets set (beautifully).

Equally beautiful shop heads.

8 more rivets set (I did use "oops" rivets here).

More shop heads.

I got out one of the bulbs and just placed it in the mount just for kicks.

Looks like it will fit.

Found the screws and actually screwed them in. These things are going to look awesome.

Finally, I found all the pan-head screws and lightly screwed them in place.

Sweet.

I don’t think I’ll do any further painting of these. I like the primer grey.

I’ll do some more on the landing lights soon, but for now, I need to get back to rib prep. Hopefully this week I’ll have a writeup of the HID kit that arrives.

3.5 hours, 32 rivets. Wuhoo!

Prev | Next
