Some Right Flap Work

January 8, 2012

Prev | Next

Oh wow, it’s the first post of the new year! (Too bad it’s already January 10th…yeah, yeah, I’m posting a few days after this build session actually happened.)

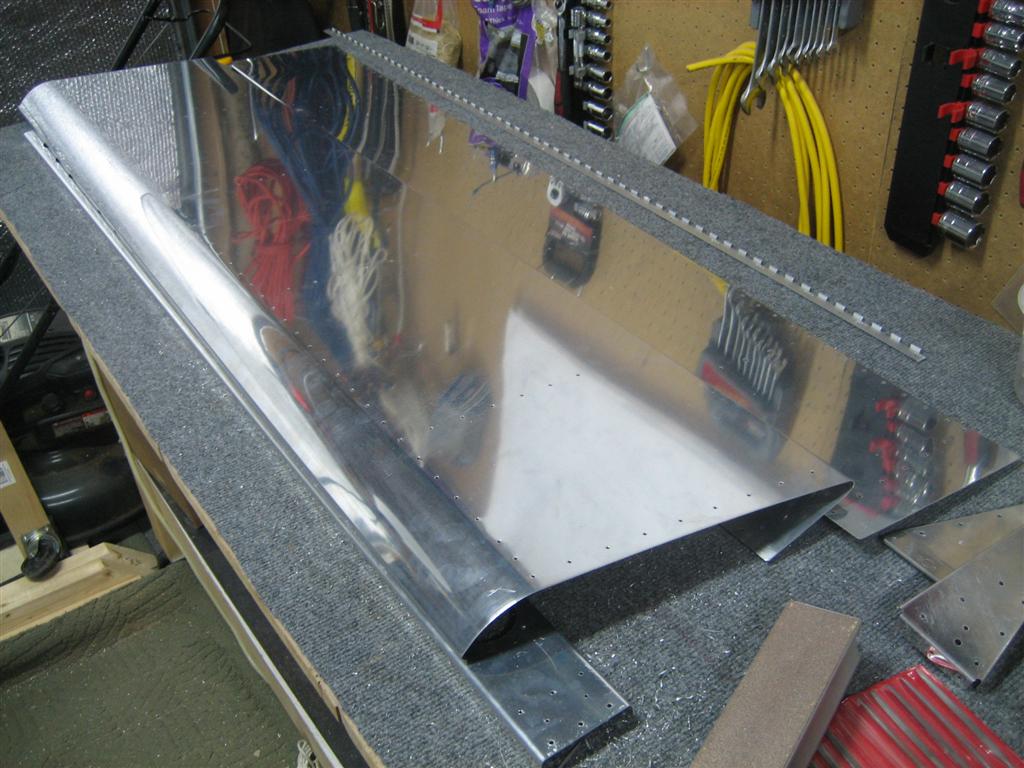

I got a little bit of tedious work done on the right flap before being called over to a coworker’s house to help with his brand new TV. Here are most of the right flap parts.

all the flap parts after matchdrilling (last session). Time for deburring and dimpling.

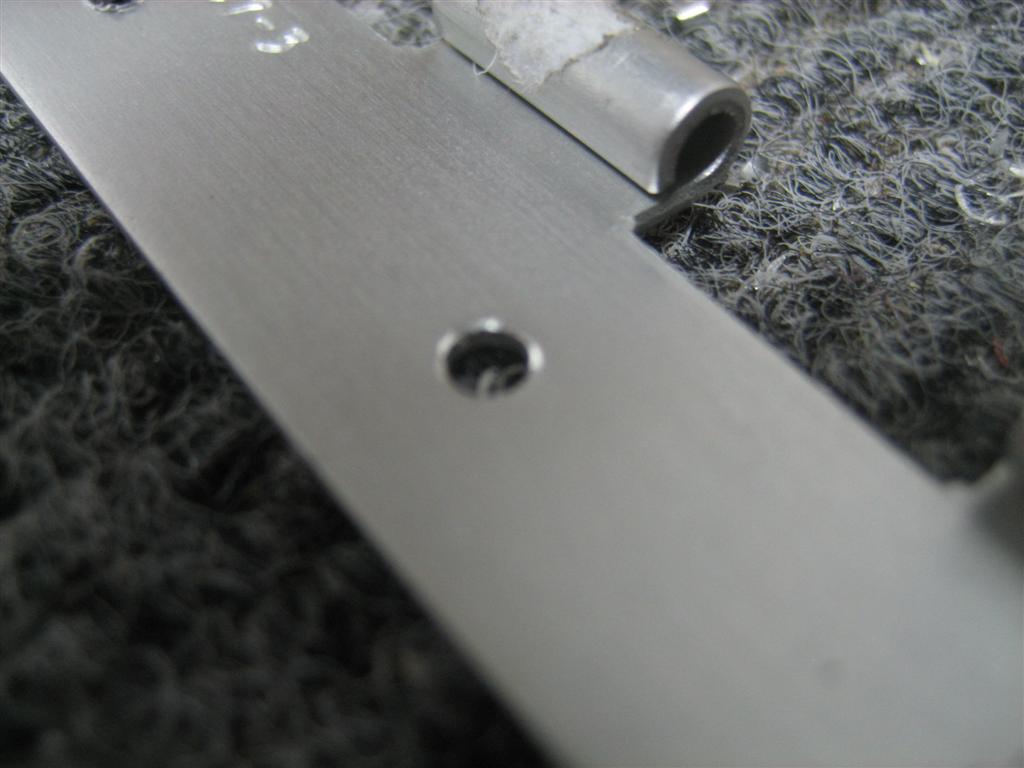

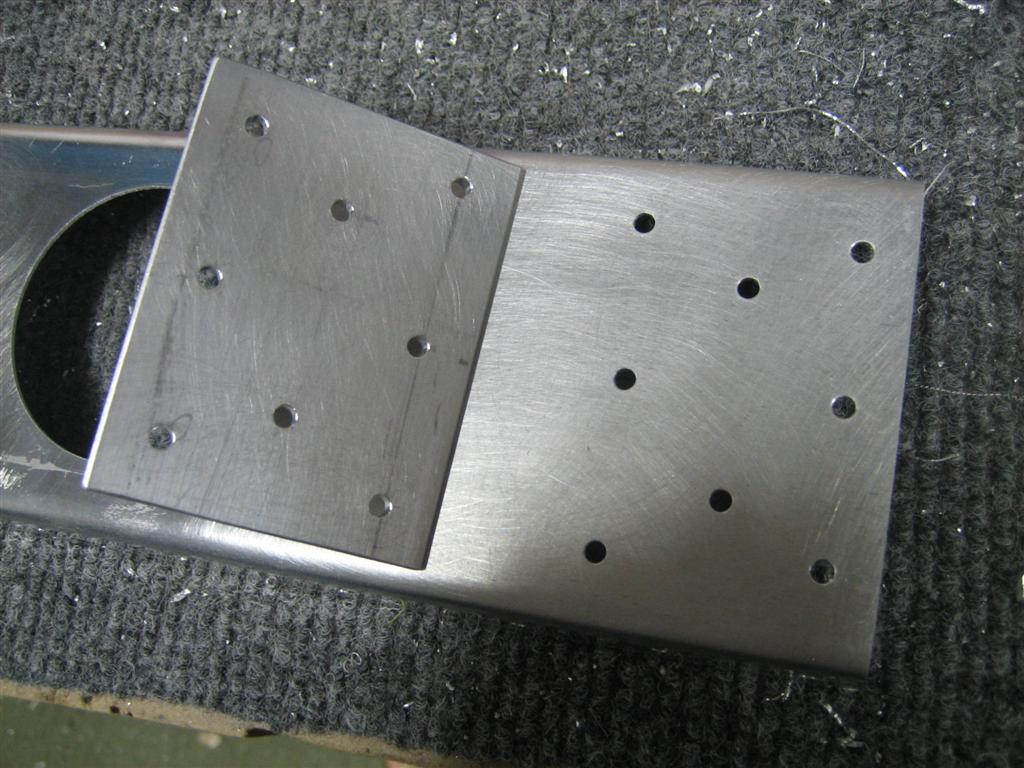

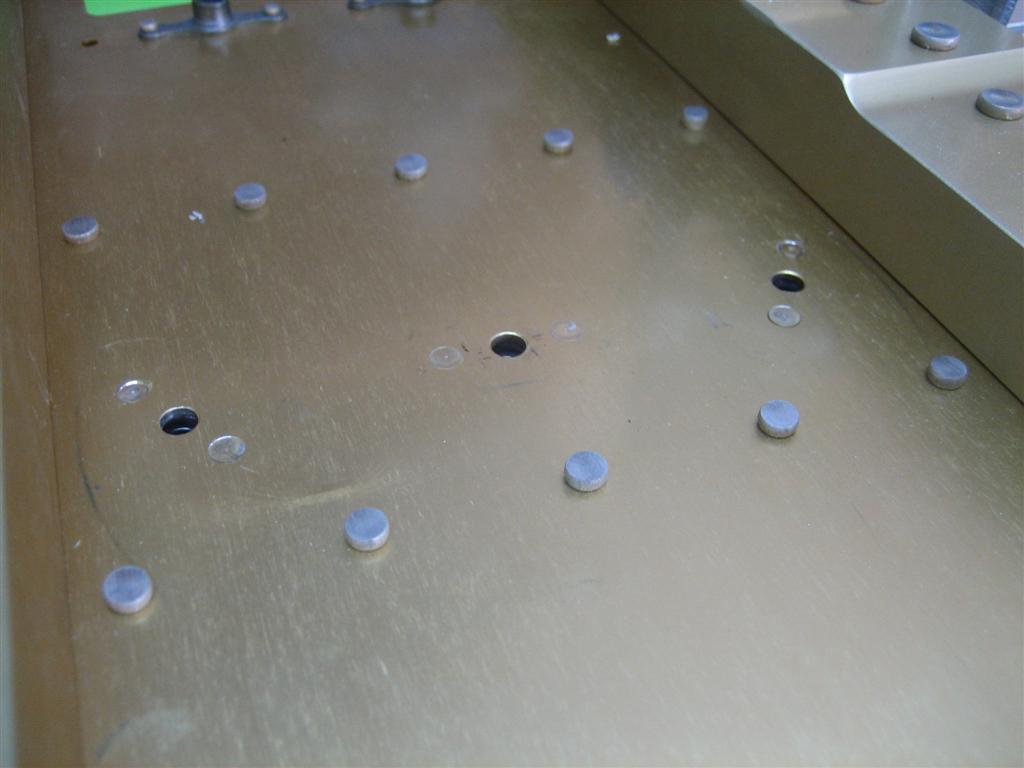

One of the things I noticed is that I forgot to enlarge these holes to #30.

Before.

After.

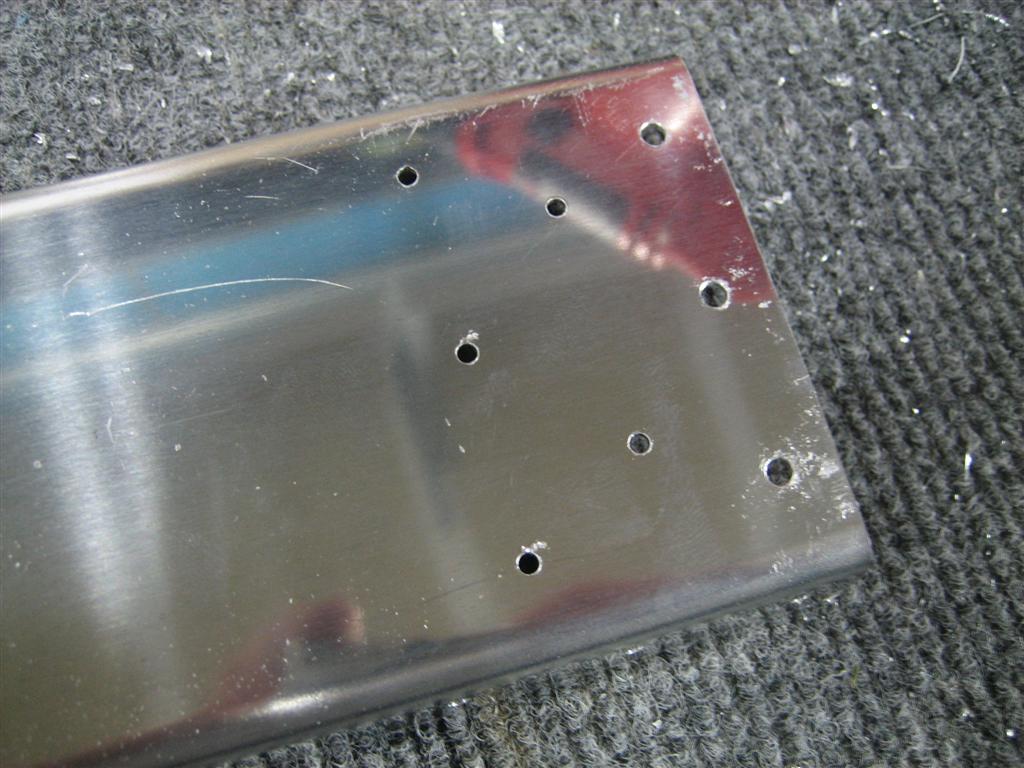

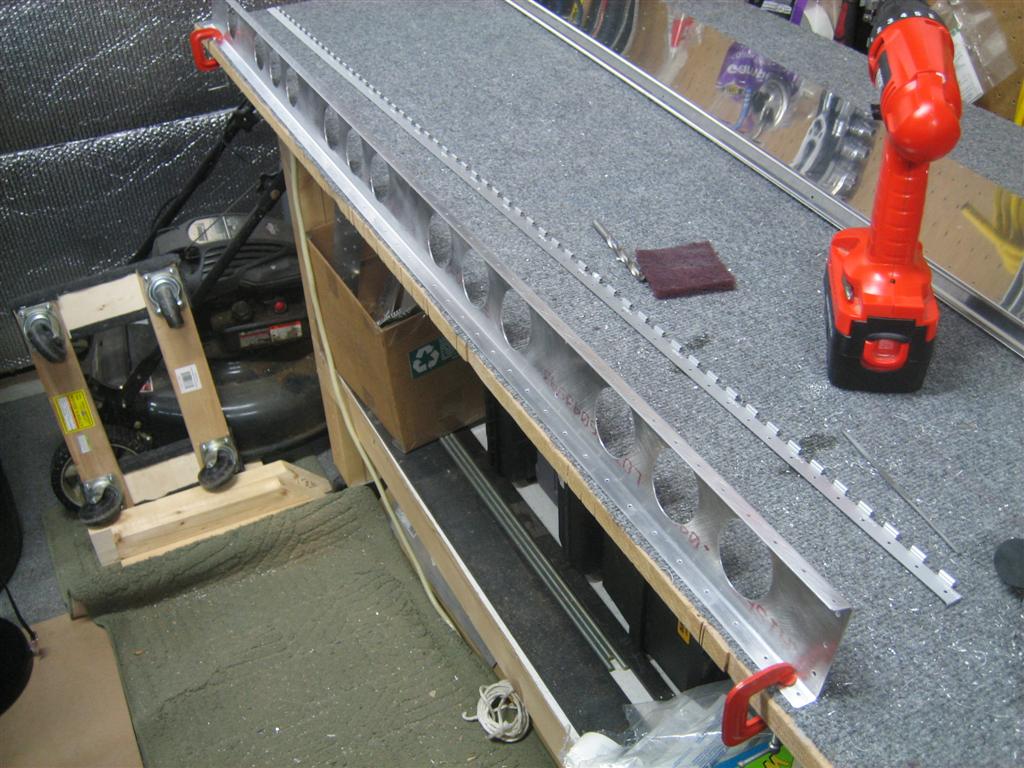

Next, I deburred all the spar holes, and got to work on edge finishing. This includes all the lightening holes, which are a PAIN IN THE BUTT to deburr. Because I have an AWESOME sister, she got me some good 1″ scotchbrite wheels. Previously, I had bought a bag of 50 “general purpose” wheels from Nebraska Surplus, but they were a little soft for work on the RV.  My sister got me some of the 6A-Medium wheels, which did the job perfectly.

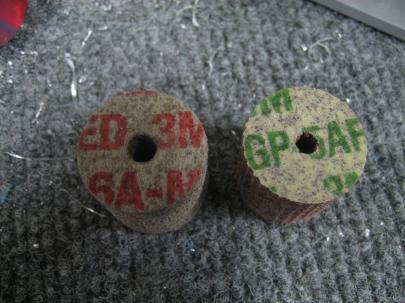

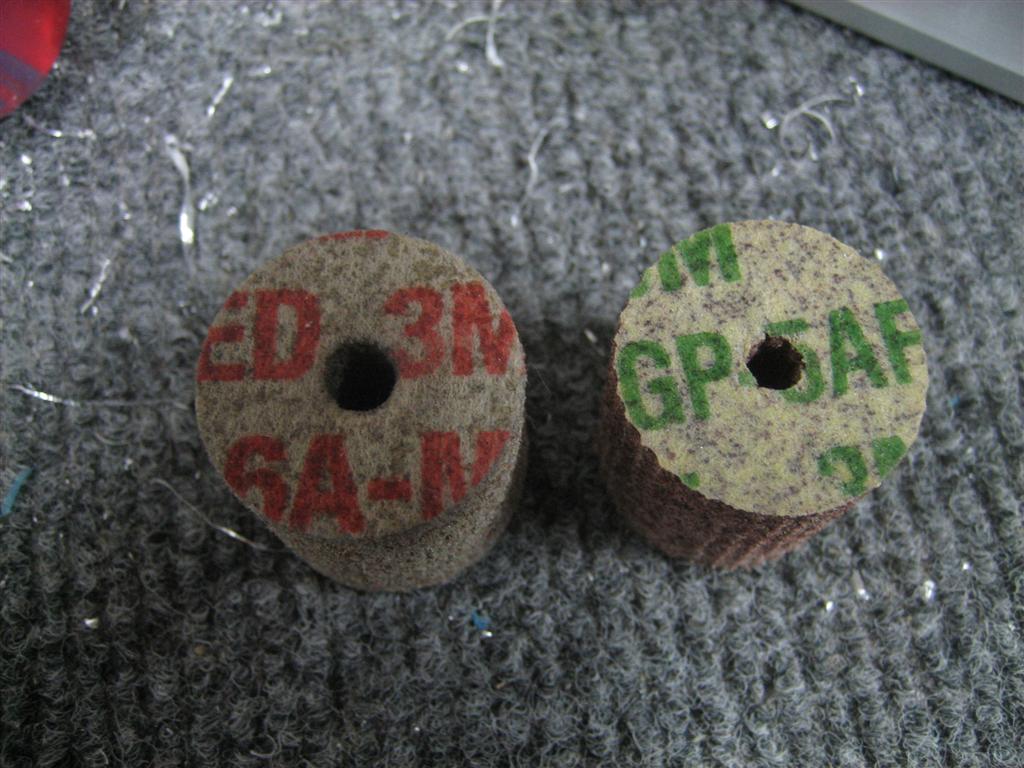

The correct grade on the left 6A-medium. Don't get the general purpose ones on the right. They are too soft.

After edge finishing, I decided to get the spar set up for a little countersinking session. If you remember from the other flap, the bottom skin is dimpled, so the spar has to be countersunk so the hinge (on the other side of the spar) isn’t affected.

Set up, just need to cleco the hinge in place.

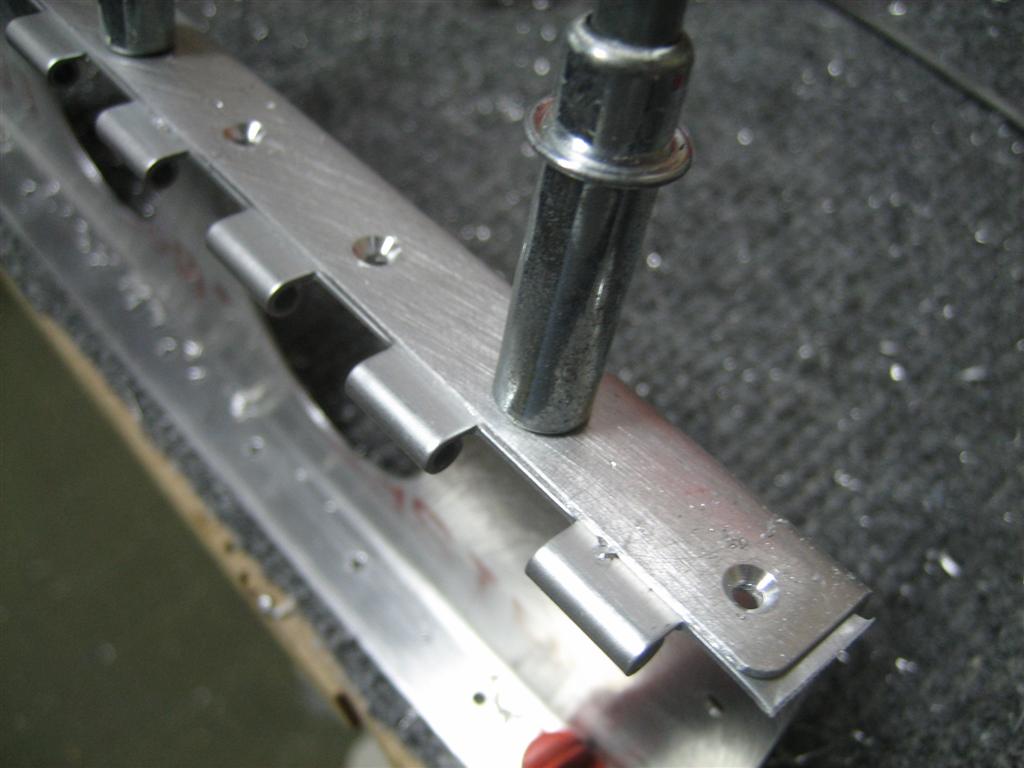

You can see here, I've clecoed the hinge in place and countersunk "a few clicks" deeper than flush.

I don’t know that I’ve ever shown this, but back on the empennage, I made a couple scribe lines on my microstop countersink cage to indicate perfectly flush for an AN426AD3- rivet.

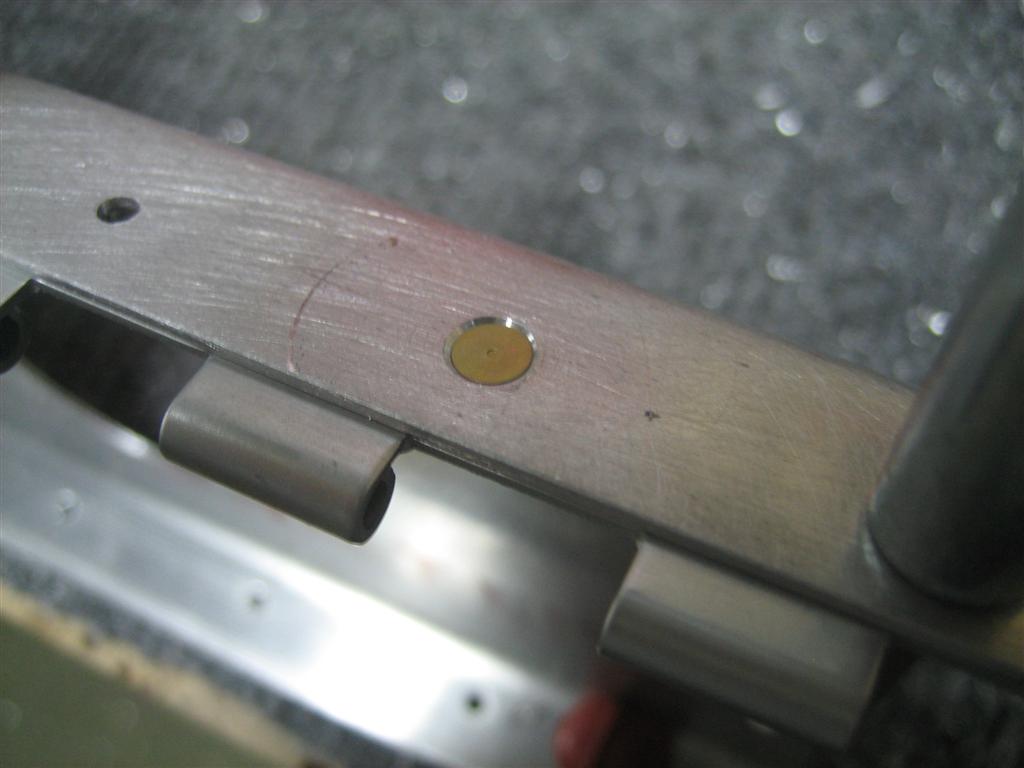

Marked for a flush rivet.

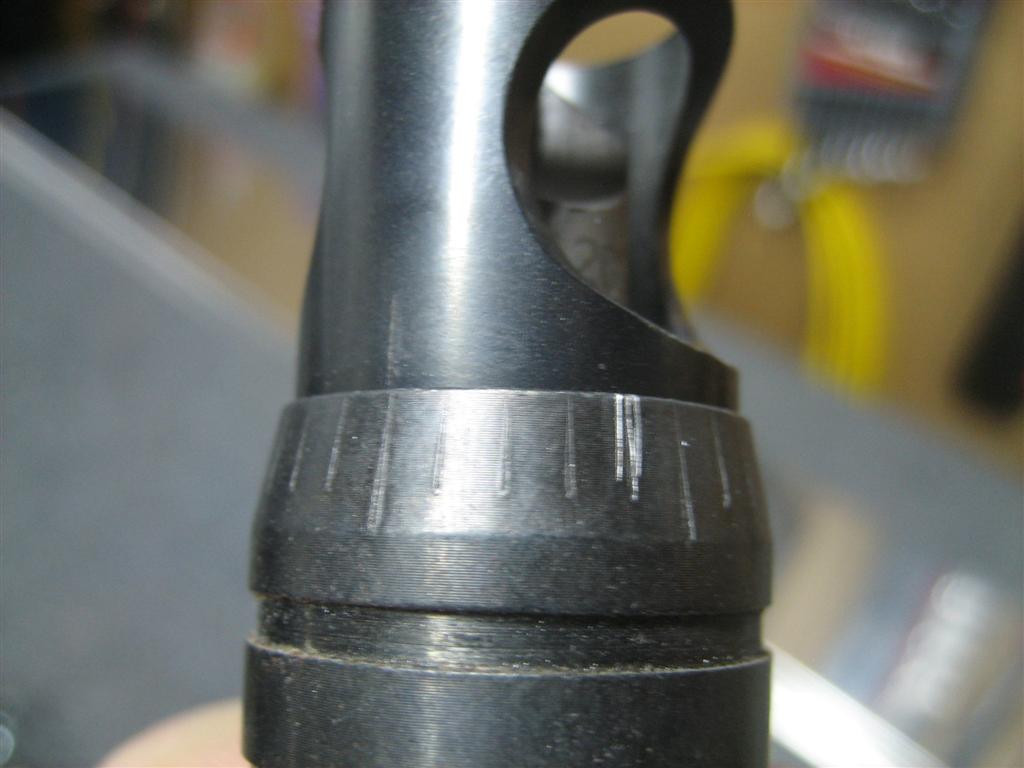

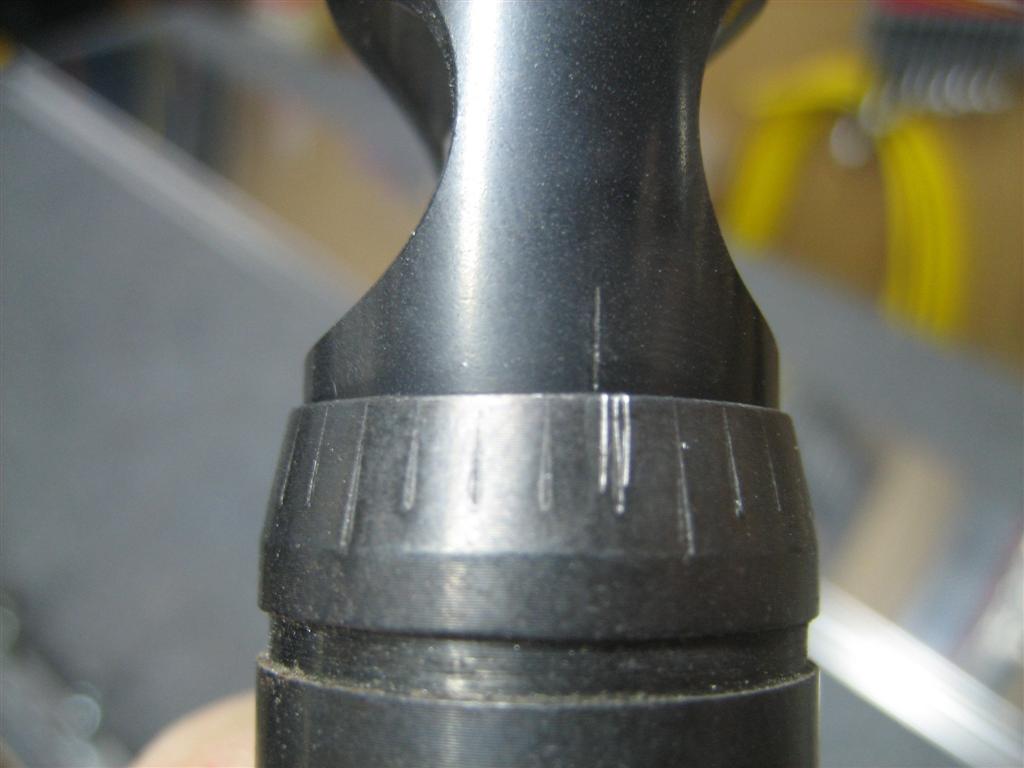

Here are my "few clicks deeper." Four clicks work for me. YMMV.

After countersinking all the holes…

Pretty countersinks.

Oh man. I need to deburr the back of this soft hinge.

Burrs! Burrs!

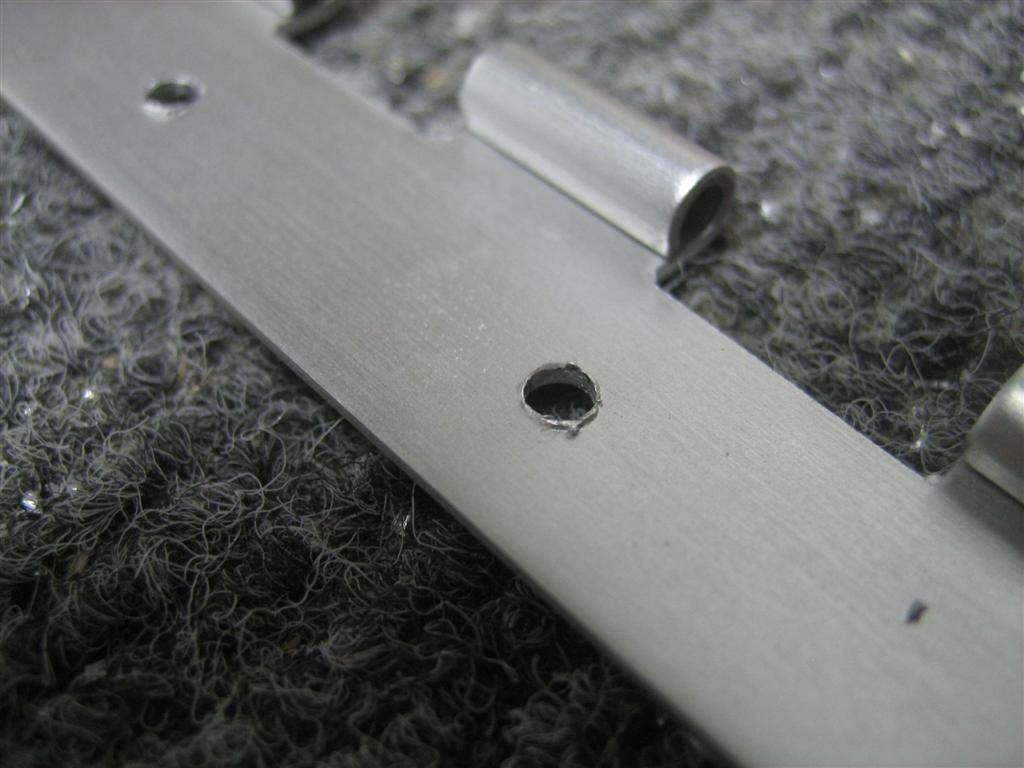

Sorry about the bad picture, but this is after deburring.

With the blur, you'll just have to trust that it's properly deburred.

1.5 Hours. I’m struggling to get outside even for 30 minutes each night. Tonight, I set a reminder on my phone to buzz at me every night. Maybe it will work. (Nope, it didn’t work tonight, but I managed to post this work session. Maybe tomorrow.)

Until next time.

Prev | Next


Primed Some Left Flap Parts

November 6, 2011

Prev | Next

Well, another week later, and I managed to get out in the garage just once. I guess it’s better than nothing.

I decided to get some of the parts finished up and primed. I always like priming parts, because that’s usually what happens just before final assembly.

I started with the spar, spending quite a bit of time deburring, edge finishing, dimpling the upper flange (remember, the lower flange was countersunk to accomodate the skin, but not intrude into the hinge), and finally, some scuffing.

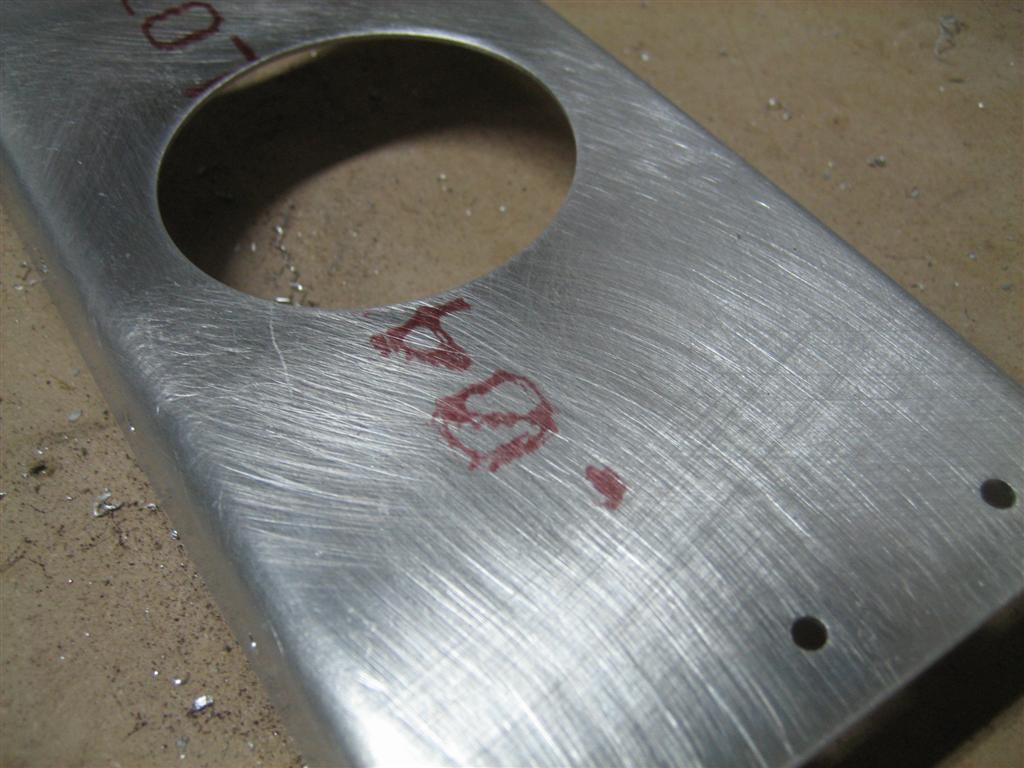

You only get a picture of the scuffing. Sorry.

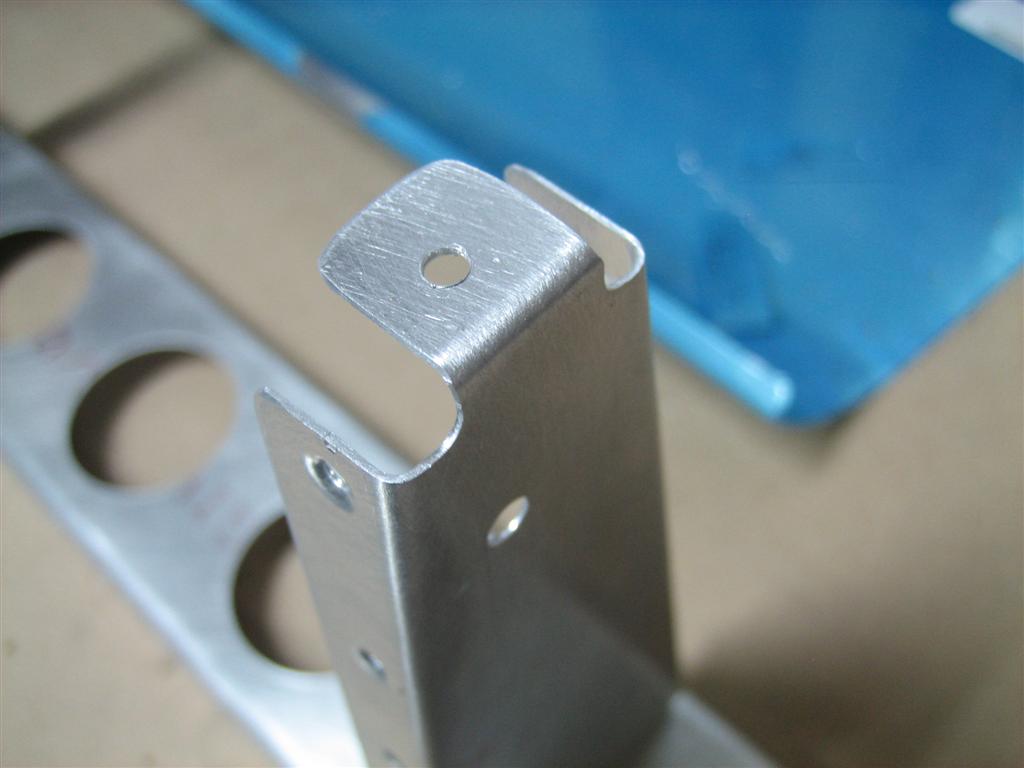

Then, I started in on the prep for the ribs, and I noticed that the aft flange of the interior ribs are only drilled to #40. As part of my normal prep work, I reread the plans to make sure I know which type and size of rivet goes in each hole. Apparantly, this one is supposed to be drilled to #30 for an AN470AD4- rivet.

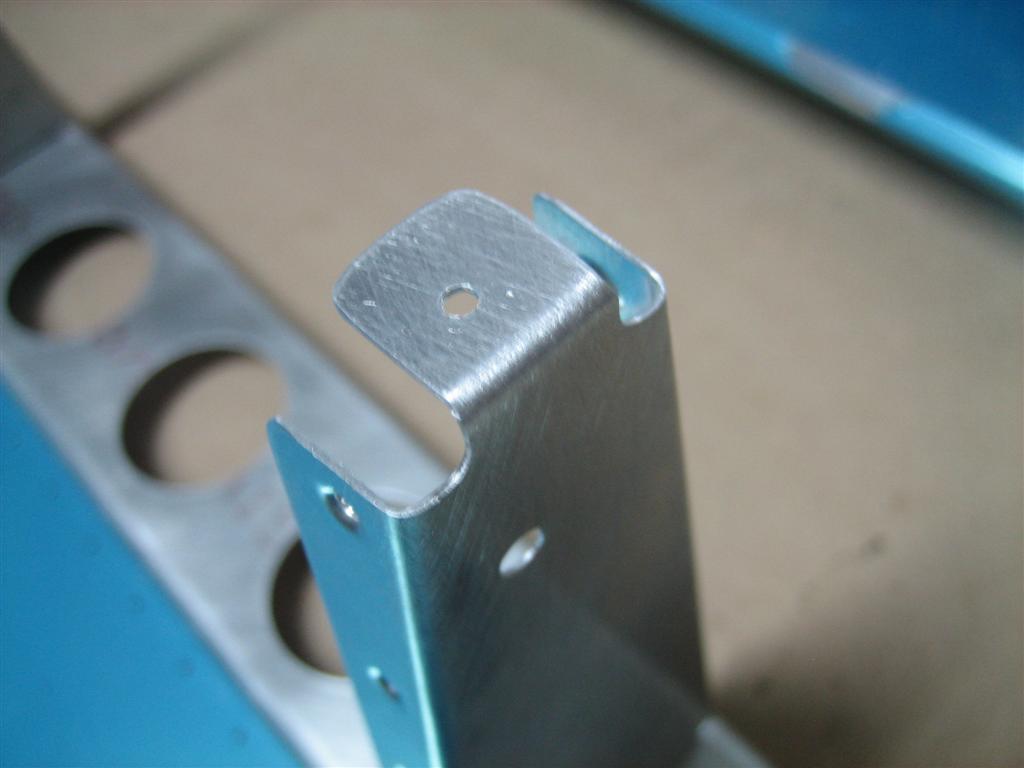

WRONG SIZE HOLE!

So, to make some extra work for myself, I clecoed the ribs and spar back onto the lower skin (which has the “rear spar” built into it), and…

Clecoed back together.

Drilled the holes to final, #30, size.

I haven't deburred yet, so don't mind the burrs.

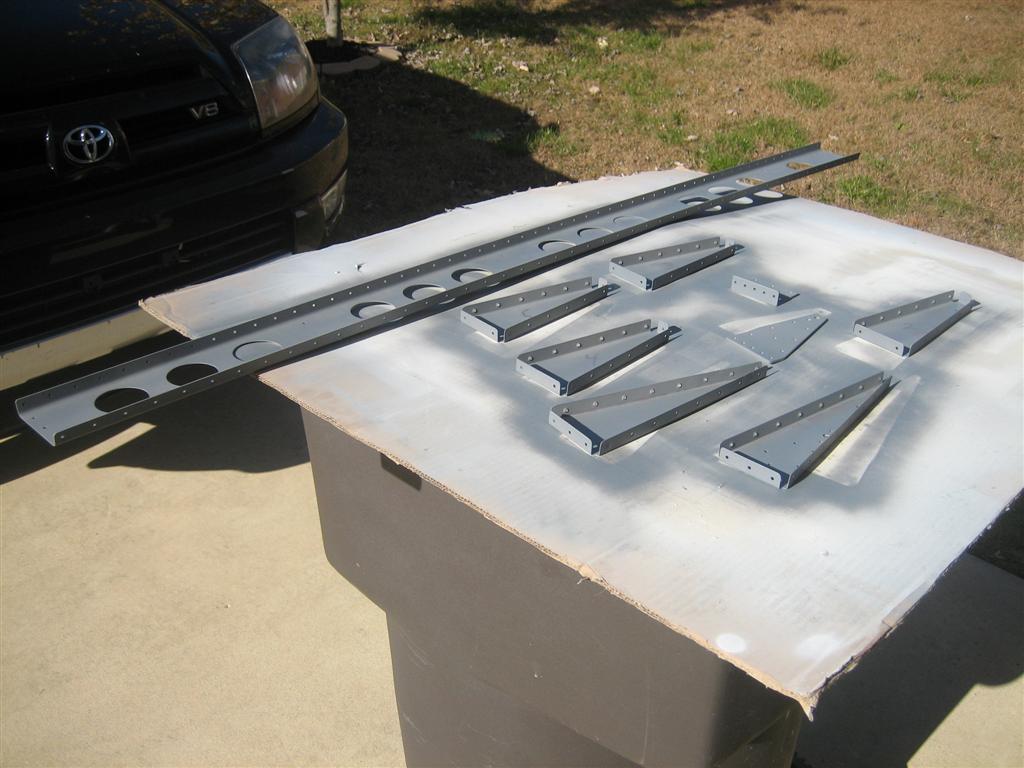

Finally, I spent another chunk of time prepping the rest of the ribs, and getting them cleaned up to take outside for priming.

It was a beautiful day for airplane building today.

Too bad I couldn’t put in more time….just 1.5 hours today. Blah.

Prev | Next


Right Float Sender, Riveted Leading Edge to Spar

July 23, 2011

Prev | Next

Guess what? I worked on the airplane today, so the observant of you should realize that I am NOT on my way to OSH. Boo.

No use worrying about the spilled milk, though. More time for me to work on the airplane.

I need to leak test the right tank, but first, I have to finish sealing it up completely. Last post, I got everything sealed except for the float sender. Here’s the plans shot showing the sender, but it’s showing it mounted to the access plate. Mine will be the same dimensions, but entering from the rear of the tank in the second bay.

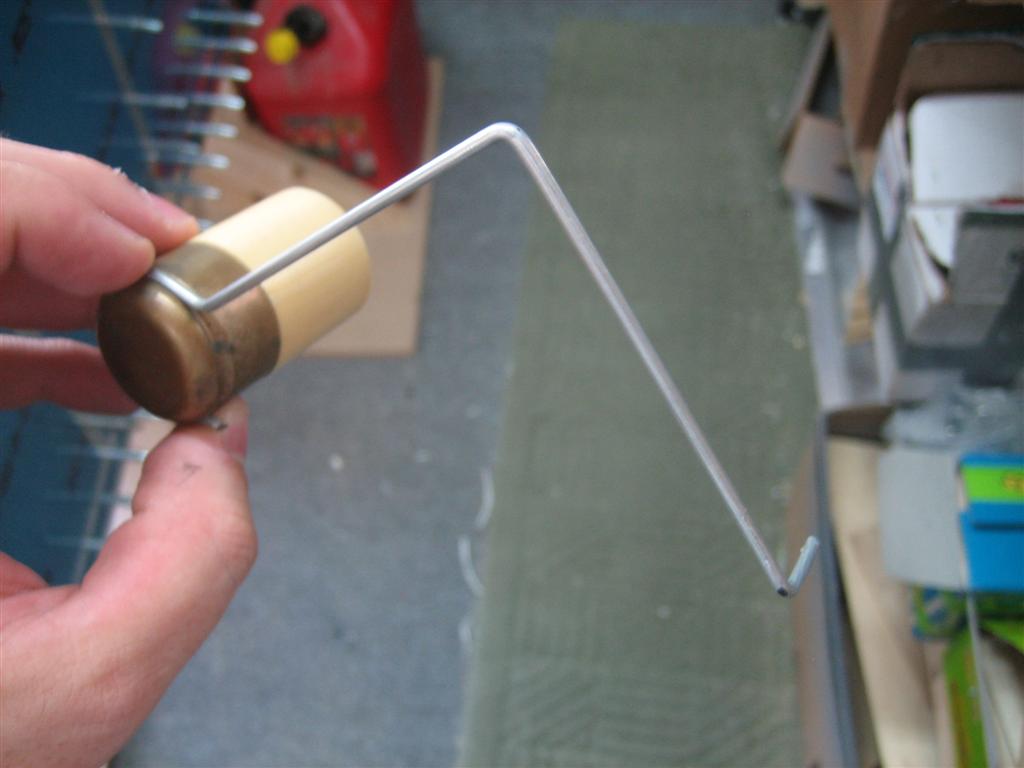

A couple 90° bends, and I'll be cooking with gas.

That was easy.

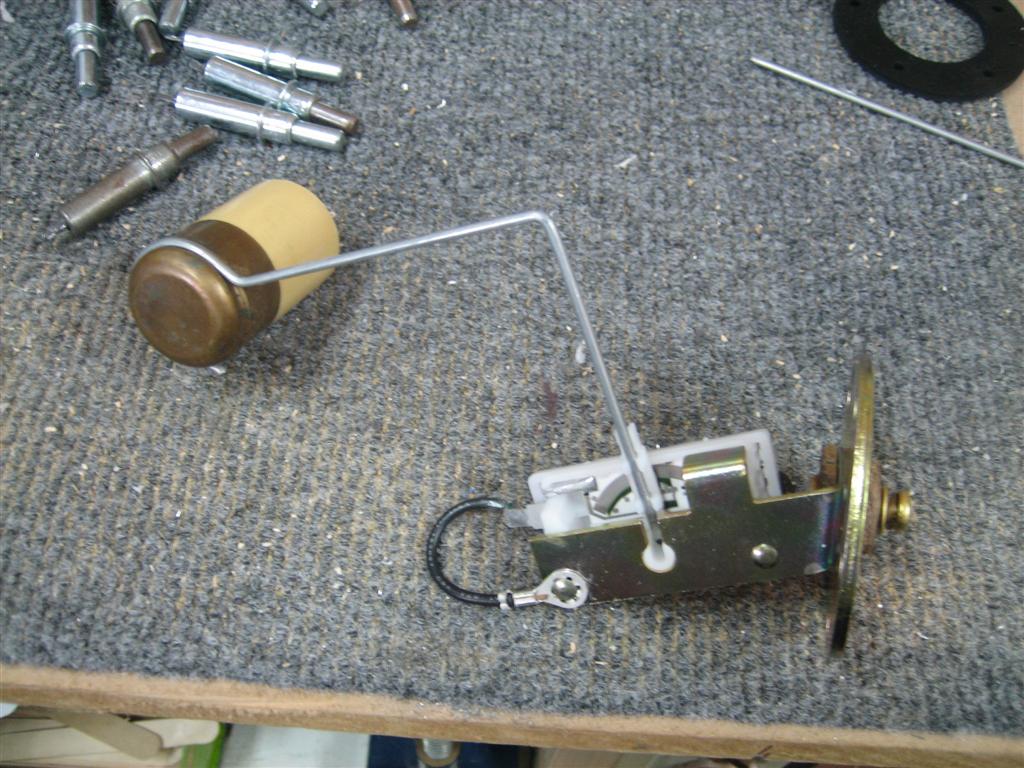

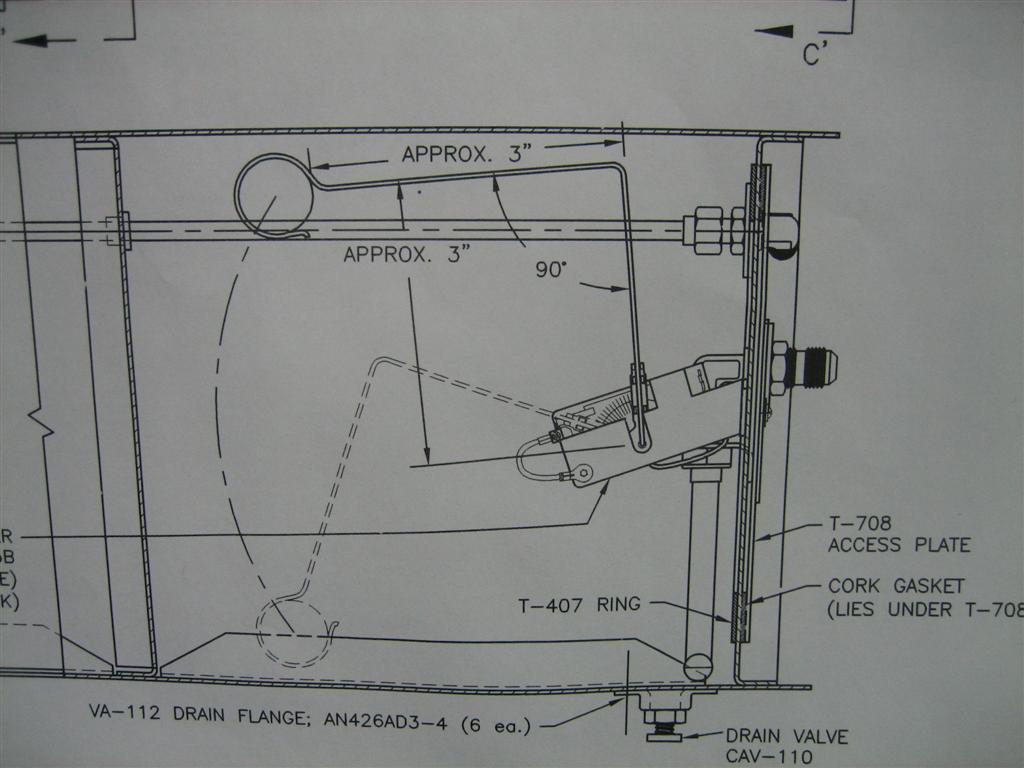

To install in the sender, you line up the plastic piece with the slot in the metal housing, and slide the float wire in.

Can't get any easier than that.

Now, let’s clean up and get this thing sealed in there.

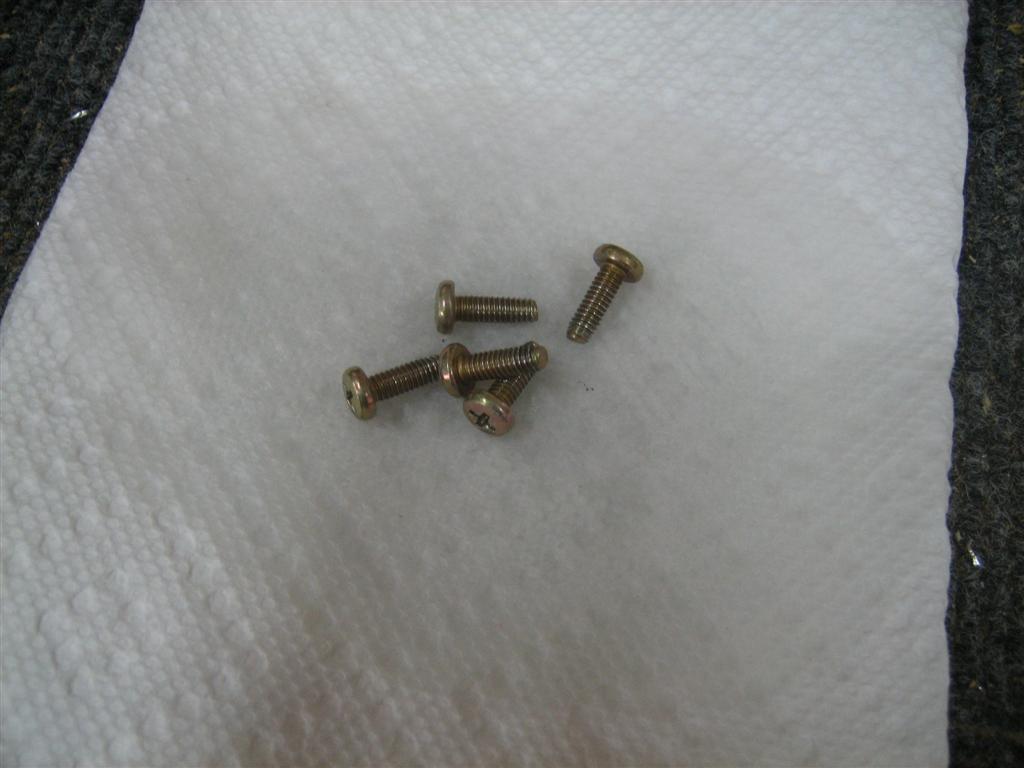

Five #8 screws after swishing in some MEK.

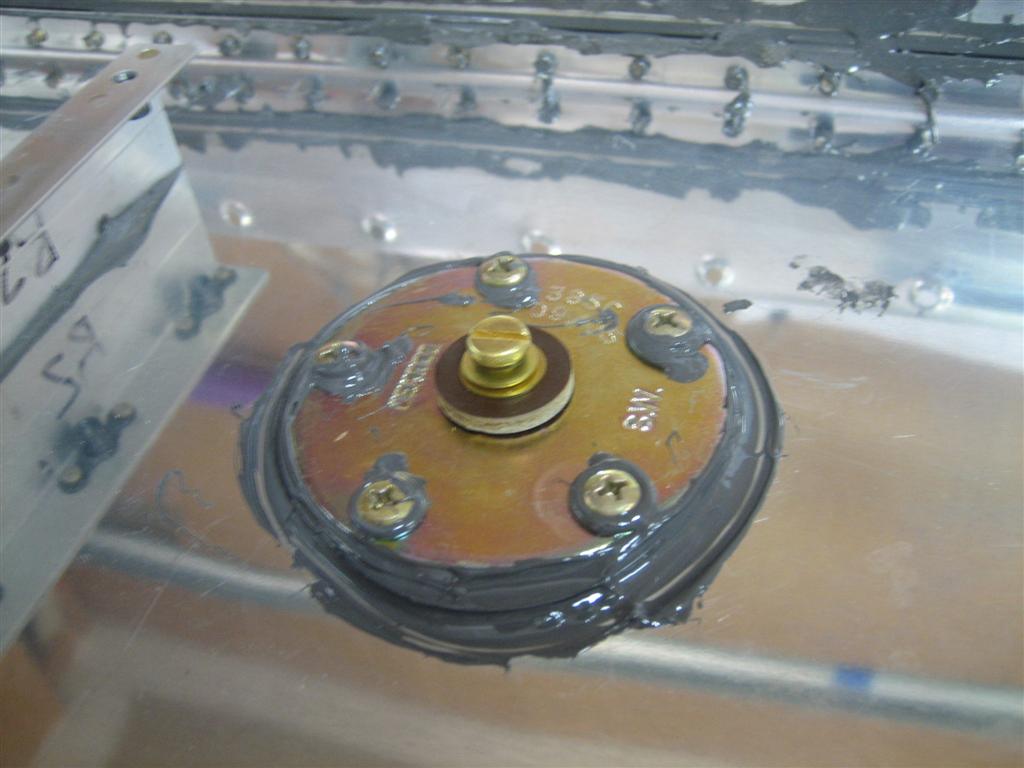

After cleaning up a whole bunch, I put the rubber gasket in place with some sealant (couldn’t decide if I needed some or not), then put the float in, then more sealant around the edges, and some sealant for the screws.

Looks good to me.

I retested the sender and noticed 240 Ohms to 80 Ohms (I think I saw something lower before). That’s okay, my EFIS (Electronic Flight Information System) will calibrate the range of fuel levels based on resistance later.

Okay, that was about a half hour, and there are plenty of hours left in the day, so let’s move on. I think the next thing on the docket is to get the leading edge on the spar permanently. I have the leading edge landing light installed, and the tiendown bracket is good to go.

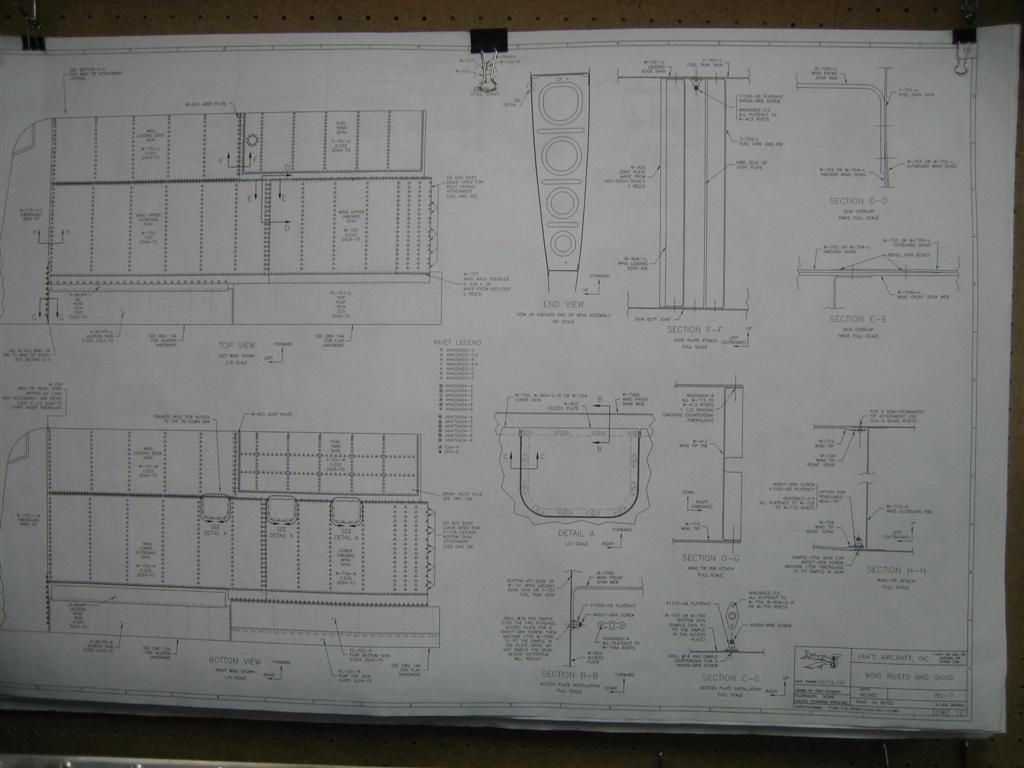

A changing of the plans picture…to the wing rivets and skins page.

Always fun to change plans.

After a few long minutes of getting the spar holes countersunk, I rubbed the scotchbrite pad over the length of the flange, cleaned up with MEK, then taped off to get some primer on there.

Ready for primer.

Sorry the light kind of precludes the primer from showing.

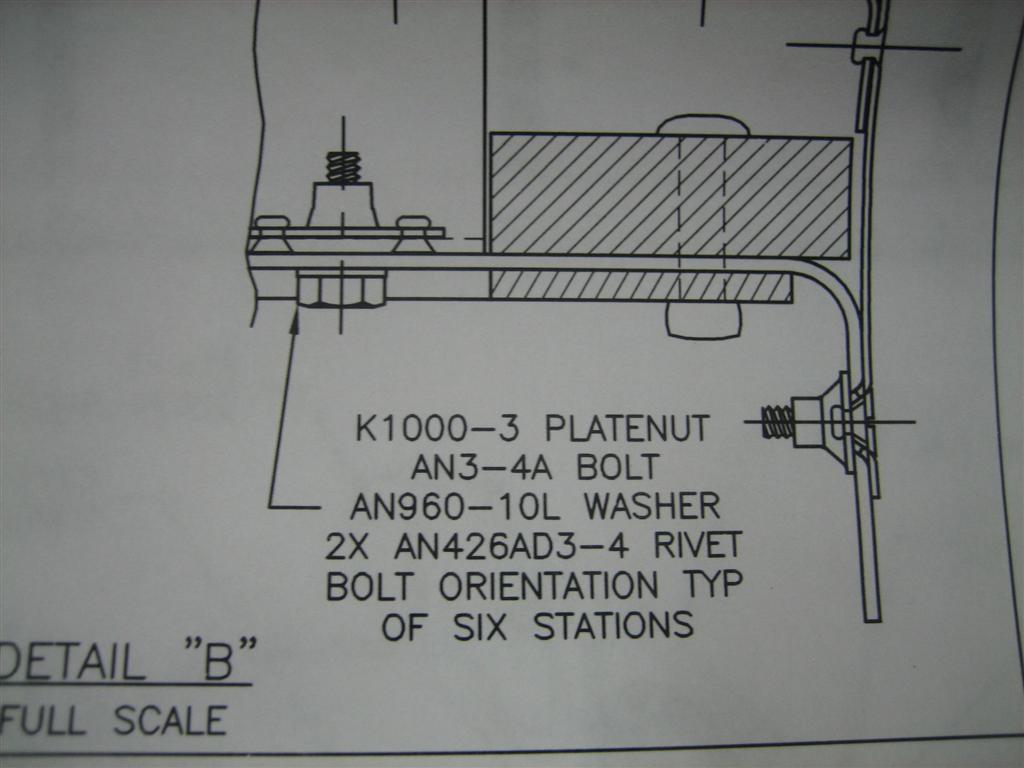

Okay, before I just start riveting the leading edge to the spar, I want to make sure everything lines up again. So, I want to put the tank on the spar, and the opposite skin from where I’m working.

Before I can get the tank on, I need to grab some nutplate for the inboard tank z-brackets.

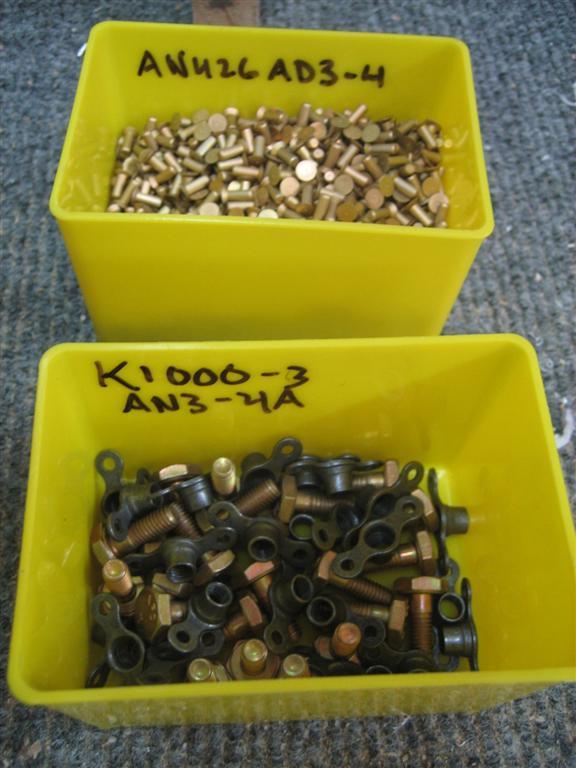

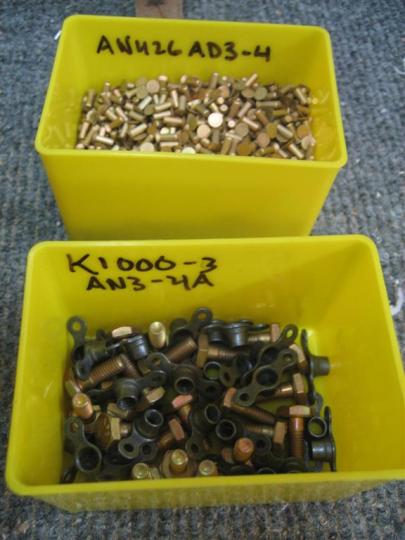

Looks like AD3-4 and K1000-3 nutplates.

Here they are.

Done. I couldn't countersink very well along the spar bars, so I went a little light and used oops rivets on the very top and bottom (right and left here) holes.

Then I grabbed the outboard lower skin, and got it clecoed on.

Here's just the leading edge clecoed.

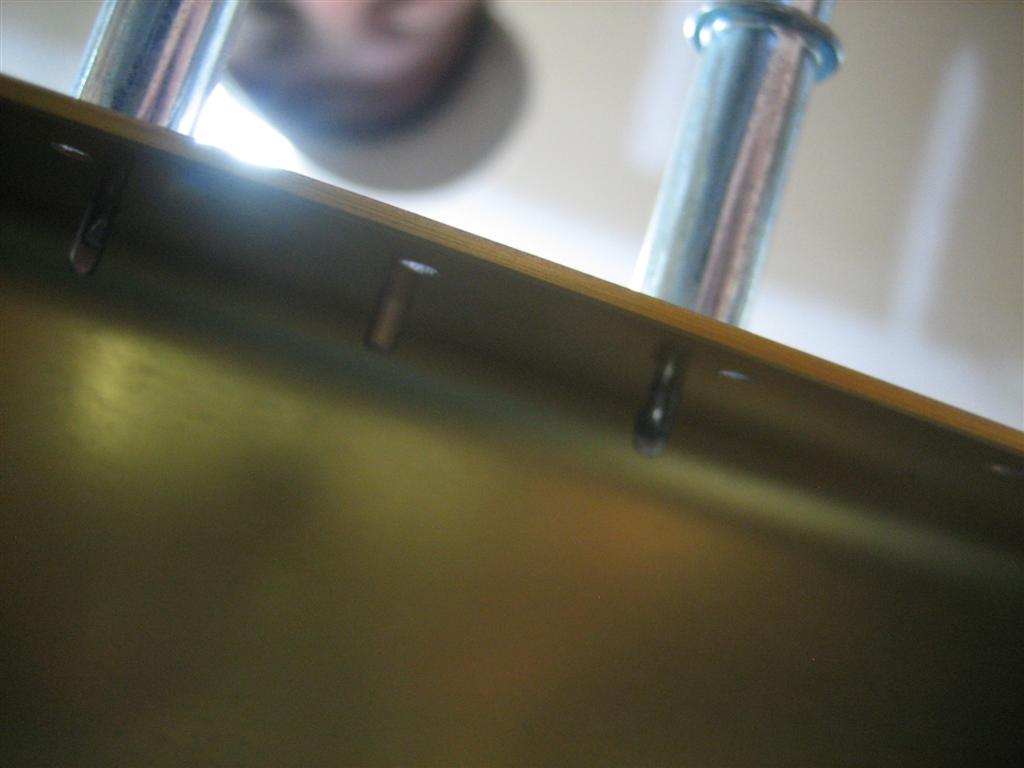

Then, I grabbed the tank and put screws in every 5th hole.

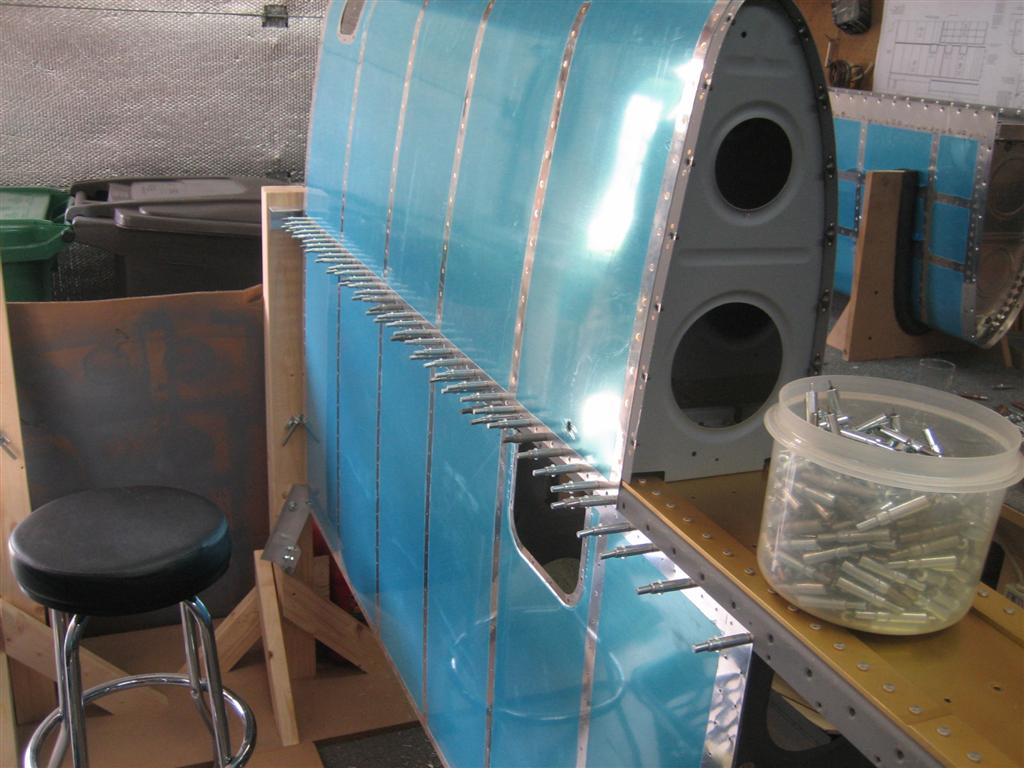

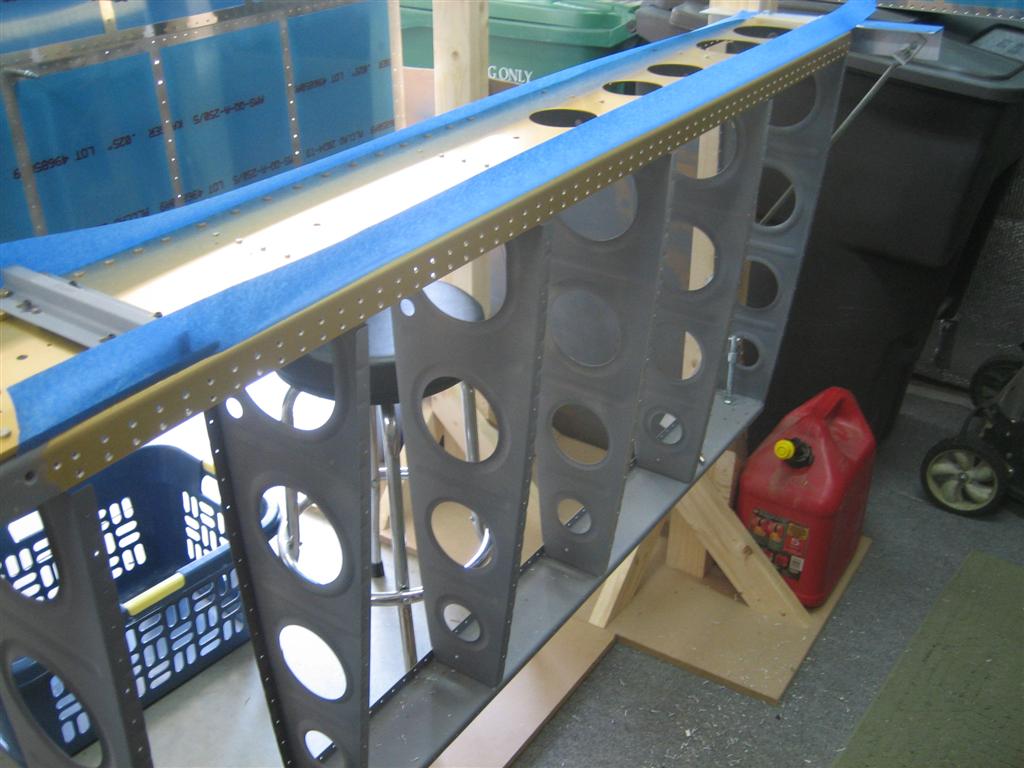

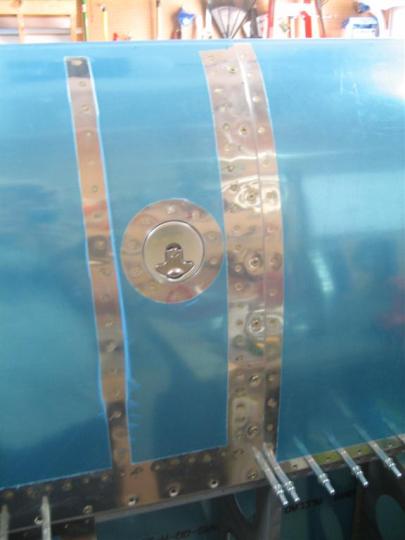

And a screw in every hole along the tank/leading edge joint. Everything lines up great and looks awesome.

I told you it looks awesome.

With the leading edge 50% clecoed, I decided it was finally time to show the FAA I’m really building this airplane. Sorry this awesome picture of a pre-squeezed rivet blocked the shot.

My visor says "Foxy's" on it. Anyone? Oh, and that rivet size looks appropriate, let's get to squeezing.

After 65 rivet squeezings, I had the upper leading edge skin riveted to the spar.

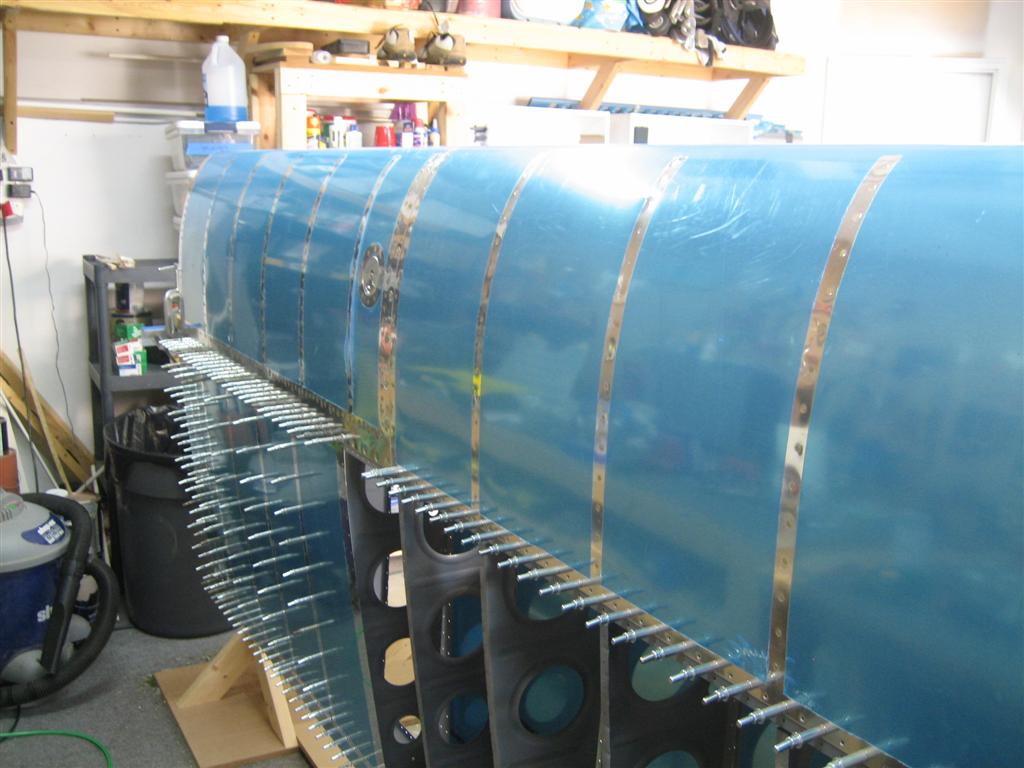

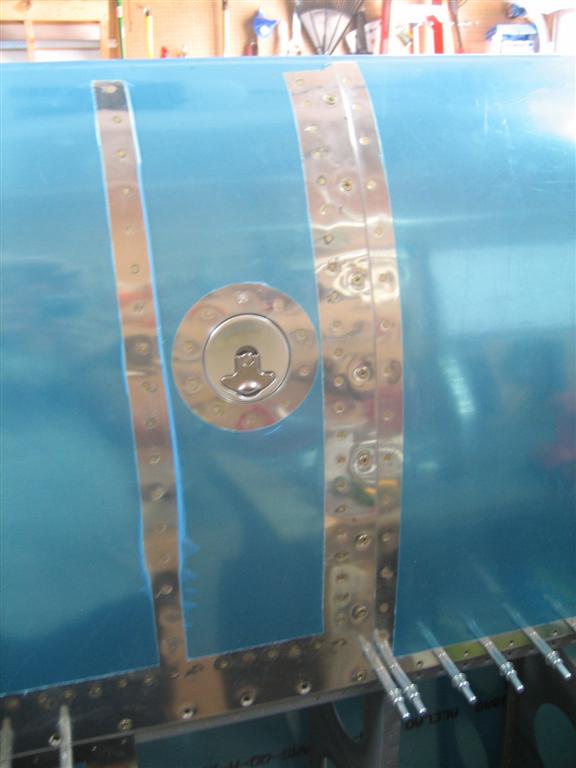

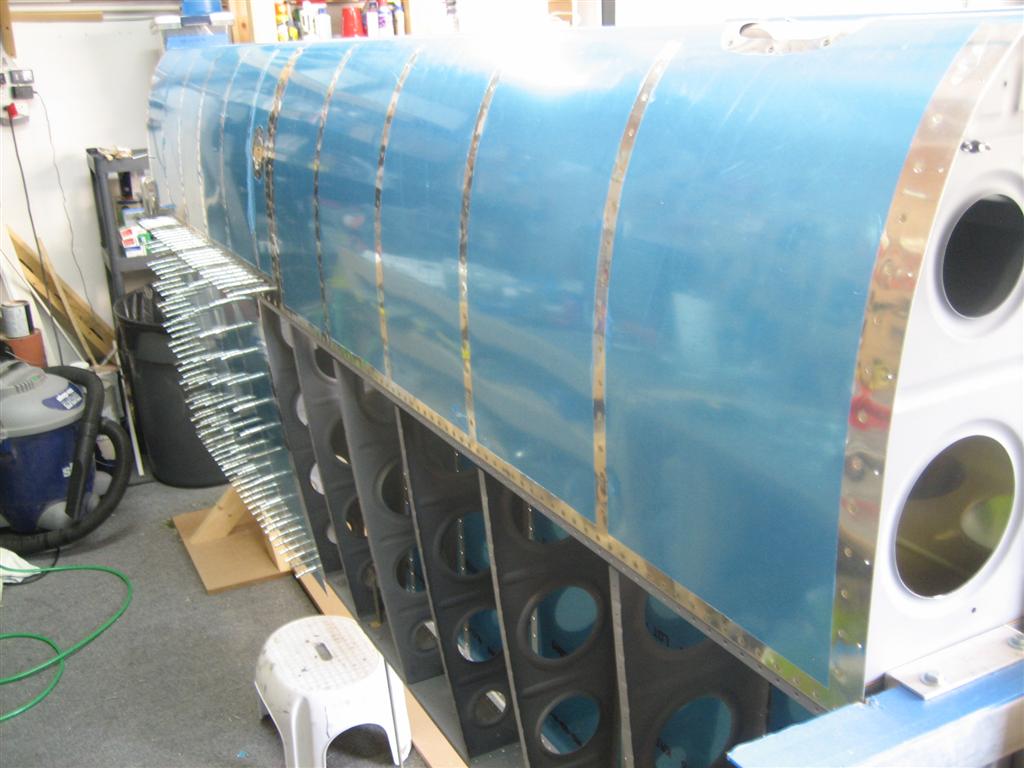

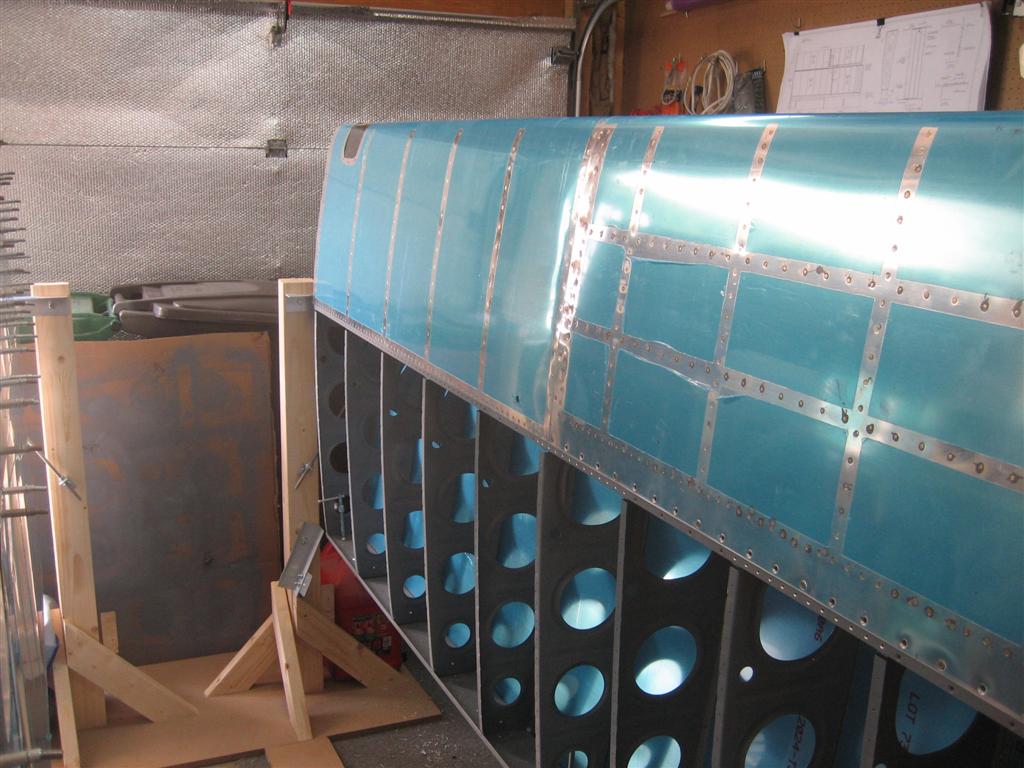

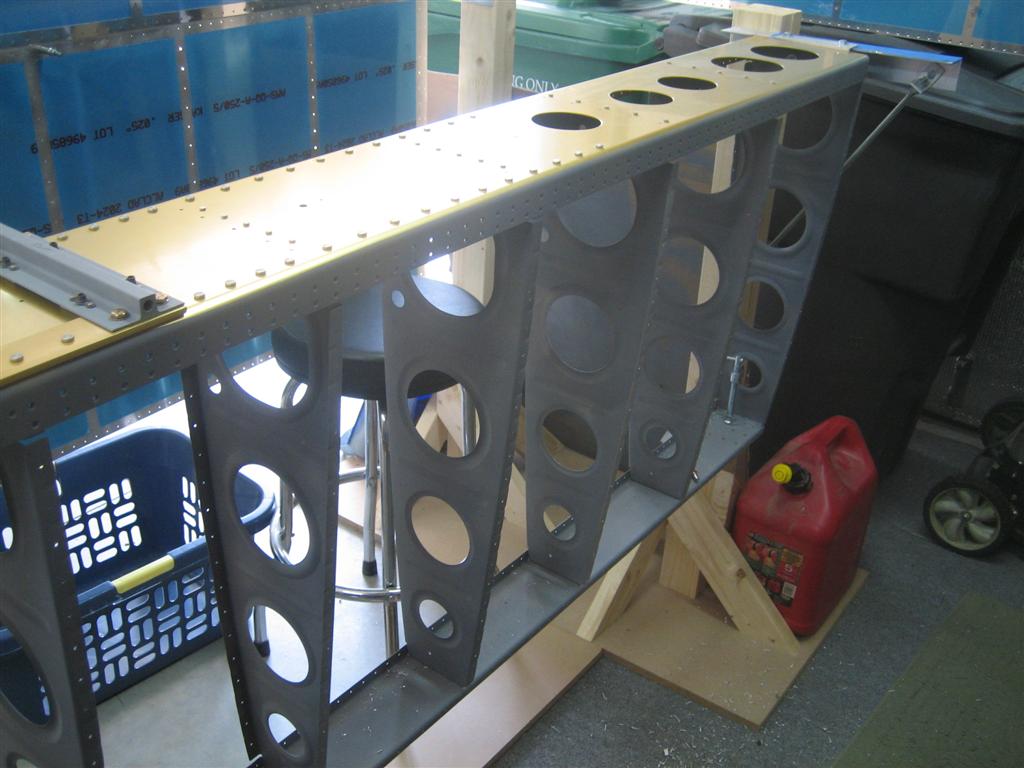

The leading edge looks so cool with no clecos in it.

After 65 more rivet squeezings, I had the lower leading edge skin riveted to the spar.

Oh man, I'm so excited.

GOOD DAY IN THE SHOP, high fives all around.

So….0.5 hours toward the tank. 2.5 hours toward the wings.

6 rivets for the spar nutplates, and 65 rivets each on the top and bottom of the leading edge. That makes 136.

Wuhoo!

Prev | Next


Deburred and Scuffed Right Tank Skin

June 3, 2011

Prev | Next

Well, it’s Friday, and I had both a great and crappy week.

Enough small talk, let’s get building!

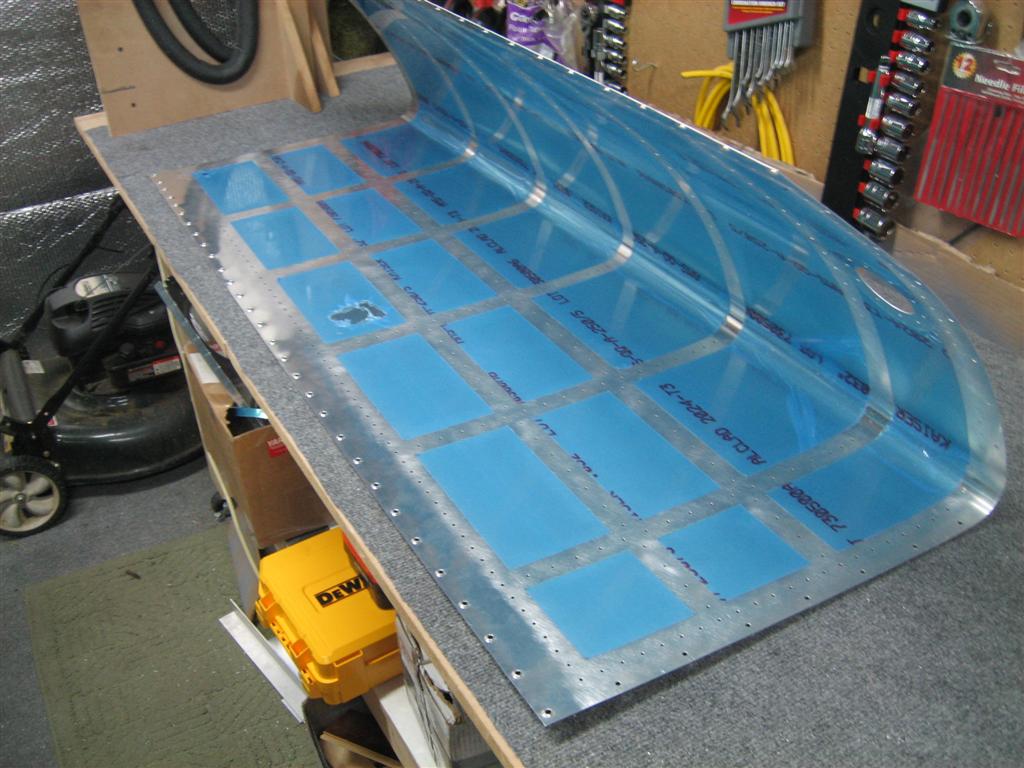

Since it was 1,000°F in the garage today, I brought the right tank skin inside (nice air conditioning) to do some deburring.

First, I deburred the outside of the skin, then moved to the interior. Per my usual, after deburring a few holes, I’d scuff up the line so I knew where I had been.

A few lines deburred and scuffed.

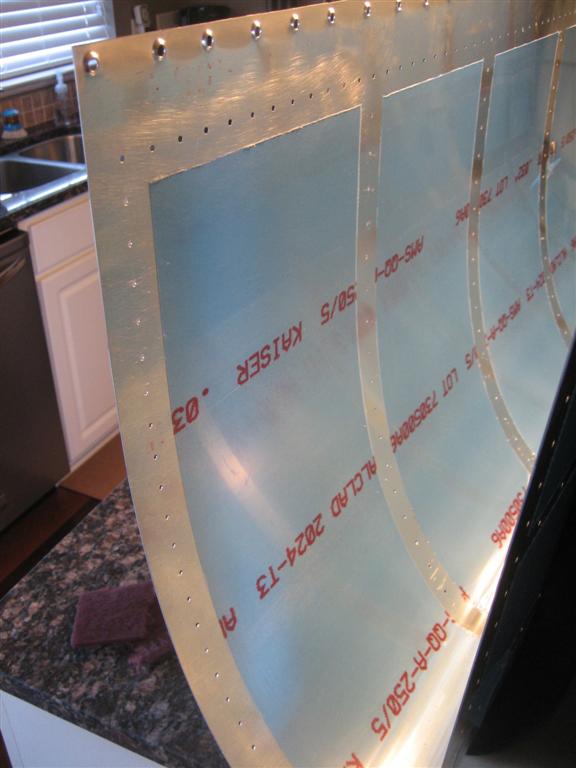

In preparation for dimpling (where the skin needs to slide on the workbench, I cleaned up a little, which included taking apart the vacuum to find out why it’s been making that weird noise.

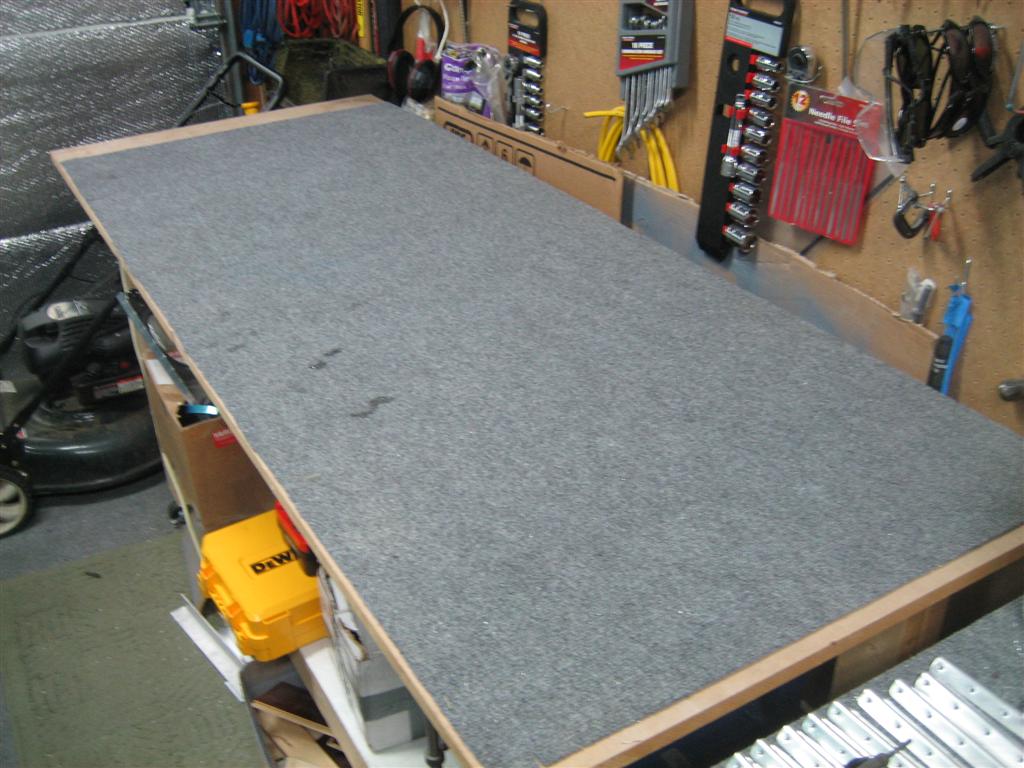

Clean workbench!

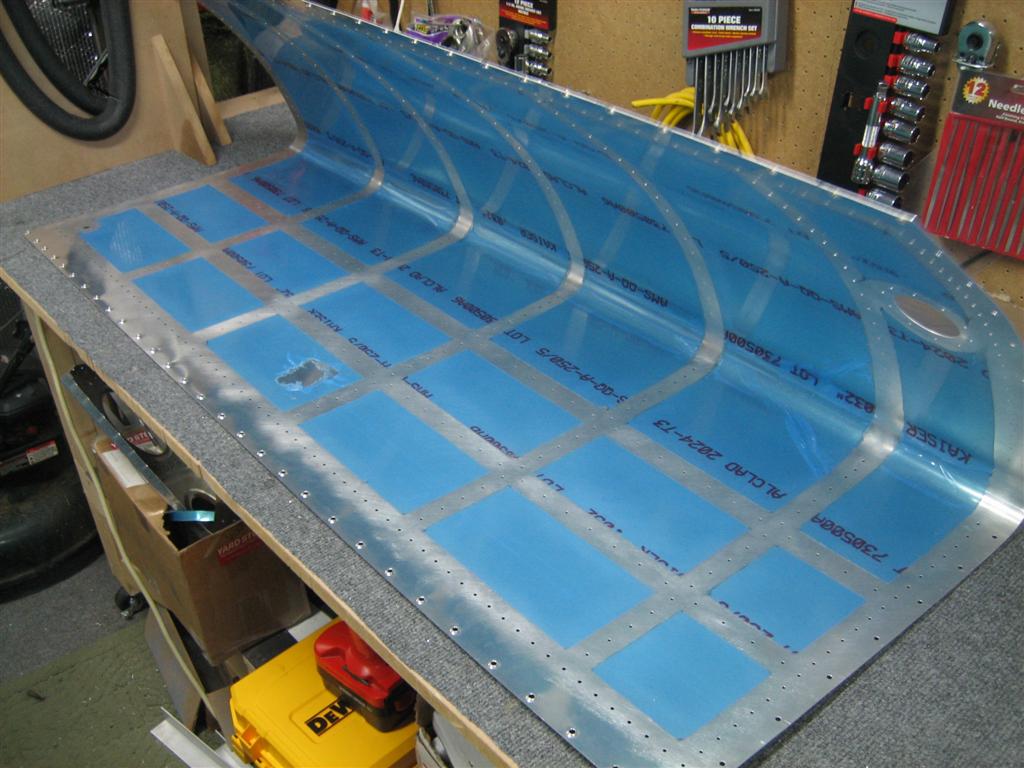

Here's the scuffed skin, ready for dimpling.

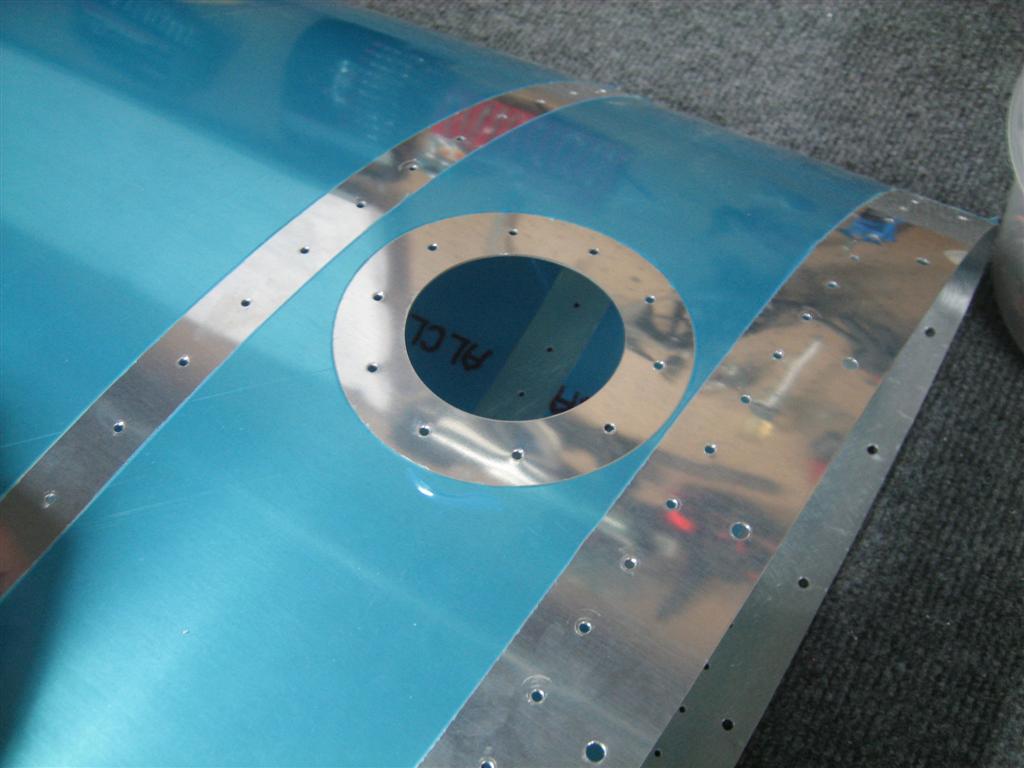

I still needed to remove some vinyl from a few places, so I clecoed the drain flange on the wrong side and used it as a guide for the soldering iron.

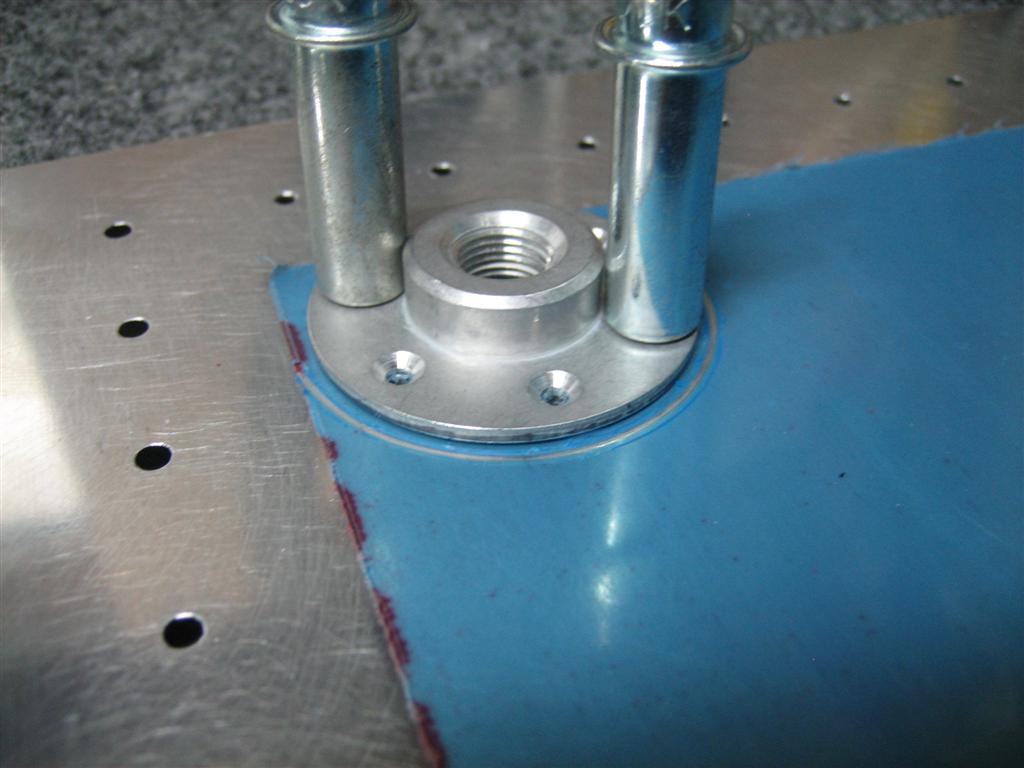

This is on the inside of the skin, where this normally goes on the outside.

After soldering.

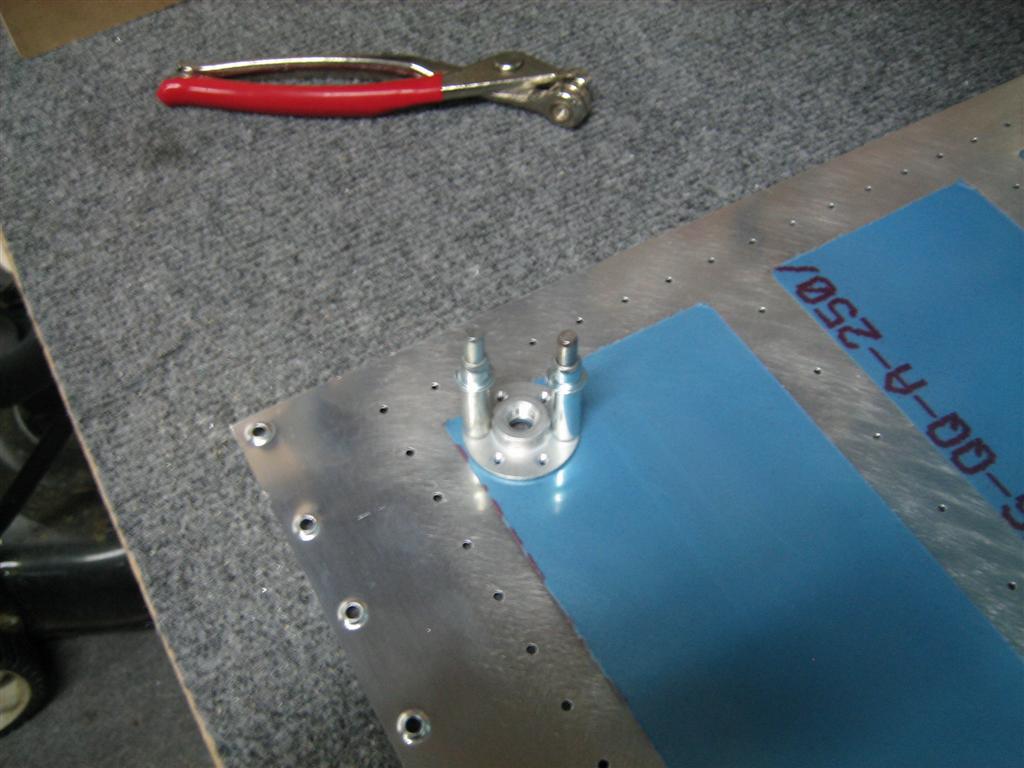

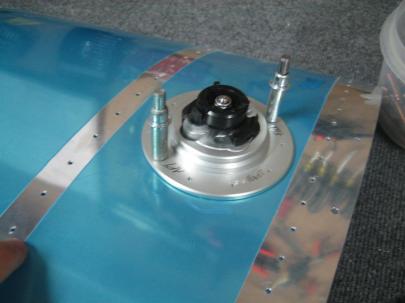

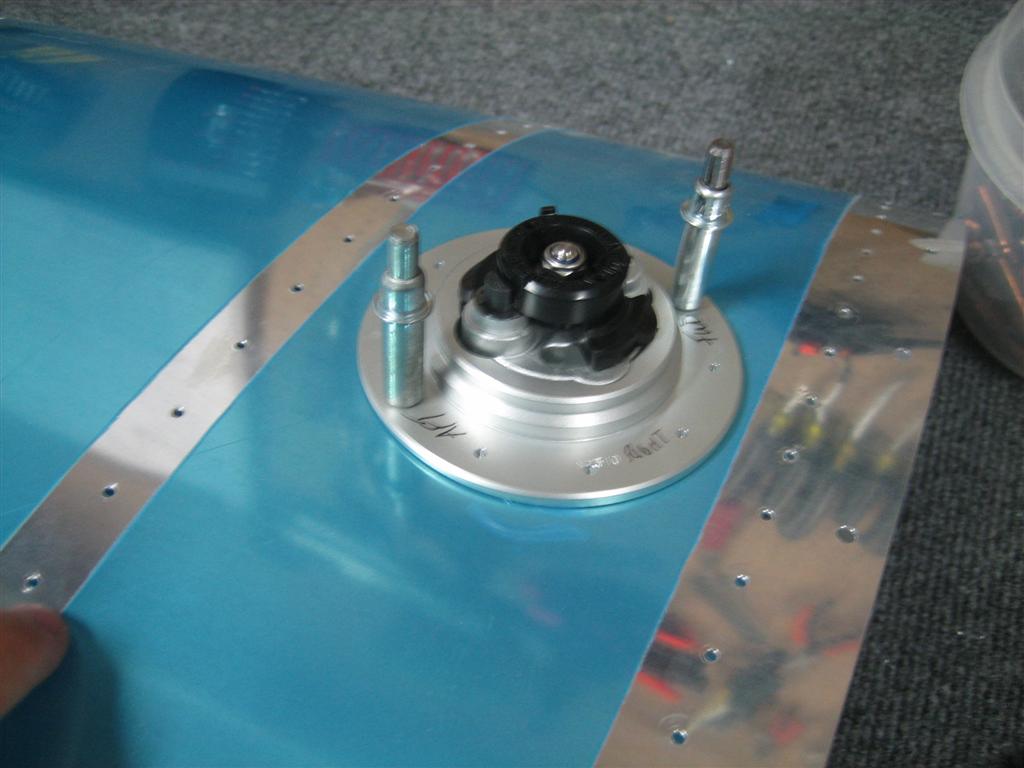

I did the same with the fill cap and flange. Clecoed them on the outside so I could get a nice round hole.

You can see where I've marked the flange for future positioning.

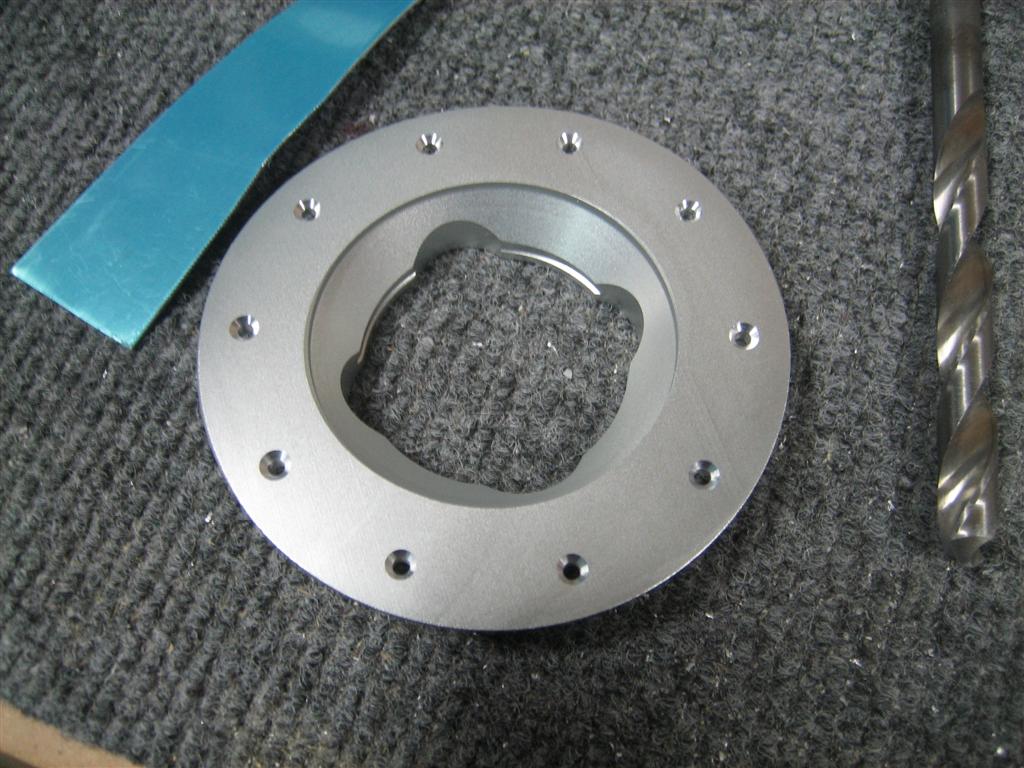

After devinyling with the soldering iron...

I don’t know what this picture is showing.

Another picture of the skin?

Oh, while the soldering iron was cooling down, I didn’t want to just abandon it to start a fire or anything, so I kept the fill cap flange out and decided to do some countersinking.

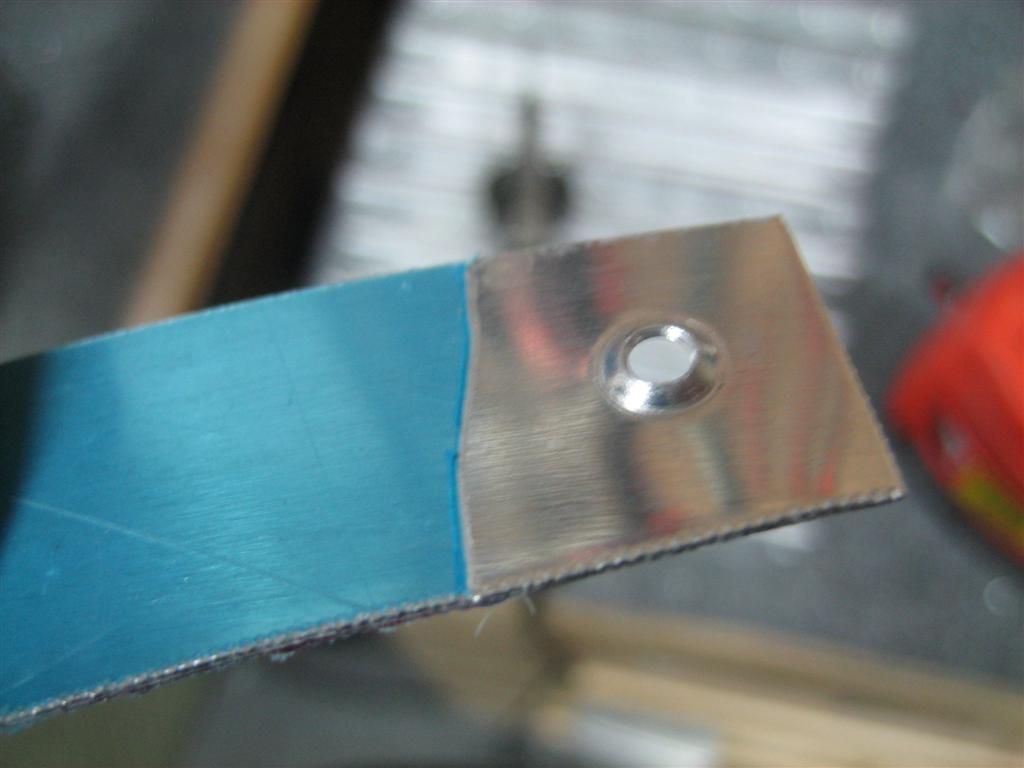

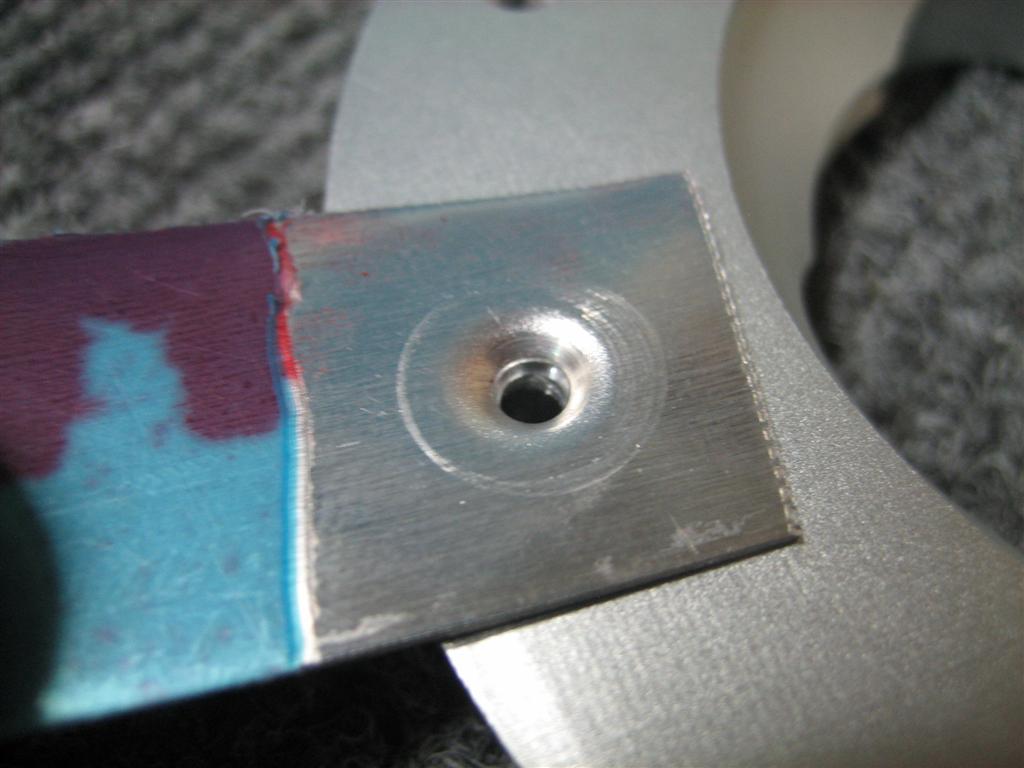

First, though, I found some 0.32″ and made a #40 hole, then dimpled with the deeper tank dimple dies.

A tank dimple to test countersinks.

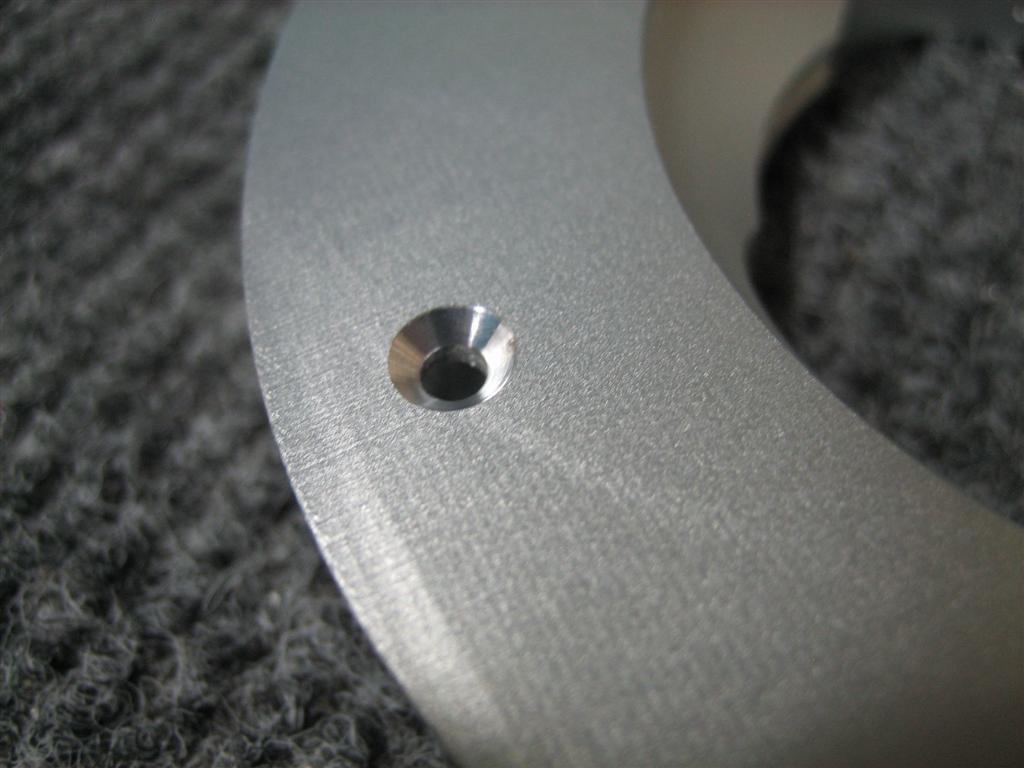

After some countersinking…

After testing, I don't think these were deep enough.

I turned it a few clicks deeper and went back around.

Much better.

With the test dimple in place...now I'm happy.

Hmm. Soldering iron is still hot. Maybe I’ll fool around with some AN hardware since that stuff is coming up.

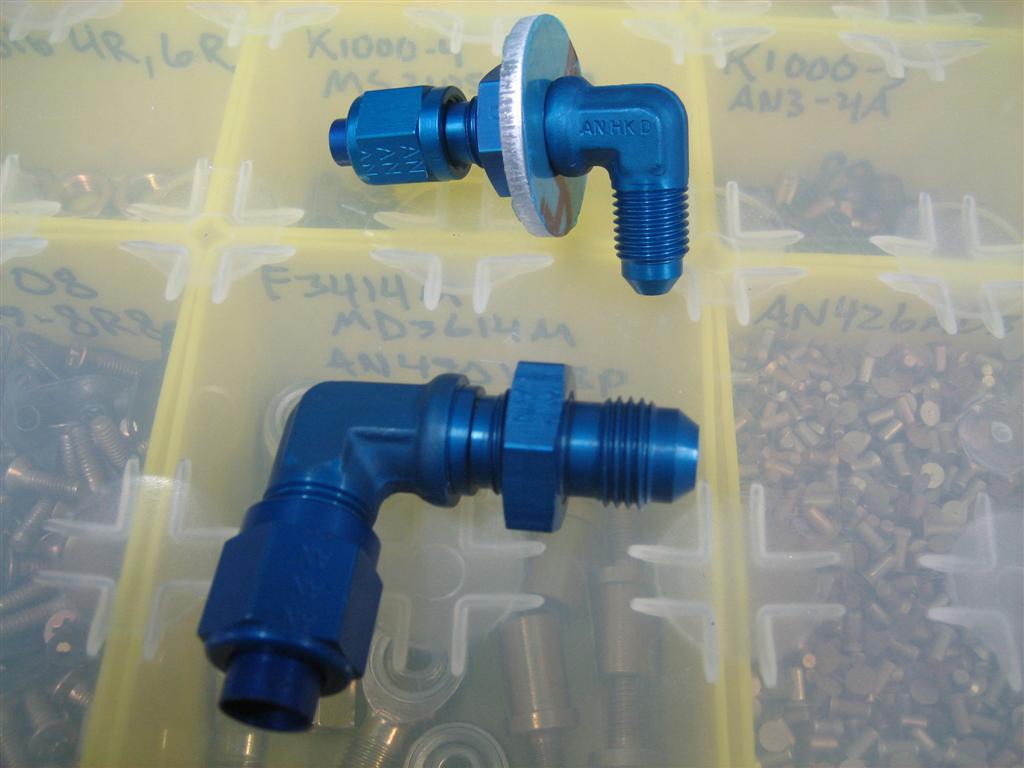

I fished out the AN hardware, both -4D and -6D sizes and screwed some pieces together based on the plans. -4 is four sixteenths, or for 1/4″ tubing and -6 is six sixteenths, or 3/8″ tubing.

On the RV airplanes, fuel vent lines are 1/4″ tubing (-4D hardware, in the background), and fuel feed lines are 3/8″ tubing (-6D hardware, in the foreground).

-4D and -6 D hardware.

1.5 hours. Proseal soon…

Prev | Next


Riveted Nutplates On Right Wing Z-Brackets

February 22, 2011

Prev | Next

Well, nothing too exciting, except I got to bang* on some rivets.

* By “bang” I mean “squeeze.”

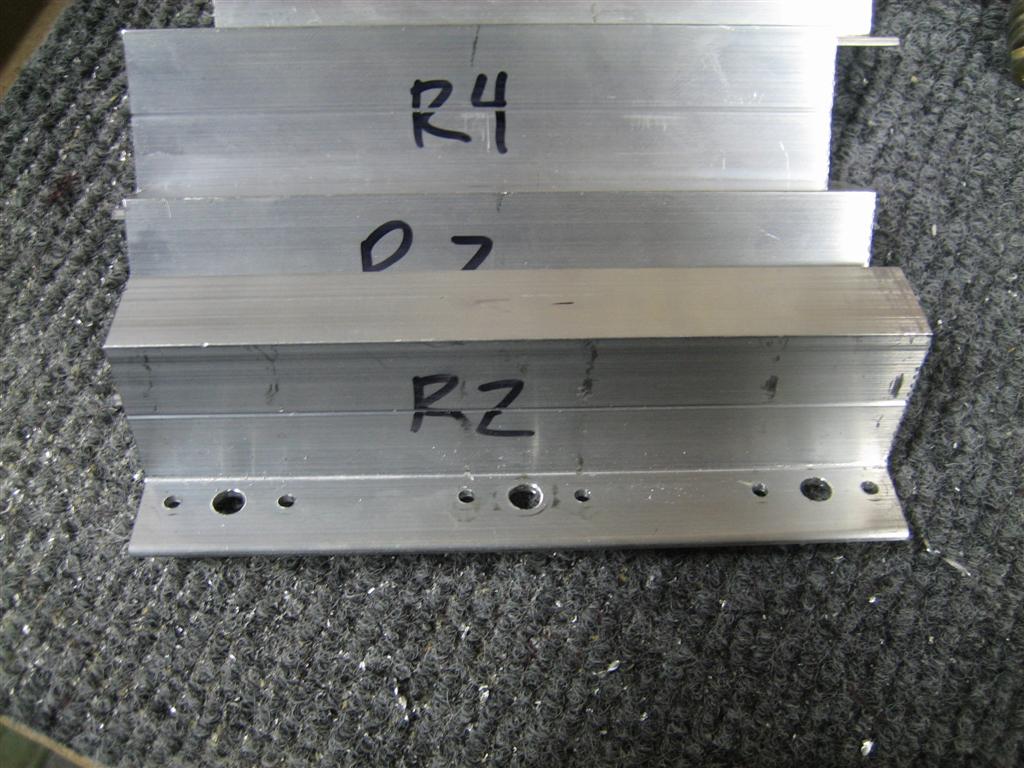

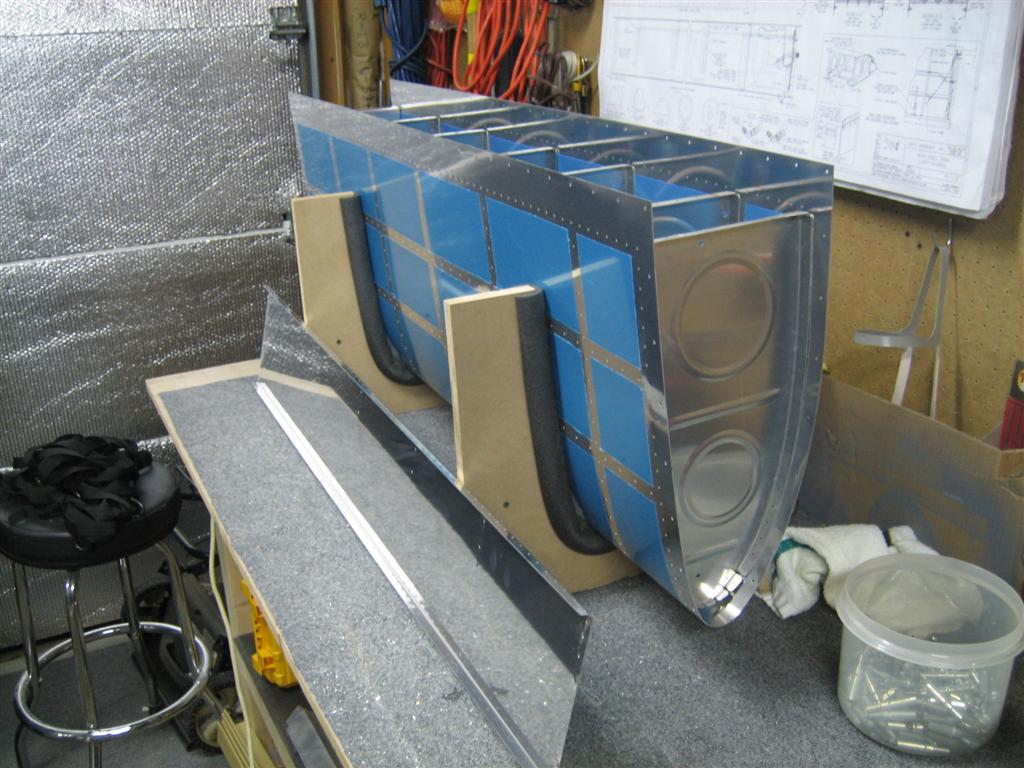

After the other night, I have 7 z-brackets that are matchdrilled to the spar. Six of those seven need nutplates on them.

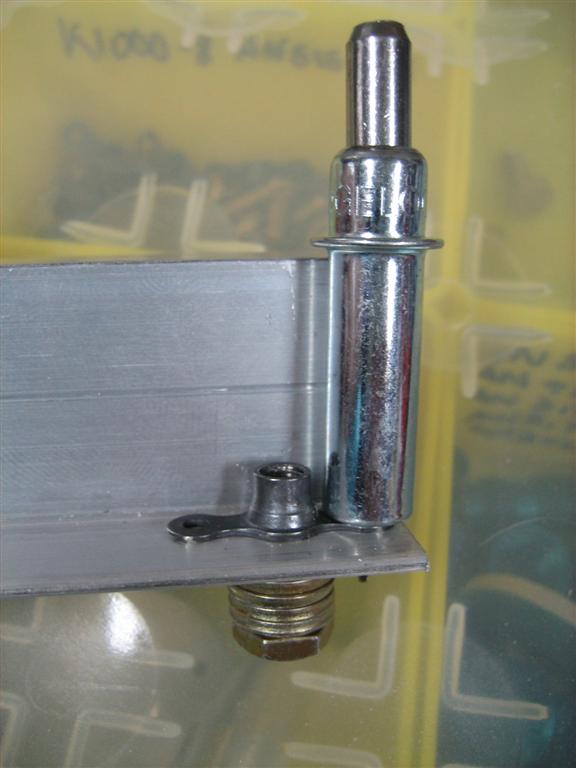

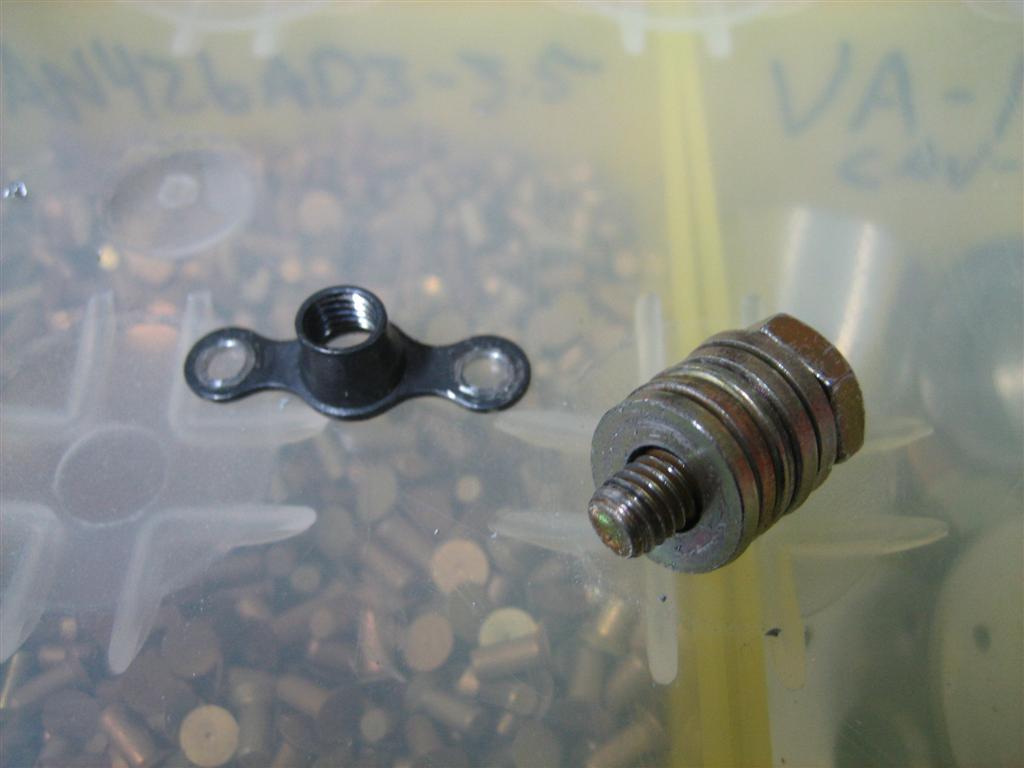

I grabbed a cleco, a (sacrifical) nutplate, an AN3-4A bolt, and a handful of washers (so I don’t engage the locking portion of the nutplate).

Bolt with washers goes in the hole, nutplate on top, hand tighten in a reasonably aligned orientation, and drill one of the holes for the nutplate ears through the angle.

Then, add a cleco and drill the other side.

Easy as PIE.

See? Easy!

After completing the first three sets, I snapped this picture.

3 down, many to go.

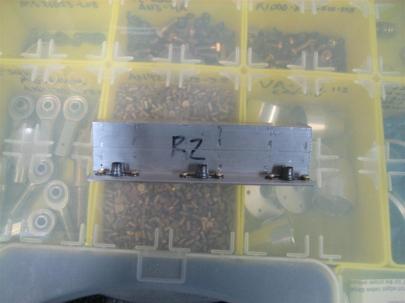

I think it was…[thinking]…6 angles, three bolts each, 2 holes for each bolt…36 holes?.

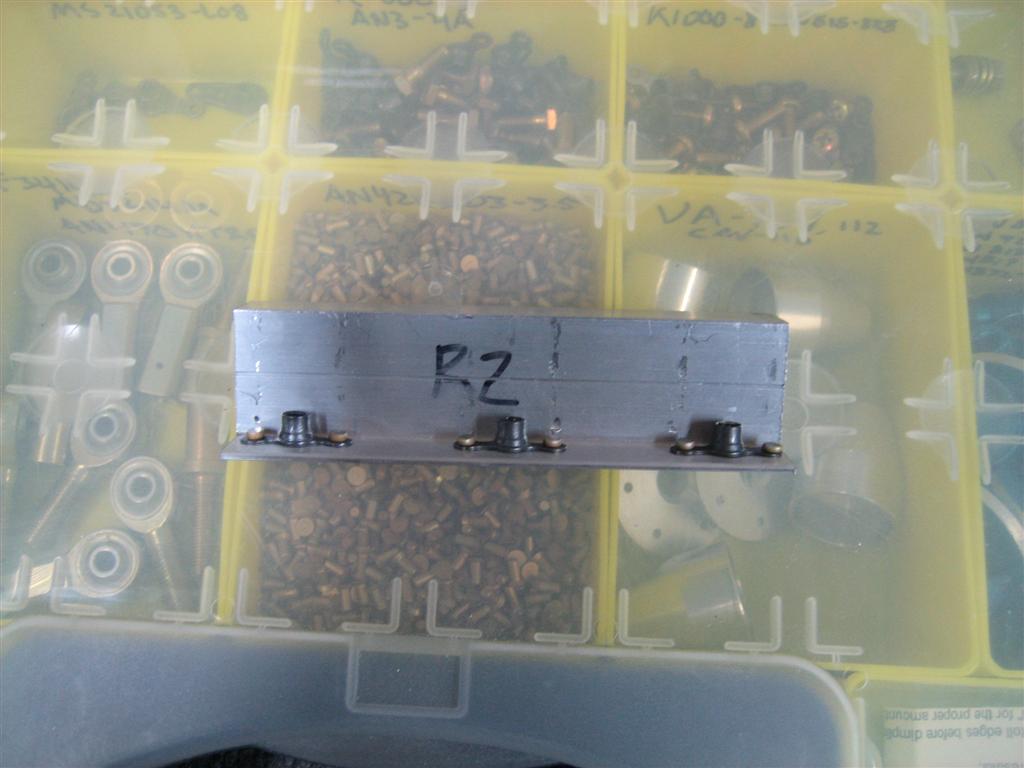

After all was said and done, the sacrifical nutplate had been thoroughly abused.

I almost threw it away, but then decided to keep him in his own little container. I can't just throw away a nutplate that has served me that well!

I deburred the holes that won’t be countersunk, and moved on to countersinking. I thought about using oops rivets, but since this material is so thick, I went ahead and countersunk for a full-depth AN426AD3-4 rivet.

Guess what I found when I picked up my countersink cage?

IT WAS ALREADY SET FOR THE PROPER DEPTH! WUHOOOOO!

(It’s the little things in life that really matter.)

Anyway, here’s one hole done.

Looks okay here...let's try a rivet.

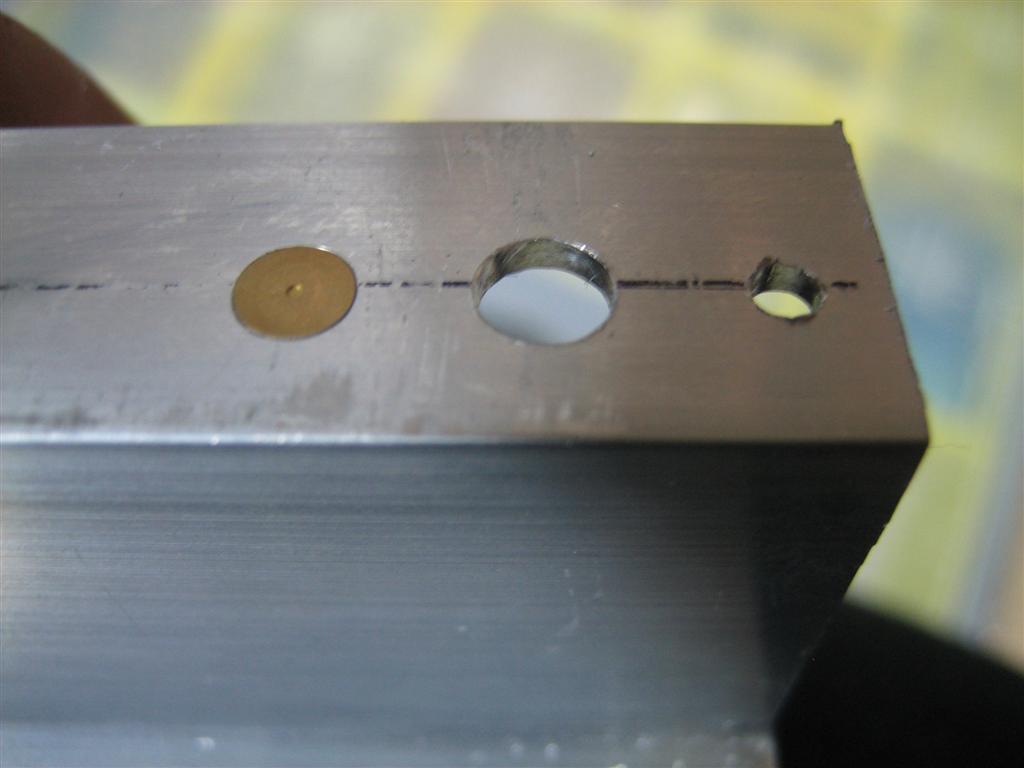

Perfect depth.

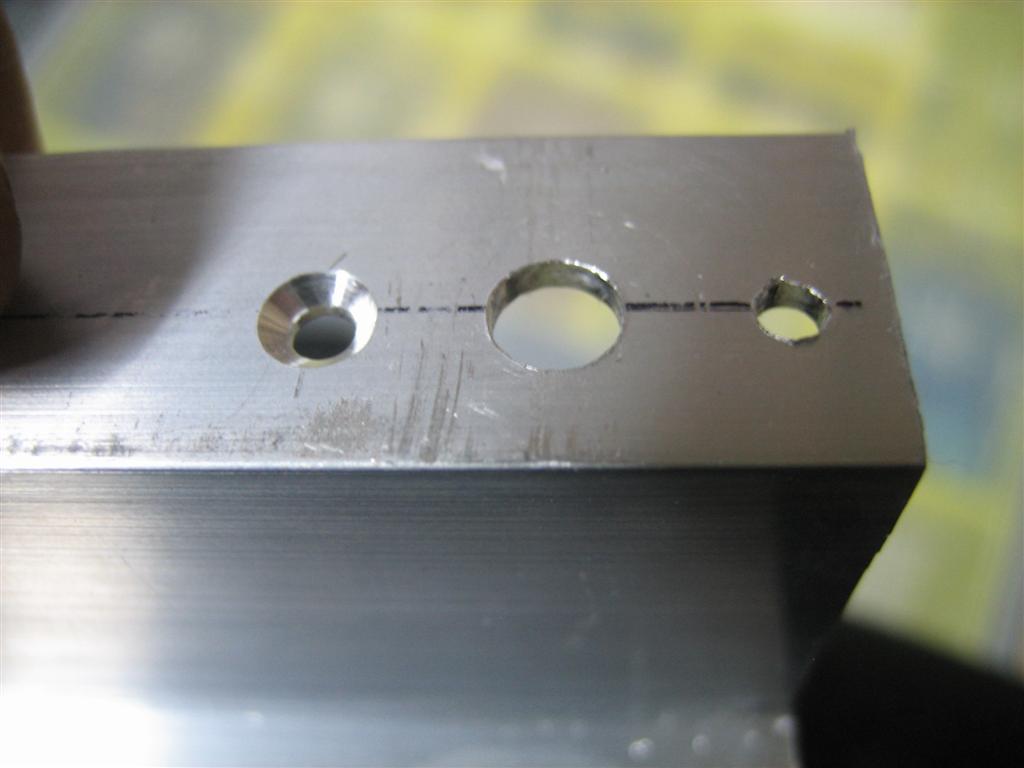

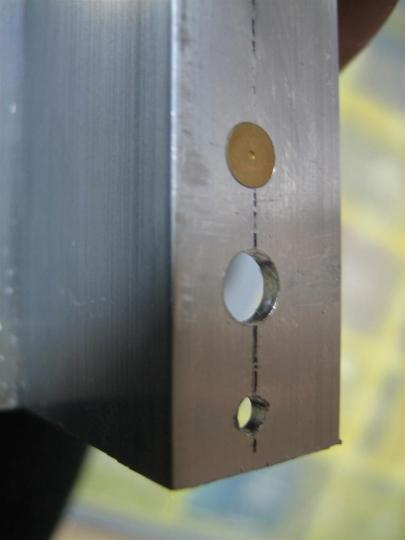

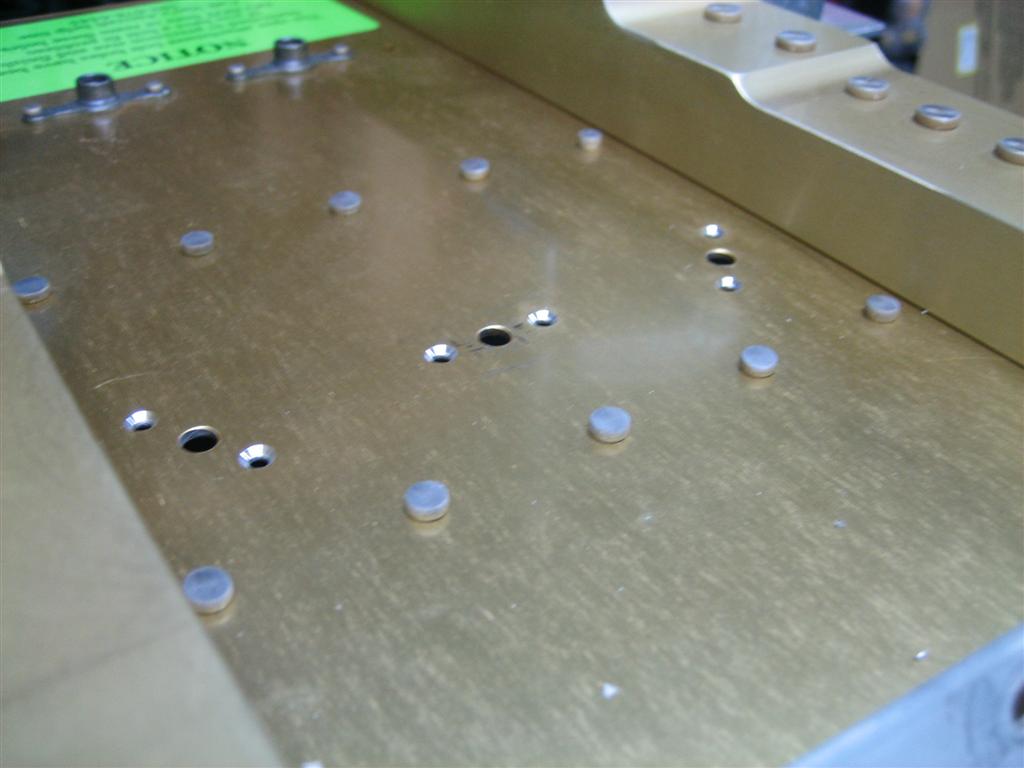

While I was countersinking, I went ahead and did the FRONT side of the spar, too. (The nutplates go on the back of the spar, the bolts for the inboard z-brackets are fed in from the front.)

The countersink on the far left isn't perfect, I need to revisit this before riveting. The cage prevented me from getting a good angle on it.

Then, back to the z-brackets for some riveting.

First one done.

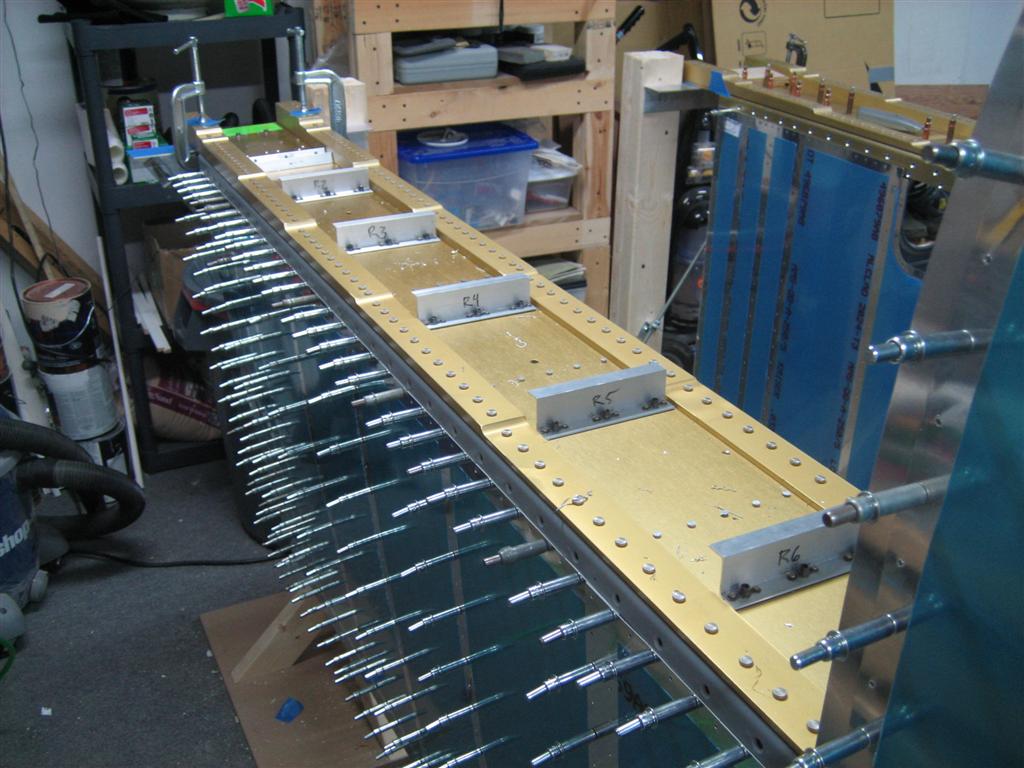

Then, onto the rest. All clecoed up, ready for rivets (in the background).

R3-R7 read to go.

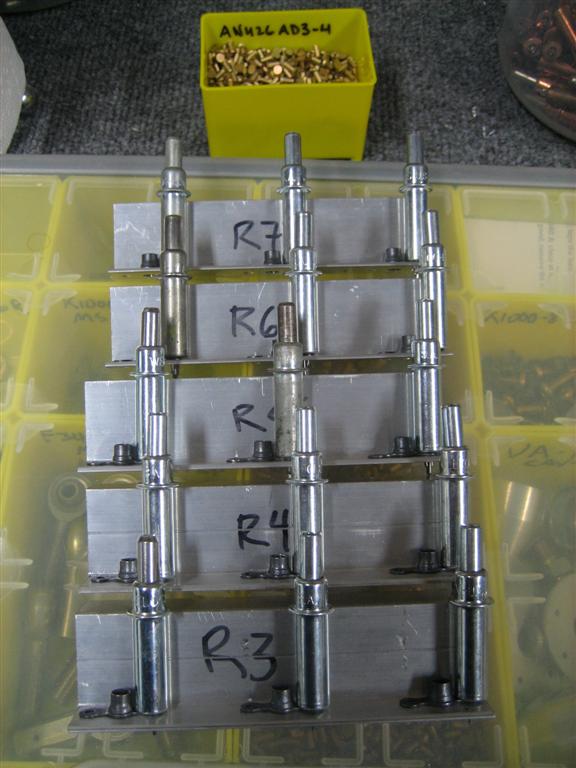

Then, after setting 36 rivets, I set them all back up on the spar. No bolts yet, though. I’ll save that for tomorrow.

You can see R1 (which fell over) through R6 here. R7 is hiding behind the leading edge.

It’s late, and I need to get inside to bed.

But first, I grabbed all the tank parts for the right tank and quickly mocked them up with no clecos in my cradles. That’s the baffle leaning up against the cradles in the foreground.

I'm actually looking forward to the tank. Kind of.

It was just over an hour, but not quite an hour and a half. I think I rounded down last time, so this time, I’m going to call it an hour and a half.

Oh, and I almost forgot, I had to drill one rivet out. Just plain old messed it up.

Until next time…

Prev | Next


Tank Attach Nutplates, Left Upper Spar Flange

October 23, 2010

Prev | Next

After getting a ton of housework done, I managed a quick half hour in the garage to finish up the nutplates on the left spar.

I took some pictures, but they are just like the ones from the previous post, so I’ll be short with the descriptions.



Countersinking.



I found it a little quicker (and less tiring on the drilling arm) to do 4 at a time. I’d countersink four sets of holes for the nutplate attach rivets, then cleco one side of a K1100-08 nutplate in, squeeze the rivet, and then take out the cleco and rivet the other side in. Then move on to the next four.

I’m sure it didn’t actually save me any time, but for some reason it seemed quicker.



Just squeezed the first four rivets on this flange.





Nice looking shop heads, if I do say so myself.





Another angle, I guess?





Remove the cleco.





Put in the other rivet (man, I was really camera happy today...)



Everything was going great until the VERY LAST RIVET.

[sigh]



For some reason I lifted up the squeezer as I set the rivet.





Another angle (except it's the same angle). Sorry.



After successfully drilling the rivet out. I was left with a crooked nutplate. Hmm.



Problem solving time!



I didn’t have a clamp small enough to hold the nutplate in place while I reset the rivet, so I grabbed one of the #8 screws (forgot the part number, sorry), and screwed it in gently.



Wuhoo! I think this is going to work!



asdf



(Screwed in gently) because I hadn't countersunk yet. This worked great.





See, I told you it worked great.



Last, but not least, I squeezed the AN426AD3-6 rivets for the K1000-4 nutplates near the spar root.



Flush side...





Nutplate side.



64 Rivets, ONE drilled out  in 0.5 hours.

Oh, and then I went for a run with the pups. (And by run, I mean rollerblade.)

Prev | Next


Tank Attach Nutplates, Left Lower Spar Flange

October 21, 2010

Prev | Next

With the girlfriend gone for the night, I managed to clean up all of the electrical stuff I had out messing around with my wig-wag experiment, and pulled the left spar out of the box. Here it is, in all of it’s golden glory.

Golden Glory!

First step is to countersink the tank (and access plate) nutplate attach holes. First, you have to run a #40 drill through the holes or else the countersink pilot won’t even fit in the hole. Here’s one of my first countersinks on the left spar.

I went back and cleaned this one up after testing with a AN426AD3-11 rivet (-11 because it's easier to get back out while testing countersinks...it's so long you can just push it back out from the back.)

These countersinks are a little better. (The one on the right is a tad deep, but should be okay because these are just nutplate attach holes.)

I left the door to the house open so the pups could come out to visit.

Hey guys (Jack and Ginger).

Hey Andrew, how about one of those artsy shots down the spar after countersinking the nutplate attach holes?

Sure, here you go.

Then, I pulled the K1100-08 nutplates out for the tank attach holes and the K1000-06 nutplates out for the access plate holes, then clecoed one side in, and put the required rivet (AN426AD3-4) in the holes.

Where’s my squeezer?

It's right there on the table, dummy.

Then I squeezed some rivets and removed the clecos.

Squeezed (repeated 41 more times.)

Other side done. (Repeated 41 more times.)

Under the hood, things look good. I still like this new Cleveland main squeeze much better than my economy squeezer.

Pretty shop heads.

Down the row.

I then laid the spar down and saw this guy.

Yikes.

Whoa. Scary.

After a little internet research, I think I’ve figured out he (actually she due to her size) is a red-back.  I’m going to keep looking though. I don’t want it to be a red-back.

1.0 hour. 84 rivets.

Prev | Next


Right Spar Countersinking and Nutplates

August 22, 2010

Prev | Next

Well, today was the first official wing construction day. While Van’s is trying to figure out what to do with my damaged left spar, I figured I should get started on the right spar.

First thing…yup…a plans change picture!

The plans for the wing are a little different. There are about 4 separate sheets of different views for the wing. You guys get to see just the general layout one.

Wuhoo! A wing!

Now, let’s get to work. First thing, I very carefully put my beautiful right spar on the edge of the workbench and clamped the flange down very lightly. The spar will tip over onto the table (away from the camera) if the clamps let go, so I’m not too worried about clamping them down too much.

Every builder that has a website makes a comment here about how the construction manual really holds your hand and steps you through the process on the empennage, but then kind of just makes general statements for the wing. For example, the only real construction step on the first page of the wing section says:

“To begin wing construction, rivet the tank skin attach platenuts to the spar as show in DWG 16A, Detail A. Machine countersink the platenut attach holes in the W-706A spar flange.”

Wait. What? That is like 1000 steps, condensed into one statement. It ended up taking me 3.5 hours to do that one step (I admit, I also delved a little into a step a few steps down):

“Attach the K1000-06 platenuts for the W-822 access plate to the W-706A flange. See DWG 12.”

Fine. I see how it’s going to be.

Let’s get started.

Where is my countersink?

A lot of builders start out thinking they should make a nutplate jig and countersink the screw holes before riveting the nutplates (sorry Van, I call them nutplates) on so they can use the jig as a guide for the c/s pilot to avoid chatter. Van’s suggests using the installed nutplates as the pilot guide. After those builders spend some time making those jigs, they eventually abandon the idea and fall back to the Van’s method. I’m going to do something I don’t normally do and FOLLOW THE INSTRUCTIONS. Sometimes, I try to get cute with extra ideas and fancy engineering solutions, when really I should just do things by the book.

So I grabbed my countersink with a #40 c/s bit, tested in some scrap, and positioned the countersink cage over one of the nutplate  attach holes.

The c/s pilot didn’t fit. What?!

You mean I am going to have to drill all of these holes out to #40 first? Ugh!

After drilling every one of the attach holes out to #40, I finally got the countersink and cage loaded back into my cordless drill (slower and more trigger feathering ability than the air-drill) and got to it. Here are my first 10 countersinks.

The blue tape is to prevent metal shavings from getting lodged in between the spar cap bars and the spar web.

Anyway, I continued down the row, being very careful to slow myself down and not to fall into too much of a routine. I could feel this was going to be one of those areas where I would be going through the motions and mess something up. (I did make a mistake while drilling out all the holes to #40. I accidentally drilled out a skin attach hole, too. No biggie, but a perfect example of moving too quickly in a habitual way.)

I stopped about every 6 countersinks and retested my countersink depth using a AN426AD3-4 rivet. They are all perfect. Here is the end of the row, looking back toward the “diagonal” wing-walk attach holes.

Pretty, pretty.

Then, I flipped the spar over and did the bottom flange. Also, there are some access panel nutplate that get attached now, too. I went ahead and countersunk for those attach rivets, also.)

Bottom flange, sobriety-maintaining Sprite-zero, and the girlfriend's cordless drill I'm borrowing (pronounced "you can have it back when you pry it from my cold, dead hands"). Thanks girlfriend!

Phew, that was a lot of countersinking. (I think I counted 144 total countersinks for just the nutplate attach holes. There’s another 72 for the screw holes (in the middle of each set of three holes) I’ll have to do later.)

Next, I grabbed some K1100-08 nutplates, some silver 3/32″ clecos, and some AN426AD3-4 rivets and started getting ready. My plan is to cleco the nutplate to the spar, insert one rivet, then after riveting that one, take the cleco out and rivet the other side.

Cleco in one side, unset rivet in the other.

Down the line, everything ready to rivet.

Redundant picture.

Ahh, this slower, more thoughtful approach is paying off. Can you see the error that I almost made?

Which one of these is not like the other?

Here's an example nutplate before I take the cleco out and put the other rivet in.

I can’t remember why I took this picture. I think I just took out all the clecos, and I thought it looked cool.

Ready to set the second half of the rivets.

No pictures of the second rivets, but here’s one of the other (now top) flange.

You can see all of the nutplates on the lower flange.

Anyway, I set all the nutplate attach rivets on the upper flange, and then called it a day. So I got to cross off the two statements in the construction manual I highlighted above, and next up is to use the installed nutplates as c/s pilot guides for countersinking the screw holes.

Oh, and then I get to repeat on the other spar.

3.5 hours of countersinking and riveting today. 144 rivets, 1 drilled out (the rivet split in two!). Good times.

Prev | Next


Started working on the Elevator Tab

June 20, 2010

Prev | Next

After some more days of not doing anything, I managed to make it out to the Pilots N Paws fly-in today. It was good motivation for working on the airplane.

Anyway, I’ve drilled the left elevator skin to the skeleton, and the next step is really to take everything apart, deburr, dimple, countersink, prep, prime and assemble…

BUT…

I have some things that need to be done first. Mostly, the directions want you to bend the elevator tab “ears.” Well, I don’t think I want to go the bent route. Here’s what I am worried about. I don’t think anyone would really notice, but I don’t love the way this looks.

Bent trim tab ears. I think I'm going to cut mine off and make little ribs.

I think with some work, I could make them look like this, but given how finished these surfaces are, I don’t know if they started as bent ears or riblets.

WHOA! This is awesome. This guy really finished this joint up nicely. Everybody be jealous.

Finally, I found a really nice riblets version. I like this, and this is what I am going to be aiming for (although I am going to try to use solid rivets.

Great finish on the cut-instead-of-bend tab ears. I'm going to strive to make mine like this.

Anyway, I also think cutting the ears off (not bent down in the way) will allow me to use solid rivets in the blind-rivet locations on the top and bottom of the elevator (outboard trim spar rivets). We’ll see.

First step is to get the skeleton re-clecoed in the skin.

The trim spar and the inboard rib.

Van’s wants you to countersink either piece for flush rivets (not for any real flush reason…I think they need to be #40 size holes, and they don’t give you any universal head AN470AD3 rivets). Anyway, per standard practice, I dimpled both.

Dimpled instead of countersunk.

After clecoing together the skin, I am ready to start the headscratching with the tab. Let’s find the tab spar.

There it is.

Let’s go ahead and cut off these tabs. After careful measuring and marking, I’m ready to put blade to metal.

Inboard side. I'm nervous about chopping these off.

Outboard. (see how I lined up the line parallel to the flat portion near the top and to the left of the relief hole near the bottom? This doesn't work. Read on to find out why.

After a quick snip (not too close to my final line) I removed the vinyl from the interior of the skin in preparation for using a file and scotchbrite pad to clean everything up.

Devinling before finishing those cuts.

After working carefully with a file and edge finisher…

Looks good.

Before I really finalize things, I’d like to get my tab placement set up. First, I tried using this extra piece of rudder stiffener.

It worked okay, but I later switched to something a little longer.

After some moving around and fiddling, I re-read the directions, which tell you to bend the elevator ears down along a bend line that is perpendicular to the hinge line. Well, that means that the cut lines should be perpendicular, too. Of course, like I mentioned before, my original outboard line wasn’t perpendicular. All that file work for nothing.

I drew new lines (one on top of the other, ignoring the needed clearance).

Drawing new, perpendicular lines.

Then, I made a “pretty close” cut with the snips. I’ll need to really clean this up, as well as move the line to the left for clearance purposes (I’ll wait until the hinges are drilled to really see what I need. (The instructions call for 3/32″, but that is for the blind rivet head clearance that I won’t have to worry about.)

Pretty close, but still needs trimming and finishing.

Next, I moved back to the tab. Here’s my new line.

I'm bummed because the upper part of the tab, factory provided, is not perpendicular to the hinge line. That means there will be a slight angle there. Bummer.

After getting those refinished, I got the tab mocked up. I kind of worked backward. I want to use the inboard edge and the trailing edge to get placement, then verify I have adequate clearance on the outboard edge and between the tab and elevator for the hinge (there are some hinge dimensions on the plans). I think I’ll have plenty of room.

This looks good, but I'll have to keep trimming that outboard edge.

Here's a closeup. You can see the edge near the top of the tab is angled a little left. This is how it comes from the factory. The marker line and aft portion of the tab are both perfectly perpendicular to the hinge line (line through the center of the rivet holes).

Later this week, I’ll work on getting this perfect, then tackling the riblets that need to be constructed before doing any more work with finishing the skin.

Prev | Next


Riveted E-615PP Trim Reinforcement Plate

April 6, 2010

Prev | Next

WUHOO, tool order arrived!

3 things in the order, $154.90. Ouch.

Also included was this AWESOME sticker.

Where should I put this?

Here?

Here?

Here?

On the airplane? no.

Finally, the air compressor won.

Decorated air compressor.

Look at that beautiful tungsten bucking bar.

Old and new.

Also, I got two more dimple die sets. #6 and #8, on the right.

Just for comparison. #40, #30, #6, #8. Still need a #10.

Alright, back to work. First up, using the #6 dimple dies on the E-616PP Trim Cover Plate.

Nicely dimpled. I don't think it matters that you take off the blue vinyl. Maybe that was a bad idea.

Here’s the bottom side (top side when mounted on the bottom of the elevator on the airplane).

Peeling off the blue vinyl.

Then, edge finished and scuffed for priming. I’m going to wait to prime this until I can actually by the electric trim motor since you have to drill more holes. Just thinking ahead: can I countersink and use NAS rivets for the trim motor mounting brackets? Nope. These are pretty structural (hold the motor, and therefore the trim tab, in place.) I’m sure those directions will confirm the need to dimple. I’ll need to dimple E-616PP and the brackets that are used to attach the trim motor.

Ready for priming, except for all of the extra holes I have to drill, deburr, dimple, and rivet.

Same deal on E-615PP.

Ready for priming.

On the fancy priming stand.

After shooting primer to one side of E-615PP, I decided to add 4 holes for each of my new dimple die halves.

4 holes drilled.

Tada.

7/32″ seems to work well for holes in a home-made dimple die holder stand.

7/32" is a good size hole for these.

Then, I shot primer on the other side of E-615PP. While I waited for that side to dry, I edge finished E-616PP.

Look at that nice edge. I love the scotchbrite wheel.

Now that E-615PP is dry, let’s do some riveting! I grabbed the K1100-06 nutplates (or platenuts as Van calls them) and the 14 required rivets. Remember from March 28th, I am using NAS1097 rivets here.

I am going to be using NAS1097 rivets here (smaller head than AN426 rivets) so I can countersink (instead of dimple) the holes here. That saves me from having to dimple the nutplate ears, which will save me a lot of hassle.

I finally found the rivet callouts.

I thought that because I countersank (verb tense?) the reinforcement plate that the 3.5 would be way too long, but the -3 was definitely too short. I grabbed 14 NAS1097AD3-3.5 rivets.

-3.5 (length) should work here.

I put all of the nutplates in with a single cleco and a single rivet, taped into place before starting to squeeze them. I hindsight, I should have backriveted these. So dumb.

Half of them done.

Then I did the other half.

Nice and flush. There is one that is almost proud, but doesn't affect the cover plate, so I may not try to muck it up further by drilling it out. We'll see if I can sleep tonight.

Once I got those 14 set, I grabbed the An507-6R6 screws and got the cover plate screwed on.

Ready to screw down. see in the lower left where the shadow under E-616PP is a little bigger? The dimpling kind of warped the plate. I'll have to try to coax this flat again.

I couldn't get the screws in all the way without a lot of effort. Is this normal for nutplates?

Anyway, 14 rivets set in just under an hour. I’m going to mark an hour today (a little long), then short myself on a post in the near future.

Prev | Next
