Started Rudder – Stiffeners

February 16, 2010

Prev | Next

Well, with the vertical stabilizer safely in the airplane storage room, it’s time to get started on another part. Next up, the (infamous) rudder. There are a lot of steps on the rudder that give a lot of builders a lot of trouble. I am confident, but will continue to use other sites on a daily basis before doing any work that evening. That’s worked out well for me so far, so I’m going to keep at it.

First thing’s first, the ceremonial plans change. I still keep the plans on my second workbench. Maybe someday I’ll find a place to actually hang them up.

Drawing 7. The Rudder. (Cue dramatic music.)

I spent a little time trying to figure out whether I will do the stiffener-to-skin dance on both sides at once, or just one side. You can see below that if I had another longer piece of MDF and maybe took my vise off the bench, I could set the skins on opposite corners and maybe do them at once, but I think I’ll just do one at a time, making sure I can reuse the holes I plan to drill into the table. (Drilling, and then clecoing, the stiffeners to the skins all the way into the table will allow me to keep everything very steady. Sounds like a good plan to me, and is pretty much standard given that Van’s suggests doing so in the construction manual.)

I'll have to do one skin at a time. I don't want to get too crowded, and I am not overly concerned with building efficiency.

First step in the manual is to start on the stiffeners. I fished out the bundle of stiffeners (there are two bundles, one set for the rudder, and one set for the elevator) and studied the plans.  For the back side of the stiffeners (with the shallow angle on the right side of the picture below), these are the final cuts, so I need to be careful. For the front side (you can see a little of the front of a stiffener on the left in this picture), only 2 of the 16 stiffeners will be to full length, so the other 14 can be rough cut until I can mark them to final size per the note at the tot of this picture.

Stiffener Trim detail, drawing 7.

Next, I headed inside to sit myself down at the table so I could watch the UNC vs. GT game. I know some of you are panicking right now, but please calm yourselves. While it appears that my winerack is empty (OH MY GOD, NOOOOO!), that is really our third winerack. Rest assured that our two primary wineracks are stocked satisfactorily.

Is that an empty winerack? Don't worry, the hooch is stored in another rack.

Anyway, here’s the stiffener bundle I’m about to break open.

R-915. (I can't think of a funny caption this morning, so all you get is the part number.)

I broke open the bundle and started snipping from center hole to center hole. After a few stiffeners, I started biasing the cuts to the sides of the holes, but only where I was sure that I was going to have to remove more metal later.  Here you can see that on the top part of the cut, I’m lined up with the left side of the slot.

Snip snip.

I included another picture of the angle cut for the front end of the stiffener. Remember, only two of these cuts are for real, as the next step is to chop off varying lengths of stiffener from the front to match up with the pre-drilled holes in the skin.

Snippity Snip snip.

Here’s a rough cut for the front end. See how I am going to have to remove more metal because of the notches. Might as well get closer on the first cut. That’s why I started biasing the cuts to one side after the first few.

The front end of the first stiffener.

First 8 front ends done.

Yikes, those are going to need some edge finishing.

All 16 stiffeners’ front ends done.

That's a spicy stiffener.

Next, I used an admittedly fat sharpie to draw the required cut lines on the aft ends of each of the stiffeners.

Lines drawn, back to snipping.

And here I am using the snips to cut that longer line. Snips aren’t perfect for this task, since they bend the metal, but if you work them correctly, they will only bend the piece you are cutting off. There is kind of a rocking motion you have to feel with each cut. You’ll get it when you try.

Snipping the aft end.

Here’s the first one, done.

I'm a little camera happy today, don't you think?

Then, I finished up the other 15, and was left with these scraps. If I had even the slightest hint of an artistic bone in my body, I would make some comment about how these resulting spirals are king of cool. But I don’t, so I won’t.

Scrap from the latest cuts.

All 16, ready to be devinyled.

Done with those cuts.

Starting to devinyl…

This is going to take forever.

I’m glad I did the devinyling inside. When the vinyl is warm, it comes right off.

Holy crap that's a lot of blue v-......WHOSE TOES ARE THOSE AND HOW DID THEY GET IN THE PICTURE!?

Next, I headed outside to put everything away, but couldn’t resist setting the stiffeners out on the skins.

I'll need to trim some of these, don't you think?

For now, I just drew a thick marker line along the front spar holes. If I cut along these lines, they will still be too long, but at least now I can figure out which hole will be the most forward hole and then use the plans-suggested 1/4″ measurement to draw a nicer cut line.

8 of the 16 stiffeners, ready for final cutting.

One hour of camera-happy warm environment work tonight. Sorry about your bandwidth.

Prev | Next

Leave a Comment » | Empennage | Tagged: , , , , , , , , , , , , | Permalink
Posted by Andrew

Vertical Stabilizer 99 Percent Complete

February 15, 2010

Prev | Next

Jack and Ginger were a little neglected this weekend while the girlfriend and I painted the master bedroom. I’m sorry, guys.

Anyway, tonight was all about them, so in the middle of playing, napping by the fire, and running in circles around the house, I managed to calm them down enough to help with the airplane a little.

With the few minutes I had, I managed to set the 22 rivets that were hard to reach with the squeezer last Friday night. A few of them, especially near the elevator hinge brackets, were still hard, but I managed to get them all set, even if it was after drilling a few out. I also set the three AN470AD4-6 rivets that hold the rear spar to the root rib and also install the three LP4-3 rivets that hold the rear spar to the middle rib.  Here are the dogs, once I got the vertical up into the ski equipment room, umm, I mean airplane parts storage room, umm, I mean burnt orange room.

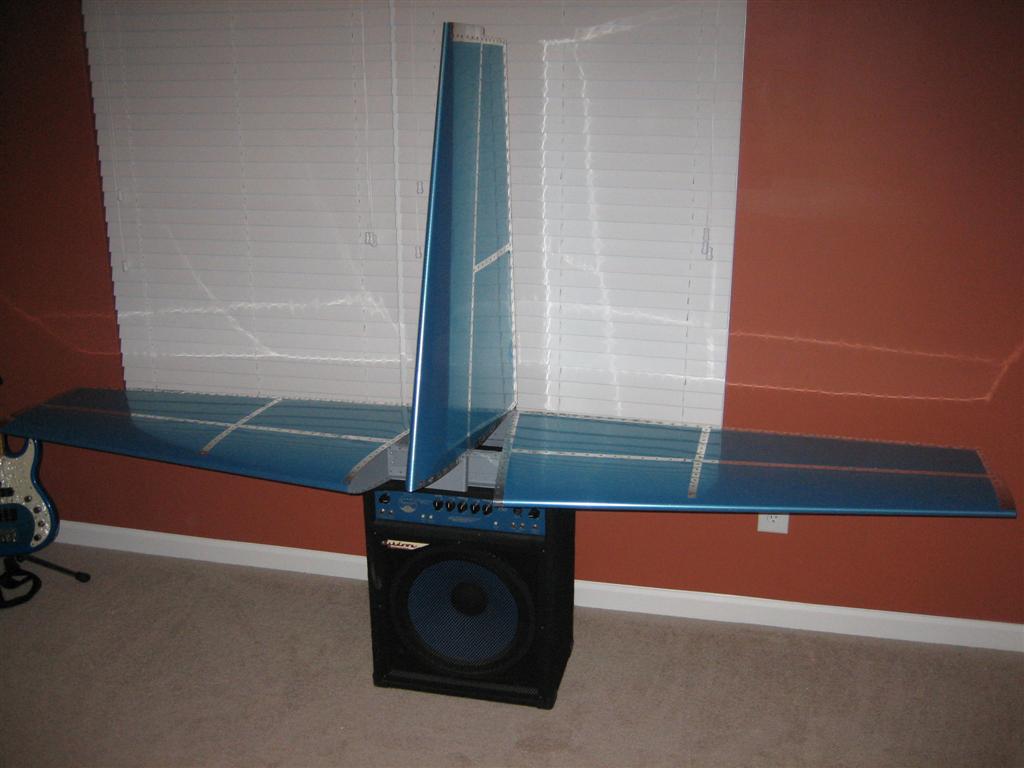

The dogs flew again. This time with directional stability!

They aren’t really happy about being in the orange room in general (it is off limits, so they are very good about not crossing the threshold), but especially not when they have to pose in the airplane. I know for a fact, though, that they will love flying in it when it’s done.

Jack's not very happy about posing. He's ready to go.Jack's slightly less uncomfortable the further he is away from the "shiny blue thing that makes loud noises." Seriously, I heard him describe it that way.

Ginger’s okay, though. Especially when there is a bone on which she could be chewing.

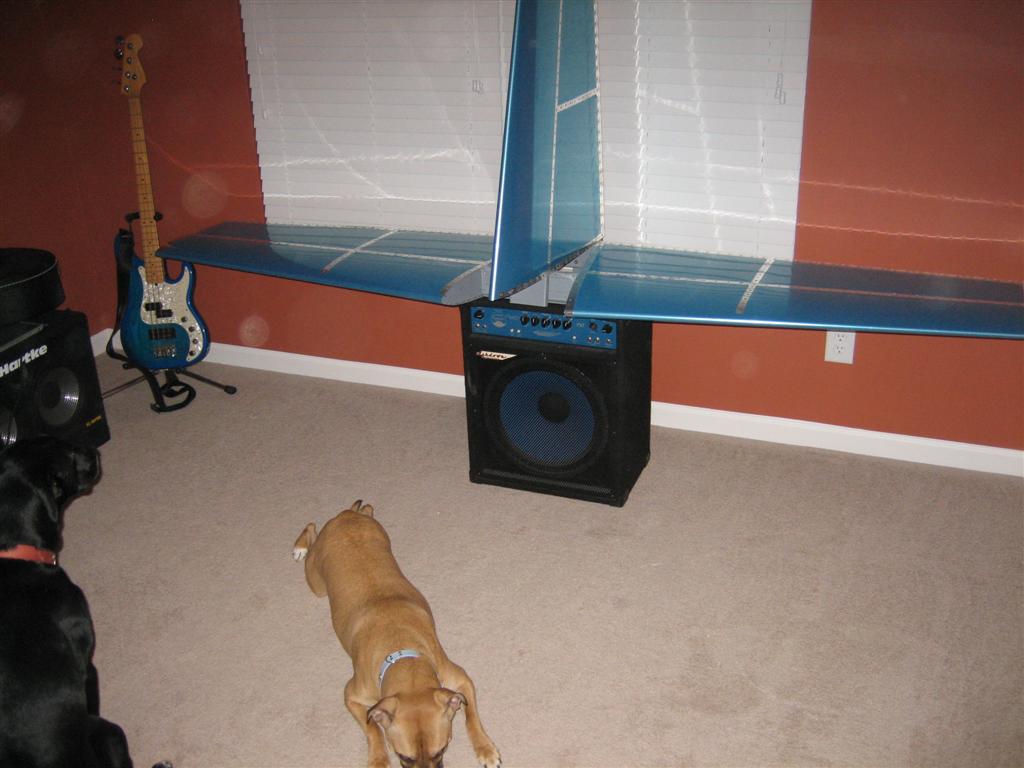

Jack's slightly less uncomfortable the further he is away from the "shiny blue thing that makes loud noises." Seriously, I heard him describe it that way.

Finally, one without the dogs.

Tada!!!

All in all, a good night. 1 hour, 28 rivets set, 5 drilled out.

There are still a few more things I would like to do to the vertical, like drill out a couple of rivets and reset them, and clean up some of the skin edges, but for the most part, it can sit inside while I press on. I can’t believe it took me 16.5 hours for the vertical versus 44.5 for the horizontal. I think I would recommend to other newbies to start on the vertical. It seemed to be a lot easier, but I don’t know if that was because I had done everything once already on the horizontal, or because it really was easier. Whatever you do, don’t take my advice, though. You’ll die if you do.

Prev | Next

Leave a Comment » | Empennage | Tagged: , , , , , , , , , , , | Permalink
Posted by Andrew

VS Skin Riveting, Part Deux

February 12, 2010

Prev | Next

I’m writing this on Monday for Friday night’s work, so we’ll see how much I can remember.

After a couple minutes of clecoing on the right side of the VS skin, I got started riveting. First, I set every other rivet along the VS-702 front spar and the VS-707 middle rib.

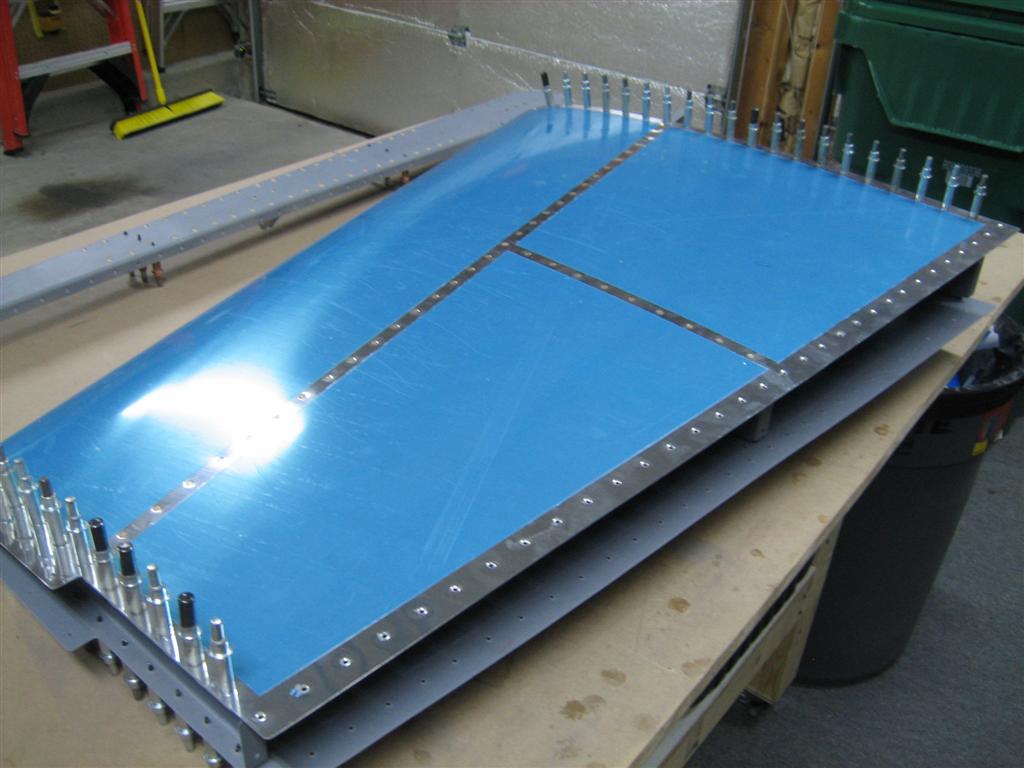

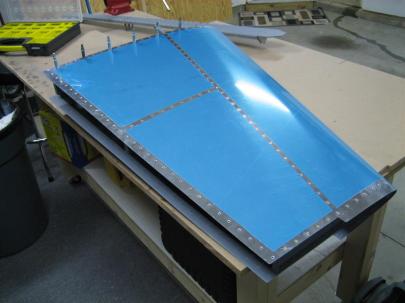

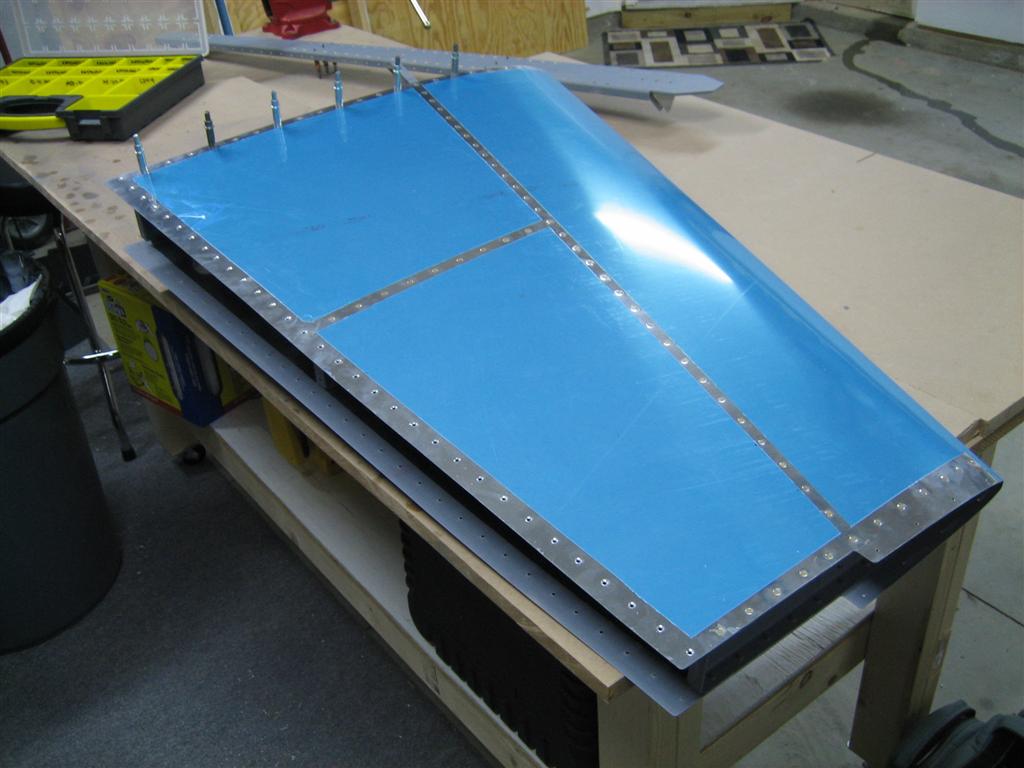

Left skin on the bottom, right skin on the top. That crazy long cleco keeps sneaking into the pictures.

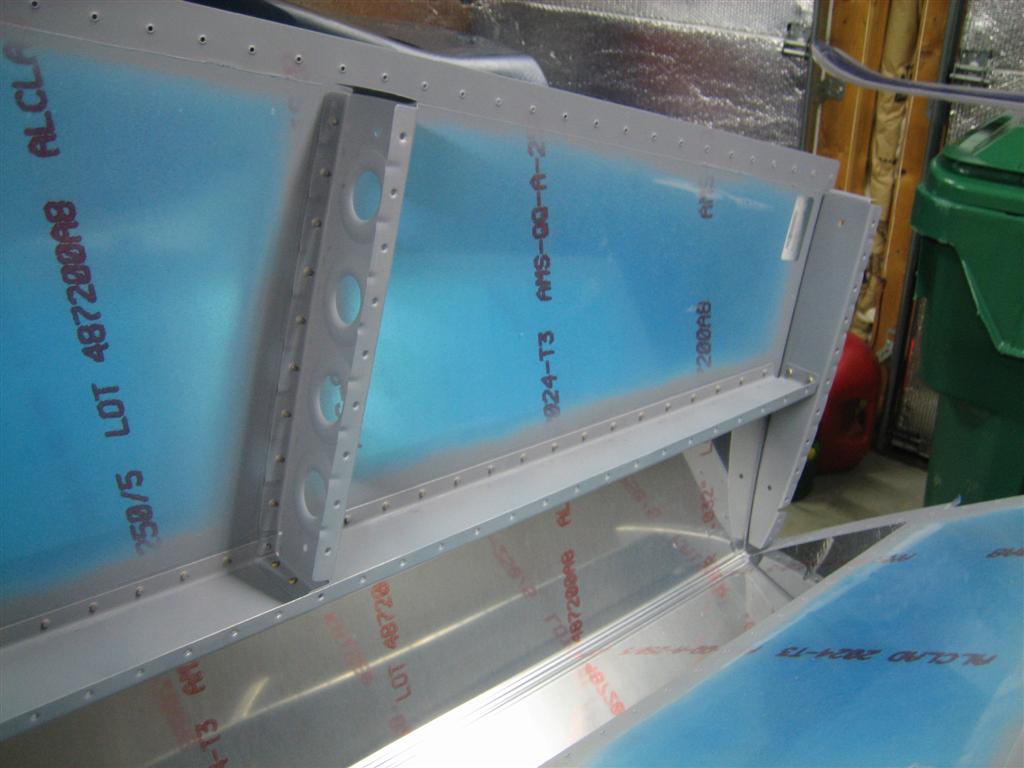

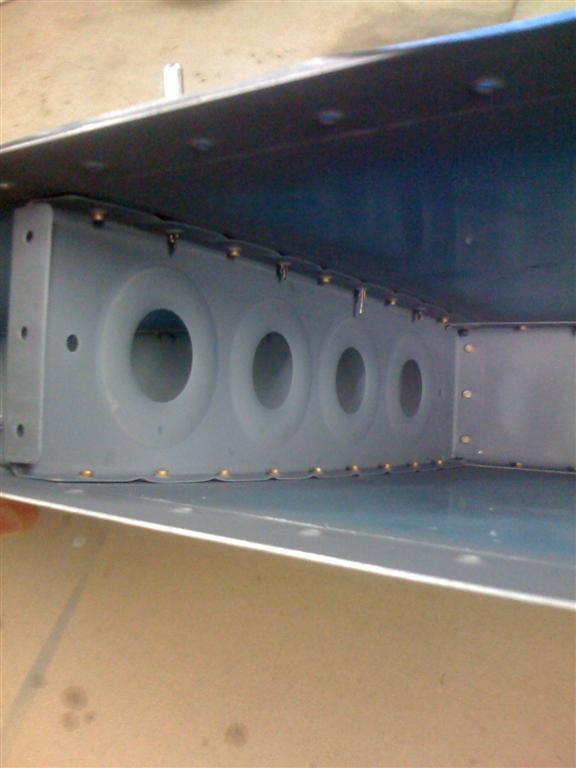

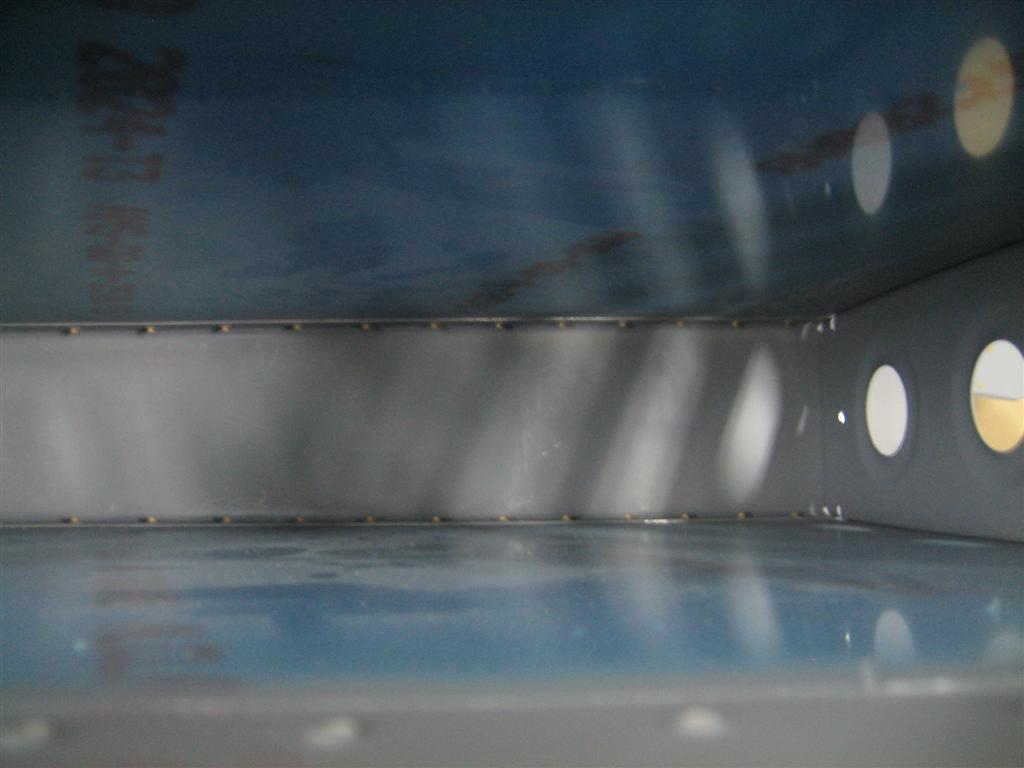

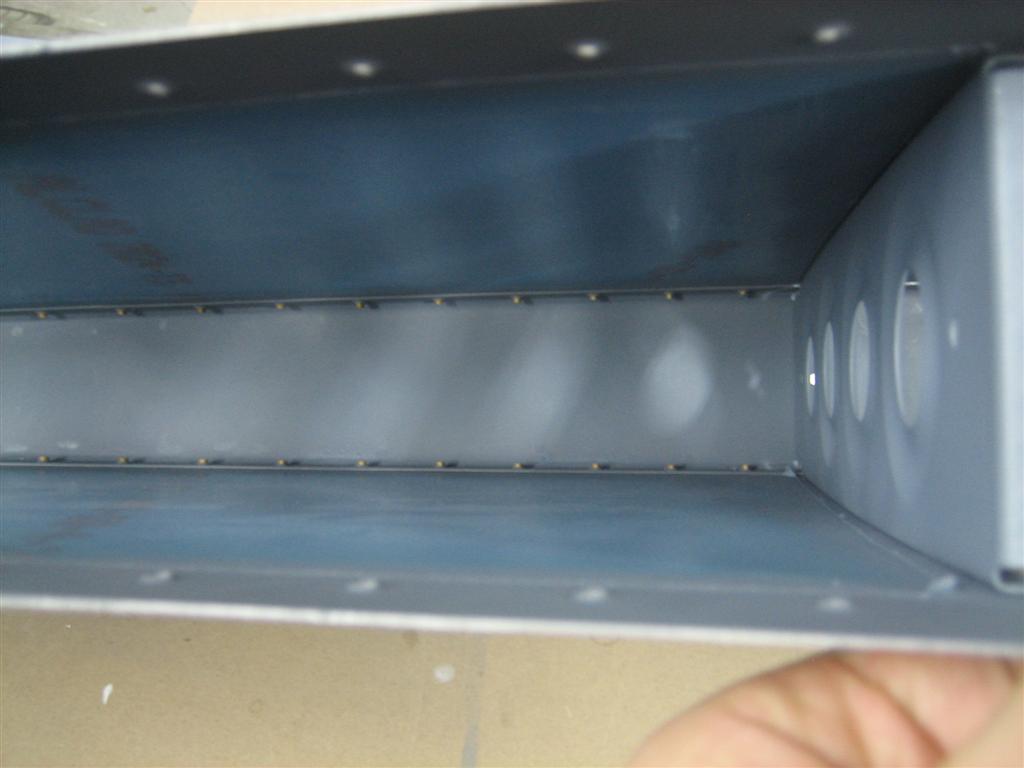

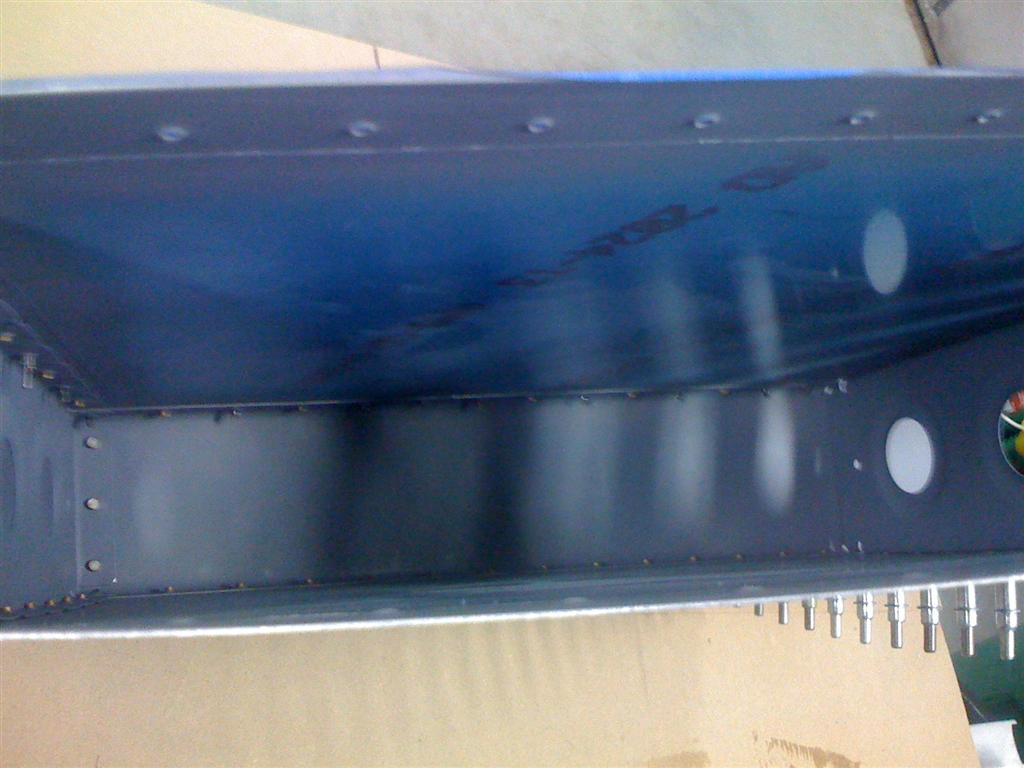

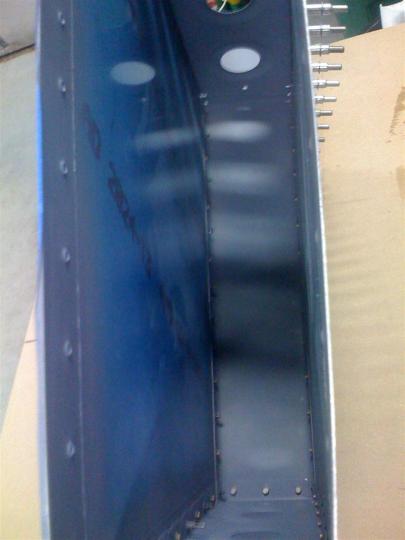

After rivting the front spar and ribs to the skin, here’s an interior picture.

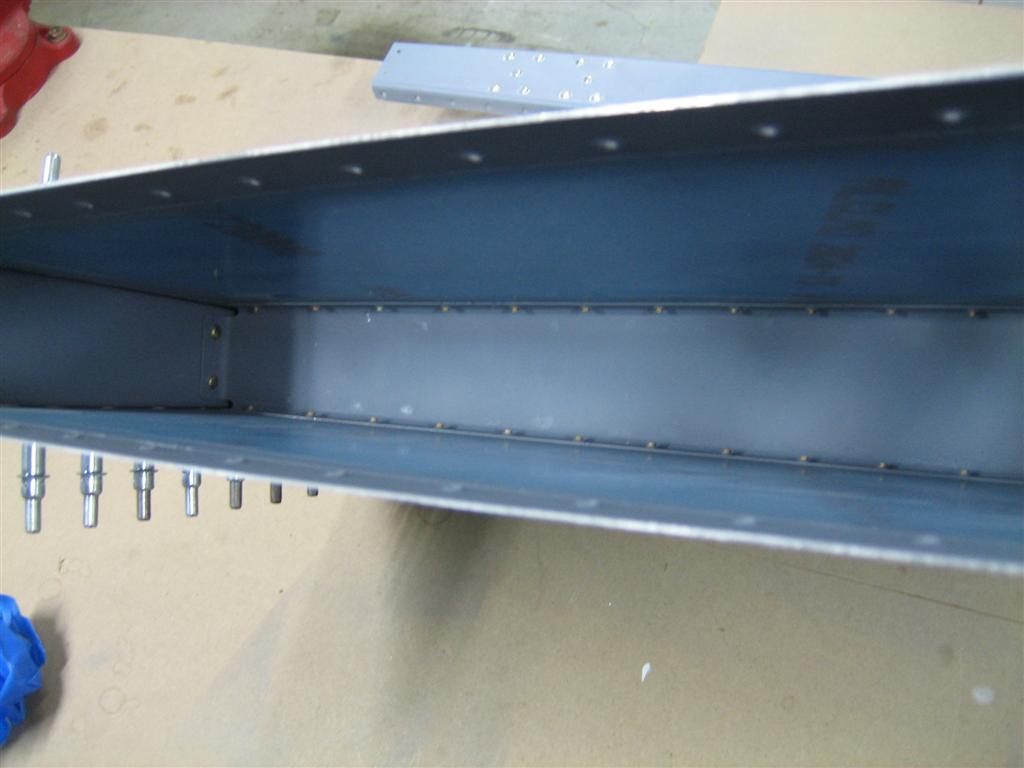

Lower interior of the vertical stabilizer.

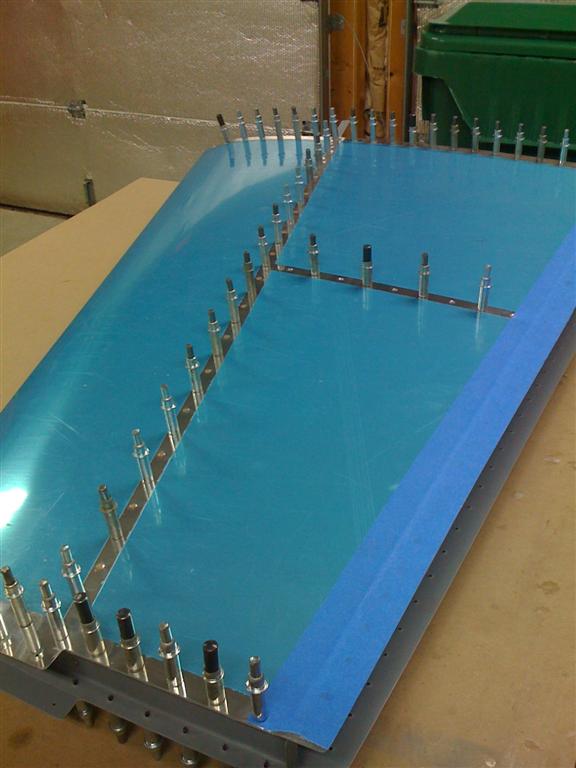

Here’s a picture of my “every-other-rivet” style. It works well.

Ready for the remaining rivets.

There are 39 rivets (not counting the tip and root ribs) for the front spar and middle ribs. After setting these 39, I’m ready to pull off the blue vinyl from the interior.

Starting to look pretty. So is your face.

Another rivet picture. (I’m not sure I got these in the correct order…Hmm.)

VS shop heads.

More rivets.

More shop heads.

<sigh>

<yawn>

Had enough yet?

Even more shop heads.

Alright, now I get to start removing the blue vinyl. This is where the gravy is. After all that prep work and riveting, you get to remove the vinyl to reveal a beautiful shine on the inside. I can’t wait to do this on the exterior skin (just before polishing). Flash on for visibility.

Starting to remove the blue vinyl.

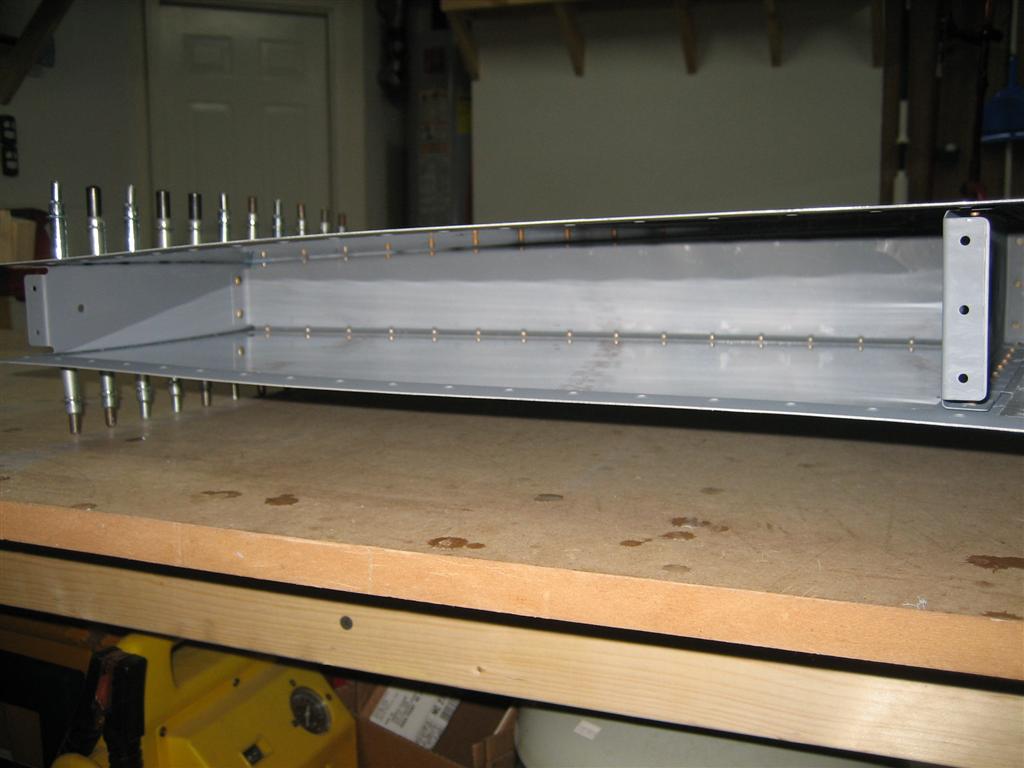

I left the flash on for this one so you could see inside.

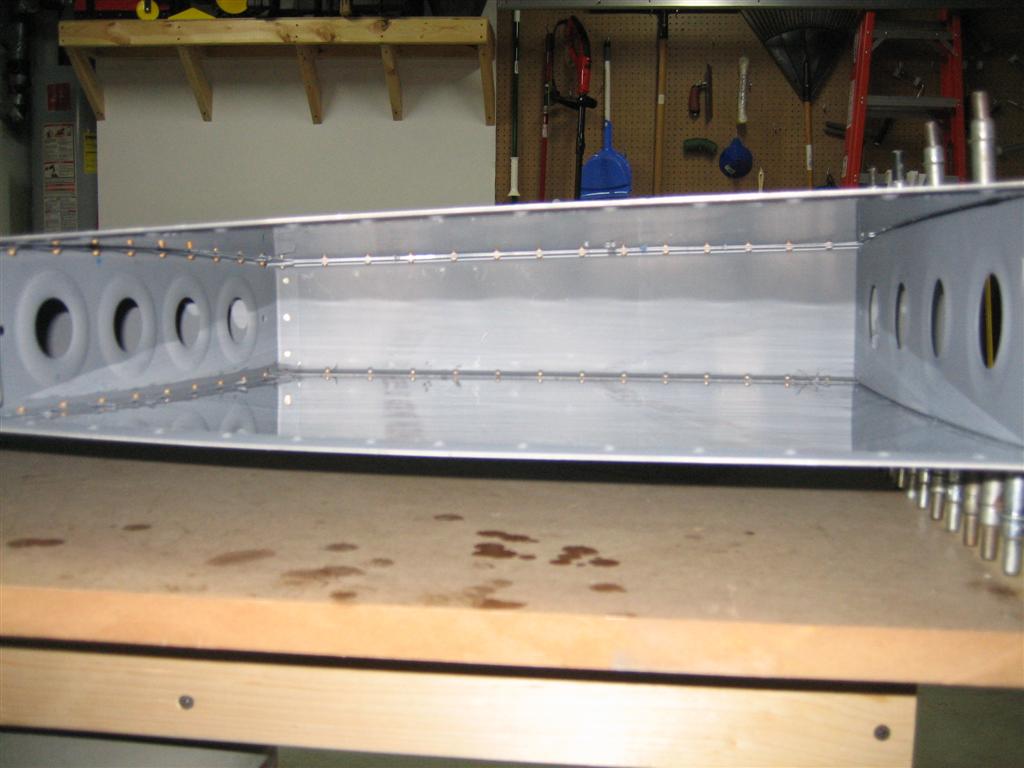

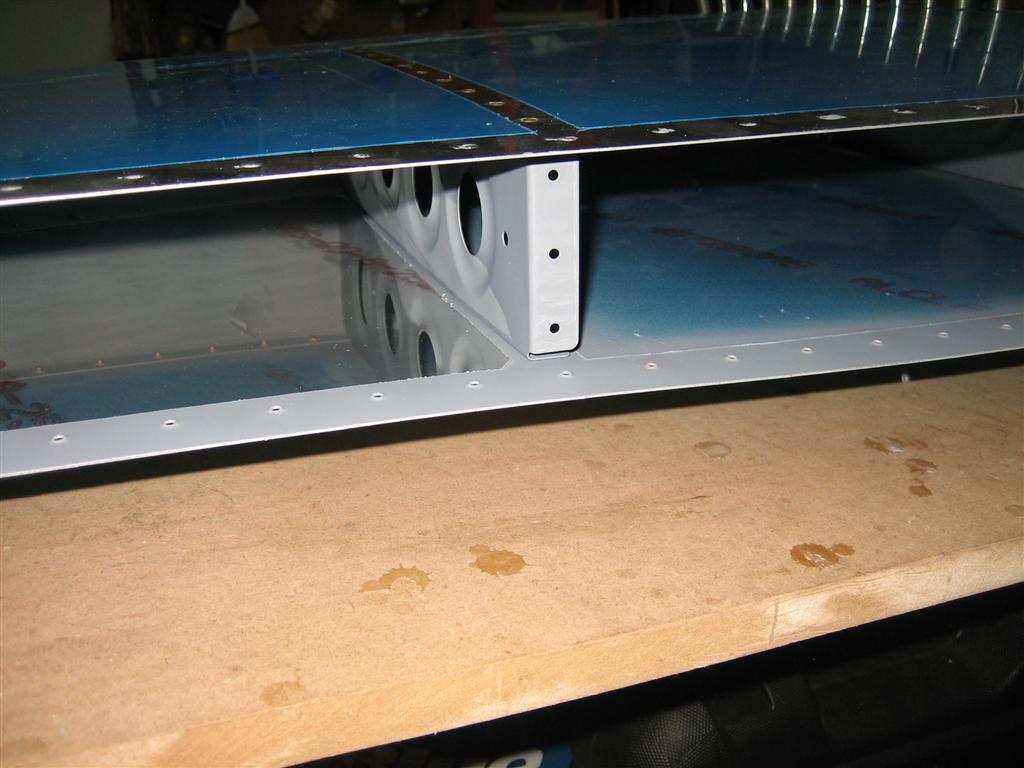

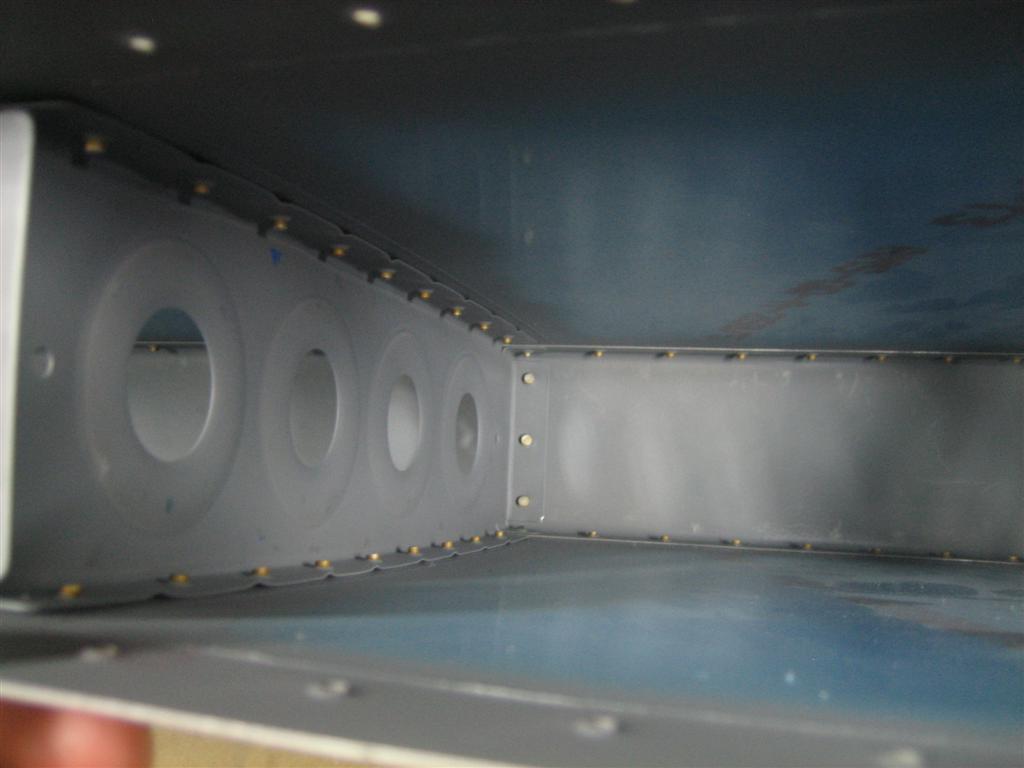

Inside the lower bay of the VS.

And the upper bay.

Upper bay of the VS.

After removing all of the vinyl, I moved on to riveting the tip (VS-706) and root ribs (VS-704 and VS-705) to the skin. All was going well, until I got the front of the root rib.

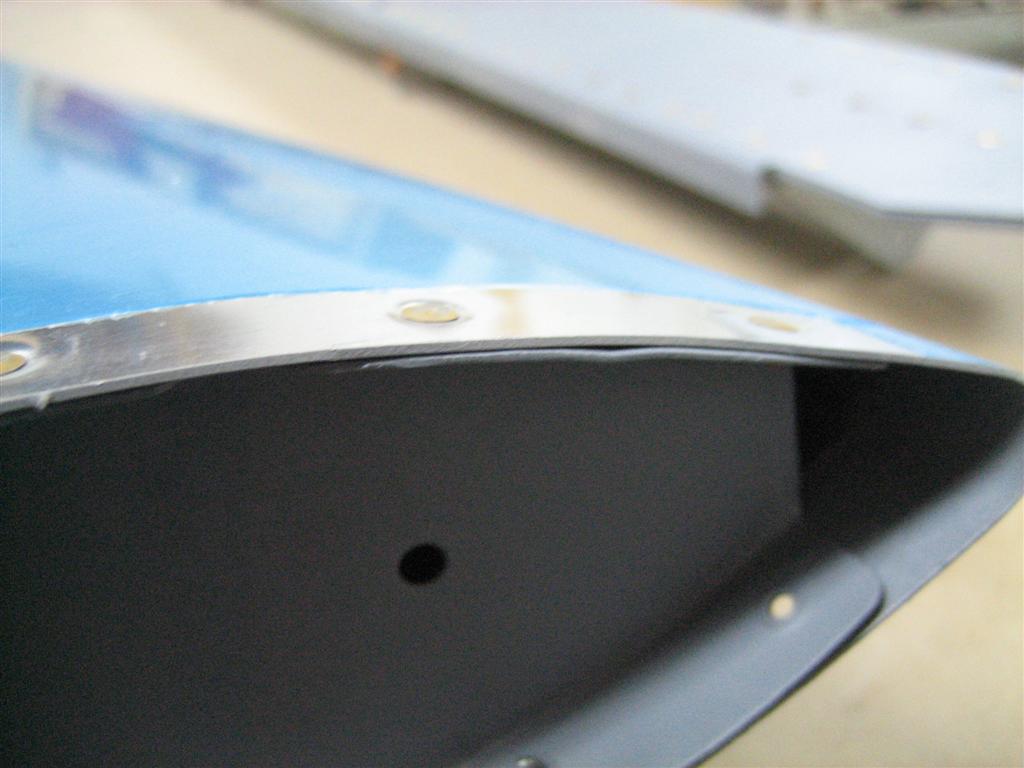

Anyway, for some reason the skin wasn’t sitting well on the rib. I later determined it wasn’t interference, just the natural curve of the rib.

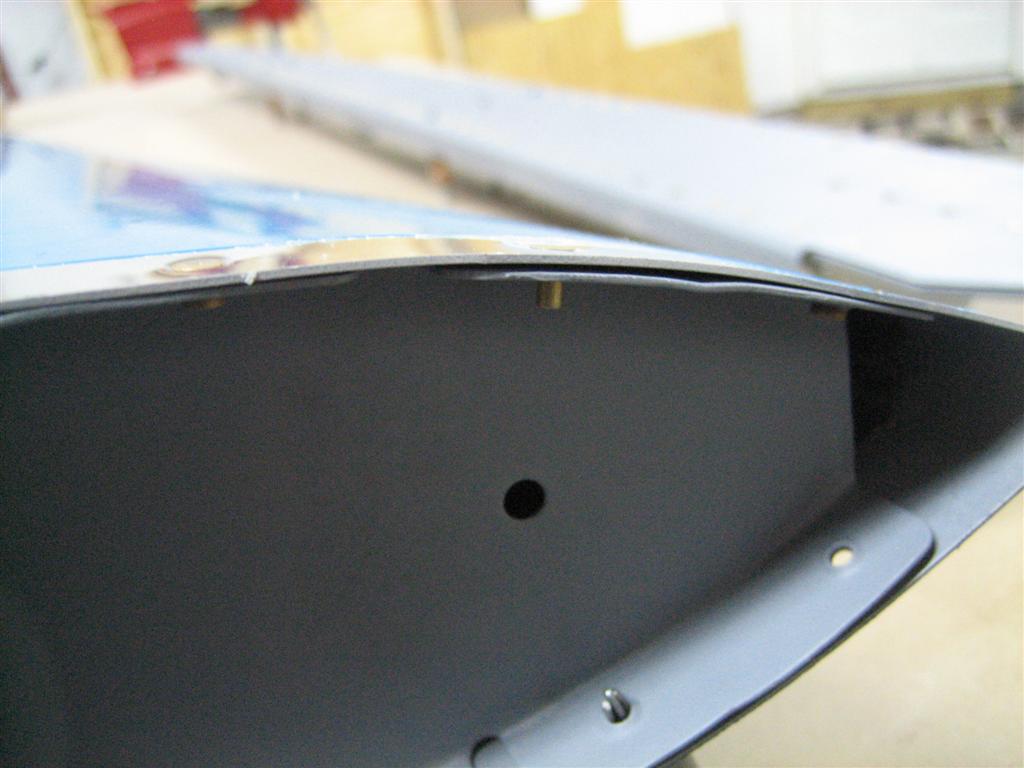

The lower right side of the VS skin wasn't sitting very well on the root rib.

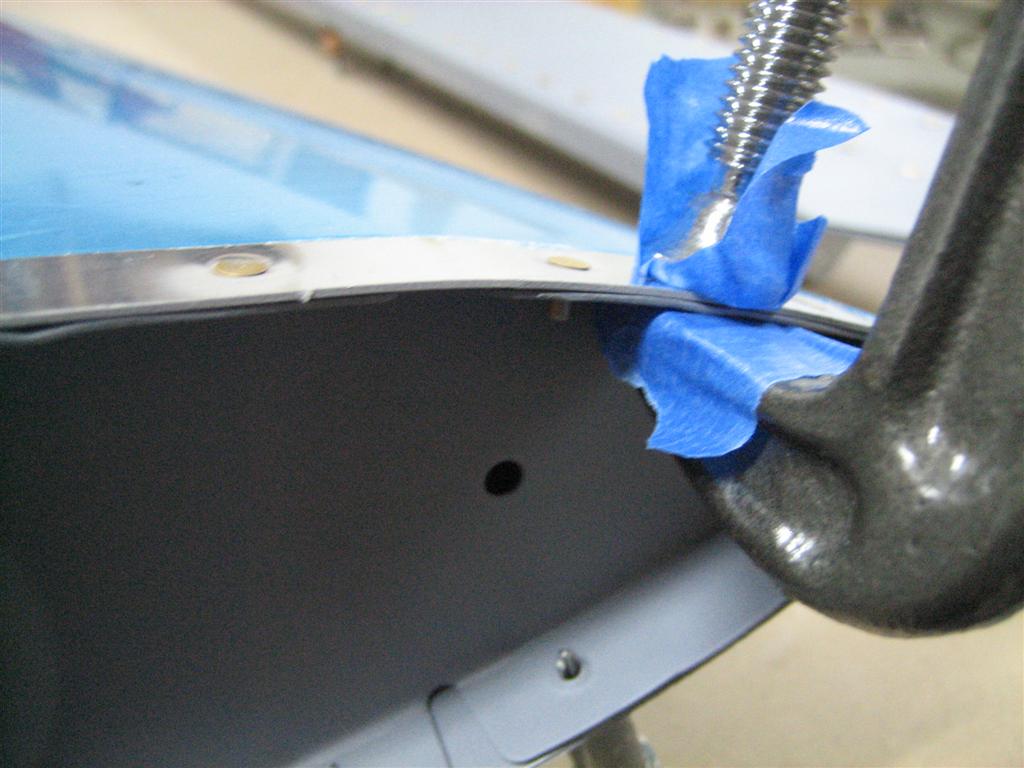

My solution? Use a tape-covered clamp to squeeze them together.

Alright, let's set this rivet.

That did the trick. Who’s next?

Looks perfect now.

Here I am riveting some of the rest of the root rib. I was very careful to not rivet the 6 holes on each side the instructions tell you to leave open for the empennage fairing. I probably won’t use all 6, but I can always squeeze these later, so why close any metaphorical doors?

In the middle of squeezing the root rib.

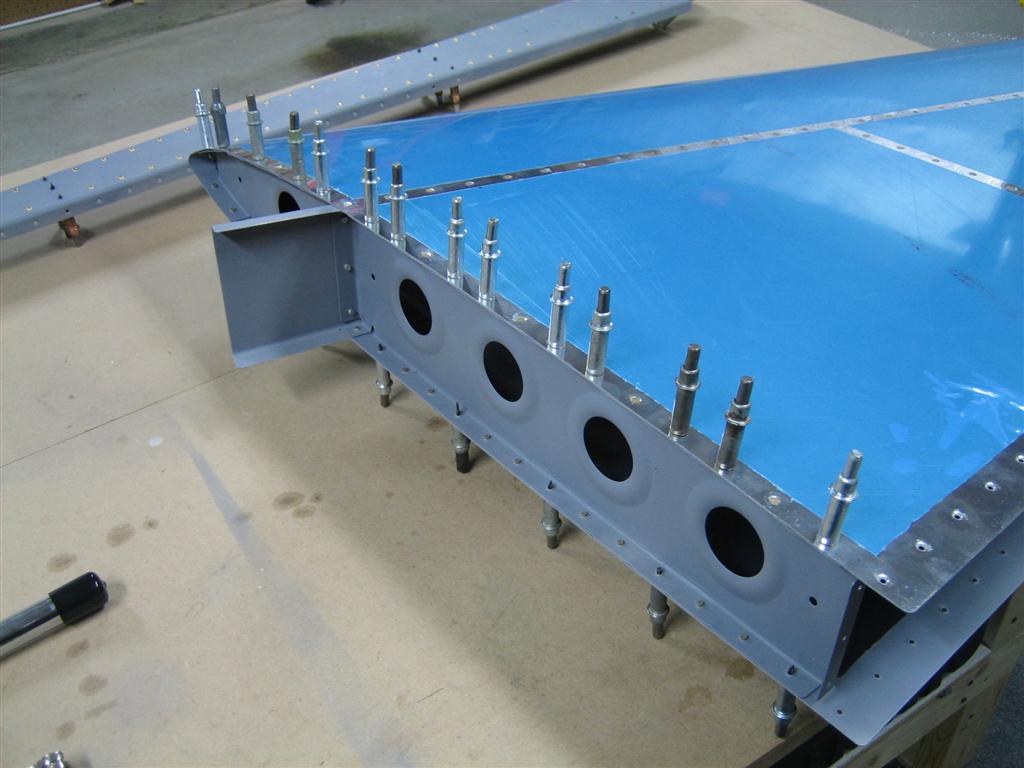

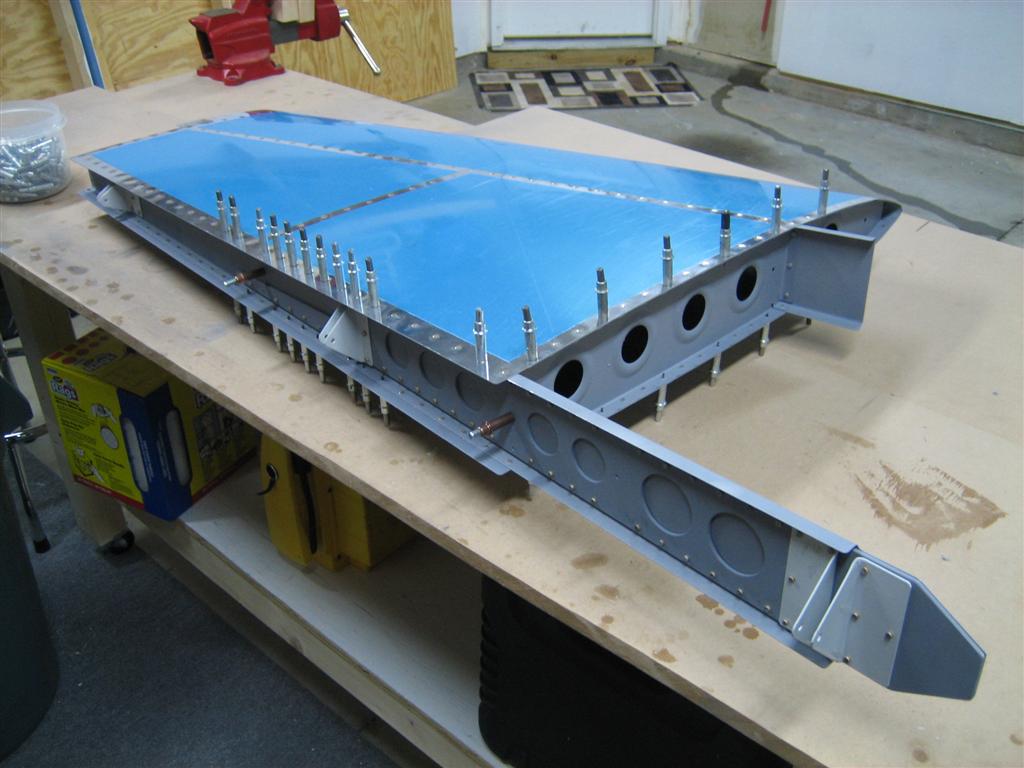

Here’s the VS (except the rear spar) all riveted together. Notice the 6 clecos in the holes to leave open.

Where's that rear spar?

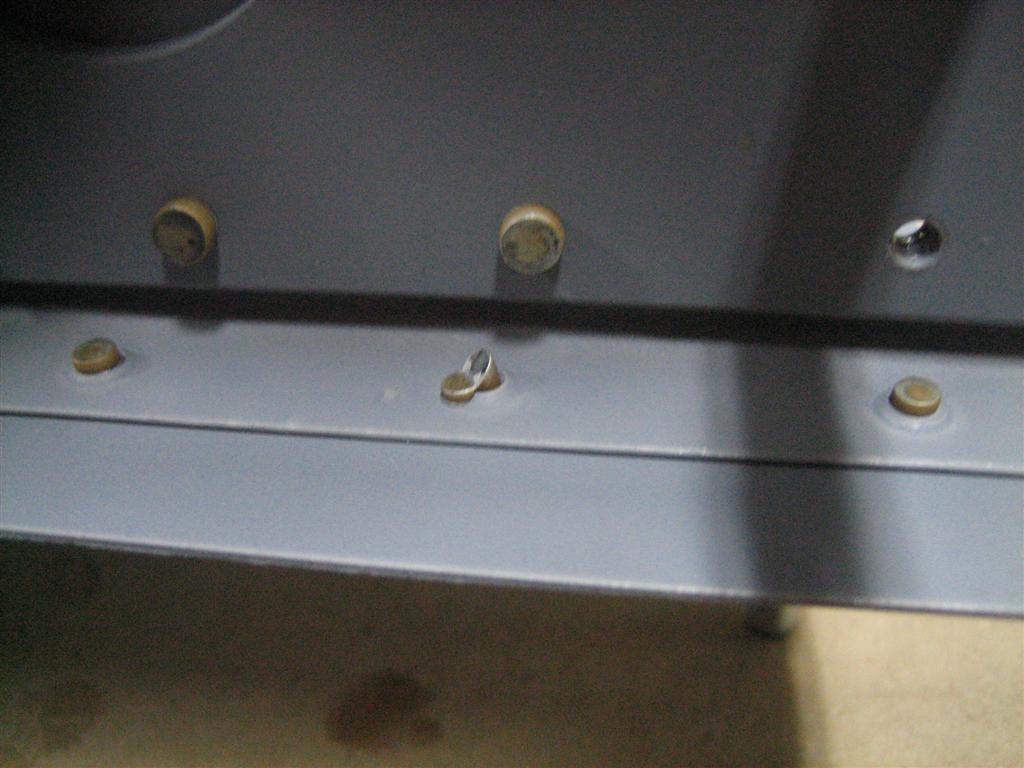

I inserted the rear spar and started setting rivets. All was going perfectly, until I realized that most of the rivets couldn’t be set because of conflicting shop heads on the rear spar. I had tried two rivets that were close to having enough clearance, and I messed both of the shop heads up. Here’s one.

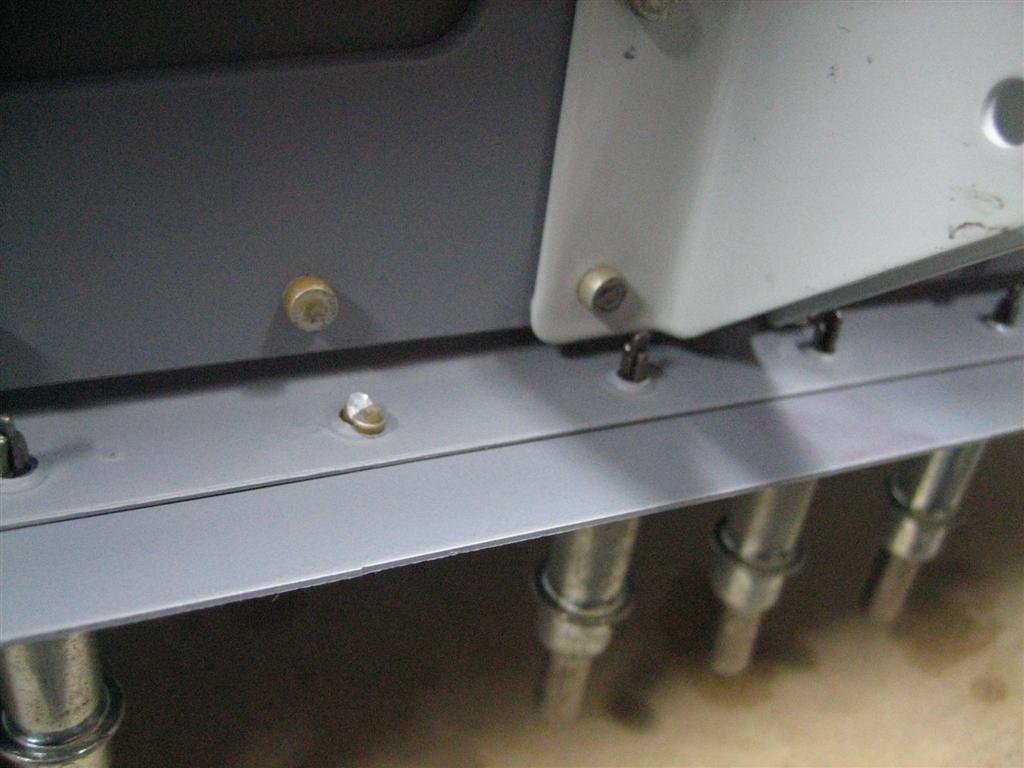

Bad rivet shop head there in the middle. Obviously.

And here’s the other.

Another bad shop head there on the left. See the cleco in the middle of the picture. The rivet that will go in that hole doesn't have a lot of room to be bucked.

I gave up on any other rivets that would be close with the squeezer. I’ve been doing so well recently with the gun and bucking bar, that I’ll just wait till I can make loud noises and set them with the gun.

Where I left off for today. I'll figure out how to set the remaining rear spar to skin rivets sometime next week.

One and a half hours today. 135 rivets set; some shot, some squeezed. Only a few will have to be drilled out later. Good night tonight. Hopefully next week, the dogs will get some directional stability.

Prev | Next

Leave a Comment » | Empennage | Tagged: , , , , , , , , , , , , , | Permalink
Posted by Andrew

VS Skin Riveting

February 10, 2010

Prev | Next

After 9 days of not working on the airplane, I finally made it out to the garage. In all fairness, though, I spent all last week working out hard, and preparing for a bachelor party at Snowshoe. West Virginia, right? Yup. It was actually pretty cool there. It was in the midst of the big blizzard that bent the east coast over last week, so Showshoe got somewhere around 20 inches of snow. Legend…wait for it…dary.

Anyway, I had previously drilled out the front spar(VS-702) to tip rib (VS-706) rivets, so here are the replacements. The one on the left doesn’t look all that good, but this is my third try, and I think I am going to leave good enough alone.

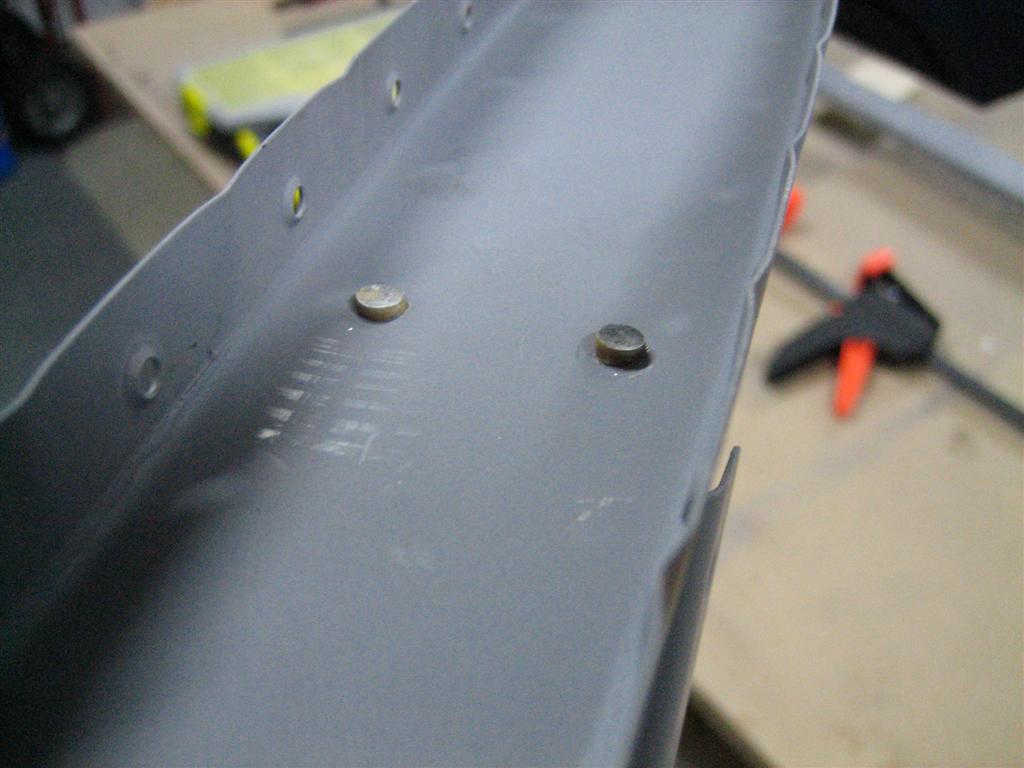

Front spar to tip rib rivets. Left one sucks, but I'm not going to make it any worse.

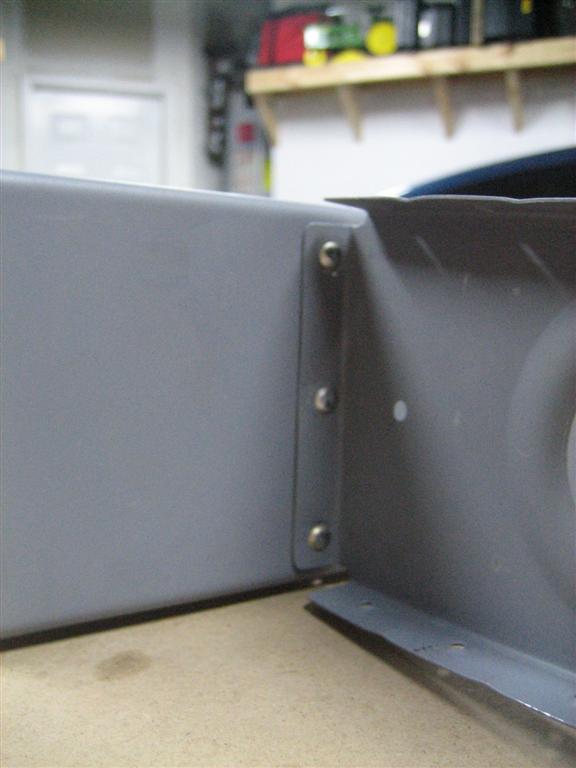

Then, I reset the VS-704 root rib to front spar rivets. I set the middle one fine, then messed up the outer two. Drill out, and reset them just fine on the second try.

Looking good from this side.

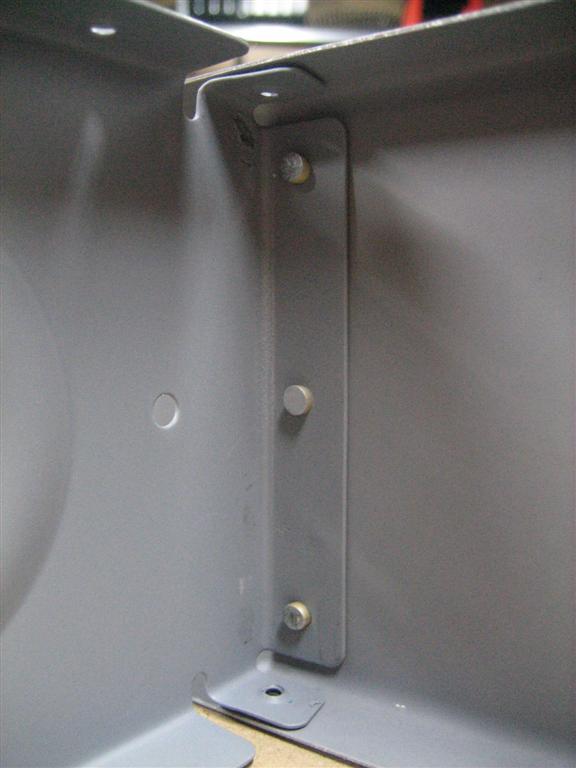

Here’s a shot of the shop heads for those three rivets.

Here are the shop heads for those three. Not too bad.

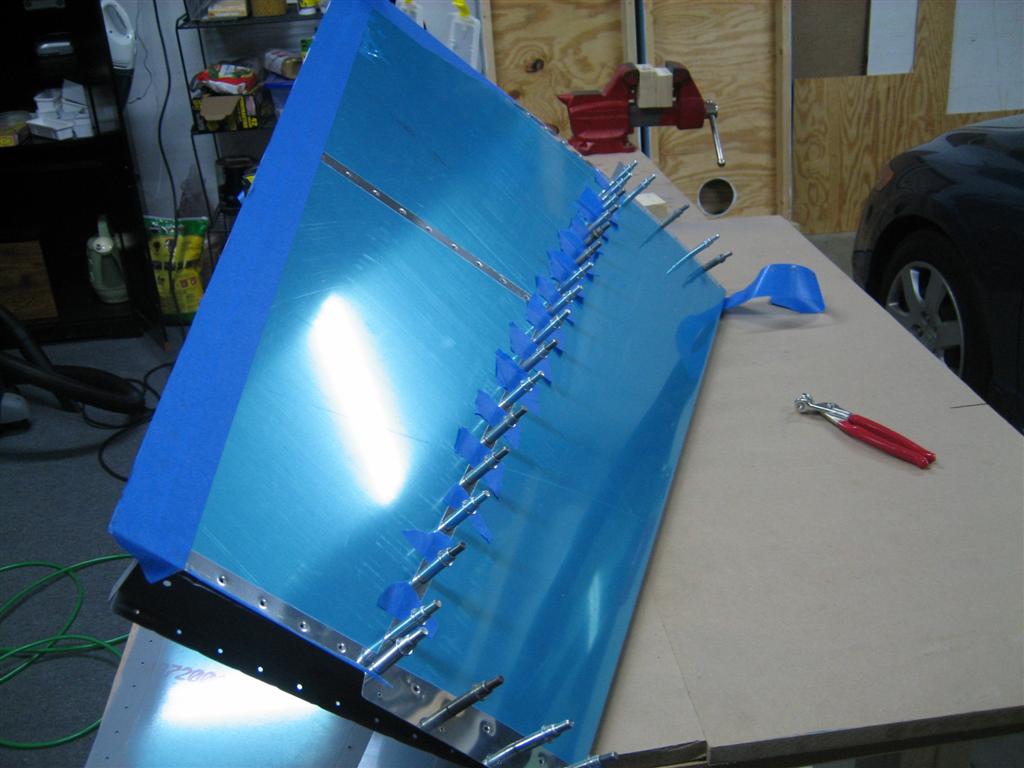

Next, the instructions tell you to cleco on the skin and start riveting. Here’s a shot of me getting ready to rivet.

Start from the middle of the front spar and work outboard, then back to the start and work inboard. Then, rivet along the middle rib aft.

Here’s a shot of some shop heads. You’ll have to click on the picture to see them.

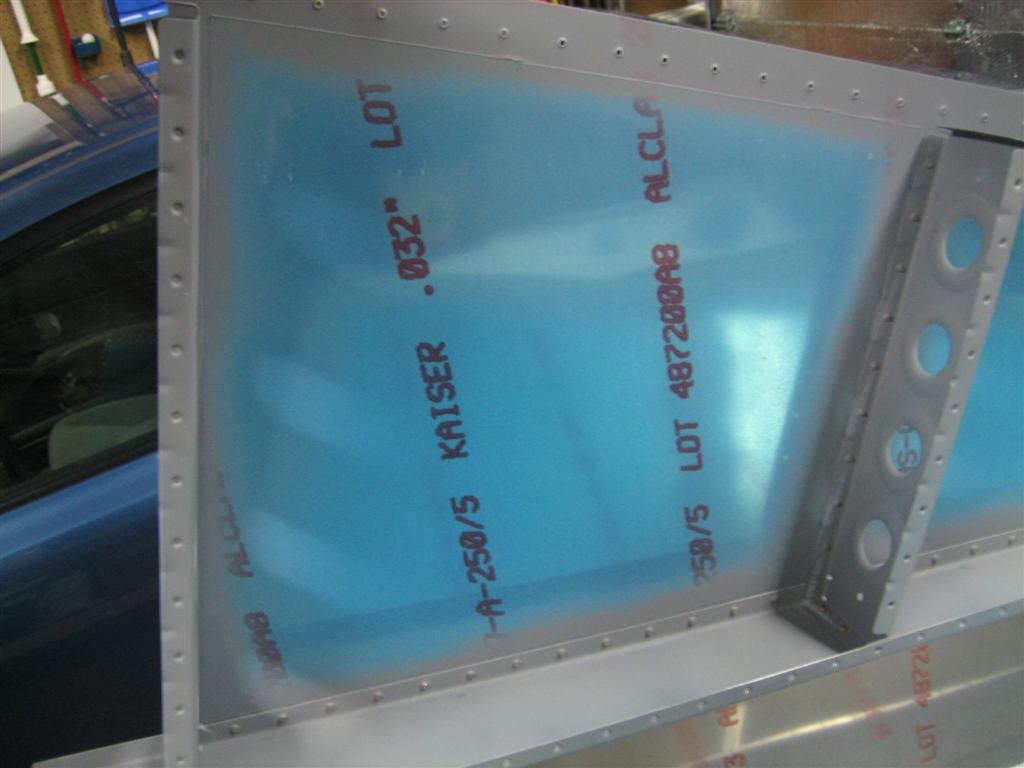

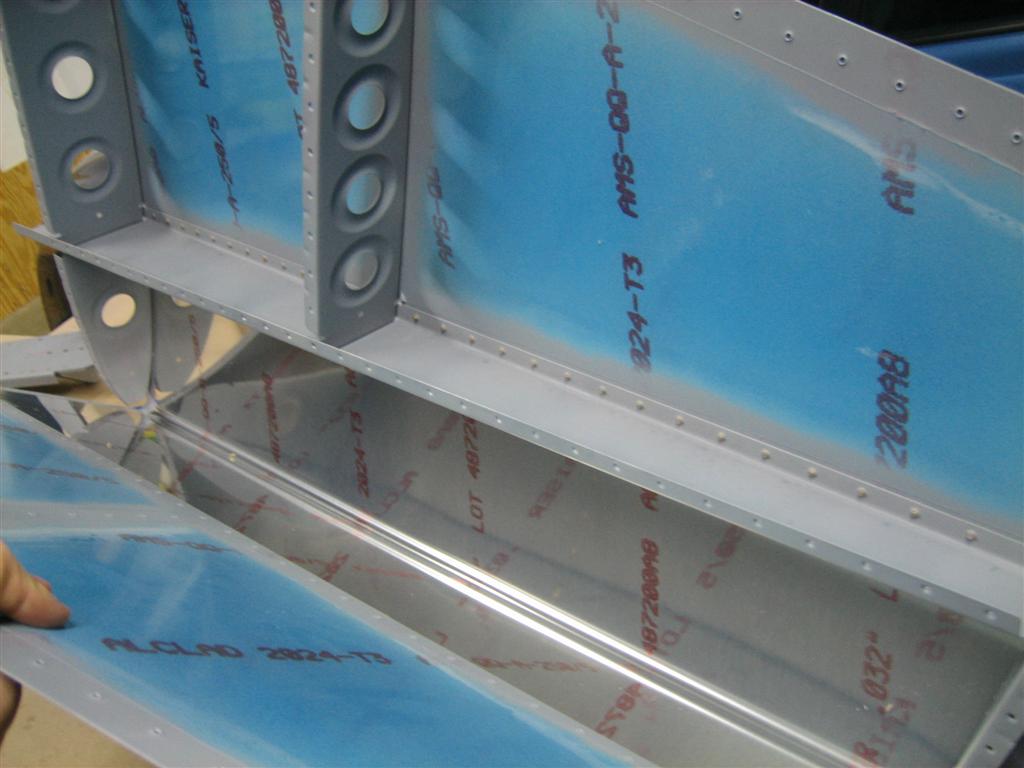

Nice looking shop heads. You can also see my interior skin masking practice. Looks good, doesn't it?

More shop heads.

Another shot of the shop heads for VS-702 front spar and VS-707 middle rib.

And one more…

Once I get the other side of the skin riveted, I can take off the blue vinyl from the inside of the skins.

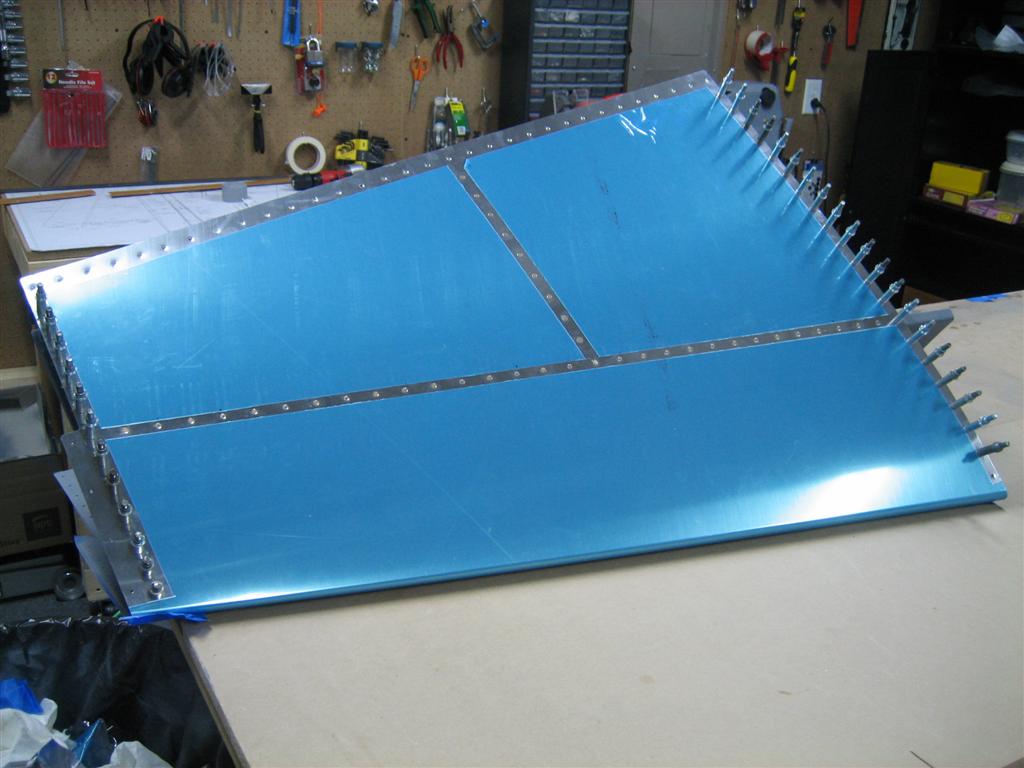

After riveting one side of the skin, I had to head inside to watch UNC play Dook. (Yes, that is how you spell Dook.)

Starting to look like something that could fly.

One hour today. I drilled out 3 rivets , set 5 rivets on the skeleton and 39 on the left VS skin. 44 total. Booyah.

Prev | Next

Leave a Comment » | Empennage | Tagged: , , , , , , , | Permalink
Posted by Andrew

Skin Dimpling, Edge Finishing, Priming, Riveting

January 30, 2010

Prev | Next

I worked in sections today.

There was a big storm here last night, (and all of today), but I’ve learned that cleaning off the driveway is a lot easier if you do it when it is 3″ two times instead of once after 6″ has accumulated. Here’s what I woke up to this morning.

Snow!

Here’s after about an hour of shoveling. Good workout.

Coming down fast, but at least I cleared off the first 6".

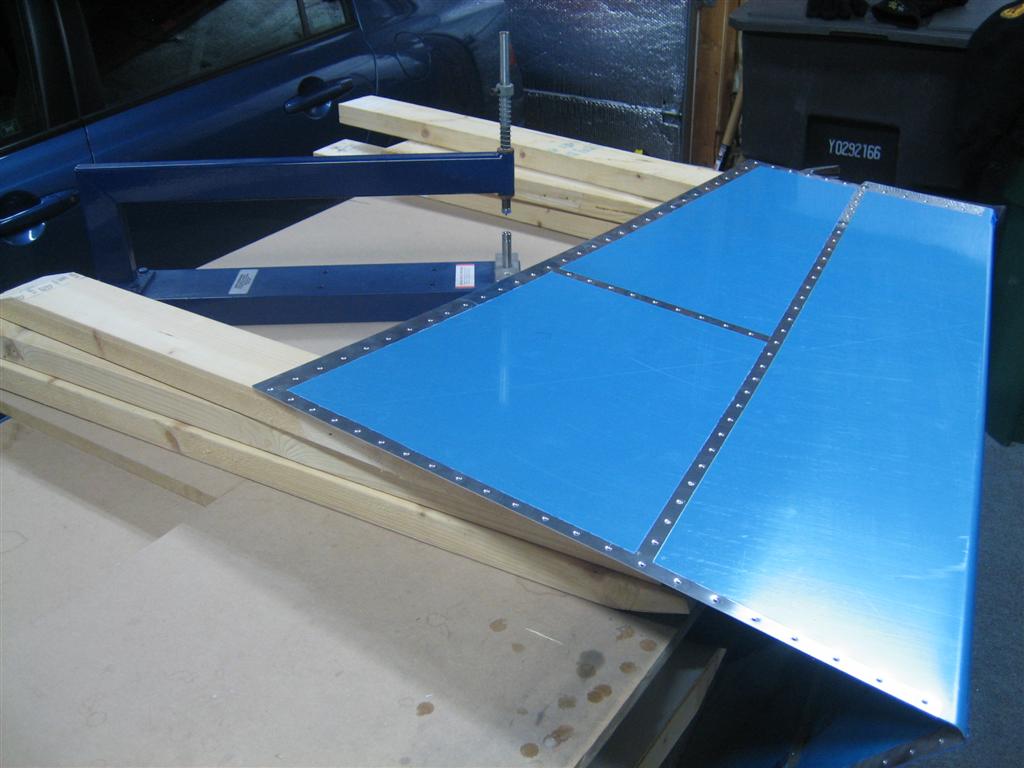

Then, I got the c-frame out and finished the VS skin dimpling. I replaced the blue tape on the male die, and got almost no circles.

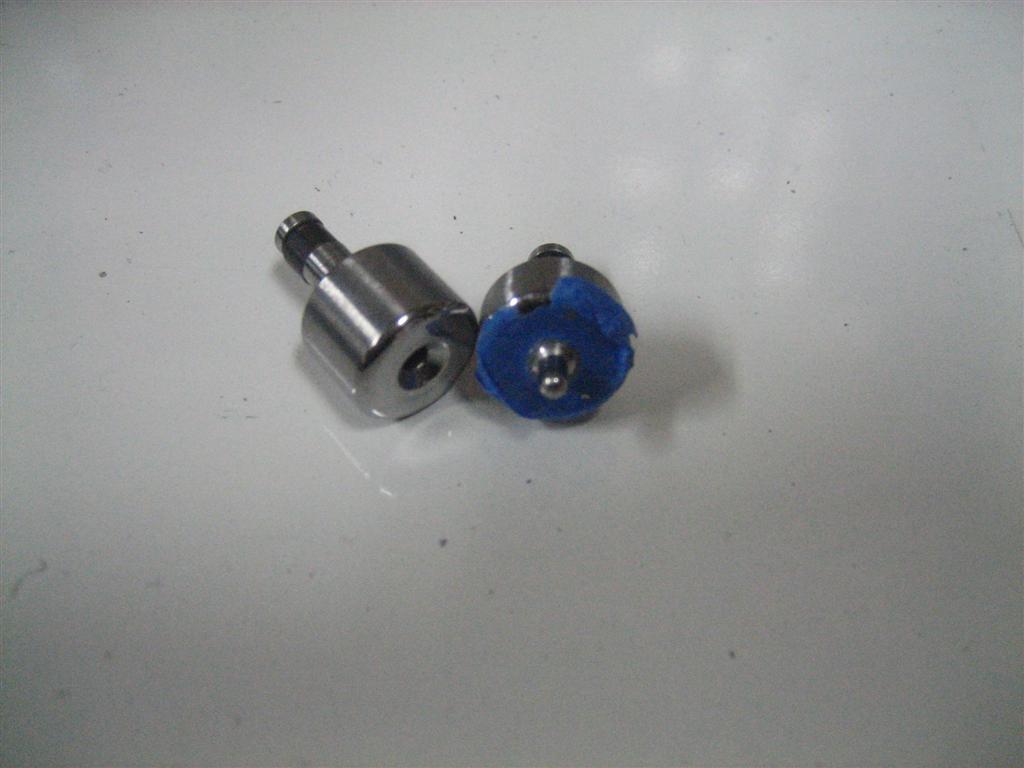

Simple but effective dimpling setup.

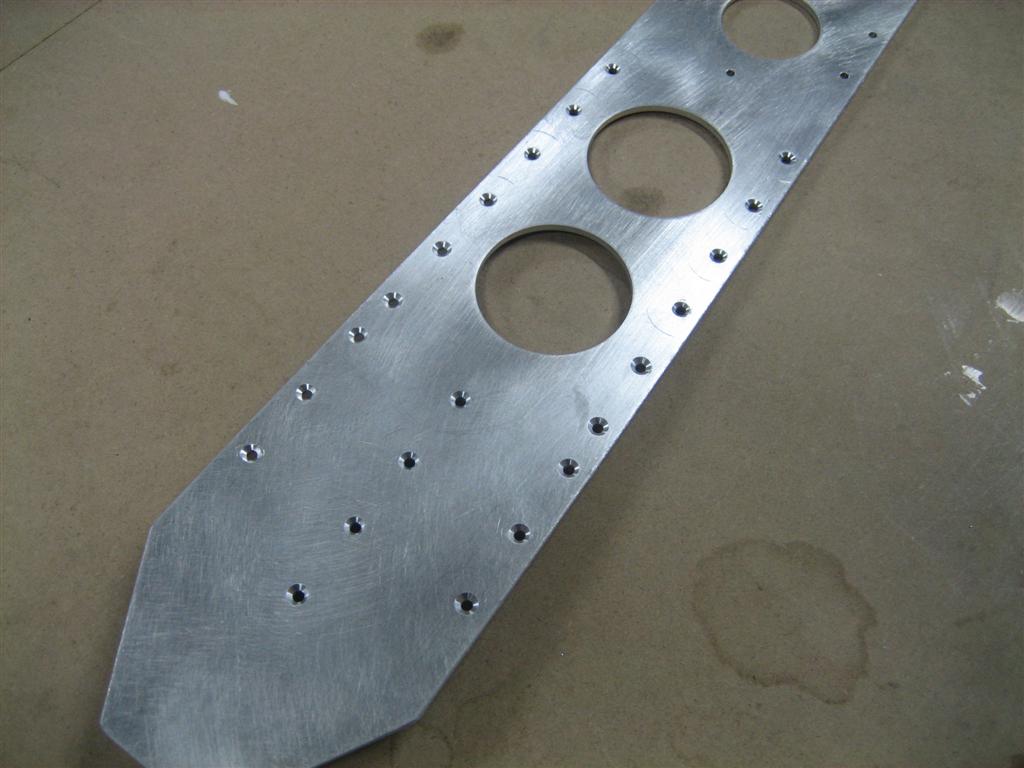

Then I countersunk all of the lower forward spar reinforcement holes from the plans. I haven’t used the countersink since I had to countersink HS-710 and HS-714 to accept a #30 dimple, so the countersink cage was already set up. All I had to do was verify in a piece of scrap. Yup. It’s perfect.

Beautiful countersinking.

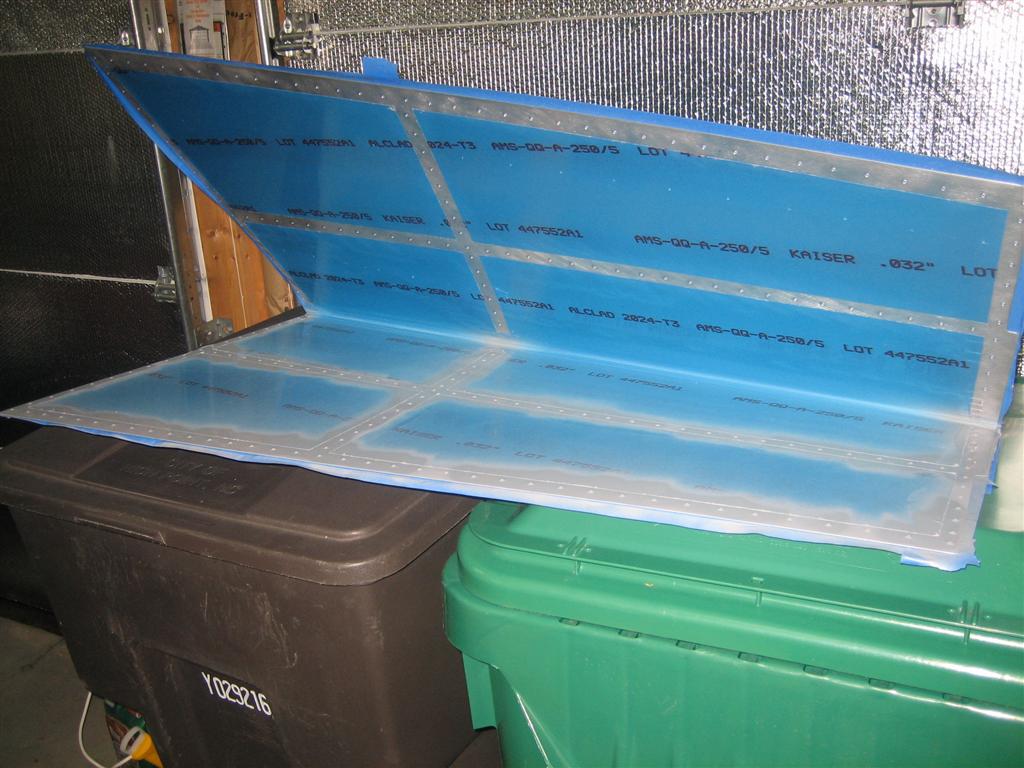

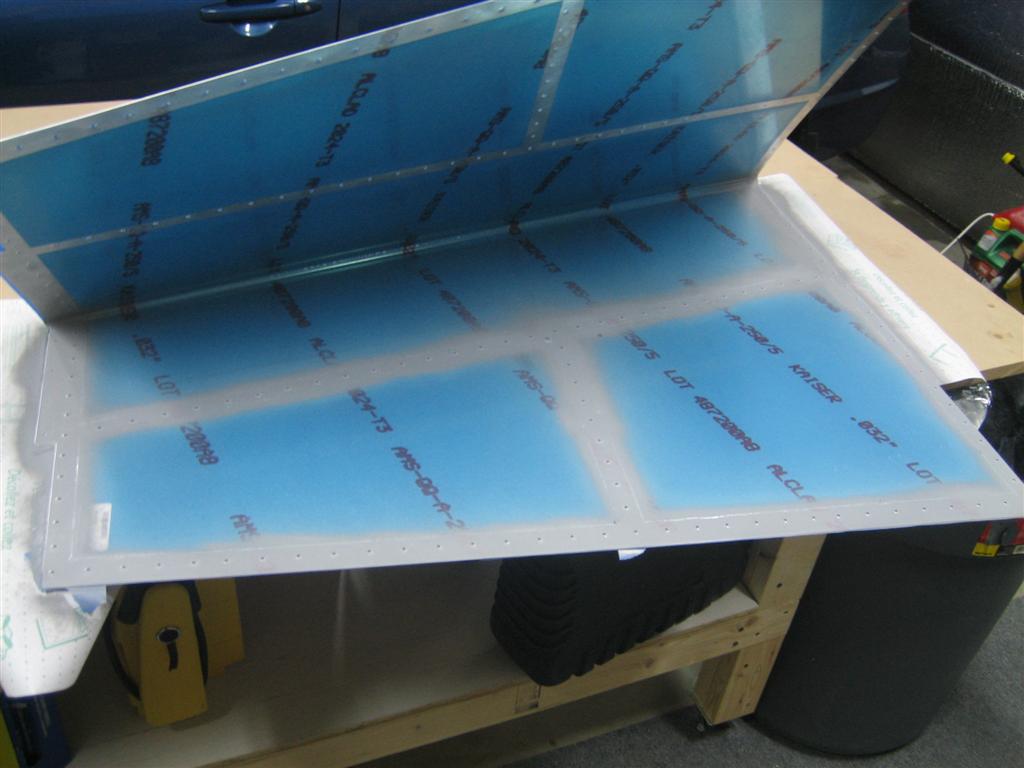

Then, I cleaned and primed one interior side of the vertical skin, then the other. Here’s the first side drying.

Hurry up and wait to dry.

After finishing the second side and letting it dry, I pulled the forward section of vinyl off of the interior side of the skin. During assembly, no bucking bars will be needed in there, so there is no risk of scratching. Then I finished edge finishing the ribs, spars, and rear spar reinforcement, and primed each one. I didn’t prime them sitting perfectly horizontal, so I got some runs and some nastiness; some of them ended up getting touched up, and some got a second coat.  After they were all dry, I cleco those bad boys together in preparation for riveting.

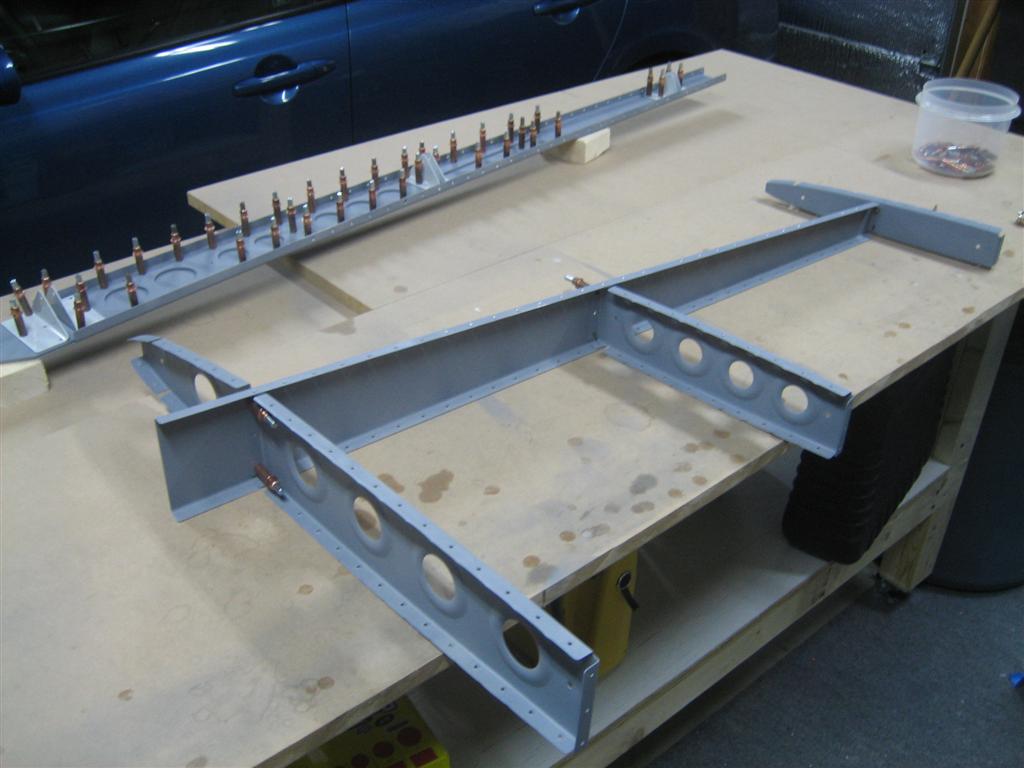

Skeleton and rear spar taking shape.

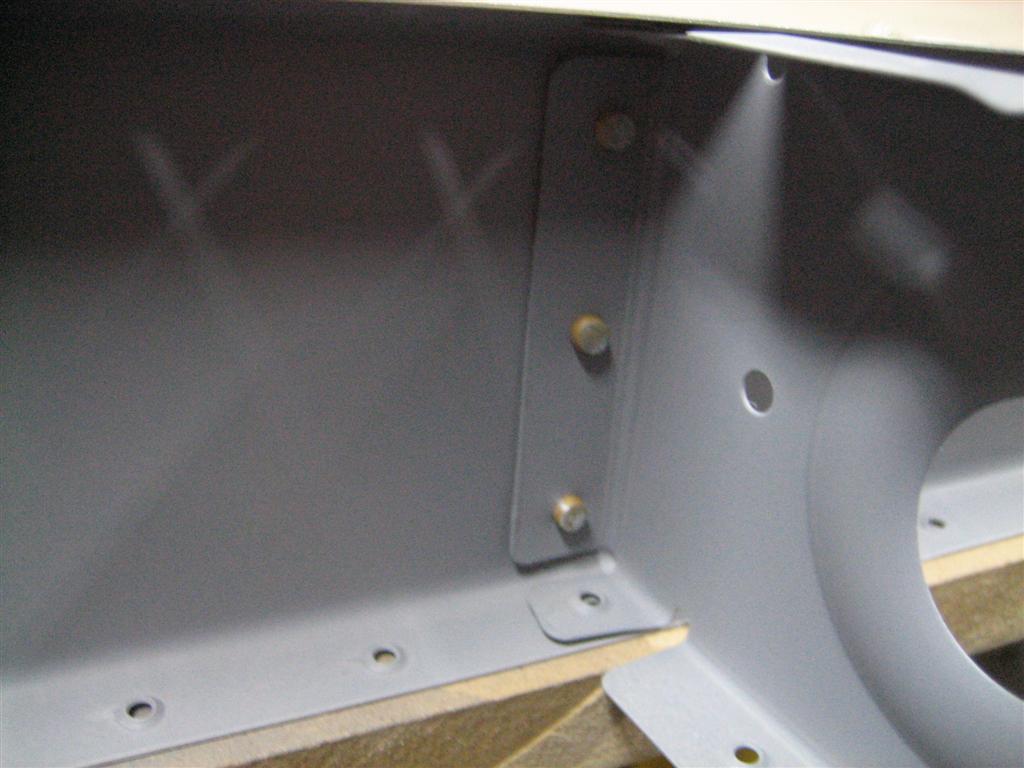

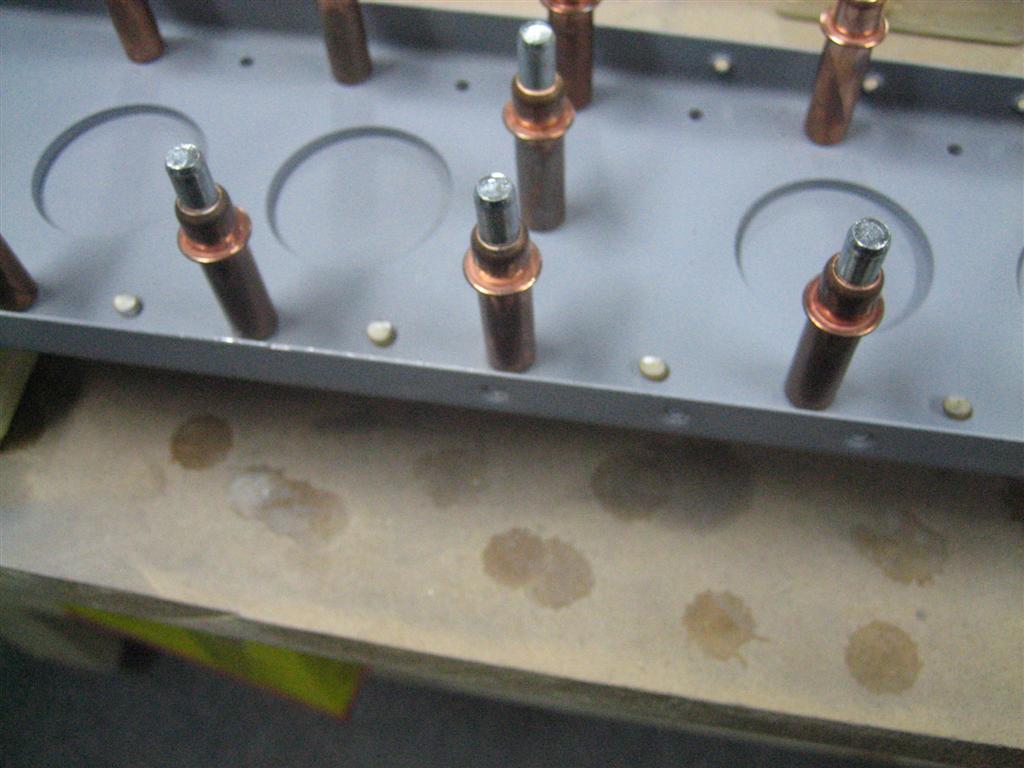

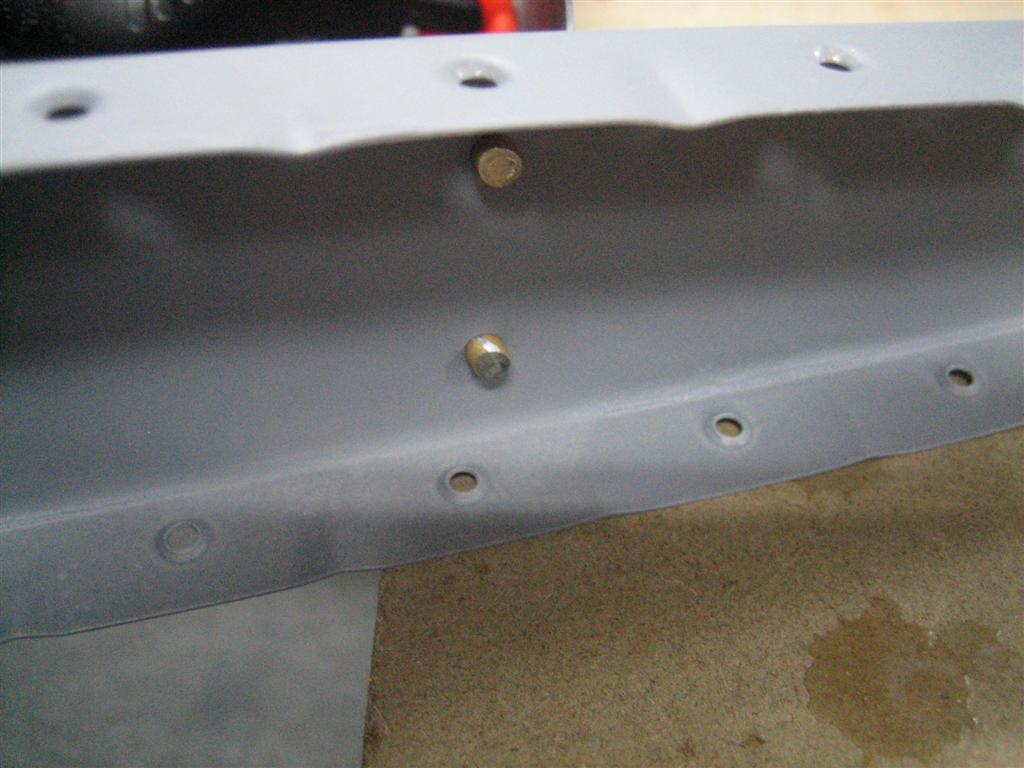

I started with the skeleton, middle rib. Here’s my first VS rivet.

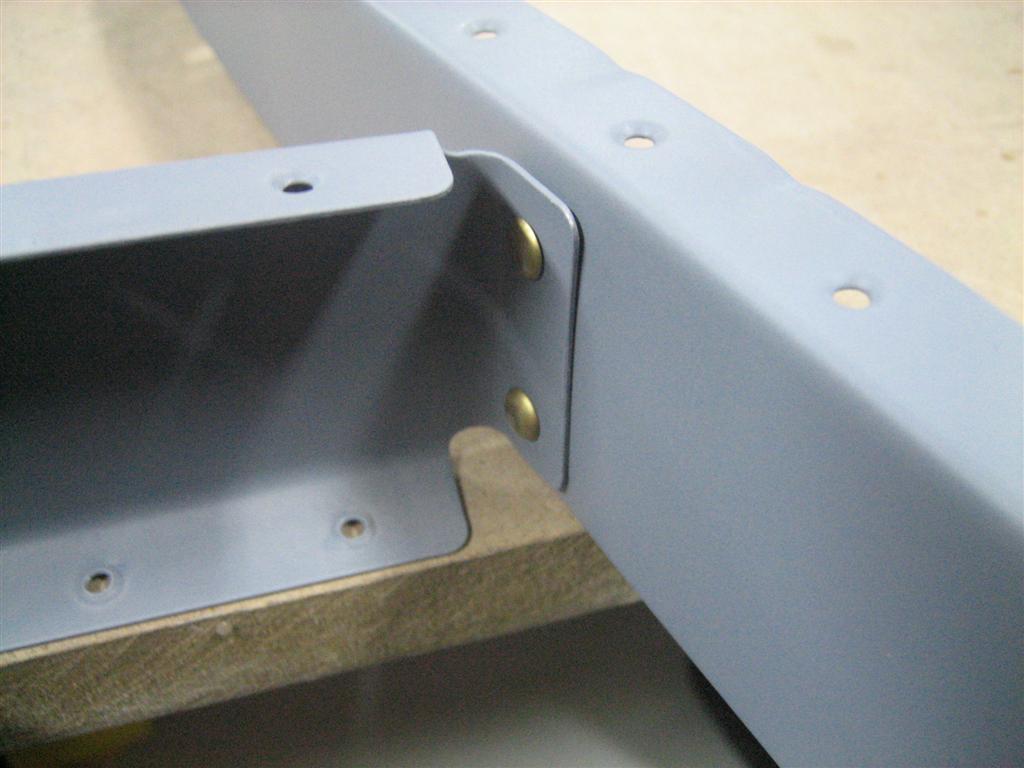

First VS rivet.

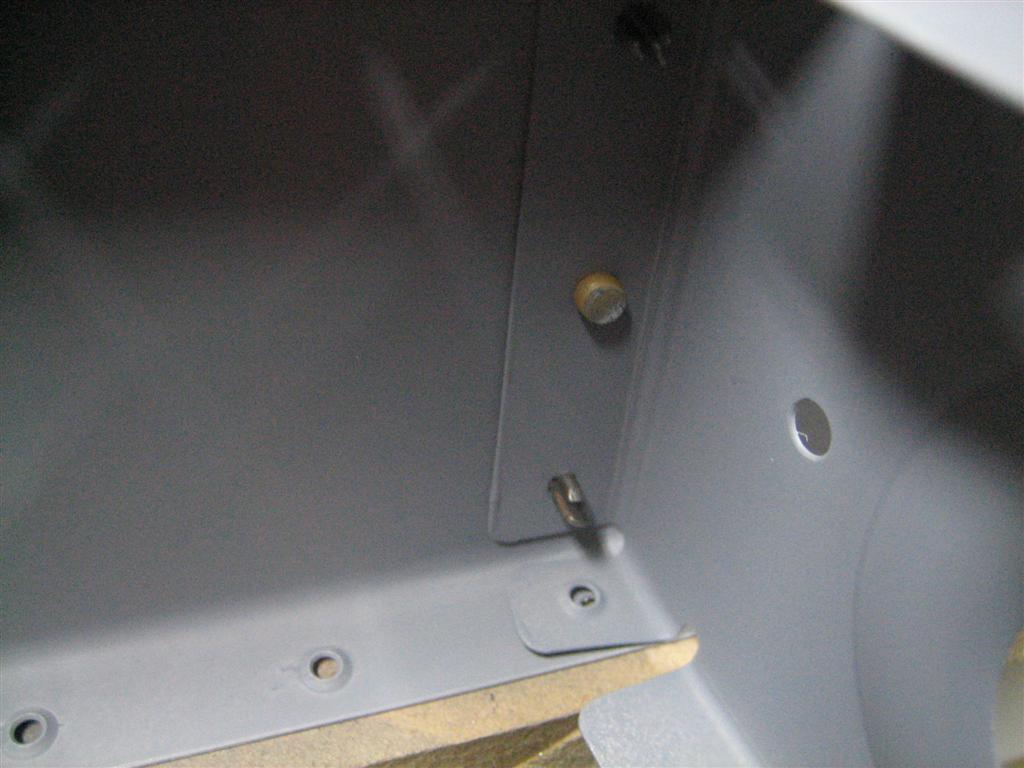

Then, I moved to the tip. See the upper rivet? The skins are sitting flush, this will have to be drilled out.

Ahhh! I suck at riveting.

And the lower rivet there started to bend over. I’ll have to drill out both rivets.

Two rivets to be drilled out.

Back to the middle rib, two more perfect rivets.

There are pretty good. I need to make sure that bottom one is driven enough.

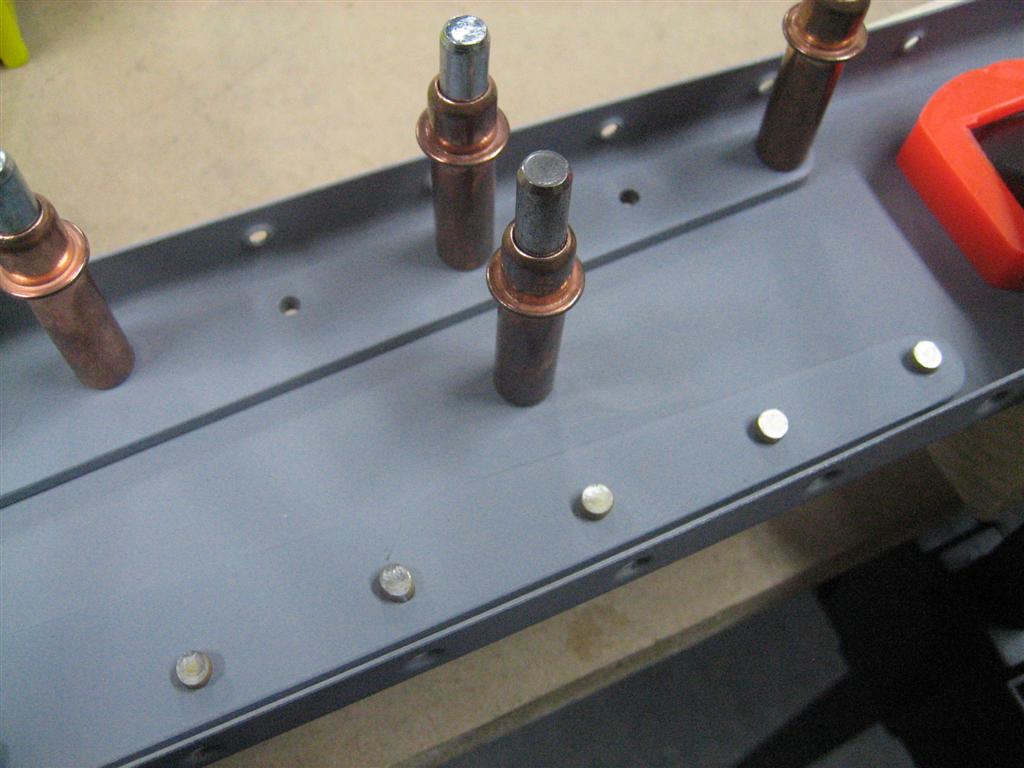

See the fourth rivet from the right? Started to bend over, so I’m going to drill it out. Also, I’m going to put the shop heads on the thicker material here, also, they’ll be easier to inspect.

Uh oh. See the third rivet from the right? I was supposed to wait and rivet this with the skeleton. Slow down and follow the directions!

Two more rivets to be drilled out.

But I was feeling good about squeezing, so I kept going. Until these 4 rivets. Terrible…they all started to bend over. I think my rivet squeezer sucks. I have to squeeze really hard and it it tough to keep everything aligned. I think after I drill these out I am going to shoot and buck these.

4 bad rivets to be drilled out.

At this point, I had to walk away, I was tired, frustrated, and not making any progress. Ugh.

So far, 3.5 hours. I set some rivets today, but I’m not going to count any of them until I drill them out. I’ll update the rivet count later.

Prev | Next

Leave a Comment » | Empennage | Tagged: , , , , , , , , , , , , | Permalink
Posted by Andrew

More VS work

January 26, 2010

Prev | Next

Last night I spent a little bit of time rearrange (cleaning) out the workshop. Now, I’ve got a little more room to maneuver. (Mostly, I just moved my second workbench a little left, and moved the shop vac over by the compressor, now the walkway to get into my workshop area is a little more open.)


Slightly different layout for the workshop. I like this.

Tonight, I started by disassembling the vertical to start the deburring, dimpling, countersinking, cleaning, priming, and then reassembly dance. Here I am set up in front of the UNC game for some deburring.

Ready to deburr some holes. Don't judge me for drinking white. We had red snapper for dinner.

After what seemed like a thousand holes to deburr, I broke out the 3/32″ tank dimple dies and the 1/8″ regular dimple dies (for the rear spar) and got ready to dimple. Dimpling is much easier than deburring, and fun, too. I know deburring is important, but I feel like I’ve made progress after dimpling.

Ready to dimple.

Then, I started dimpling the ribs and spars. Here are the 3/32″ tank dies in action.

3/32" tank dies in action.

Here I am using the 1/8″ regular (shallower) dimple dies on the rear spar. I had to triple check both the holes and the direction before proceeding. This is correct, I think. (Flush rivets on the forward side of the spar.)

1/8" dimples on the rear spar. These are my first 1/8" dimples.

After finishing dimpling, I grabbed the skin and brought it inside to devinyl. Devinyling is a lot easier indoors, where the vinyl is room temperature. I tried pulling off the horizontal stabilizer vinyl in the garage when it was near freezing, and it kept tearing and was very stiff.

Waiting for the soldering iron to heat up.

After using the soldering iron and a wooden straight edge (the metal straight edge carries heat away too quickly, and you don’t get a melt line), I got to pull off the vinyl. For some odd reason, I find devinyling very cathartic. I love pulling off the blue to see the shiny aluminum underneath.

Pulling off the vinyl on the inside of the skin.

Ready to pull off the blue vinyl on the exterior of the skin.

Ready to devinyl the outside of the skin.

And finally, the vertical stabilizer skin devinyled (and everything carried back out into the garage).

Pretty skin. Also, that's me in the reflection.

Here are the ribs and spars all deburred and dimpled. (I still have to countersink the front side of the VS-803PP.)

Ribs and spars deburred and dimpled.

Next up, countersinking the rear spar reinforcement then deburring, dimpling, and scuffing the skin. Then priming, then I get to put this sucker together.

I can’t believe how much faster the vertical is than the horizontal. Part of it is the learning curve, but I think they should have you start with the vertical. Much easier, in my opinion.

Prev | Next

Leave a Comment » | Empennage | Tagged: , , , , , , , , , , , | Permalink
Posted by Andrew

VS Assembly and Matchdrilling

January 24, 2010

Prev | Next

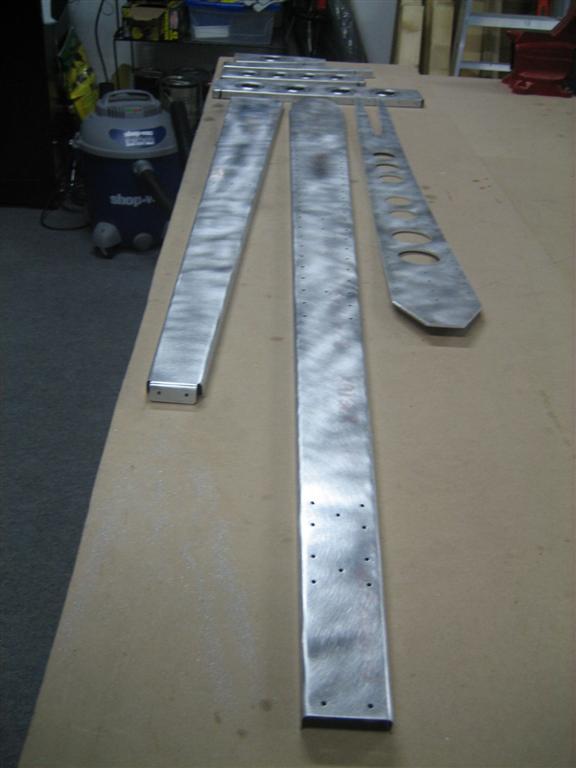

First thing after breakfast, I snagged the two VS spars and the spar reinforcement and headed into the kitchen to finish some surface prep. After about an hour, I had all three pieces scuffed up, cleaned, and back outside. Here is a shot during scuffing. You can see the top half has been scotchbrited and the bottom half is the raw part after removing the blue vinyl.

You can even see my hand and the camera in the bottom half.

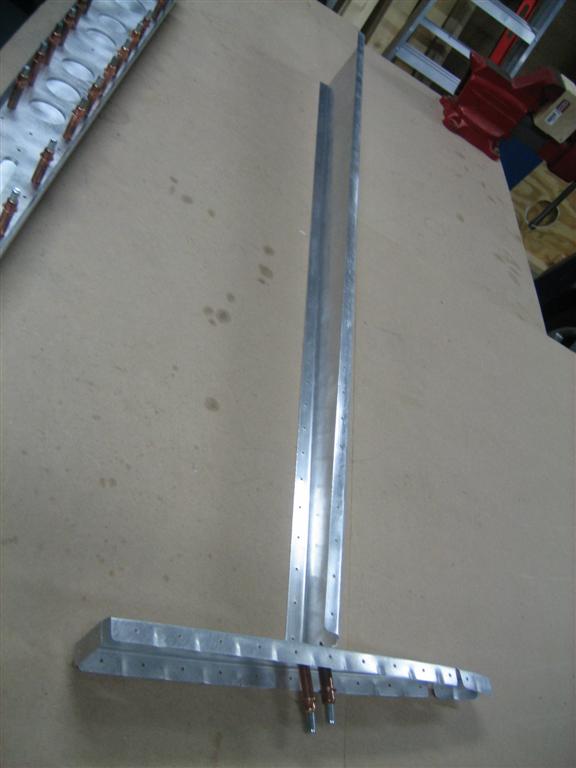

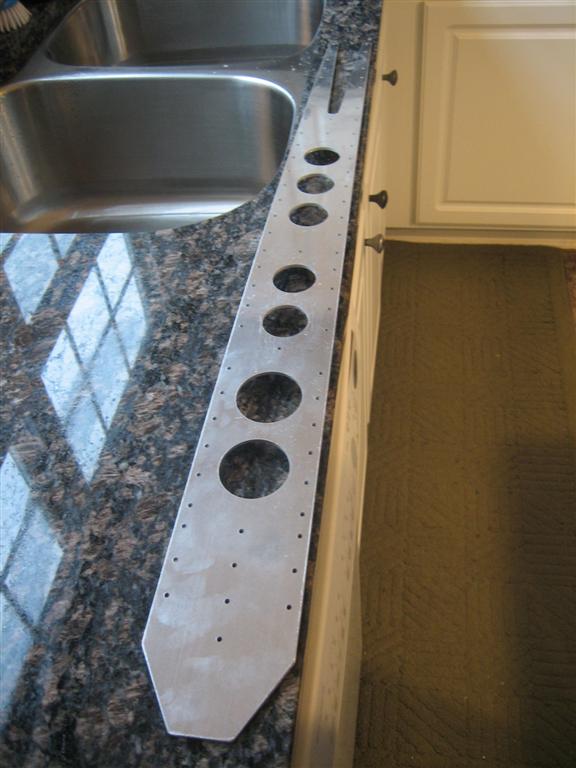

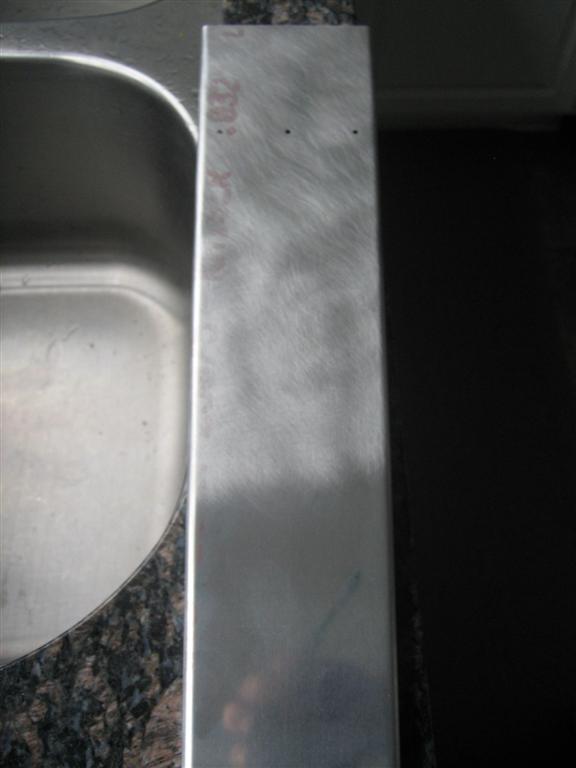

Here’s the spar reinforcement before finishing.

Rear spar reinforcement.

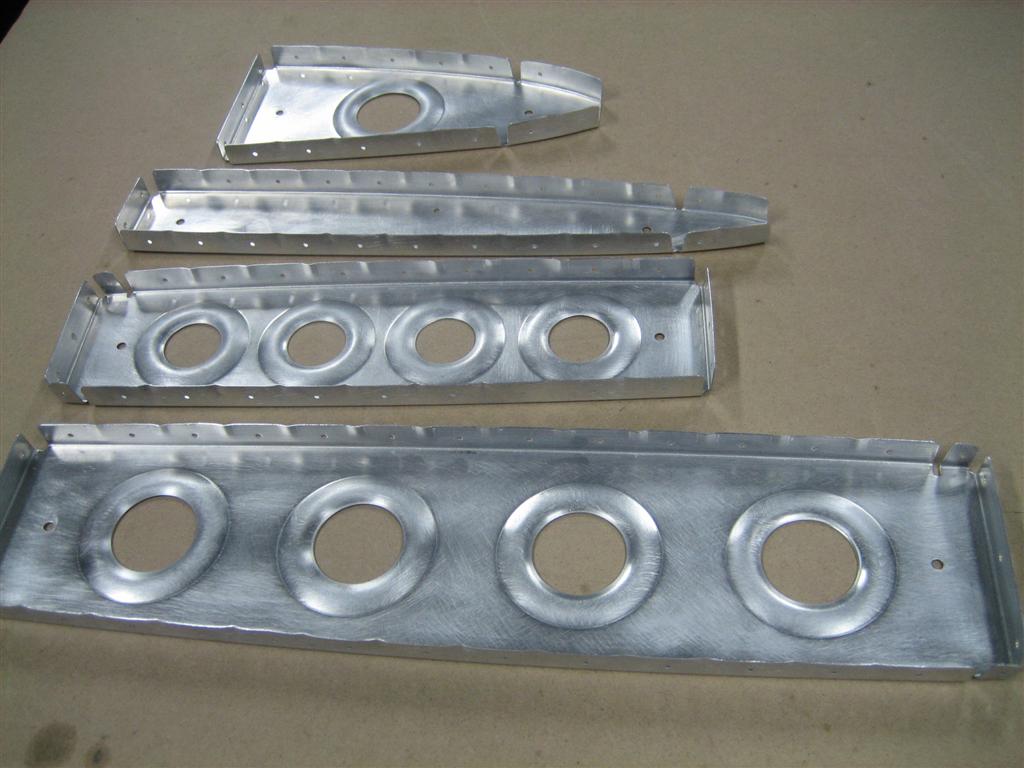

All three after scuffing. (Along with the ribs from last night.)

Looking good.

Then, I bent the rib flanges to exactly 90 degrees using my new hand seamers, and fluted the ribs.

Fluted, ready for assembly.

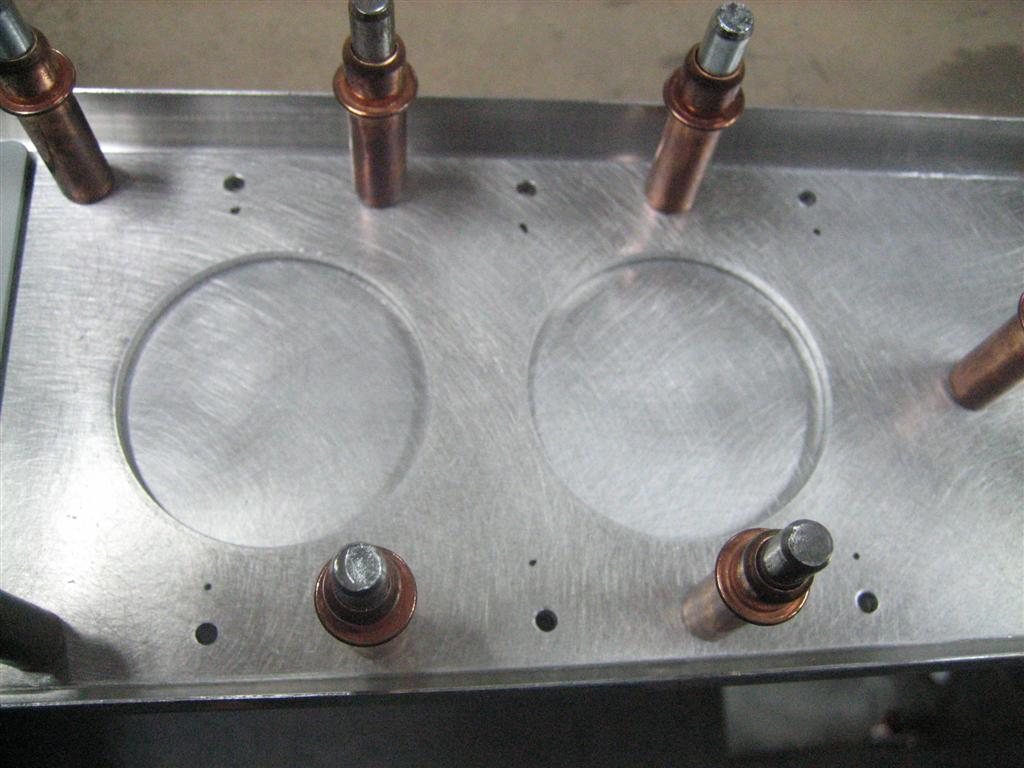

I started clecoing the rear spar doubler to the rear spar, and then realized they want you to put the hinge brackets in now. I quickly located VS-410PP, VS-411PP, and VS-412PP, and got the Goo Gone out to help pull these stickers off.

These part number stickers are a pain in the butt to get off cleanly.

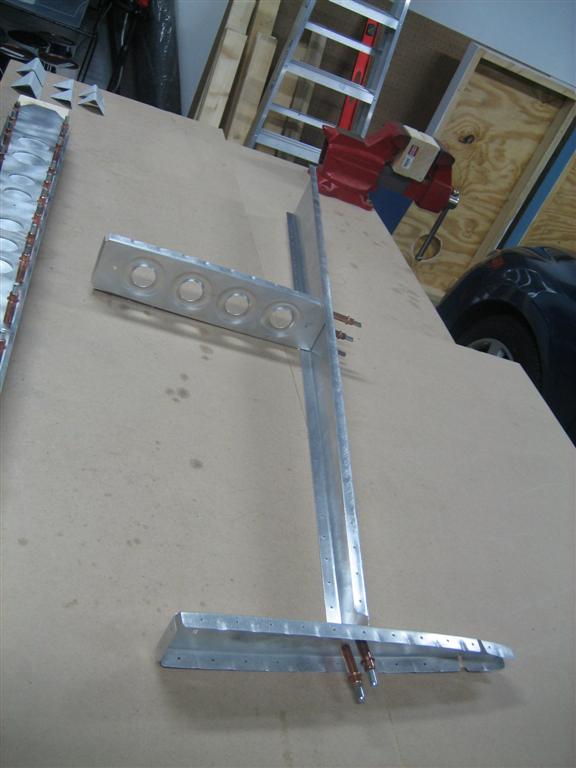

While I waited for the Goo Gone to do its magic, I decided to start clecoing the front spar and ribs together. You can also see the rear spar and rear spar reinforcement in the upper left corner of this picture.

Tip rib attached.

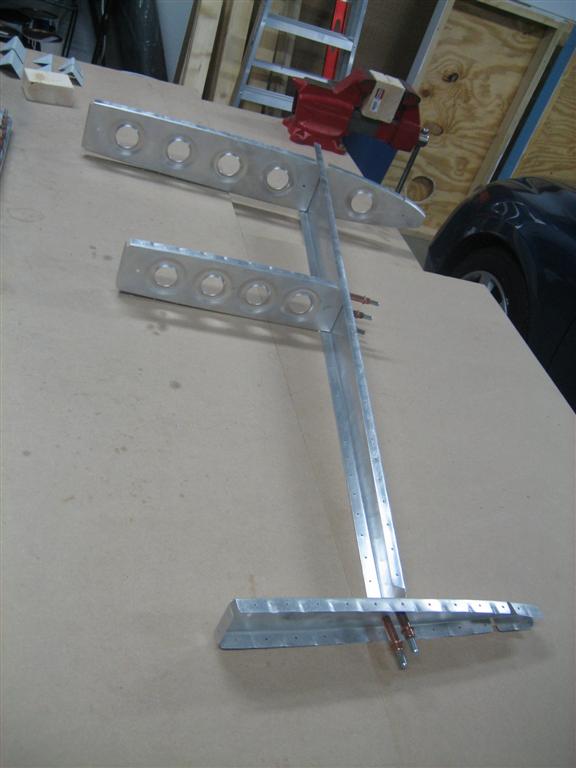

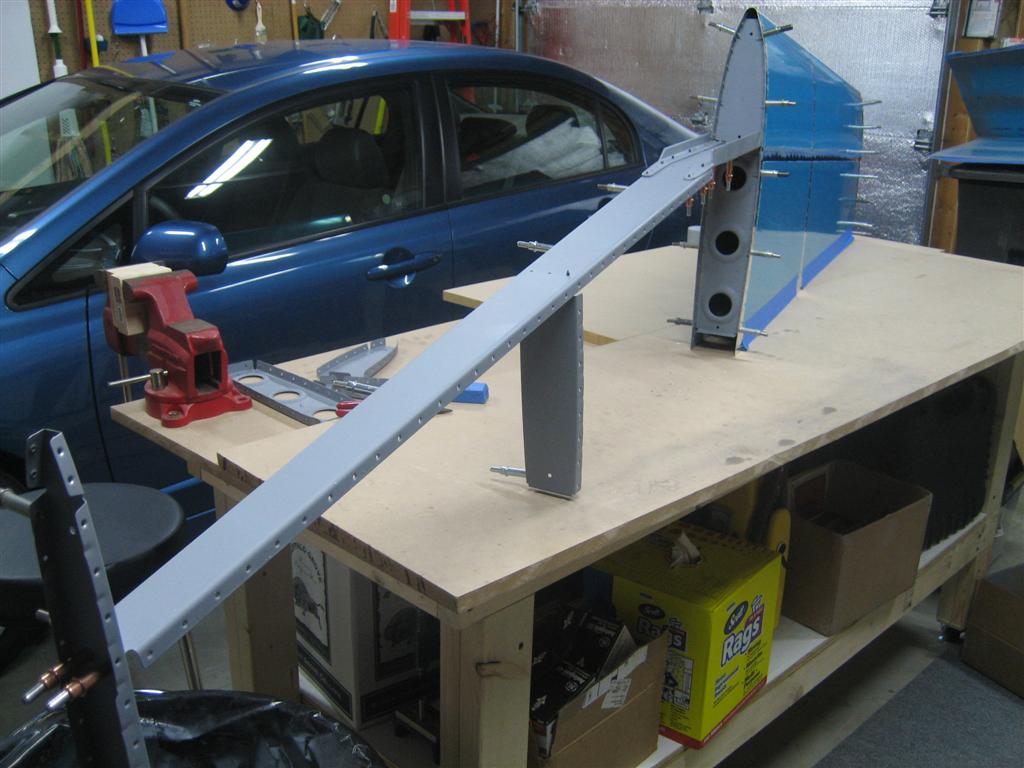

Then, I clecoed in the rear spar. Here, you can also see the hinge brackets waiting for the Goo Gone.

Middle rib attached.

Finally, I clecoed in the root ribs (fore and aft).

Root ribs attached.

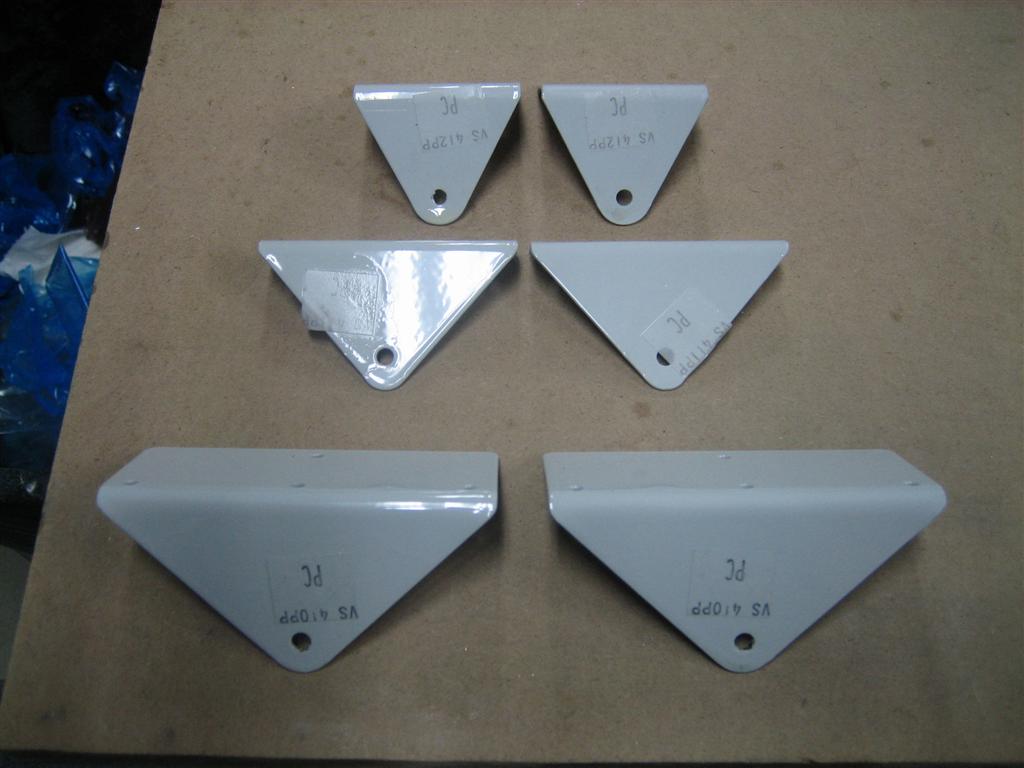

Then, I cleaned off the hinge brackets, got them clecoed to the rear spar, and clecoed the rear spar to the front spar and ribs.

Looks like an airplane again.

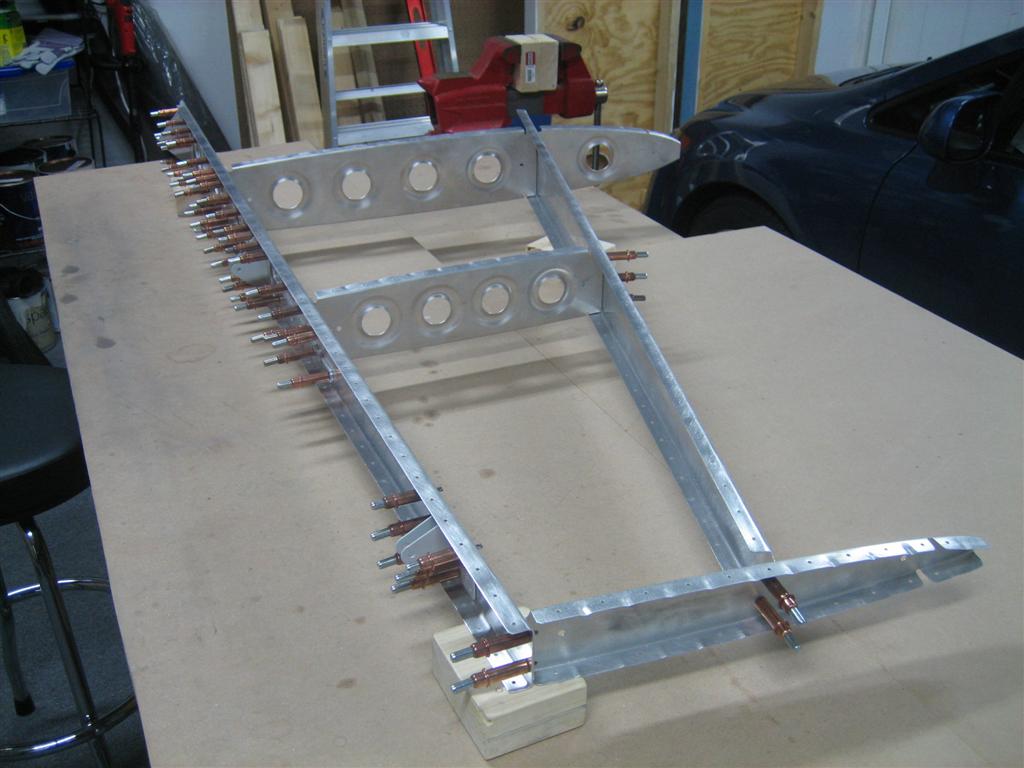

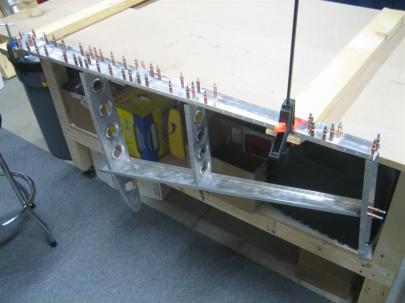

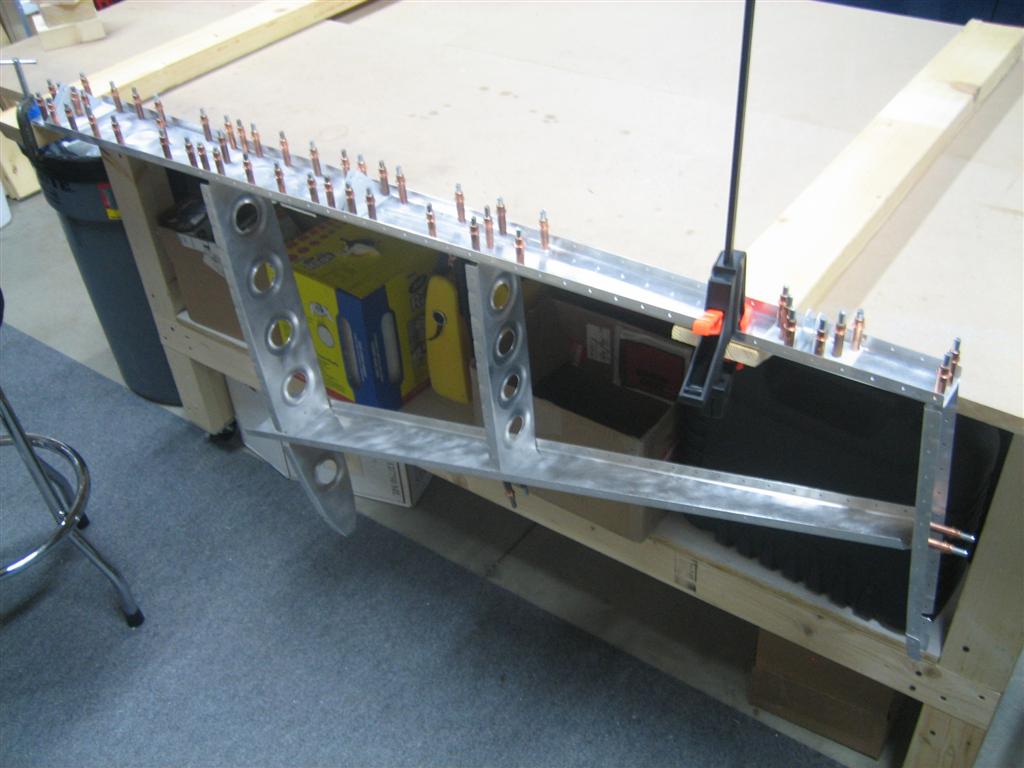

I followed Mike Bullock’s advice and clamped the rear spar to a couple of 2x4s. This let me matchdrill the rear spar vertically, which helps a lot with getting a perfectly straight hole.

Rudimentary VS jig for matcdrilling the rear spar.

Here’s my process. Cleco every other hole, match drill, mark the drilled hole with a dry-erase dot, move the clecos, repeat. Here, you can see my dots.

Dry-erase dots help me know which holes I've drilled.

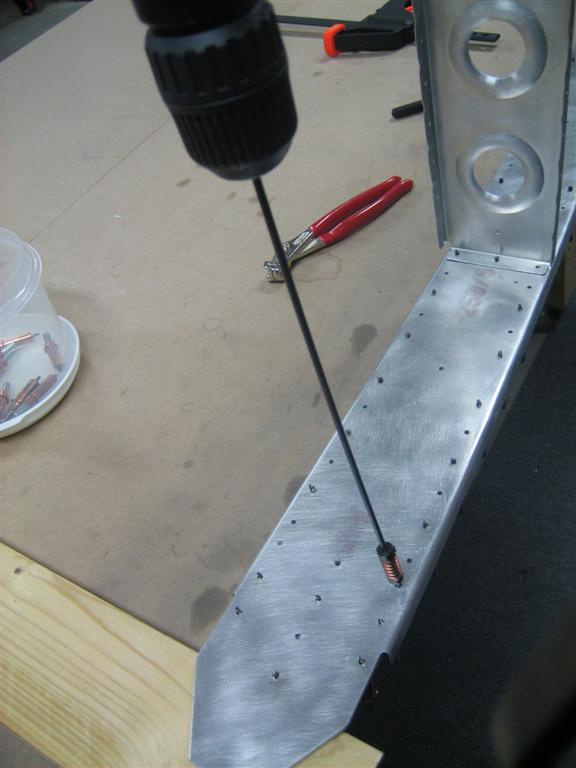

After finishing up the ones you can reach from the aft side of the rear spar, I flipped the whole assembly over and match-drilled the two remaining holes (that aren’t drilled in the upper half of the lower set of hinge brackets).

12" bit doing its thing...

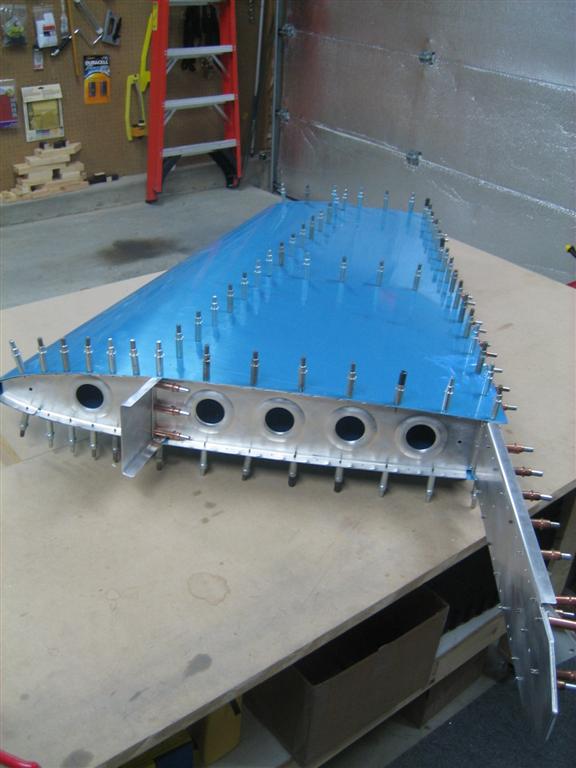

Next, we get to cleco on the skin, wuhoo!

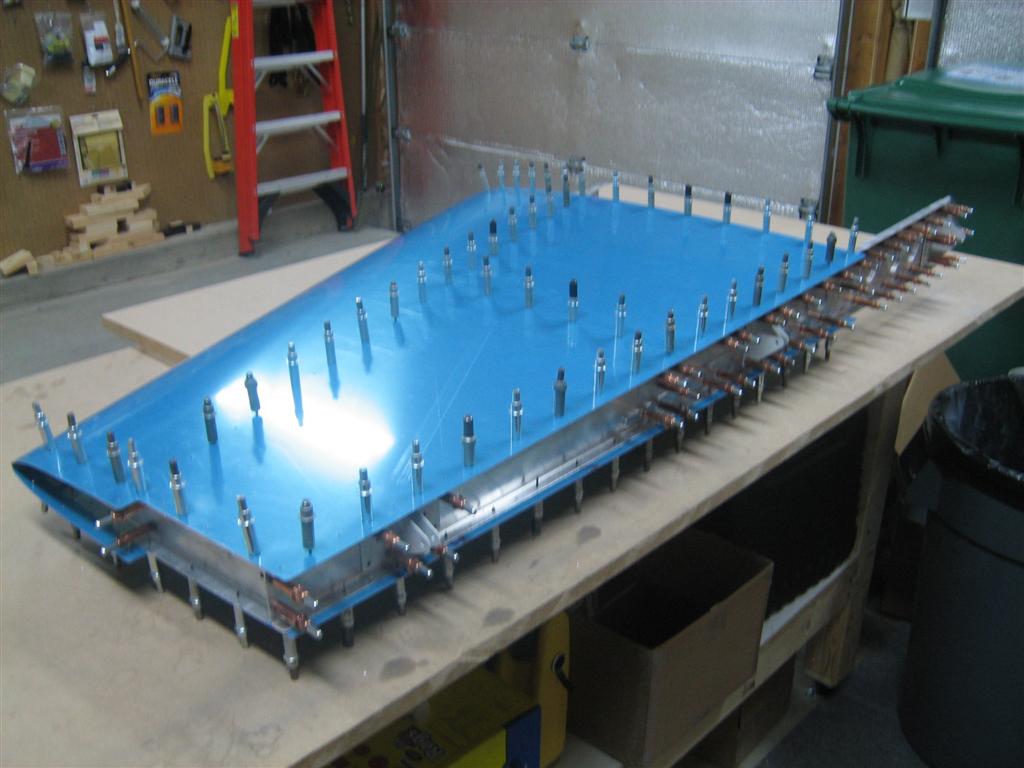

It looks like another airplane part.

Then, time to matchdrill the skin to the spars and ribs. Same process here. Cleco every other hole, drill, mark dots, move clecos, repeat.

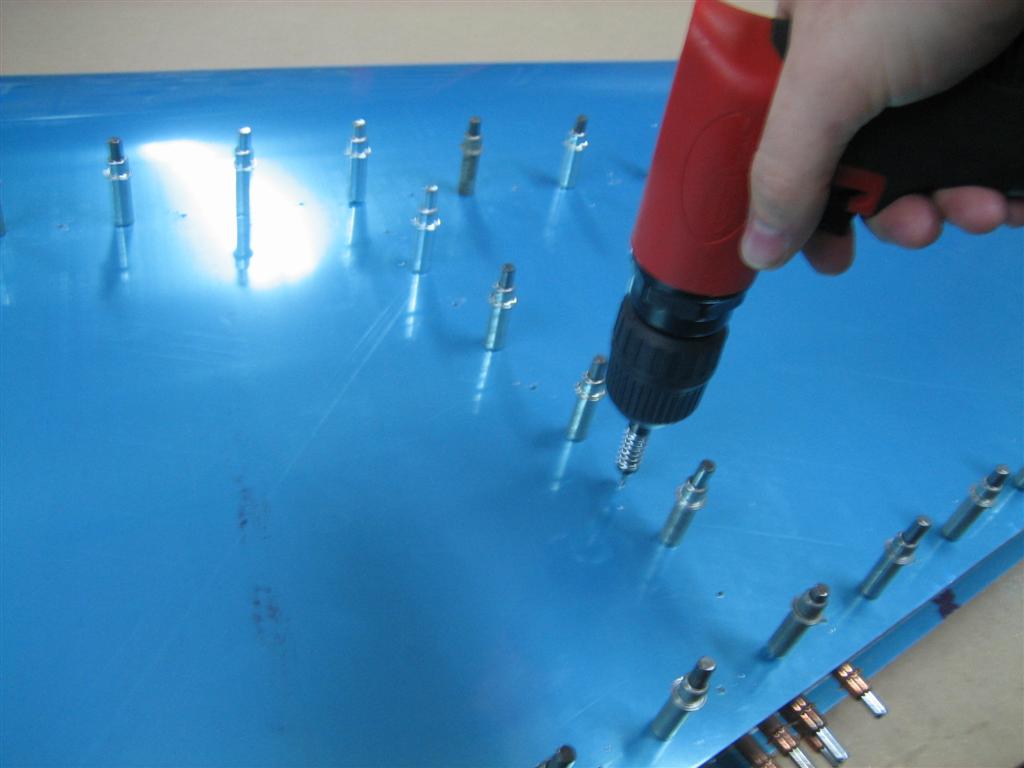

Match-drilling the skin.

Here, you can see that I am in the middle of moving clecos. The one in the center of the picture gets moved one left (into the marked, already drilled hole), then the one to the left of that gets moved one left, and so on.

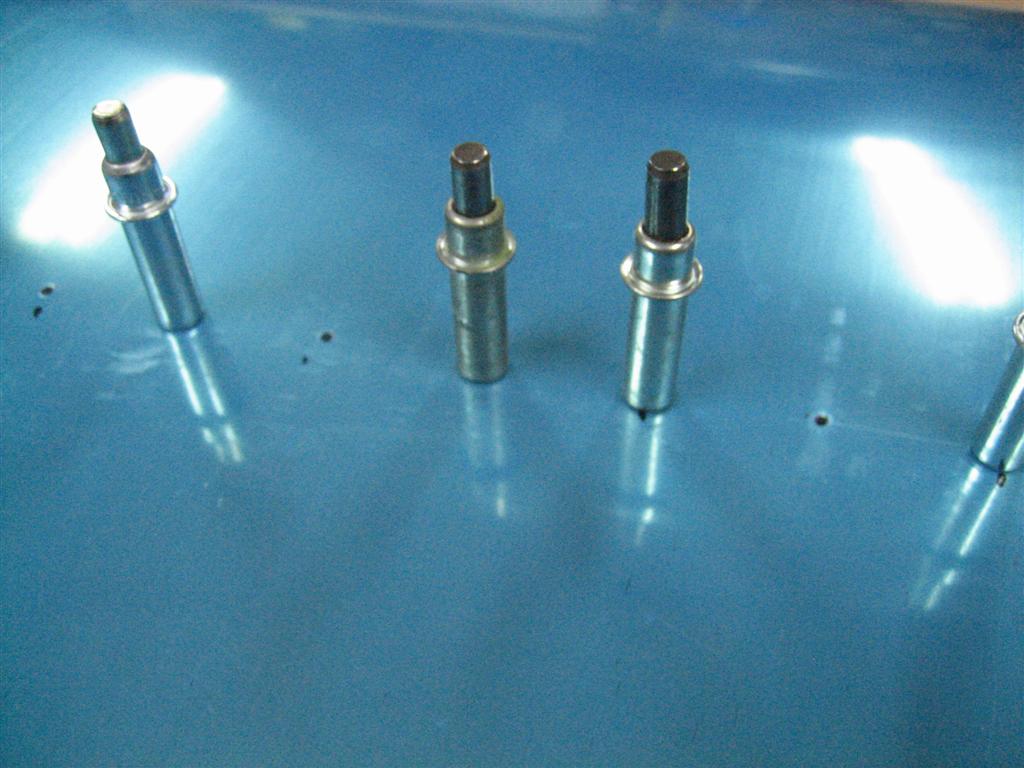

Example of brand new cleco on the left, and two used clecos in the middle. Eh, they work just fine, they're just not as pretty.

I got the left side of the vertical match-drilled, then flipped it over, took this picture, and then headed inside.

Ready for the second side of match-drilling. Maybe later tonight or tomorrow.

3.0 solid hours today. Good work all around.

Prev | Next

Leave a Comment » | Empennage | Tagged: , , , , , , , , , , , , | Permalink
Posted by Andrew

More Right HS Riveting

January 17, 2010

Prev | Next

After a nice day off (had to work), I got back in the garage this morning for some good progress.

I started off by assessing the damage from the other day’s skin denting fiasco. I contemplated removing HS-707 entirely (from the top skin, too) so I could really get in there and smooth this sucker out. I even got everything mocked up in the c-frame again to look at the feasibility of getting rid of this dent. Then I decided I would have probably caused more harm than good, and that it looked a lot better today than it did the other day. After re-clecoing HS-708 into the skin with HS-707 and re-riveting the bottom skin to HS-707, I took this picture. The dented area is between the bottom two rivets in the picture. It’s really not that bad.

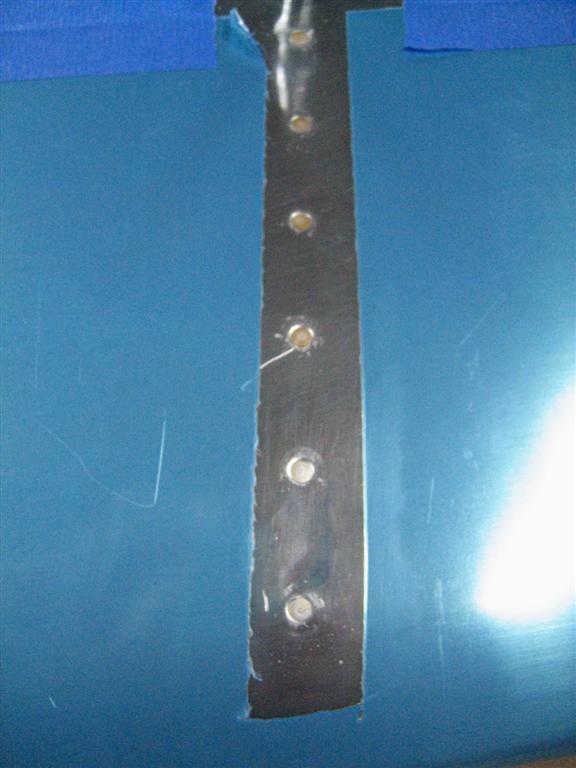

The denting between the bottom two rivets is really not that bad. And, it's on the bottom of the right HS. No one will look there. Unless you are reading this, and come to see my airplane, and want to see the dent on the bottom of the right HS. Damn you.

Anyway, with that done and behind me, I clecoed in the front spar assembly from Friday.

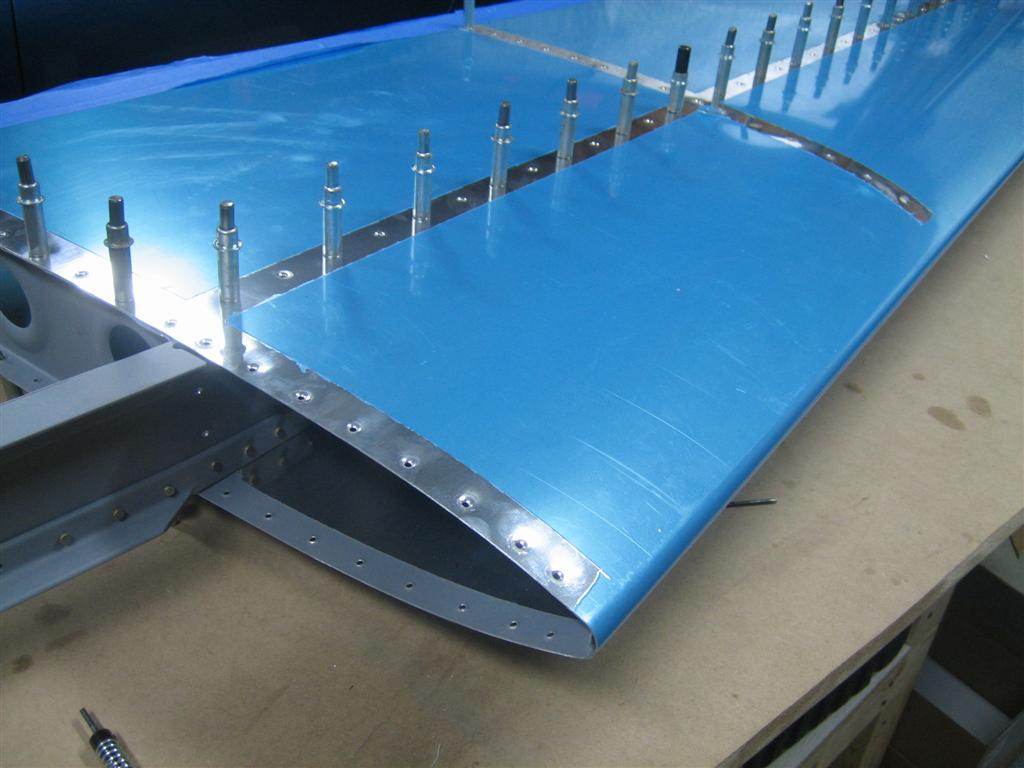

Upside-down HS assembly after starting to cleco the front spar (already riveted to the left HS skin) into the right HS skin.

CRAP! I forgot to remove the blue vinyl from the inboard bay before clecoing everything together. Okay, let’s un-cleco, remove, the vinyl, and recleco. Great. After inspecting (admiring, really) the assembly, I noticed a loose rivet (as opposed to a prude rivet. Hehe.). It was one of the two forward HS-707 rivets (by the denting). Grrr. Okay, should I un-cleco everything, and risk scratching everything in the process, or drill out two small rivets in the HS-404 to get my arm in there. I decided to go with drilling, since apparently I am really good at drilling rivets out. Without any issue, I got HS-404 removed and reached in to replace the offending rivet (second from the right in the picture).

HS-404 removed so I could reach in to replace the loose rivet.

Then, I reinstalled HS-404. (But took this picture before I actually riveted it to HS-702 (front spar) and HS-405 (aft root rib) behind the spar. Just pretend there are perfectly driven rivets there.

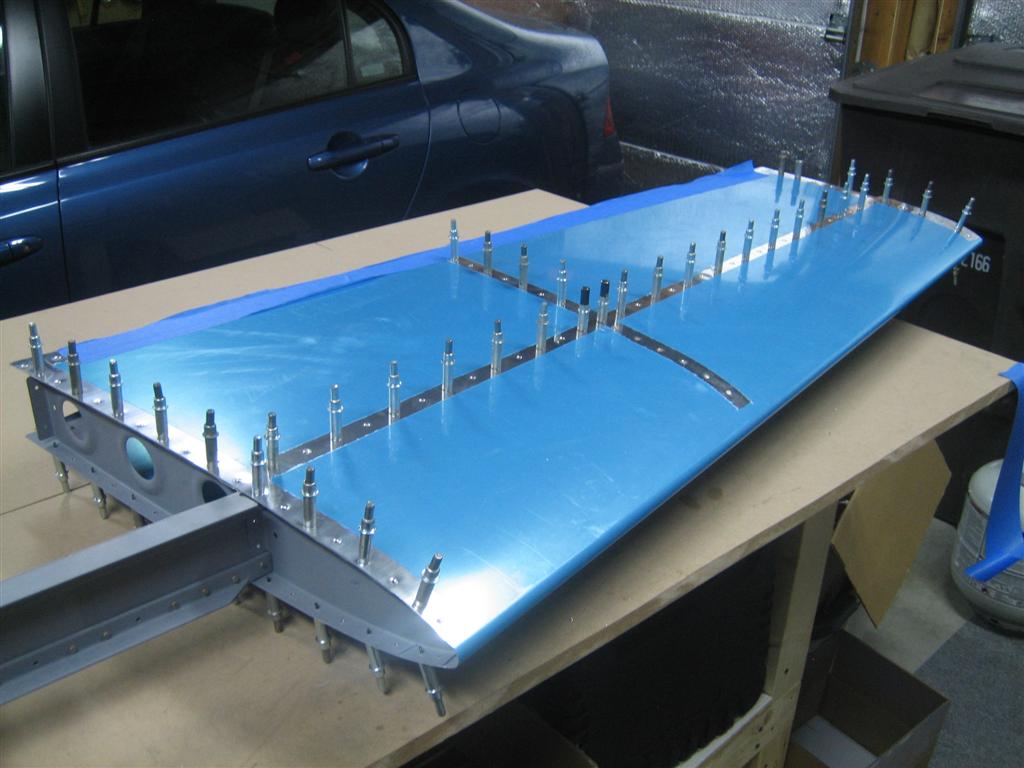

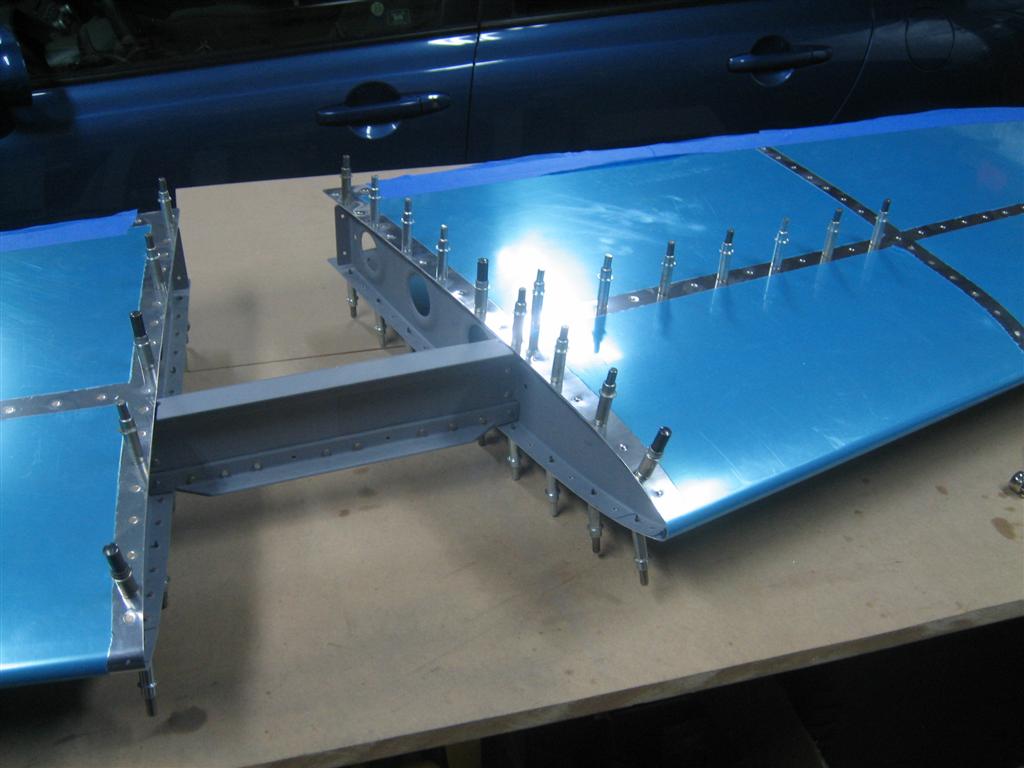

HS-404 reinstalled and the rest of the skin clecoed together.

Time to skin rivet. I like this part. Here is my technique. I stick the appropriate sized rivet in the hole, cover with blue tape, then reach in with the bucking bar, and shoot with my flush set, which is also covered in blue tape. Then, I remove the rest of the clecos, put rivets in again, and move all this little pieces of blue tape over one. (Then I figured out that on the second round, I could remove all the blue pieces of tape and run a whole line of tape along the line. I just had to make sure verify which rivets I had the bucking bar behind by pushing up on it a little. you can then see the rivet pushing up behind the tape. Bucking bar in place, I can set the gun down on the rivet and shoot.)

If you were counting, you noticed there are now two pieces of blue tape between the flush set and the rivet (and my fragile HS skin). This worked well for me, prevented further damage, and gave me some friction to help keep the set in place.

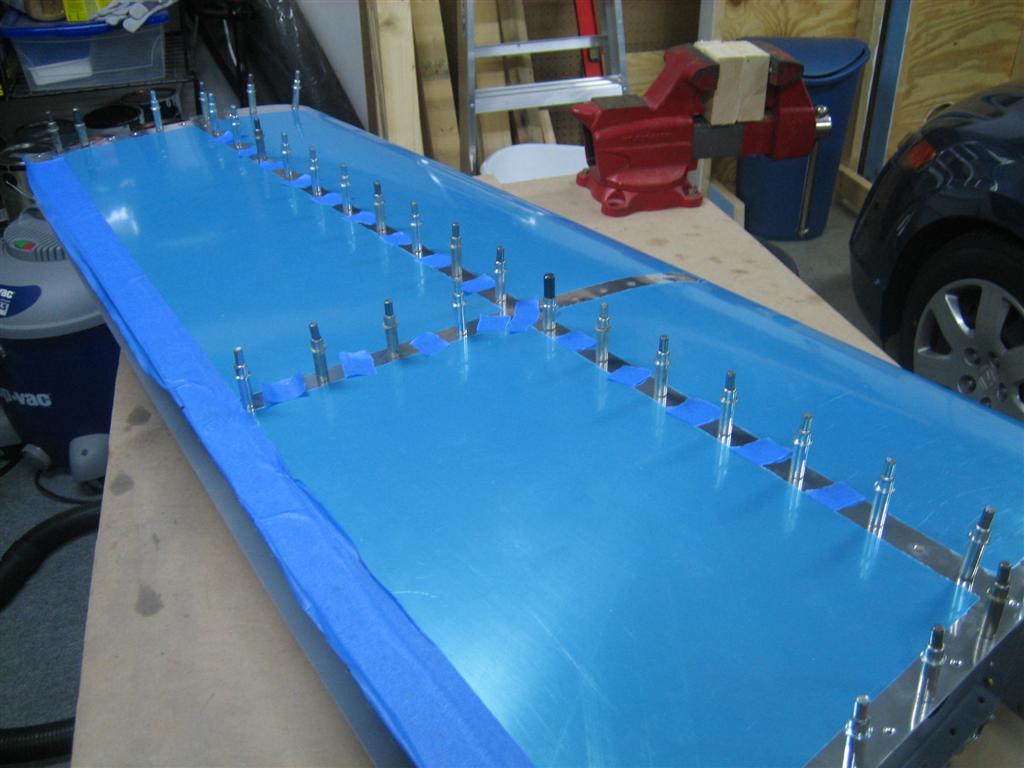

Rivets ready to set, covered with blue tape.

So, I knocked out all of the rivets needing to be bucked (I think it was 42 per side) before inspecting all my work for any issues. I think I found 5 skin rivets I wanted to replace. Here is a good example. The shop heads of all of these look great, but I want those rivets perfectly flush. I didn’t take an after picture (sorry), but I assure you, the one on the right now looks like the one on the left.

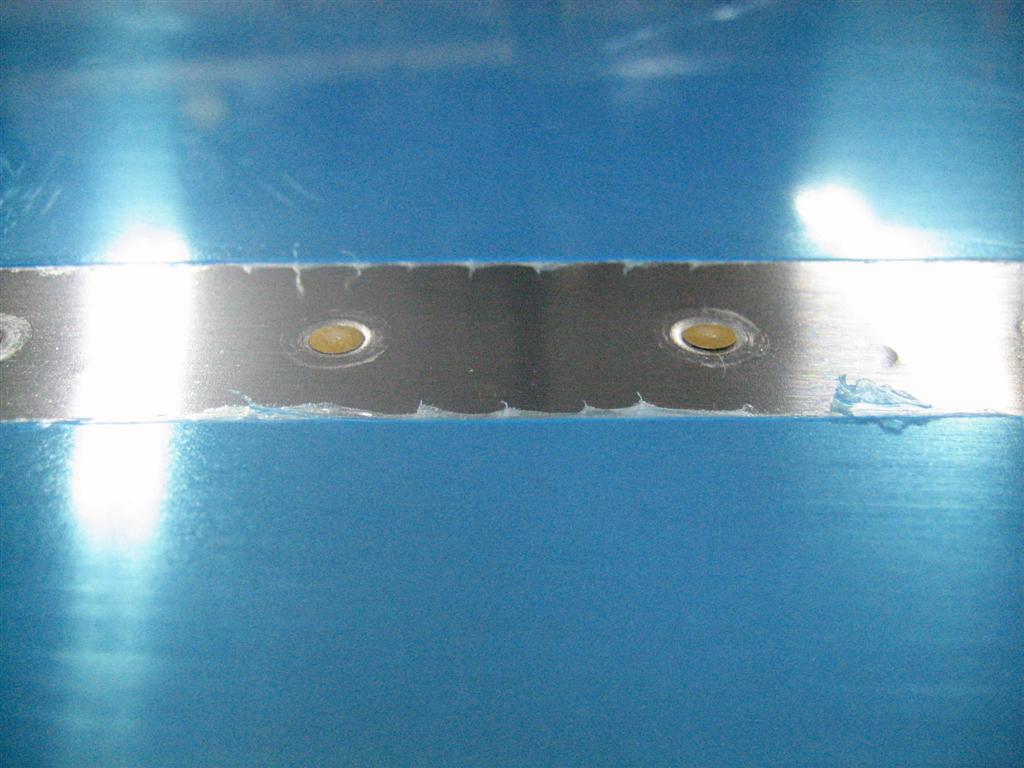

Bad rivet on the right. Replace.

After bucking all of those, I moved the now very big HS assembly to the floor while I cleaned off my workbench. Nice and clean again.

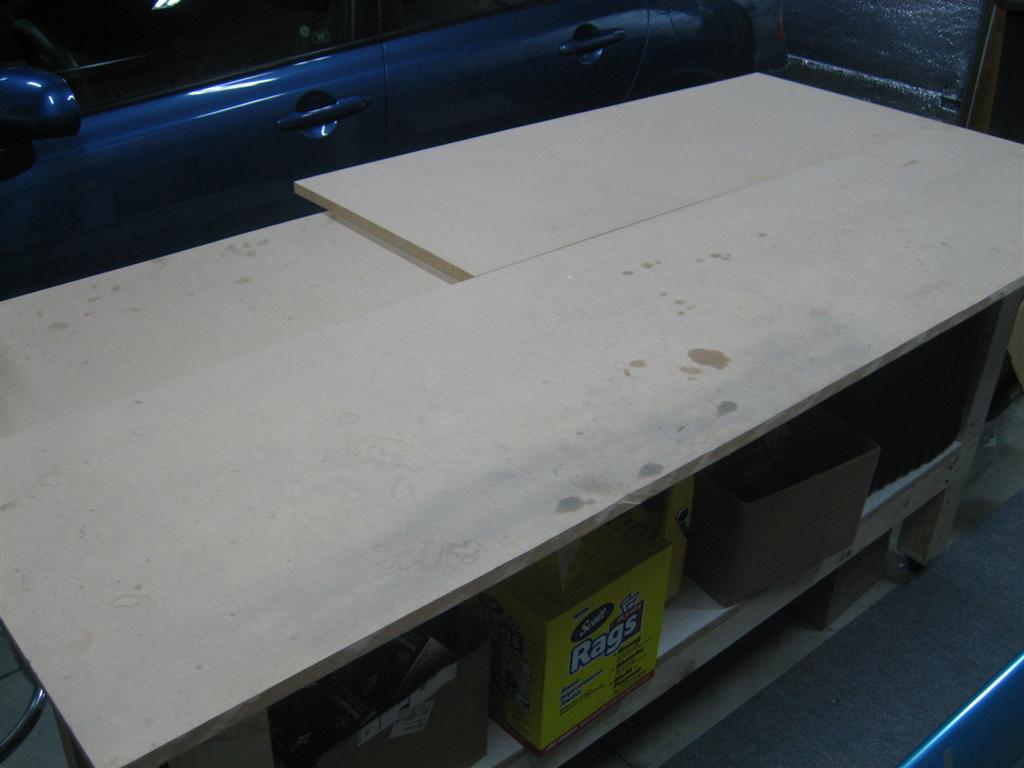

Clean workbench!

Then, I brought the HS back up on the table to squeeze the rivets that could be squeezed on the HS-601PP (skin) to HS-404 (inboard tip rib), HS-405 (inboard aft rib), and HS-706 (tip rib). The instructions have you leave 5 holes open on the inboard lines for the empennage fairing attach holes on the top only, but I decided to leave the same holes empty on the bottom for now, just to have clecos there on both sides to hold the HS off the table.  I also left some clecos in both sides of the tip ribs (although I left less on the right than I had on the left the other day, so I squeezed a few more on the left. ) Anyway, the HS is upside-down here. Left side is in the foreground.

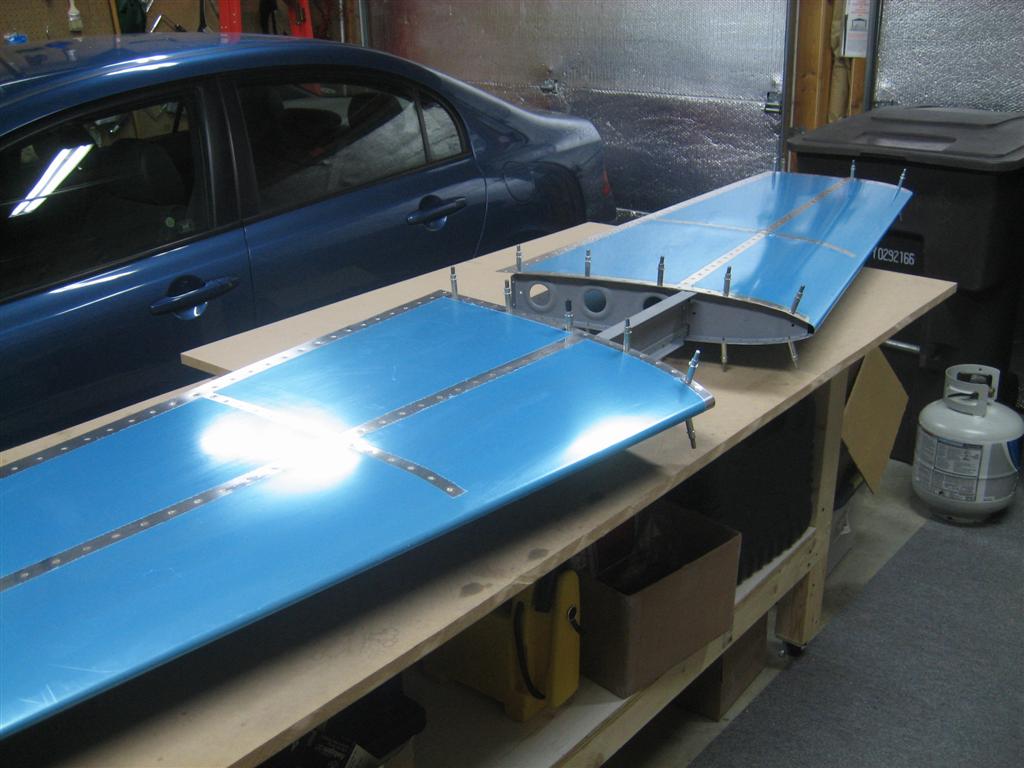

Oooh, pretty.

Another shot. Still need to get that rear spar done. Look in upper right side of the picture. The dented area (I really shouldn’t call it dented anymore) is in the middle of the leading edge there. (I know the picture is from a distance, but the point is it’s not that noticeable.)

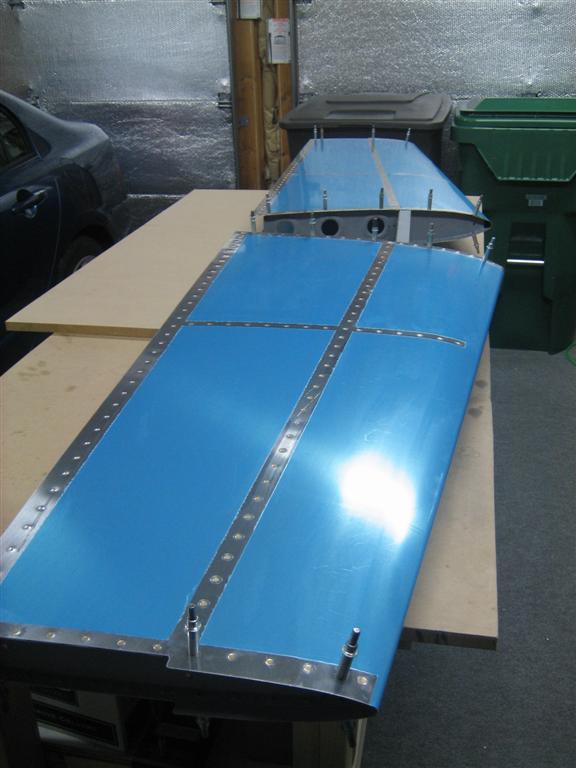

More pretty!

And after I flipped the HS right side up.

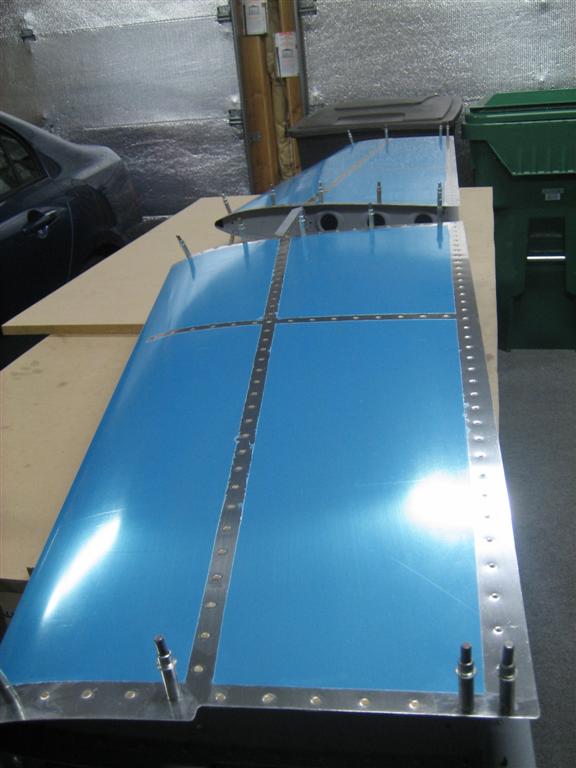

Shiny and clean.

After a hard day’s work, I stood back and admired the almost finished product.

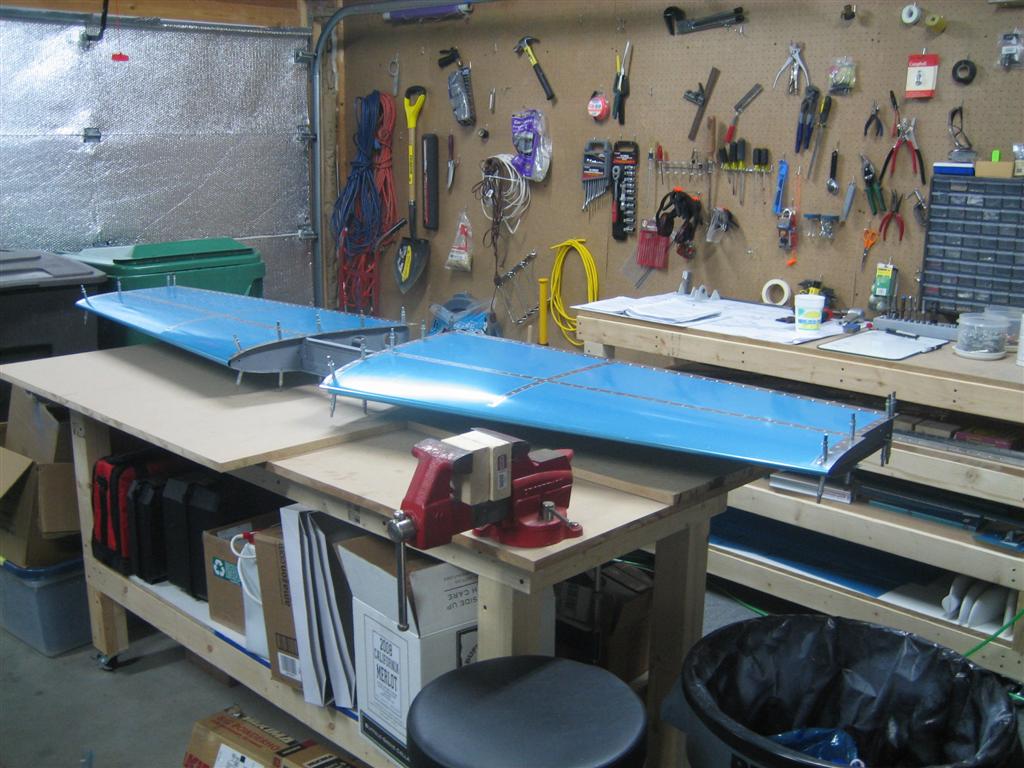

I need a bigger workbench.

Good 3.5 hour day today. 146 rivets set, 14 drilled out.

Next up:

1) Remove rest of blue vinyl from inside of HS.
2) Rear spar work.
3) Finish riveting holes in HS.
4) Figure out what is going to “fly” when I finish the HS.
5) Hang HS for storage

I also decided that I am going to keep a separate page for tips. I keep learning these little tricks along the way. I should write them down.

Prev | Next

1 Comment | Empennage | Tagged: , , , , , , , , , , , , , | Permalink
Posted by Andrew

Started riveting right HS

January 15, 2010

Prev | Next

I managed a couple hours in the shop today, even though I was as sick as a dog. In between frantically running to the bathroom to pray to the porcelain god, I did get a couple things done. I planned to get some of the right HS done today, which needed more prep on the skin, and then some riveting.

First, I cleaned and primed right HS skin interior.

Right HS skin all primed and such. Well, on one side, at least.

After flipping, priming the other side, and letting it dry, I decided to fix some of the bad rivets from the other day. They look better now.

HS-710/HS-712 to HS-702 rivets fixed.

Then, I grabbed the right HS ribs and front spar and clecoed some of them to the left HS. I

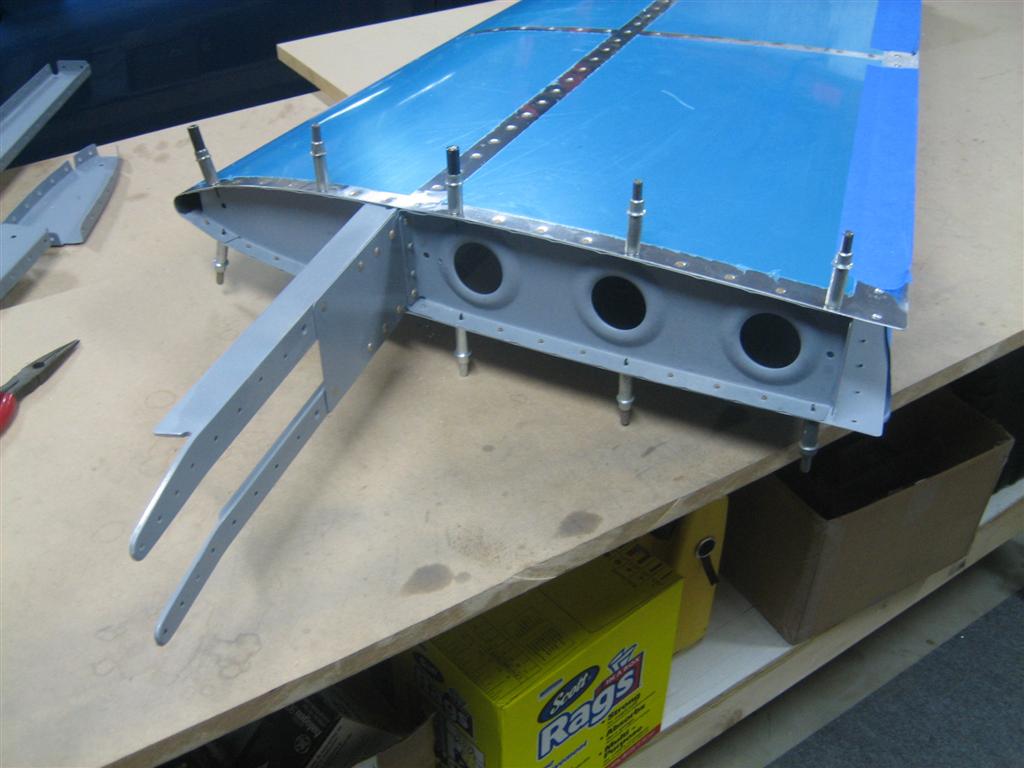

Right spar clecoed to the left HS assembly. This thing is getting big.

I started by riveting the front spar to HS-710 and HS-714. This time, I was following the directions a little more closely. All of the rivets today turned out great. I had switched from my offset cupped set to a straight set, and they were all perfect. (Don’t mind the two empty holes on the far left, I remembered them later and shot those rivets, too.)

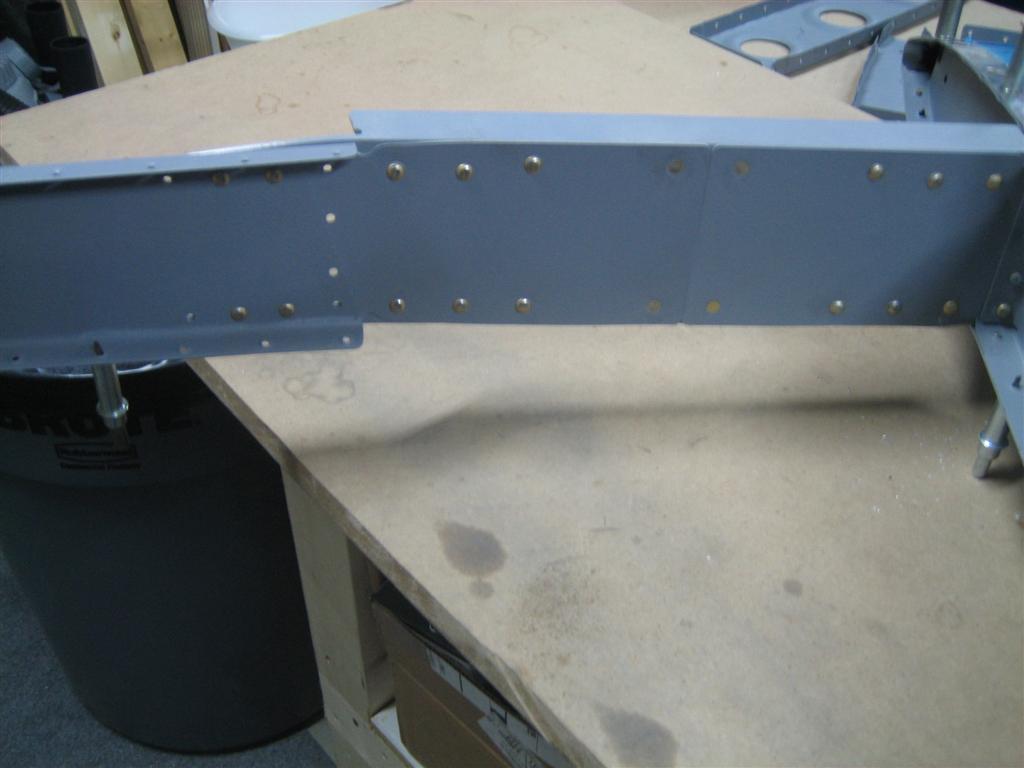

Great rivets if I do say so myself.

Then I riveted HS-405 and HS-404 to front spar. Again, no mistakes. Then, I turned back to the skin once it was dry. On the left side, I waiting until riveting HS-707 and HS-706 to the skin before I devinyled this area. On this skin, I figured that I wouldn’t be holding a bucking bar (that I could drop and scratch the skin) in this area, so why not take the blue off before making it hard on myself. Much easier this way, but I could only do it here. (I have to admit, those nice straight primer lines make me happy.)

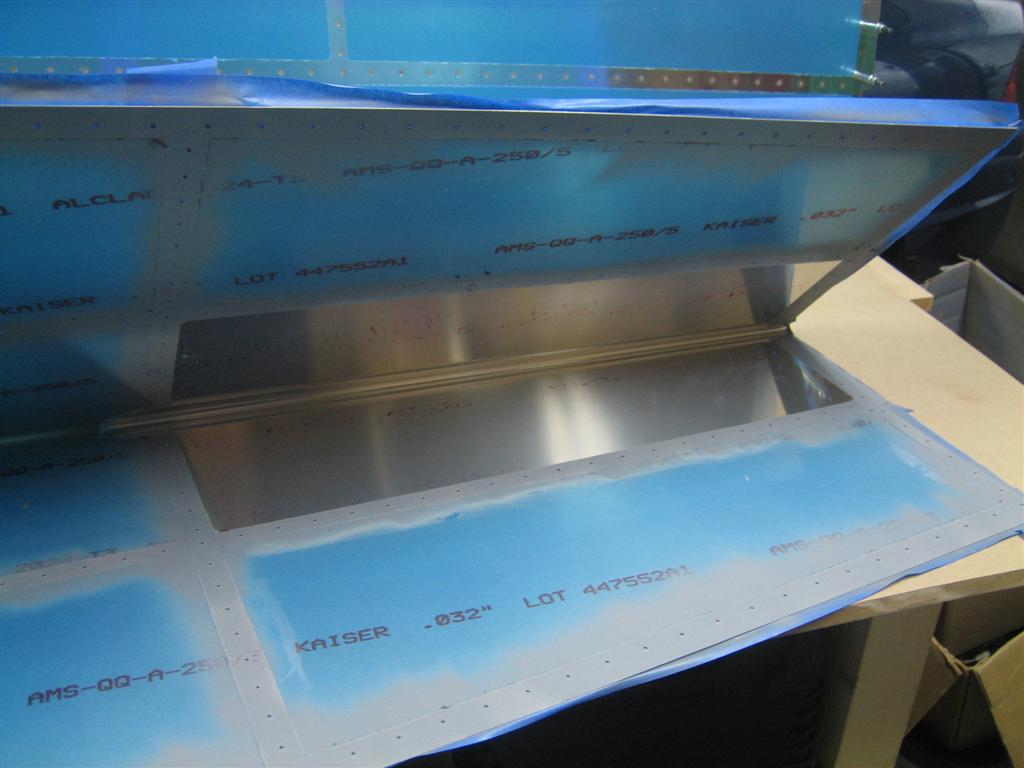

Back to the skin. Devinyling the easy way.

The directions have you cleco in HS-707, rivet to the bottom skin, then cleco in HS-706 and HS-708 (to help the skin take shape and sit tight against the aft holes of HS-707), and then rivet HS-707 to the top skin. Just like the left side, I needed AN426AD3-4 rivets where they sometimes call out an AN426AD3-3.5.

The, I let this happen.

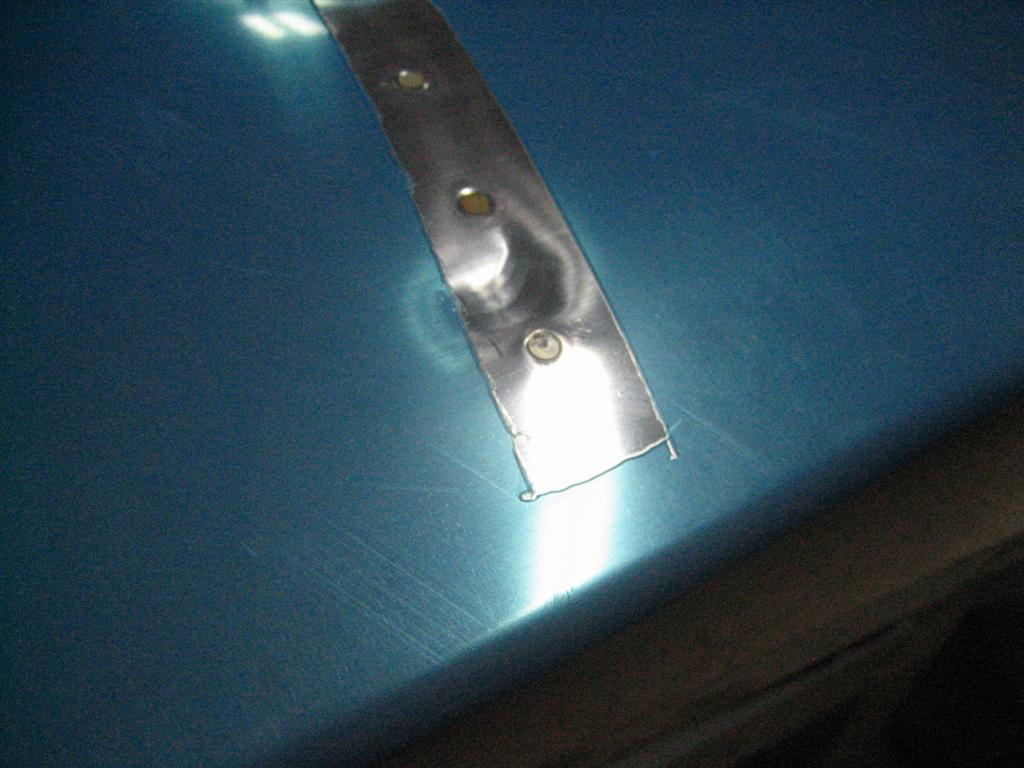

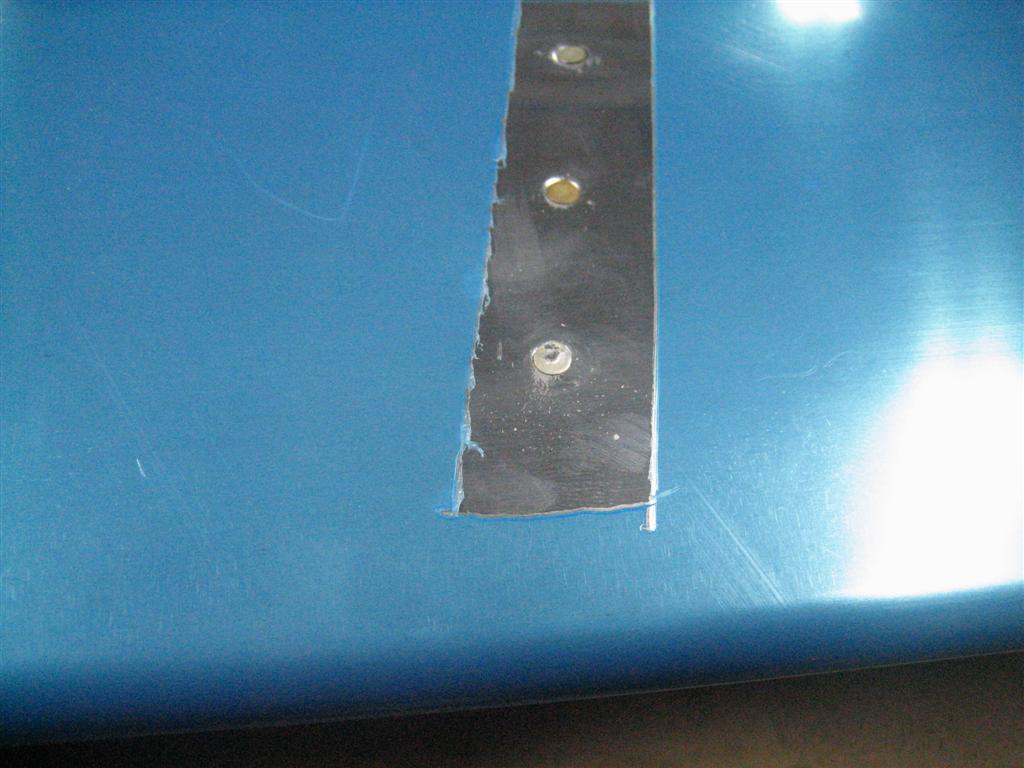

Uh oh...

What? Don’t see anything? Try this angle.

AAAAAAAHHHHHHHHHHHHHH!

NO!!!!!!!!!!!!!!!!!

:-(

It was completely my fault. I was getting confident, and was holding the rivet gun with my left hand. I had the pressure set near 50psi (I usually use 40psi for the AD3- rivets) and the gun got away from me.

I stared at it for about 5 minutes, realizing that it was probably okay, but would essentially force me to bondo and paint the tail, which would not have been the end of the world, except I still might want to polish the airplane.

I decided to drill out the 4 rivets I had set in the bottom skin to see if I could help it any with a flush set from the back side. I managed to get my backrivet set in there a little, and it helped, but I came inside as I was getting chilled and frustrated.

Later, I realized that I have a c-frame, and with two flush sets in there, I may be able to very gently hammer it back into shape (or at least get it close). I’ll have to re-dimple, too, because I flattened out the dimple while trying to fix the dents.)

…so…mad…

Maybe this weekend I can fix it up a little and keep going.

Prev | Next

1 Comment | Empennage | Tagged: , , , , , , , , , | Permalink
Posted by Andrew

Right HS – Primed skeleton, Dimpled skin

January 14, 2010

Prev | Next

Today, I used my lunch hour to swing by NAPA to pick up some more self-etching primer and then get a few minutes of work done before playing with the puppies. Jack and Ginger love it when they get to go outside and play during the middle of the day.

Anyway, I finished edge-prepping, cleaning, and drying the right HS ribs and front spar before priming them.

Then, I broke out the c-frame and finished dimpling the right HS skin. This time, I put a piece of blue painter’s tape (sticky side toward the male (exterior side of the skin) dimple die) between the dies and squeezed them together. I figured this layer of tape would help prevent some of the circles I am getting during dimpling.

3/32" Dimple Dies covered in blue tape.

The resulting dimples don’t have as much of a circle around them, and the dimples are just as deep. I wish I had known that the first time around. I’m not very happy that my right HS is going to end up looking a lot nicer than the left.

It was a little short of an hour today, but I ran a little long yesterday, so I’ll log an hour.

Prev | Next

Leave a Comment » | Empennage | Tagged: , , , , , , , , , , , , , , | Permalink
Posted by Andrew

« Previous Entries
