Sealed Right Tank’s Inboard Rib

July 4, 2011

Prev | Next

HAPPY 4TH OF JULY!!!!

Well, after stopping by Lowe’s today to pick up some latex gloves (I picked up latex instead of nitrile…I like the latext better), I got to work on sealing the inboard rib in.

For this rib, things were a little different. First, I can squeeze all of the skin to rib rivets (which is nice). Second, I have to pay attention to the reinforcement plates that need to go in place, and third, I have some fittings that can be installed once the rib is in place.

After buttering up the rib and riveting the 43 inboard AN426AD3-3.5 rivets, I ended up with this.

The clever readers will see the uppermost rivet on the right side is NOT SET. I caught it when I ran back outside later to count how many rivets I had set. (I knew counting rivets was a good idea.)

After getting the rib riveted in, I can now slide the reinforcement plates into place. (Like it says in the instructions, if you install these first, you won’t have room to squeeze the skin to rib rivets in the nose.) There’s a thick angle on the outside of the rib (shown below) and a thin .032 plate on the inside.

After lathering that guy with some pro-seal, I snapped this picture and got it installed.

That fan I bought a few weeks back is worth its weight in gold. It was 95°F today.

Fast forward a few minutes and some loud noises, and I had 6 AN470AD4-8 rivets set in the nose reinforcement area.

Perfect. (Well. Not perfect, but once I cover those smileys with proseal, you will never know.)

Fast forward another few minutes, and I got the flop tube installed with the -6 fitting on the inside and the nut on the outside, then I installed the vent tube (just flared) to the -4 fitting on the outside, you can see the aluminum washer and nut on the inside here. I made sure everything had a good bead of proseal around it before torquing everything down.

Nice.

All that’s left to do on the right tank is installed the anti-hangup brackets, rivet a An470AD6- rivet in the tooling hole of the outboard rib, and then close that bad boy up.

Oh, and fit the access plate with some stainless cap screws, instead of machine screws. More on that later.

2.0 hours. 43 rivets on the inboard rib. 6 rivets for the reinforcement plates. 1 drilled out (Easy as PIE!) Hope everyone had a good fourth. (It’s storming here. Boo.)

Prev | Next


Right Leading Edge Inboard Rib Redux

June 17, 2011

Prev | Next

Since I’m out of MEK and I didn’t get a chance to stop by the store on the way home, I decided to work on the new inboard leading edge rib I ordered for the right side. If you remember back on May 13, 2011, I discovered that by having the inboard face of the rib lined up with the edge of the leading edge skin, the drilled holes ended up being too close to the web of the rib. (See this picture specifically.)

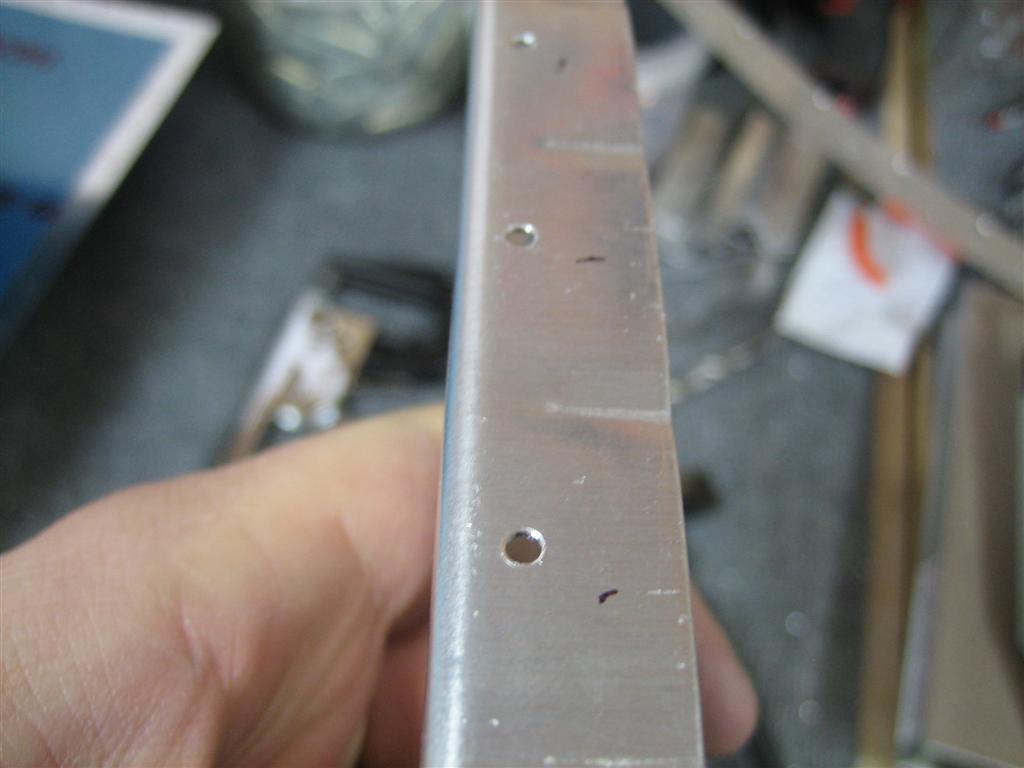

Anyway, let’s see if we can’t get a better alignment.

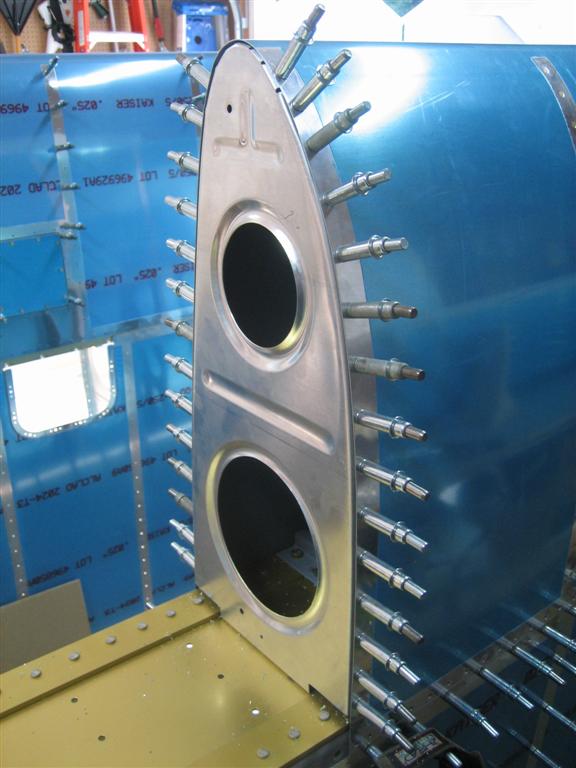

First thing, I kinda-sorta set the rib in place and just made some small marks where the holes would be. This is so I could pull the rib back out and flute it appropriately before drilling.

Marks made.

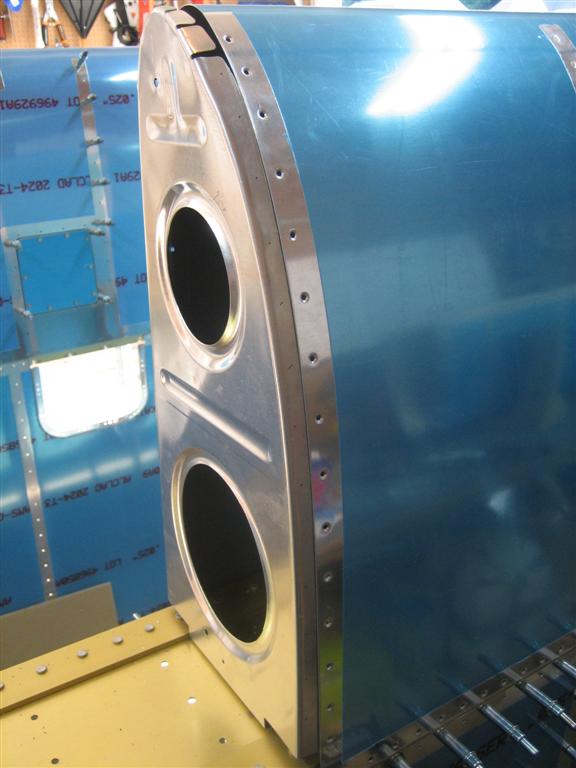

After edge-finishing and fluting, I stuck the rib back in place where I wanted it, then started matchdrilling.

A few notes:

  1. Since the leading edge skin was dimpled, I didn’t include the W-423 (I just made that part number up) join plate. The rib and skin fit was secure enough that it’ll work out.
  2. I ended up lining up the outboard face of the rib web with the skin edge (make sense?). Said another way, the rib sticks out a little further than the skin.
  3. If it happens to be May 13, 2011 and you discover that your rib drilling on one wing didn’t work out, AND you did both wings the same way, you should probably order both inboard ribs again, instead of waiting until June 17, 2011 (TODAY!) to check the left wing. Doh! I messed that one up too. Now I’ll have another one of these.

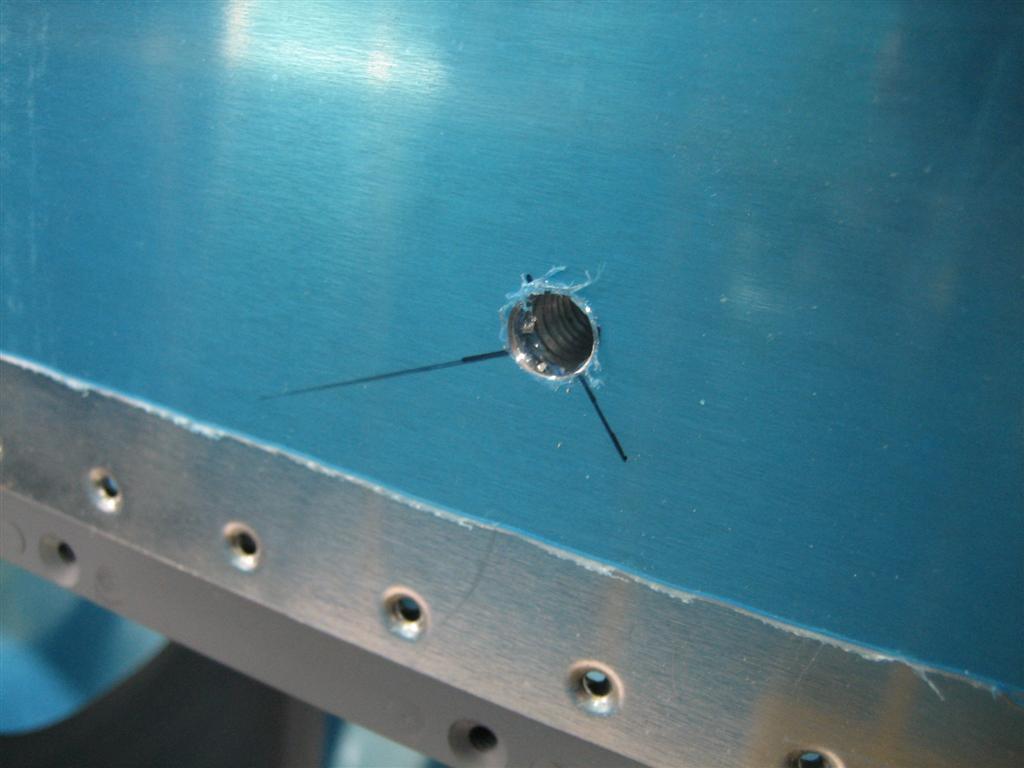

Drilled.

Finally, I clecoed the leading edge on the wing (I don’t know why you can’t see any clecos here), made sure my x’s from earlier still lined up over the tiedown hole, and drilled a 3/8″ hole for the tiedown ring.

Drilled.

I still need to tidy it up a little, and probably go to 7/16″ instead of 3/8″ (the tiedown ring is 3/8″), but I’ll leave that for another day.

0.5 hour.

Prev | Next


Right Tank Rib Prep

June 14, 2011

Prev | Next

Not much today, but here goes anyway.

I had approximately half a syringe full of proseal in the freezer from Saturday (I think), and it was going to go past its 4 days of freezer goodness, so I pulled it out and made my rivet encapsulation dollops (umm, spelling?) a little bigger.

I still have good pathways for water, but just wanted to be sure I sealed those puppies well.

Same thing on the cap flange, except these don't look as pretty.

Then, I spent some time deburring and dimpling tank ribs.

Two done.

Dinner time!!!

For extra credit, this picture has Jack and Ginger, too!

After some more rib prep, I have 6 of the 7 ribs clecoed in place.

(Still working on the inboard rib.)

My gameplan from here onwards will be to finish up the first rib, then work on the outboard rib (there’s a reinforcement plate I have to drill), then pull one (or two) ribs out at a time, clean judiciously, put sealant on the flanges, 100% cleco in place, then rivet.

Then, make fillets, do some rivet encapsulation, and celebrate with beer.

I’m planning on one rib per night, but might get in two. Just a few more nights of miscellaneous work, then I can get started.

1.0 hour.

Prev | Next


Right Tank Inboard Rib Work

June 5, 2011

Prev | Next

After another full weekend of housework, errands, etc., I managed to fit in some work on the right tank’s inboard rib.

First thing, I fished out some parts. Here, Vans has punched out three parts, T-407 and T-410.

Hmm...where are my snips?

I decided to pull both assemblies(?) out and get them all deburred at the same time.

Here are the two access hole doubler rings and four rib reinforcement plates after deburring.

I put two of the reinforcements and one of the rings away until needing them on the other tank.

Then, I took one of the rings, centered it over the stiffener bump on the inboard rib, and used a straightedge to find the center of the circle.

"x" marks the spot.

I know I’m not really working on the left tank right now, but  I decided that since I KNOW the circle cutter is going to be a PITA, I’ll just go ahead and do the left rib, too.

I fished out the two end ribs for the left tank and marked them so I knew which is which.

L1 and L7.

Before mounting the ribs up on the drill press, I needed to find some wood backing. How’s this tank-rib-shaped piece right here?

Pepsi should pay me for the product placement.

Whoa. That sucked. It sucked so bad, I didn’t even take any pictures. Among other things, the circle cutter 1) wouldn’t stay in one diameter, 2) shook so badly I thought my workbench was going to fall over, 3) almost killed me twice.

But, I finally managed to get a decent looking hole.

Phew, I'm glad that's over.

See? Nice hole.

Oops, looks like the hole was a little big. No worries, edge distance for the rivets is just fine.

The hole in the rib is a little big...

After some more cursing, cheating death, and general unhappiness, I managed to get a better (appropriately sized) hole on the left inboard rib.

I think I'm going to throw away the fly cutter now. Stupid piece of crap.

Okay, I’m straying from the instructions a little here. Normally, they want you to take this access cover, hold it against the rib, and use the prepunched #19 holes to drill holes in the rib. Then, hold the stiffener right aligned with those holes, and drill the nutplate attach rivet holes. Clear?

Instead, I’m going to eyeball the clocking of the access cover (so the flat part doesn’t interfere with the indentation in the rib), then just use the stiffener ring for all the drilling. (I need to order a new access cover with no holes in it because I’m using flop tubes (don’t need the small hole), which means I need to move the float sender to the second bay (don’t need the large hole).)

You can see in this picture, the stiffener ring is laid in place, and it looks like the access cover is clocked correctly.

Access cover in the foreground, stiffener ring in the background.

Clamped.

Drilled.

Dimpled the rib, and countersunk the ring.

clecoed some K1000-8 nutplates in place.

Here’s where things got frustrating. Because I wasn’t paying attention, I just started riveting the nutplates in place.

Clearly I didn't countersink enough.

Another view. Yikes.

I drilled out six nutplates (didn’t enlarge any holes in the rib or stiffener), but couldn’t get the rivets out of the nutplates. They got THROWED AWAY!

Sorry, nutplates. You are going in the trash. It's not worth my time to fix you.

Okay, more countersinking, then try again. Still not deep enough? Ugh, more countersinking again, and finally, they were deep enough.

I got frustrated, so I stopped taking pictures. Sorry.

After much cursing and angry mumbling, I got all 24 rivets in for the 12 nutplates.

I had to drill out two more rivets because they were sitting a little proud. In the end though, I’m happy with the results.

These didn't need sealant because the access cover will be sealed over them.

A shop head shot.

24 rivets, 8 drilled out. (one third!? Ugh.)

2.0 glorious hours today.

Prev | Next


Prepped and Primed First Wing Rib

January 6, 2011

Prev | Next

Well, since my tool order from Cleveland finally showed up, I decided it was time to jump into rib prep full speed ahead. Because I have already finished most of the edges, fluted and bent the flanges to 90°, I really just needed to prep the lightening holes (which I couldn’t get to with the 6″ scotchbrite wheel) and use some emery cloth to get the smaller crevices.

Here’s the tool order. Along with 75 1/8″ clecos, I got 100 more 3/32″ clecos, a 2″ scothbrite wheel, the mandrel for that wheel, and some #41 and #19 drill bits.

I love new, shiny clecos.

I put a washer on the top of the mandrel and then screwed down the wheel.

Crap, not enough threads.

Took it apart, removed the upper washer, then assembled it again.

I'm showing one thread, but that's okay.

In order to start taking apart the wing to get at the ribs for prepping and priming, I needed to unjack the rear spar, which means I have to remove the leading edges, which are clecoed to the main spar before allowing the weight of the wing to bend everything.

Here are the leading edges on the workbench.

I guess I snapped a picture of my 320 grit emery cloth. (This isn’t really cloth, it’s more of belt-sanding sandpaper. It works, though.)

320 grit from NAPA.

I chucked the 2″ wheel in the drill press and started cutting grooves in it (with the ribs I was deburring).

That groove is from one rib's lightening holes. I'm going to need more scotchbrite wheels.

After completely edge-finishing the rib, including flossing the little crevices with the emory cloth, I dimpled the one hole in the rib that is underneath the rear spar flange, which also needs to be dimpled to accept a dimple in the skin. Here’s the right rear spar, lower flange hole that I dimpled.

Dimple!

Then, I primed the rib.

Still wet from primer...

The next morning, it was dry, and I snapped another picture.

Nice...

This took me about an hour, but I spent a good 20 minutes getting organized first. I won’t prime each rib individually, but I’ll probably do them in groups of 5 or so to break up the monotany. Tthere are 28 total main ribs…I’m not even going to think about the leading edge and tank ribs yet).

That one rib looks good, though. I need to think about ordering some snap-bushings for the holes in the forward edge.

Prev | Next


Stall Warning Access Panel Work

January 4, 2011

Prev | Next

Well, I was able to spend a short half hour in the garage tonight. Last time, I ended up working on the access panel for the stall warning vane. I figured getting that prepped, primed, and nutplated would be a nice short task completion.

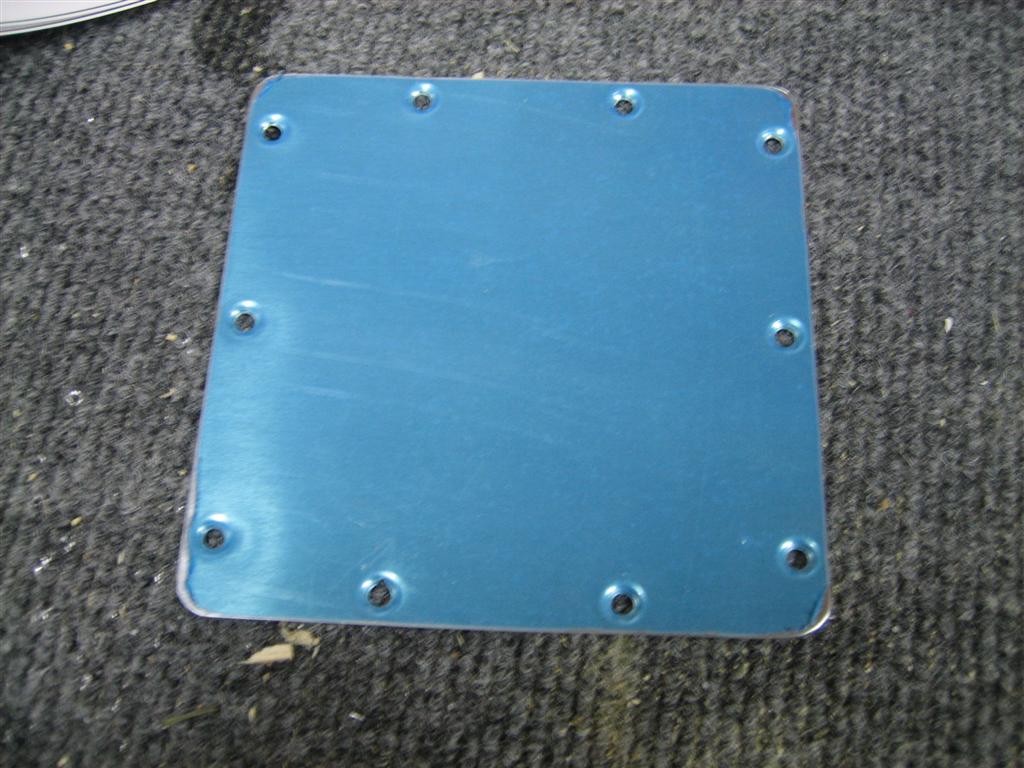

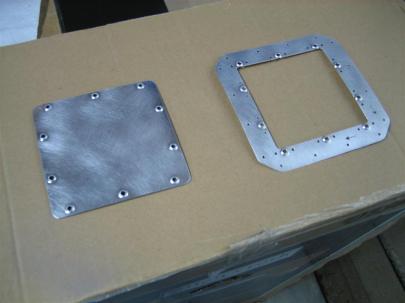

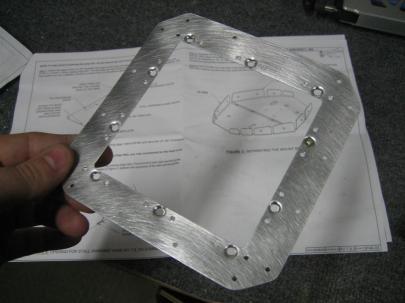

Here's the doubler, dimpled (for #6 screws) and scuffed after running the edges through the scotchbrite wheel.

I finished the edges of the cover, too, and dimpled for the #6 screws. The other side of this plate is devinyled and scuffed, but I’m leaving the vinyl on this (the potentially polishable) side.

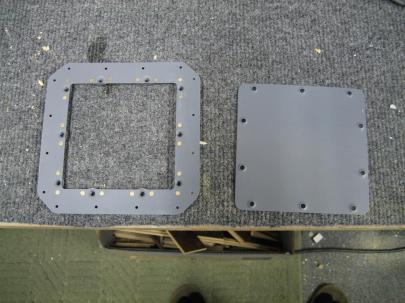

Ready for priming.

See, I told you the other side was scuffed.

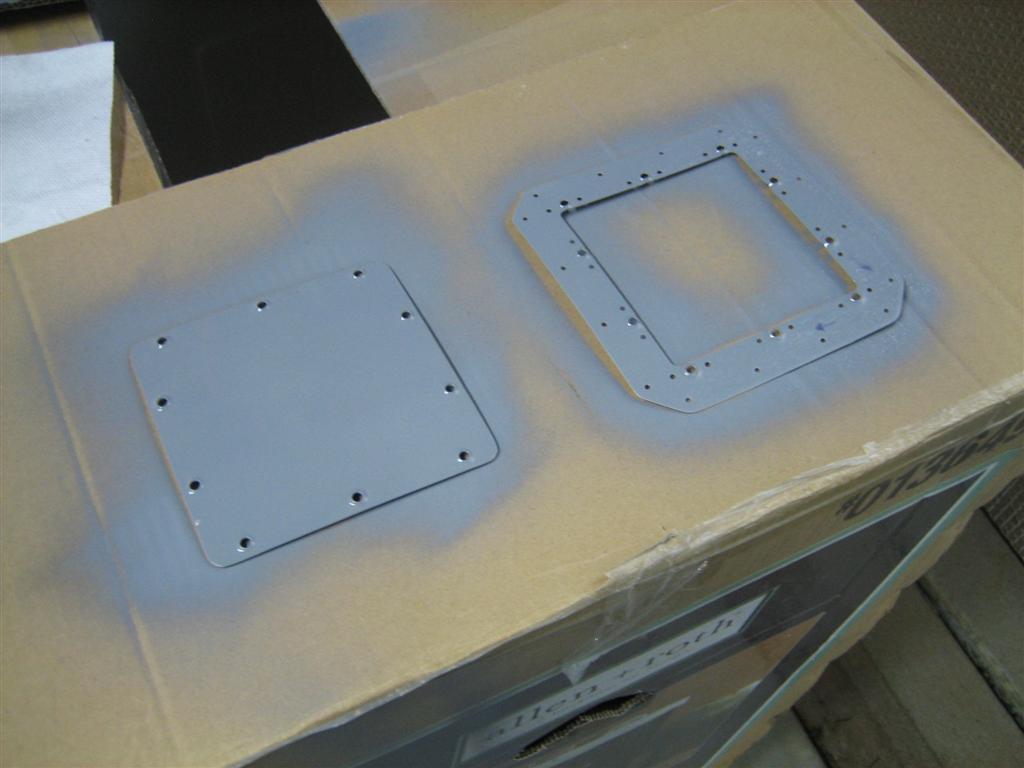

Primed!

While the primer was drying, I did a little edge finishing of the stall warning vane mini-rib.

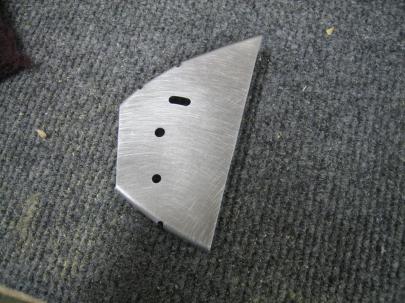

Scuffed, but I still need to edge finish in all those crevices.

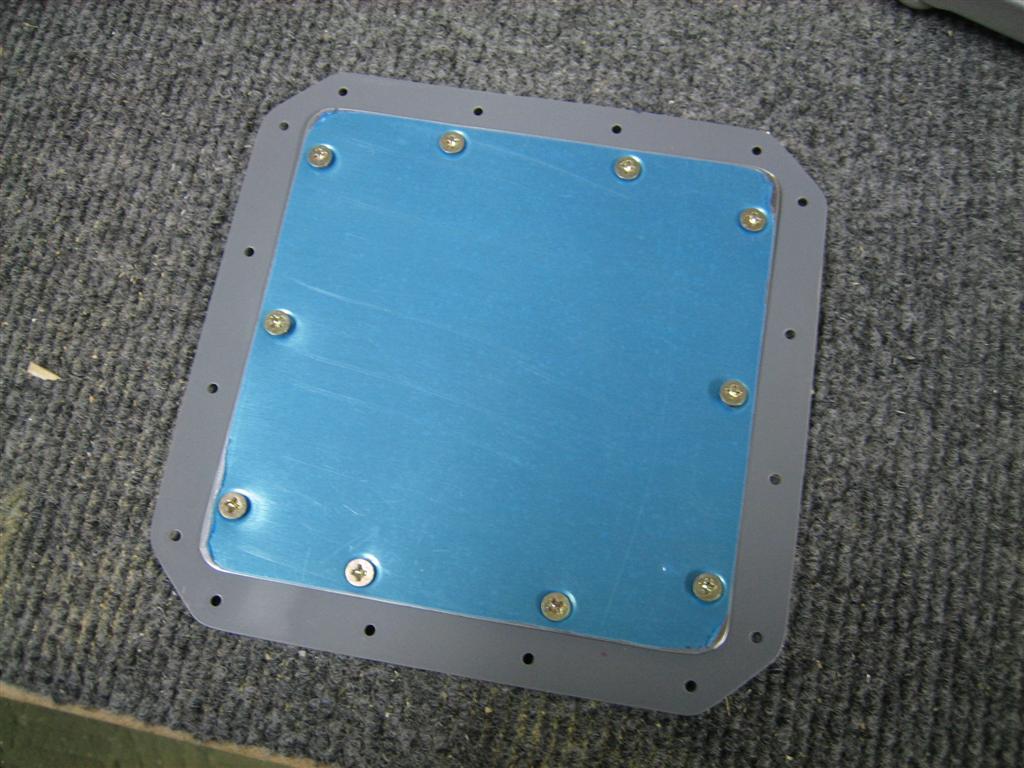

After the primer dried on the doubler, I set some NAS (oops) rivets with some dimpled nutplates.

20 rivets.

I didn't tighten these down at all, just threaded them into place.

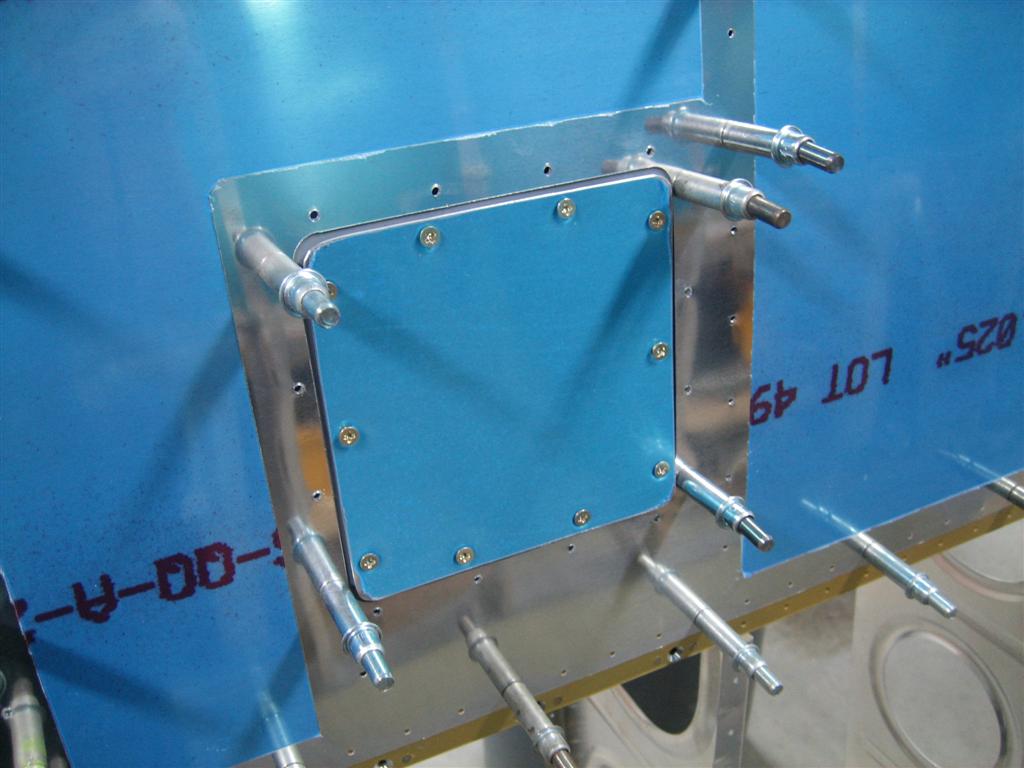

Of course, I had to cleco tonight's work back into the leading edge.

A half hour, 20 rivets.

Prev | Next


Countersunk Left Main Spar, Drilled Left Rear Spar

November 13, 2010

Prev | Next

Well, I managed to motivate myself out into the garage a little this weekend.

I only have a few more steps on the left main spar, and the the left rear spar, before I really need to get my butt in gear with the rib deburring and finally build a wing stand.

Today, I focused on countersinking the screw holes for the tank attachment.

Reading back over my own old post (in which I reference some other builders), I found this table. I’ll copy it here, too.

Countersink Widths for Numbered Screws
Screw Size Width [in]
#6 <0.3125
#8 0.365-0.375

So, I broke out my trusty digital calipers, zeroed them out, and dialed in .312.”

Sorry for the blurry picture.

So, with microstop countersink cage on the front of my drill, I got to work. Here are the smaller countersinks for the #6 inspection plate attach screws on the bottom flange of the left spar.

Pretty countersinks.

Then, I moved up to the 0.370″ countersinks for the larger #8 tank attach holes.

Looking good.

Somewhere in here I flipped the spar over and finished all the countersinking on the upper flange of the left spar.

Sweet.

After the countersinking, I scrounged up the left rear spar and corresponding doubler plates.

Left Rear Spar, reinforcement fork, and doublers.

Per the plans, I grabbed the W-707E and aligned it 50 3/4″ from the outboard edge of the rear spar.

I promise it is right at 50 3/4". I think the paralax make it look off.

W-707F is laterally aligned with the outboard edge of the rear spar channel.

W-707F is clamped and ready to matchdrill.

Here’s W-707E, ready to drill.

After drilling one #30 hole.

All done.

Then, I moved outboard to W-707F.

Before matchdrilling.

All done.

I call this the forest of clecos.

I moved inboard and matchdrilled all of the reinforcement fork holes.

A lot of drilling.

I pulled the doubler plates and reinforcement fork off and set them aside.

I still need to drill out the aileron pushtube bracket hole.

Reinforcement fork pulled off.

Next up, deburr all parts, along with finishing any last minute tasks like dimpling where I can’t reach later, then prep for priming, prime, and rivet the rear spar together.

1.5 hours.

Prev | Next


Drilled E-701 (Left Elevator Skin) to Skeleton

June 17, 2010

Prev | Next

Wow, it’s been a week since I’ve worked on the airplane.

I have an excuse, though. I’ve been installing wood floors. Here’s the living room, almost done.

Anyway, if you remember from the last post, I had the left elevator skin clecoed to the skeleton. I went ahead and match-drilled the skin to the skeleton. Instead of using my cordless drill (because it’s quieter), I broke out the air drill and went to town. I love the way that thing sounds.

Forgot to charge the camera battery, so it charged while I drilled.

After matchdrilling both sides, this picture is me in the middle of removing all of the clecos.

Then, because I felt like I would be short-changing you if I didn’t have two pictures for you, here’s another one.

After disassembly.

Here’s the catch, though. I have a lot of thinking and pondering to do about some things.

First of all, I am planning on cutting off the elevator tab (and elevator) bent ears and just making a rib out of them. Jason Beaver did it pretty successfully here and here, so I’m basically going to copy him.

The question is whether to prep and rivet the left elevator now, the cut off the “ears” after riveting, then try to fabricate a rib, matchdrill, dimple, prep again, etc., or should I re-cleco everything together and do all of that fabrication now.

Many people use blind rivets for the extra tab fabrication, but I think I am going to try to use solid rivets. I have had some success in the past with solid rivets in tight spaces using a special bucking bar (namely, the end of a BFS (“big-freakin-screwdriver”). The question will be about dimpling.

Also, I can probably cut the ears off, but leave a little extra material. I need to make sure I line up the cuts on the elevator and tab to minimize the gab between the two, and I don’t want to cut to much off of either side. Maybe I’ll mock them up, cut one side to where I think it should be, and make sure the other side can be cut more precisely to match the first cut.

Also, many people use blind rivets for the four trim spar rivets on both sides (per the plans), but I think I can assemble in an order that allows me to use solid rivets, especially since I’m going to cut the elevator bent tab ears off; I should be able to reach in there with a bucking bar.

See how much thinking I have to do?

Prev | Next


More Drilling, Deburring, Scuffing and Dimpling

May 9, 2010

Prev | Next

After we got back from my first Pilots N Paws rescue, I was excited to keep working on the airplane.

I needed to start on the tip rib and counterbalance rib, so I needed to get the holes in the counterbalance to final size (#12, for a An509 screw).

I had some trouble awhile back with drilling the counterbalance holes to final size, and I don’t have any boelube, but i figured any lubrication would work better than none, so I poured some air tool oil into the holes and tried again.

This time, it worked much better. (I still got stuck a few times, but I didn’t come to a grinding halt like I did last time.)

Here's the counterbalance after drilling to #12.

I clecoed the counterbalance skin back onto these two ribs, inserted the counterbalance, and matchdrilled through those to make these holes in the ribs.

Nice job with the blurry picture, right?

Next up, deburring.

There's my trusty deburring bit.

Then scuffing.

Bottom rib (counterbalance rib) is scuffed.

After deburring and scuffing the tip rib, I dimpled all but the last 2 holes on the top and bottom of the rib.

The two non-dimpled holes are not shown here. I'll have to get the countersunk steel plate out to get those.

Next, I clecoed the counterbalance skin on the right elevator skin and marked with a permanent marker where I wanted to scuff and prime. Some of the edges here have to be broken to make the skins seam from spar to coutnerbalance skin a little smoother. More in a later post.

Above this line, the right elevator skin overlaps, and will need a coat of primer.

Then, out with the trusty blue tape.

Taped and ready for scuffing.

Then, I pulled out my #8 dimple dies (don’t have #10 dies, which are the correct dies for a #12 hole and AN509 screw) and dimpled the counterbalance skin. The countersinks on the right are the correct size. I need to figure out how to dimple the skin on the left a little more.

After this shot was taken, I screwed the correct screws into the assembly and tried to tighten them down to dimple more, but I didn't want to strip anything, and it wasn't really going to work.

I’m going to research how people did this without #10 dies later.

No rivets set, but a good hour on the plane.
