RV-7 Specs

I’m still a little light here on content, but here’s the RV-7.

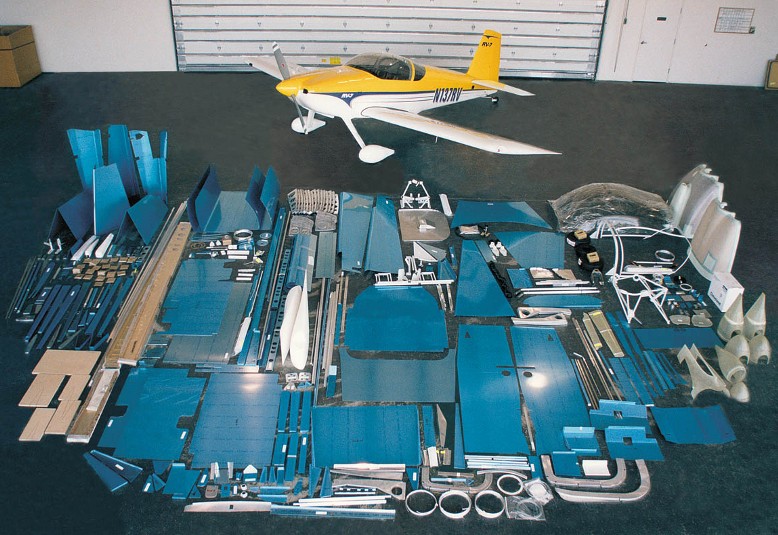

The RV-7 Standard Build Kit

The RV-7 Standard Build Kit

Also, some specs off of Van’s RV-7 page.

Specifications
Wingspan 25′ 0″
Length 20′ 4″
Height 5 ‘ 10″
Wing Area 120 sq ft
Engine IO-360
Gross Weight 1800 lb
Aerobatic Gross Weight 1600 lb
Wing Loading Solo (Gross) 11.7 (15.0) lb/sq. ft.
Power Loading Solo (Gross) 7.0 (9.0) lb/hp
Empty Weight 1114 lb
Propeller 3-Bladed Constant Speed
Fuel Capacity 42 gal
Baggage 100 lb
Performance
Horse Power 200 hp
Top Speed [gross weight] 216 mph
Cruise [gross, 75% @ 8000 ft] 206 mph
Cruise [gross, 55% @ 8000 ft] 186 mph
Stall Speed [gross] 58 mph
Takeoff Distance Solo (Gross) 250 ft (500 ft)
Landing Distance Solo (Gross) 350 ft (500 ft)
Rate of Climb Solo (Gross) 2550 fpm (1900 fpm)
Ceiling Solo (Gross) 25,500 ft (22,500 ft)
Range [75% 8000 ft] 785 sm
Range [55% 8000 ft] 870 sm
Airspeeds
VSO 58 mph
VS1 64 mph
VFE 100 mph
VNO 193 mph
VNE 230 mph
VA 134 mph
