Fixed Right Vent Clip Omission

June 11, 2011

Prev | Next

By the title, you can tell that I totally forgot the vent clip on the right tank’s fuel cap flange.

I spent a week preparing myself, reading everyone’s posts on VAF and their build logs, all of which said, “don’t forget the vent clip.”

Of course, I forgot the vent clip.

Before we get into the proseal again, I got a tool order in from the Yard.

Boelube, safety wire (0.032″), safety wire pliers, a few clecos, a new flush set, and a whole bunch of drill bits.

New toys!

Here’s my old flush set and the new one. I”m a little nervous to try it out, so I’ll probably do some practice rivets first.

It's much bigger, and has a nice rubber ring to it.

Okay, let’s get to fixing that forgotten vent clip.

Surprisingly, after a day or so, it was pretty easy to just pull off the proseal dab I had on the rivet.

The uncovered rivet is on the upper right.

Oh, someone mentioned on VAF that I shouldn’t use the blue stuff as electrical tape. I pulled off a few sections to see how it went, and I actually like the way it works. I’ll stick with the blue stuff.

Worked okay for me.

Okay, this paragraph represents the 3 times I had to drill out and reinstall the rivet.

Here’s the first try. When it set, it was a little proud, and I just couldn’t stand for that.

The rivet in question is the lower left one.

After trying two more times, I ended up with this one.

It’s pretty great, except for the fact that it’s differently colored. (I think that particular rivet came with the practice kit.

I can live with that (barely).

Here’s the vent clip side. After reading more, some people who forget this just leave it off, as the next inboard rib is so close.

I figured that Van put it there for a reason.

My clip is a little tall (which means it will be lower), but everyone just bends the very tip up anyway.

The rivet in question is the bottom one. If I still decide to polish the airplane, the rivets will all turn to the same polished color. I just need to remember to get rid of that tiny sliver of proseal sticking out from beneath the head.

Overall, today was a REALLY frustrating day. Didn’t set any new rivets, but drilled 3 times.

I guess I have to have days like this so that the other days can be good ones. Onwards and upwards.

Prev | Next

Advertisements

Paint Scheme Design

March 29, 2010

Prev | Next

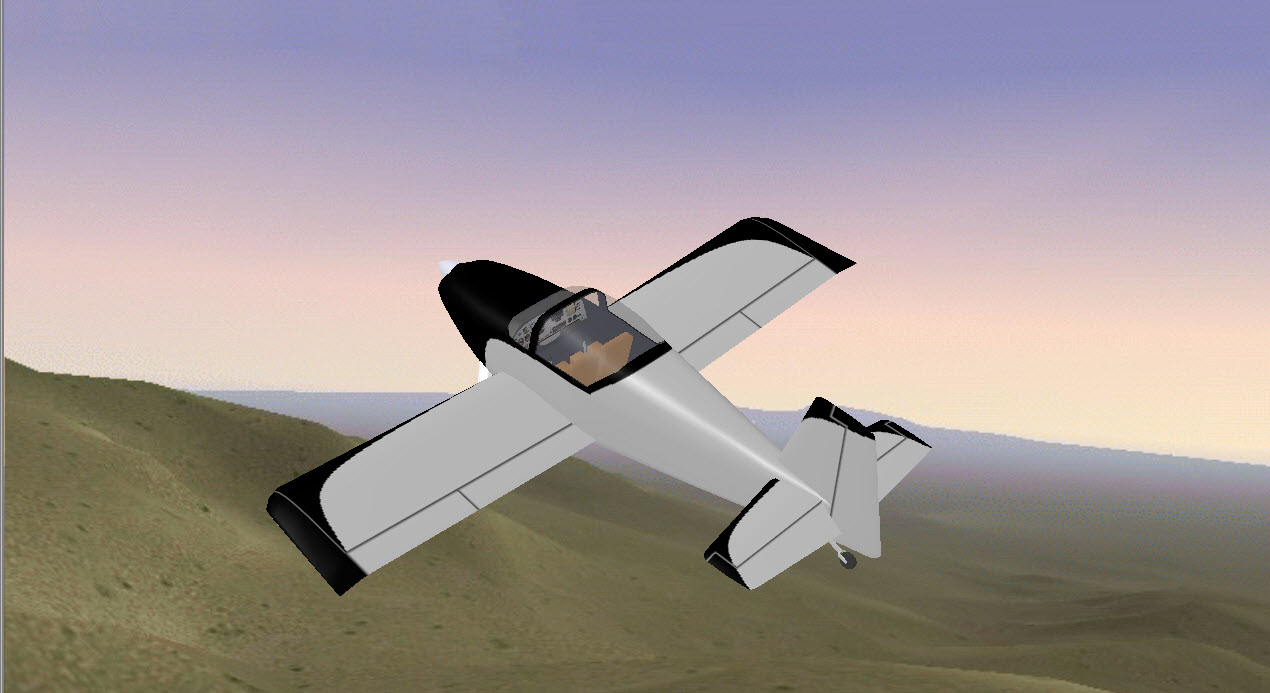

Well, I broke down and bought the RV-7 and RV-9 version of the Model Airplane Color Design program for $14.95. Well worth it, as I have been able to create these two pictures pretty quickly.

I’d like to polish (represented by the grey paint), but grey paint would also be okay.

Here, all of the fiberglass parts are painted, and most of the rest of the airplane is polished.

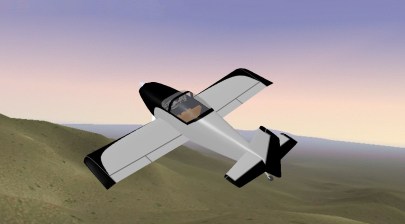

Or the other option, which looks cool, also…

Here, the empennage control surfaces are painted.

Which one do you like better?

Prev | Next


Now thinking paint instead of polish

January 4, 2010

PrevNext

While I was thinking of polishing for awhile, a recent trip to Key West now has me thinking paint is the way to go.

I was sitting in a window seat about halfway back on the east side of an Airbus A-320, which ended up being directly in the sun’s reflection from the polished leading edges. I decided to do a little experiment. I put on my sunglasses, and purposefully sat directly in the reflection for about an hour. I pretended I was looking for traffic close to the leading edge, and then got out a magazine (approach plate) and tried to read.

It was pretty brutal. At this point, I believe the cool factor of having a polished airplane is just about the same as the negative from the sun’s reflection.

Knowing I will go back and forth (many times) before I really need to decide, I think at this moment, I am back to painting, but with the same general theme I have been liking (see my previous ideas page for my last thoughts on this).

I’m going to repost some pictures of Tim Davidson’s RV-6 that I really like. Tim’s airplane is currently for sale on Barstormers, so I’m sure he won’t mind the additional traffic, but Tim, if you want, I’ll pull these down.

N65TD - Front left quartering

N65TD - Low Pass

N65TD - Right side

N65TD - Right rear quartering

N65TD - Beautiful in-air shot

I probably won’t do the checkerboard up front, but I definitely like this scheme. Looks fast.

Prev | Next


Saw RV-12 at EAA 1114

November 21, 2009

Prev | Next

A couple things for the last few weeks. Per my last post, I’ve been increasingly interested in polishing. I think it is a a great look. Even though it is a ton of work, and everyone will flock to the airplane with their dirty little fingers, I think it would be an amazing look for the RV-7.

Also, I’ve set a date for the ordering of the empennage kit. Dec 12, 2009. We’ll see how that goes, but everything seems to be falling in place.

Today, I managed to scoot over to Cary, NC and check out the east coast RV-12 demonstrator (the “blue ship”). Wow, it was beautiful. Mitch (Vans’ east coast representative) was a really nice guy, and explained a lot of things about the RV-12. A couple things of note:

  • 555 hours from first kit to first flight
  • 65 hours for both wings to be completed.
  • “100 or so” holes to be drilled (almost all match-drilled)
  • Most of the holes on the kit are prepunched to final size (no drilling, deburring, dimpling)

Prev | Next


More dreaming of paint schemes

October 30, 2009

Prev | Next

Well, I haven’t posted in a week or two, because I am waiting for my airplane piggy bank to grow enough to buy an empennage kit. In the mean time, I have been practicing drilling out rivets on the practice kit and dreaming of some more paint schemes. Here are some of my current thoughts about what I would like to end up with. If any of these are your pictures and you would like credit (or for me to take them down), please let me know, and I will kindly oblige. Otherwise, take the compliment.

At this point, I am contemplating doing a little polishing on my airplane. have to paint all the fiberglass, though, so maybe black would look good…

Looks like this first airplane is owned by William R Cloughley. Well done, Mr. Cloughley.

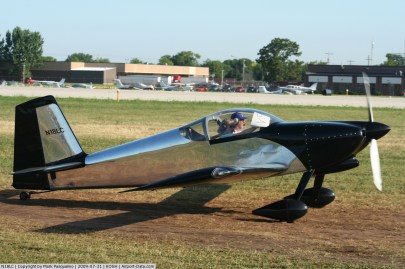

Paintschemeideas (11)

N18LC - Right

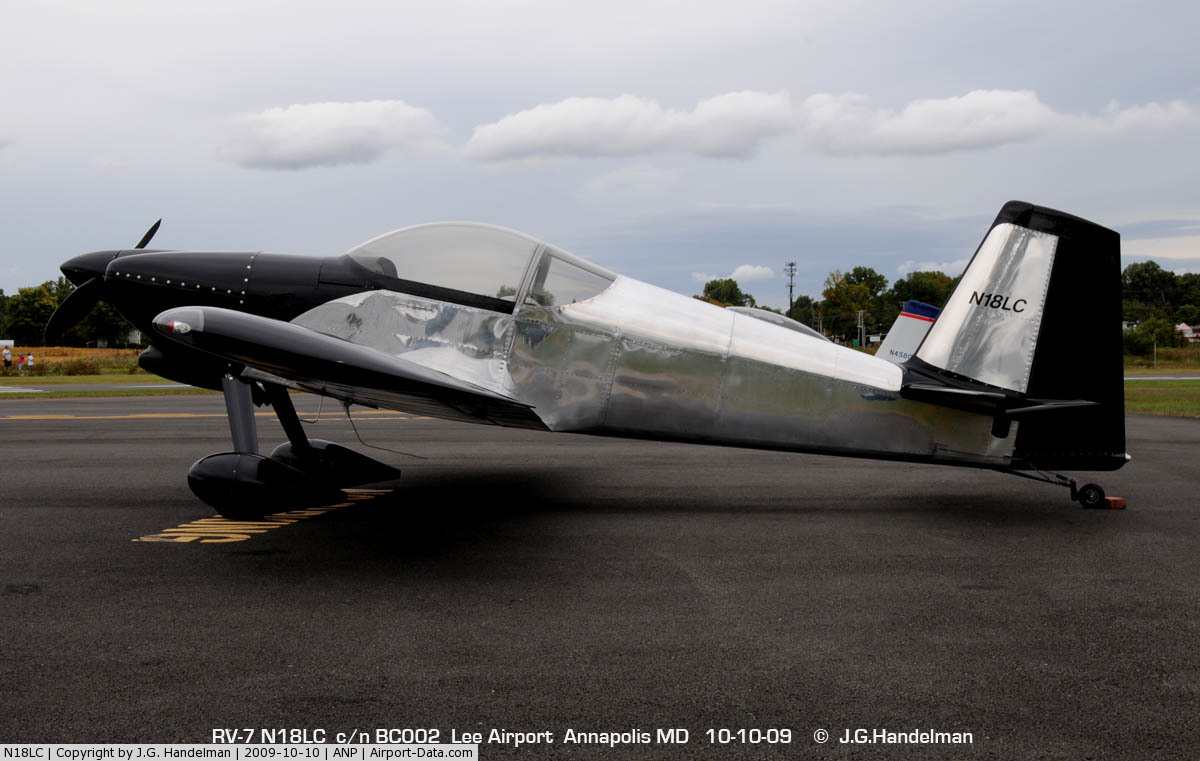

Paintschemeideas (1)

N18LC - Left Side

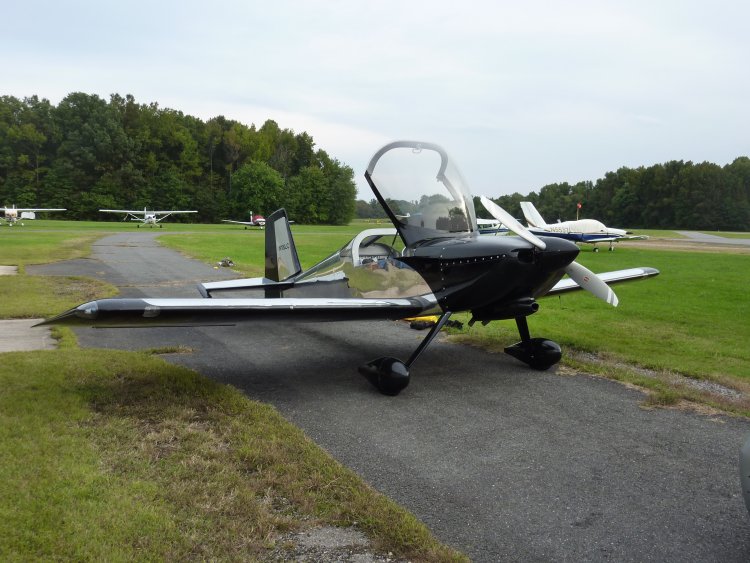

Paintschemeideas (6)

N18LC - Parked

Paintschemeideas (10)

N18LC - Right Rear Quartering

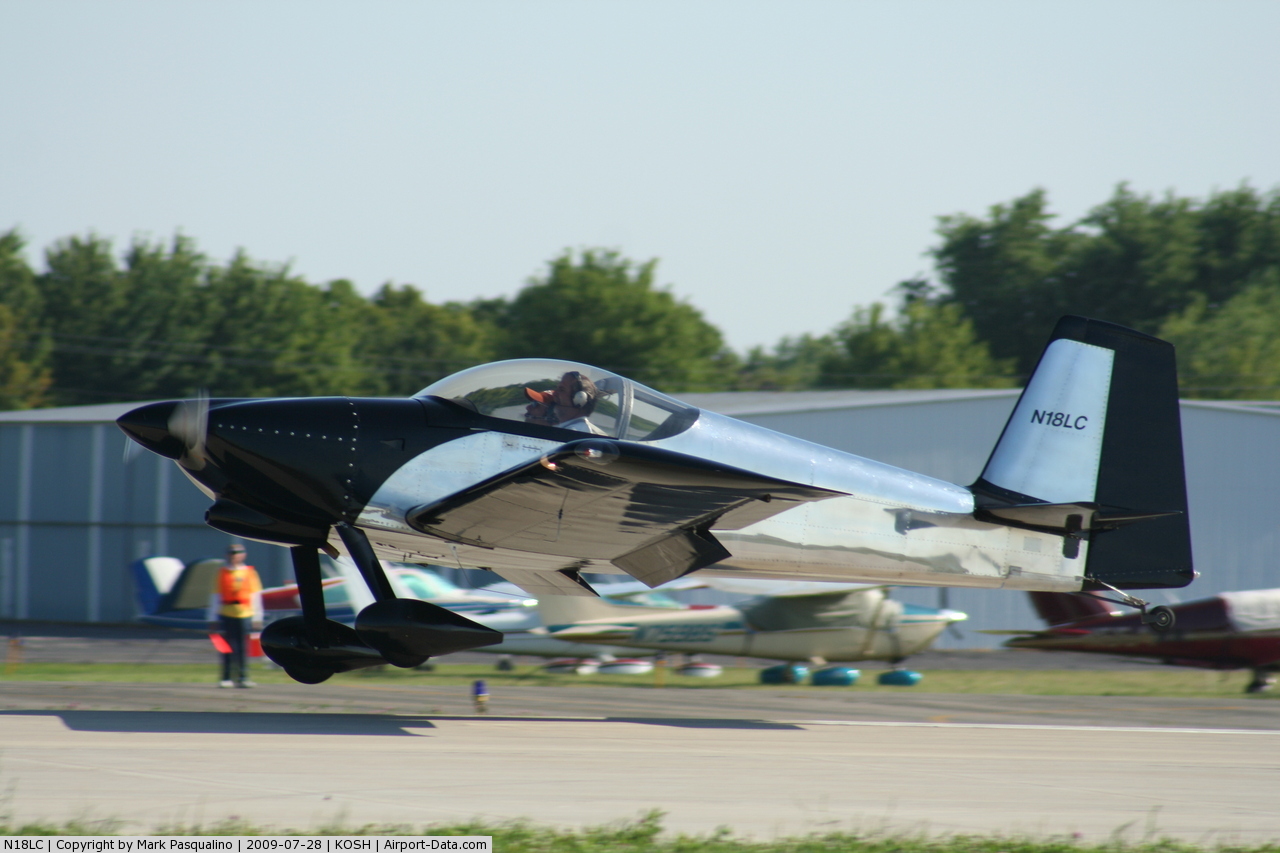

Paintschemeideas (9)

N18LC - From Left, during the flare.

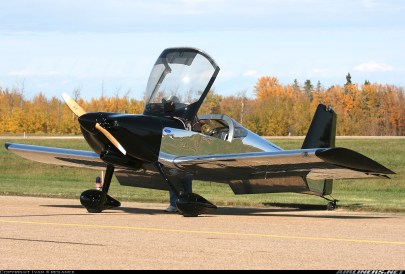

Paintschemeideas (2)

Different airplane, but the same idea.

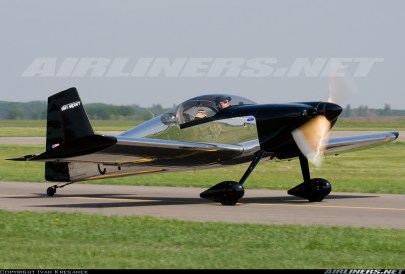

Paintschemeideas (3)

Right front quartering.

This next airplane has the same general paint scheme, but is black and silver paint, with some subtle details (I actually like the checkerboard througout and the stripes on the rudder, but that may be a little complicated for me.)

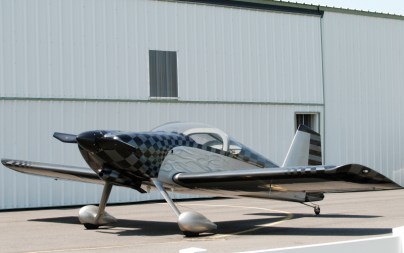

Paintschemeideas (7)

N65TD - Left Front Quartering.

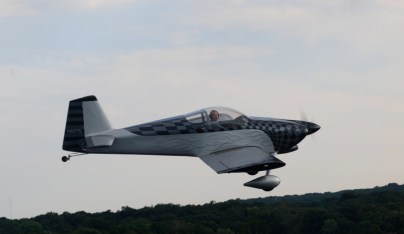

Paintschemeideas (8)

N65TD - Right side

Paintschemeideas (5)

N65TD - Low Pass

Click here to go to my older ideas page.

Click here to go to my newer ideas page.

For posterity, I got this email through VAF, I want to keep it just in case:

I was concerned about my ability to spray the silver metallic initially. Turned out to be dead easy once I found the right combination of gun pressure and distance from the surface.

The silver is PPG DBC in GM’s machine silver (a vette color from recent years).
Clear is PPG 2002.

I just could not bare to paint it gray (Yuch!)
The silver absolutely glows in the sunlight.
As far as touch up. We’ll see. Hopefully there won’t be much need.
