Skin Dimpling, Edge Finishing, Priming, Riveting

January 30, 2010

Prev | Next

I worked in sections today.

There was a big storm here last night, (and all of today), but I’ve learned that cleaning off the driveway is a lot easier if you do it when it is 3″ two times instead of once after 6″ has accumulated. Here’s what I woke up to this morning.

Snow!

Here’s after about an hour of shoveling. Good workout.

Coming down fast, but at least I cleared off the first 6".

Then, I got the c-frame out and finished the VS skin dimpling. I replaced the blue tape on the male die, and got almost no circles.

Simple but effective dimpling setup.

Then I countersunk all of the lower forward spar reinforcement holes from the plans. I haven’t used the countersink since I had to countersink HS-710 and HS-714 to accept a #30 dimple, so the countersink cage was already set up. All I had to do was verify in a piece of scrap. Yup. It’s perfect.

Beautiful countersinking.

Then, I cleaned and primed one interior side of the vertical skin, then the other. Here’s the first side drying.

Hurry up and wait to dry.

After finishing the second side and letting it dry, I pulled the forward section of vinyl off of the interior side of the skin. During assembly, no bucking bars will be needed in there, so there is no risk of scratching. Then I finished edge finishing the ribs, spars, and rear spar reinforcement, and primed each one. I didn’t prime them sitting perfectly horizontal, so I got some runs and some nastiness; some of them ended up getting touched up, and some got a second coat.  After they were all dry, I cleco those bad boys together in preparation for riveting.

Skeleton and rear spar taking shape.

I started with the skeleton, middle rib. Here’s my first VS rivet.

First VS rivet.

Then, I moved to the tip. See the upper rivet? The skins are sitting flush, this will have to be drilled out.

Ahhh! I suck at riveting.

And the lower rivet there started to bend over. I’ll have to drill out both rivets.

Two rivets to be drilled out.

Back to the middle rib, two more perfect rivets.

There are pretty good. I need to make sure that bottom one is driven enough.

See the fourth rivet from the right? Started to bend over, so I’m going to drill it out. Also, I’m going to put the shop heads on the thicker material here, also, they’ll be easier to inspect.

Uh oh. See the third rivet from the right? I was supposed to wait and rivet this with the skeleton. Slow down and follow the directions!

Two more rivets to be drilled out.

But I was feeling good about squeezing, so I kept going. Until these 4 rivets. Terrible…they all started to bend over. I think my rivet squeezer sucks. I have to squeeze really hard and it it tough to keep everything aligned. I think after I drill these out I am going to shoot and buck these.

4 bad rivets to be drilled out.

At this point, I had to walk away, I was tired, frustrated, and not making any progress. Ugh.

So far, 3.5 hours. I set some rivets today, but I’m not going to count any of them until I drill them out. I’ll update the rivet count later.

Prev | Next

Leave a Comment » | Empennage | Tagged: , , , , , , , , , , , , | Permalink
Posted by Andrew

VS skin Deburring and Dimpling

January 29, 2010

Prev | Next

Today, I didn’t make it outside until late, so I didn’t get a lot of work done. Here’s me starting on deburring the skin. Yes, I am using the Van’s recommended “spin a drill bit in your fingers” method. It works for me.

Action shot of me deburring.

An example of a deburred hole. The hole on the right is deburred. There is a very small chamfer on it from the oversized drill bit. It’s easier to see because it’s catching the light from above.

Deburred hole there on the right.

After deburring, I scuffed up the interior of the skin with a maroon scotchbrite pad.

Scuffed, ready to dimple.

Because it was so late, I didn’t want to break out the c-frame. I grabbed the hand squeezer and finished what I could reach.

These are regular (not "tank") dimples. No circles when you use the blue tape trick.

And here’s the vertical stabilizer skin, deburred and dimpled around the perimeter. When sound level permits, I’ll get the c-frame out and dimple the remaining holes.

Almost done with the skin.

I counted 104 holes per side for deburring. That’s 208 holes, 416 deburring operations needed. I usually spin the bit 4 times, which makes 1664 spins of the drill bit. Oww…

1.0 hour closer to being done.

Prev | Next

Leave a Comment » | Empennage | Tagged: , , , , , , , | Permalink
Posted by Andrew

More VS work

January 26, 2010

Prev | Next

Last night I spent a little bit of time rearrange (cleaning) out the workshop. Now, I’ve got a little more room to maneuver. (Mostly, I just moved my second workbench a little left, and moved the shop vac over by the compressor, now the walkway to get into my workshop area is a little more open.)


Slightly different layout for the workshop. I like this.

Tonight, I started by disassembling the vertical to start the deburring, dimpling, countersinking, cleaning, priming, and then reassembly dance. Here I am set up in front of the UNC game for some deburring.

Ready to deburr some holes. Don't judge me for drinking white. We had red snapper for dinner.

After what seemed like a thousand holes to deburr, I broke out the 3/32″ tank dimple dies and the 1/8″ regular dimple dies (for the rear spar) and got ready to dimple. Dimpling is much easier than deburring, and fun, too. I know deburring is important, but I feel like I’ve made progress after dimpling.

Ready to dimple.

Then, I started dimpling the ribs and spars. Here are the 3/32″ tank dies in action.

3/32" tank dies in action.

Here I am using the 1/8″ regular (shallower) dimple dies on the rear spar. I had to triple check both the holes and the direction before proceeding. This is correct, I think. (Flush rivets on the forward side of the spar.)

1/8" dimples on the rear spar. These are my first 1/8" dimples.

After finishing dimpling, I grabbed the skin and brought it inside to devinyl. Devinyling is a lot easier indoors, where the vinyl is room temperature. I tried pulling off the horizontal stabilizer vinyl in the garage when it was near freezing, and it kept tearing and was very stiff.

Waiting for the soldering iron to heat up.

After using the soldering iron and a wooden straight edge (the metal straight edge carries heat away too quickly, and you don’t get a melt line), I got to pull off the vinyl. For some odd reason, I find devinyling very cathartic. I love pulling off the blue to see the shiny aluminum underneath.

Pulling off the vinyl on the inside of the skin.

Ready to pull off the blue vinyl on the exterior of the skin.

Ready to devinyl the outside of the skin.

And finally, the vertical stabilizer skin devinyled (and everything carried back out into the garage).

Pretty skin. Also, that's me in the reflection.

Here are the ribs and spars all deburred and dimpled. (I still have to countersink the front side of the VS-803PP.)

Ribs and spars deburred and dimpled.

Next up, countersinking the rear spar reinforcement then deburring, dimpling, and scuffing the skin. Then priming, then I get to put this sucker together.

I can’t believe how much faster the vertical is than the horizontal. Part of it is the learning curve, but I think they should have you start with the vertical. Much easier, in my opinion.

Prev | Next

Leave a Comment » | Empennage | Tagged: , , , , , , , , , , , | Permalink
Posted by Andrew

Right HS – Primed skeleton, Dimpled skin

January 14, 2010

Prev | Next

Today, I used my lunch hour to swing by NAPA to pick up some more self-etching primer and then get a few minutes of work done before playing with the puppies. Jack and Ginger love it when they get to go outside and play during the middle of the day.

Anyway, I finished edge-prepping, cleaning, and drying the right HS ribs and front spar before priming them.

Then, I broke out the c-frame and finished dimpling the right HS skin. This time, I put a piece of blue painter’s tape (sticky side toward the male (exterior side of the skin) dimple die) between the dies and squeezed them together. I figured this layer of tape would help prevent some of the circles I am getting during dimpling.

3/32" Dimple Dies covered in blue tape.

The resulting dimples don’t have as much of a circle around them, and the dimples are just as deep. I wish I had known that the first time around. I’m not very happy that my right HS is going to end up looking a lot nicer than the left.

It was a little short of an hour today, but I ran a little long yesterday, so I’ll log an hour.

Prev | Next

Leave a Comment » | Empennage | Tagged: , , , , , , , , , , , , , , | Permalink
Posted by Andrew

Squeezed more left HS Rivets

January 11, 2010

Prev | Next

I got some rivets squeezed tonight, which means it was a good day. All of the rivets tonight were either HS-601PP (skin) to HS-706 (tip rib) or HS-601PP (skin) to HS-404/405 (inboard ribs). All squeezable.

The plans have you skip 5 rivets on the top only, but the clecos were doing such a good job of holding the skin off of the table, I decided to skip those rivets on the bottom, too. Also, I only squeezed every other rivet on the tip until I can get the rear spar riveted in. Then, I’ll finish the whole thing off.

On the top of the skin, Van's has you leave the rearmost HS-405 hole open, then every fourth rivet forward of that. Here are my first three squeezed AN426AD3- rivets on the project.

Then I got up to the HS-601PP (skin) to HS-702 (front spar) to HS-405 (aft inboard rib) hole. You can see that the longer rivet they call out (AN426AD3-4, instead of -3.5) isn’t long enough.

Bad picture, but the rivet at the top of the picture is not going to be long enough to form a good shop head.

So, I replaced it with an AN426AD3-4.5.

An unsqueezed AN426AD3-4.5. That looks like it will be long enough. It was.

Then, I spent a few minutes looking over my work from yesterday. It generally looks pretty good, but I must have been distracted during these three or four rivets (at least they are on the bottom of the skin). Not a big deal, but when you look at it in the right light, you can see some small dings.

A couple small smilies and dings. These make me want a swivel flush set. Hmm. It looks like I didn't keep the rivet gun straight. Bummer.

From today, two of the rivets I squeezed didn’t sit correctly in the dimple. They are probably just fine, but I’m going to replace them. (I know, I know, they will be under the empennage fairing, but still, I want them better than they are.)

Only two rivets to replace tomorrow. Better than yesterday's average.

30 quiet minutes today, after the girlfriend and puppies went to bed. I’m so sneaky.

38 rivets tonight, 2 I’ll have to drill out tomorrow, but don’t count against my batting average tonight.

Prev | Next

Leave a Comment » | Empennage | Tagged: , , , , , , , , , , , , | Permalink
Posted by Andrew

LH skin dimpling, some HS riveting

January 9, 2010

Prev | Next

This morning, I snuck out into the garage and starting dimpling the left hand HS skin with my new (borrowed) c-frame.

After thinking about the setup and trying a few things, I quickly realized I wanted the female dimple die underneath and the male dimple die on top.

I set up the skin on 3 2x4s (I haven’t built a dimpling table yet because I wanted to see how I liked doing it) which was less than a 1/4″ above the female dimple die. Then I basically moved the c-frame around until the male dimple die was lined up (this way I don’t scratch the skin with a male dimple die while trying to locate the hole from underneath, like some builders do). Then I held the male dimple die down into the hole and…WHACK! Perfect dimple. I am far happier with these dimples than the pop-rivet dies. Keep in mind here, I am dimpling with the standard spring-back dies here, not the tank (deeper) dies.

Here's my setup for now. I like this because you move the c-frame, not the skin.

After finishing each row, I put a line of blue painters tape on the outside of the skin. I learned on the practice kit to protect whatever I didn’t want to scratch. The tape will come off just before riveting.

Blue tape on the outside of the skins. Hooray protection!

After I finished both sides, I scuffed up the internal lines, cleaned, then primed the inside of the left HS skin.

Here's the inside of the left skin, all suffed up, ready to prime.

While I waited for skins to dry, I riveted together HS-705, HS-702, and HS-704, but only the middle two holes. The rivets didn’t bend over, per se, but set a little crooked. (My fault for not keeping the squeezer steady.) I drilled them out perfectly, and then decided shooting them might be a better idea. After practicing with a piece of scrap for a minute, I actually ended up shooting these rivets. They look really good.

Shop head picture. Rivets 7 and 8.

Machined head picture. This just looks good.

This is not the order the directions has you rivet, but I was getting antsy to get some primed pieces together. Notice I didn’t slide in the HS-710 and HS-714 yet (still need to finish those), as you can set HS-404 to HS-702 to HS-405 without them. Then, it is off to run some errands.

When we got home from running some errands, my latest Avery tool order had arrived. Finally, a scotchbrite wheel! 6″x1″x1/2″ CP-7AM “Cut and Polish” Medium wheel. Also, I’ve heard some good things about the Permagrit line of products, so I picked myself up one of the 12″(?) ones. Fine on one side, coarse on the other, flat (I heard not to get the curved (convex) one.. Much better for making a straight edge than my regular file.

More tools!

First thing after mounting the scotchbrite wheel, I finished the edges of HS-710 and HS-714 with the wheel. So easy. I should have ordered the wheel at the beginning. (Serves me right for trying to piece together a toolkit instead of buy one all at once. I thought the scotchbrite wheel was a luxury. It is not.) Then I countersunk the holes in HS-710 and HS-714. I had done this before, but sized the countersinks perfectly for a AN426AD4- rivet. When you cleco the dimpled HS-702 front spar to either piece, the spar doesn’t sit flush, so you have to enlarge the countersinks.)

Enlarge countersinks. Check.

Then I finished surface prep, cleaned, and primed those two.

While waiting for the primer to dry, I clecoed HS-707 (leading edge “middle” rib) and HS-706 (tip rib) to the left skin to get in the mood for riveting. The girlfriend and puppies are taking a nap, so I’ll have to come back to this later, but I’m getting excited to start skin riveting.

HS-707 and HS-706 all clecoed to the left skin and such.

Anyway, I put in a few minutes of right HS skin deburring, scuffing, and dimpling before coming in for the day. (Notice I decided to scuff the interior of the right skin before dimpling? It’s easier to scuff the skin without all of the dimples getting in the way. It’s these little things that will save me time the second time around.)

Let’s see. 9am to 11am, 2pm to 4pm. 4 hours today.

Prev | Next

Leave a Comment » | Empennage | Tagged: , , , , , , , , , , , , , , | Permalink
Posted by Andrew

Primed Front LH Spar, Devinyled RH Skin

January 6, 2010

Prev | Next

After getting home late from work and running back out for some takeout, I got in about an hour before heading to bed.

First, I finished cleaning up (scotchbrite, dawn detergent, and lacquer thinner) the left HS front spar in preparation for priming. I don’t love doing these one piece at a time, but the spray can makes it easy, and I can complete a few parts in an evening. I did the front spar so I can maybe start riveting stuff together this weekend. I still have some work to do on cleaning up the rear spars and rear spar reinforcement bars, but I could start with the skins and ribs, then finish the rear spar stuff once I have to plug it into the back of the completed HS.

Left front spar (HS-702) sitting next to the left ribs I finished the other day.

Then I devinyled the right HS skin, which went much faster than the left skin.

Right HS skin. Doesn't that look nice?

Here's the inside...

Also, a fellow RV (-8A) builder at work was kind enough to lend me his Avery C-frame. Maybe I’ll get a chance to do a little skin dimpling this weekend.

Borrowed c-frame. Wuhoo saving money!

Next up:

1) Finish dimpling left HS skin
2) Deburr right HS skin
3) Dimple right HS skin
4) Prep and prime inside of both skins
5) Finish prep for right HS ribs and front spar
6) Prime right HS Ribs and front spar
7) Prep and Prime rear spar components
8) Rivet HS together

Prev | Next

Leave a Comment » | Empennage | Tagged: , , , , , , , | Permalink
Posted by Andrew

More HS Priming, Dimpling

January 5, 2010

Prev | Next

I got in 30 minutes cleaning the remaining left HS ribs and getting a coat of self-etching primer on both sides. After looking at last night’s primed ribs, I am still very happy with the decision to use self-etching primer.

Here are all 5 ribs from the left HS.

I was going to put in an hour or two dimpling the left HS skin with the pop-rivet dimplers, but I broke another nail (I should point out this is a real nail, not my fingernail), and getting frustrated, started questioning using the pop-rivet dimplers for the skins. Then I decided to test out the dimples with an AN4263-3.5 rivet. Here is the result:

Spring back dimple die used on the upper left dimple. Pop-rivet dimple dies used on the bottom right dimple.

I am not very happy with the dimples from the pop-rivet dimples. I am going to put these back in the tool chest, and only use them in tight places. Tomorrow, I am going start asking around for a c-frame to use on the skins.

I also worked for 30 minutes on preliminary edge-prep for the VS ribs, but I’m going to log that under another post.

Prev | Next

Leave a Comment » | Empennage | Tagged: , , , , | Permalink
Posted by Andrew

Left skin work, primed two ribs

January 4, 2010

Prev | Next

“I need to get something other than deburring and dimpling tonight, so I think I will finish prepping the rear spars and rear spar reinforcement bars, prime, and maybe start riveting. We’ll see how it goes.”

That’s what I said to myself yesterday at about 2pm. Guess what I spent all night doing? Deburring and dimpling!

Here's my new skin deburring and dimpling station. Notice the glass of wine and the UNC game on the projector. Essentials for successful deburring/dimpling.

Then, I decided to finish prepping a few of the ribs. I’m going to prime a few components at a time while I am working on other stuff.

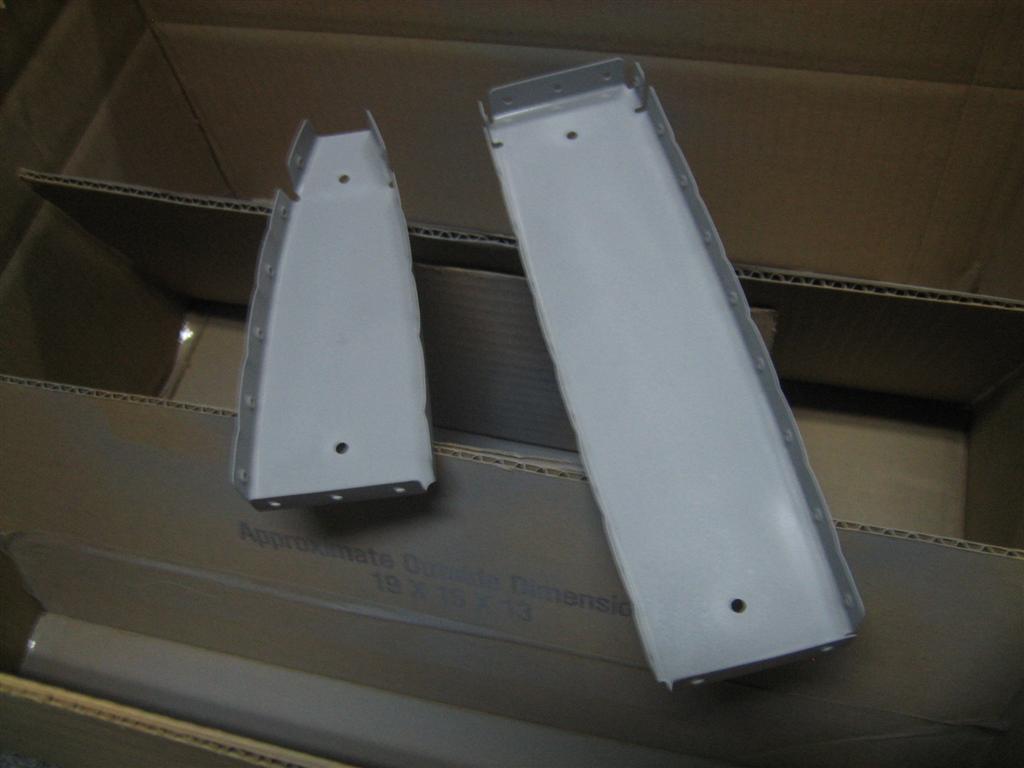

I believe this is HS-707 and HS-708.

2 of 10 HS ribs ready to go.

After deburring the left HS skin, I dimpled all the holes I could reach with my 3″ yoke, then broke out the pop-rivet dimple dies and started on the interior holes. I broke the nails used to squeeze the dies together on the first 3 holes consecutively, but then found a good sweet spot on the next two. Then it was time for bed. I don’t know whether I’ll continue with the pop-rivet dimple dies or opt for a c-frame. I think the c-frame is going to be loud, which means I can’t work late with it. Hmm.

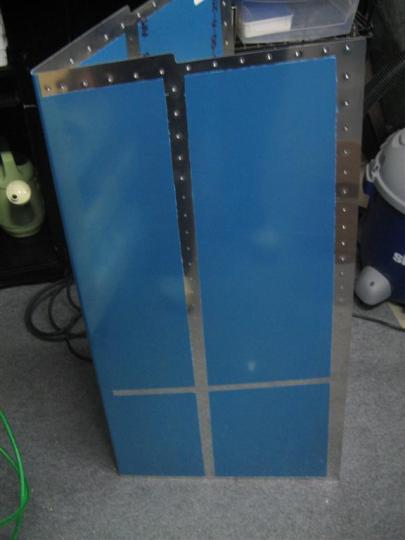

All of the edge holes dimpled, and the 5 top interior holes on one side dimpled. More tomorrow, I guess.

I think I put in about 2.5 hours today.

Prev | Next

Leave a Comment » | Empennage | Tagged: , , , | Permalink
Posted by Andrew

Deburr and Dimple HS skeleton

January 3, 2010

Prev | Next

Today was another short day.
I spent about 3.5 hours (here and there) deburring all of the holes in the HS skeleton and then dimpling any holes that needed it (skin to rib holes). I’m using Avery’s tank dimple dies for any dimples recieving other dimples (ribs only, which recieve the skin dimples) at the reccommendation of some other builders (namely Brad Oliver’s post). The resulting dimples look great so far. Sorry about the lack of pictures; edge finishing is not exciting.

These are just the right side HS ribs, but I did the left side, too. And all of the spars.

I also managed to edge and surface prep the left hand skeleton and one of the HS-609PPs.

Coming up next: more edge finishing and prep for priming, plus skin deburring and dimpling. I might finish up the left side stuff (since I can prime pretty quickly) and do a little riveting tonight. Or, wait and do the whole HS together. I haven’t decided yet. In the least, I need to clean up a little. There is aluminum everywhere.

Prev | Next

Leave a Comment » | Empennage | Tagged: , , , , , | Permalink
Posted by Andrew
